DOWNLIGHT ALU
DL ALU DN 200 35 W 4000 K IP44/IP20 WT
GTIN: 4058075091573
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- High luminous efficacy
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
- Very homogenous light
- Functional design
- Easy installation with fast connection
- External driver for extended flexibility (compatible with selected DALI drivers)
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features
- Diameter of required ceiling cut-out: 150 mm or 200 mm (depending on version)
- Type of protection: IP44
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 35.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 125 mA |
| Inrush current | 9 A |
| Max. number of luminaires per miniature circuit breaker B16 | 83 |
| Max. number of luminaires per miniature circuit breaker C10 | 64 |
| Max. number of luminaires per miniature circuit breaker C16 | 102 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 3150 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 100 ° |
Dimensions & Weight
| Diameter | 215.00 mm |
| Height | 61.00 mm |
| Product weight | 600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP44/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 200 mm |
| Mounting depth | 120 mm |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 750 mA |
| ECG - Output ripple current | < 35 % |
| ECG - Length | 138 mm |
| ECG - Width | 45 mm |
| ECG - Height | 28 mm |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | Not relevant |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075091573 | Folding box 1 |
225 mm x 225 mm x 110 mm | 775.00 g | 5.57 dm³ |
| 4058075091580 | Shipping box 8 |
462 mm x 462 mm x 240 mm | 6760.00 g | 51.23 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
EM CONVERSION BOX | 4058075237025 |
User instruction / safety instructions
UI Downlight ALU
UI Downlight ALU
On-Pack-Info
Legal Insert Downlight LED ALU+Comfort
Legal Insert Downlight LED ALU+Comfort
Legal information
LSI DL ALU
LSI DL ALU
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE-Certificate Downlight ALU TUV
CE-Certificate Downlight ALU TUV
Declarations of conformity
EU Declaration of Conformity DOWNLIGHT ALU LEDV
EU Declaration of Conformity DOWNLIGHT ALU LEDV
Product image: white background, diagonal
DL ALU DN200
DL ALU DN200
Product image: white background, horizontal
DL ALU DN200
DL ALU DN200
Product line drawing with letters
DL ALU DN200
DL ALU DN200
Product line drawing with numbers
DL ALU DN200
DL ALU DN200
Product line drawing, front, no dimensions
DL ALU DN200
DL ALU DN200
Combo Shot = Product Beauty Shot + Packaging Image
DL ALU DN200 35W-4000K WT IP44 LEDV
DL ALU DN200 35W-4000K WT IP44 LEDV

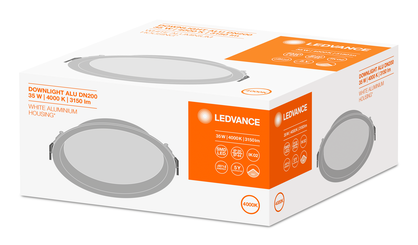

Packaging image, spacial
Downlight Alu DN200 white 35W 840 MiCh Side
Downlight Alu DN200 white 35W 840 MiCh Side
Catalog info 1
Downlight Alu
Downlight Alu
IES file (IES)
DL ALU DN200 35W 4000K WT IP44
DL ALU DN200 35W 4000K WT IP44
LDT file (Eulumdat)
DL ALU DN200 35W 4000K WT IP44
DL ALU DN200 35W 4000K WT IP44
ULD file (DIALux)
DOWNLIGHTALU20035W4000 KIP44WT
DOWNLIGHTALU20035W4000 KIP44WT
ROLF file (RELUX)
DL ALU DN200 35W-4000K
DL ALU DN200 35W-4000K
UGR file (UGR table)
DL ALU DN200 35W 4000K WT IP44
DL ALU DN200 35W 4000K WT IP44
Light distribution curve type cone
DL ALU DN200 35W 4000K WT IP44
DL ALU DN200 35W 4000K WT IP44
Light distribution curve type polar
DL ALU 35W4000K WT IP44
DL ALU 35W4000K WT IP44
BIM Revit 3D
Downlight ALU
Downlight ALU
CAD STEP 3D
DL ALU 25W 35W
DL ALU 25W 35W
Tender documents
DOWNLIGHT ALU 200 35 W 4000 K IP44IP20 WT-EN
DOWNLIGHT ALU 200 35 W 4000 K IP44IP20 WT-EN
Application pictures

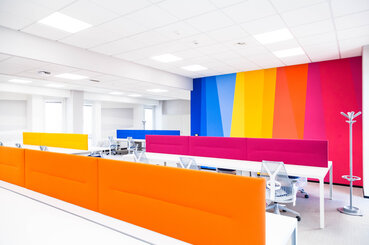

Uffici Azienda Team System Italy Project
Uffici Azienda Team System Italy Project
Application pictures

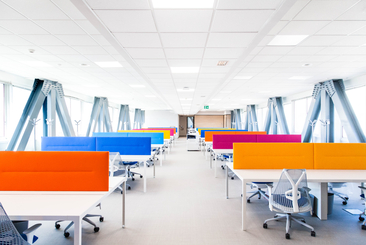

Uffici Azienda Team System Italy Project
Uffici Azienda Team System Italy Project
Application pictures

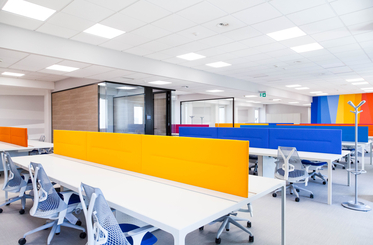

Uffici Azienda Team System Italy Project
Uffici Azienda Team System Italy Project
Application pictures
Tirol Kliniken 2019 27
Tirol Kliniken 2019 27
Application pictures
Tirol Kliniken 2019 29
Tirol Kliniken 2019 29
Application pictures
Tirol Kliniken 2019 6
Tirol Kliniken 2019 6
Application pictures
Tirol Kliniken 2019 24
Tirol Kliniken 2019 24
Application pictures
Tirol Kliniken 2019 19
Tirol Kliniken 2019 19
Application pictures
Tirol Kliniken 2019 21
Tirol Kliniken 2019 21
Application pictures
Tirol Kliniken 2019 20
Tirol Kliniken 2019 20
Application pictures
Tirol Kliniken 2019 22
Tirol Kliniken 2019 22
Application pictures

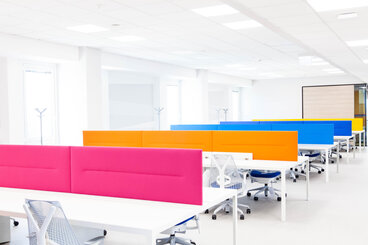

Uffici Azienda Team System Italy Project
