NEW
DAMP PROOF / BATTEN COMBO BATTERY
DP BATTEN CBO EL BAT 6.4V 1.8AH 2WH
GTIN: 4099854521515
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Suitable for DAMP PROOF / BATTEN COMBO
Product features
- Type of protection: IP20
- Battery technology: LiFePO4
- Ambient temperature in operation: 0…+40 °C
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal voltage | 6,4 V |
| Protection class | II |
Dimensions & Weight
| Length | 66.50 mm |
| Height | 20.00 mm |
| Width | 37.00 mm |
| Product weight | 87.4 g |
Materials & Colors
| Product color | White |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Dimmable | No |
| Replaceable light source | No |
Lifespan
| Number of switching cycles | 1500 |
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
Emergency lighting
| Type of emergency operation test | Automatic |
| Battery life in emergency operation mode | >3h |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
Additional product data
| Product remark | Available from May 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854521515 | Folding box 1 |
82 mm x 52 mm x 30 mm | 94.40 g | 0.13 dm³ |
| 4099854521522 | Shipping box 50 |
331 mm x 281 mm x 101 mm | 5122.00 g | 9.39 dm³ |
User instruction / safety instructions
DP BATTEN CBO EL
DP BATTEN CBO EL
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Legal Insert DP BATTEN CBO
Legal Insert DP BATTEN CBO
Declarations of conformity
DP BATTEN CBO EL
DP BATTEN CBO EL

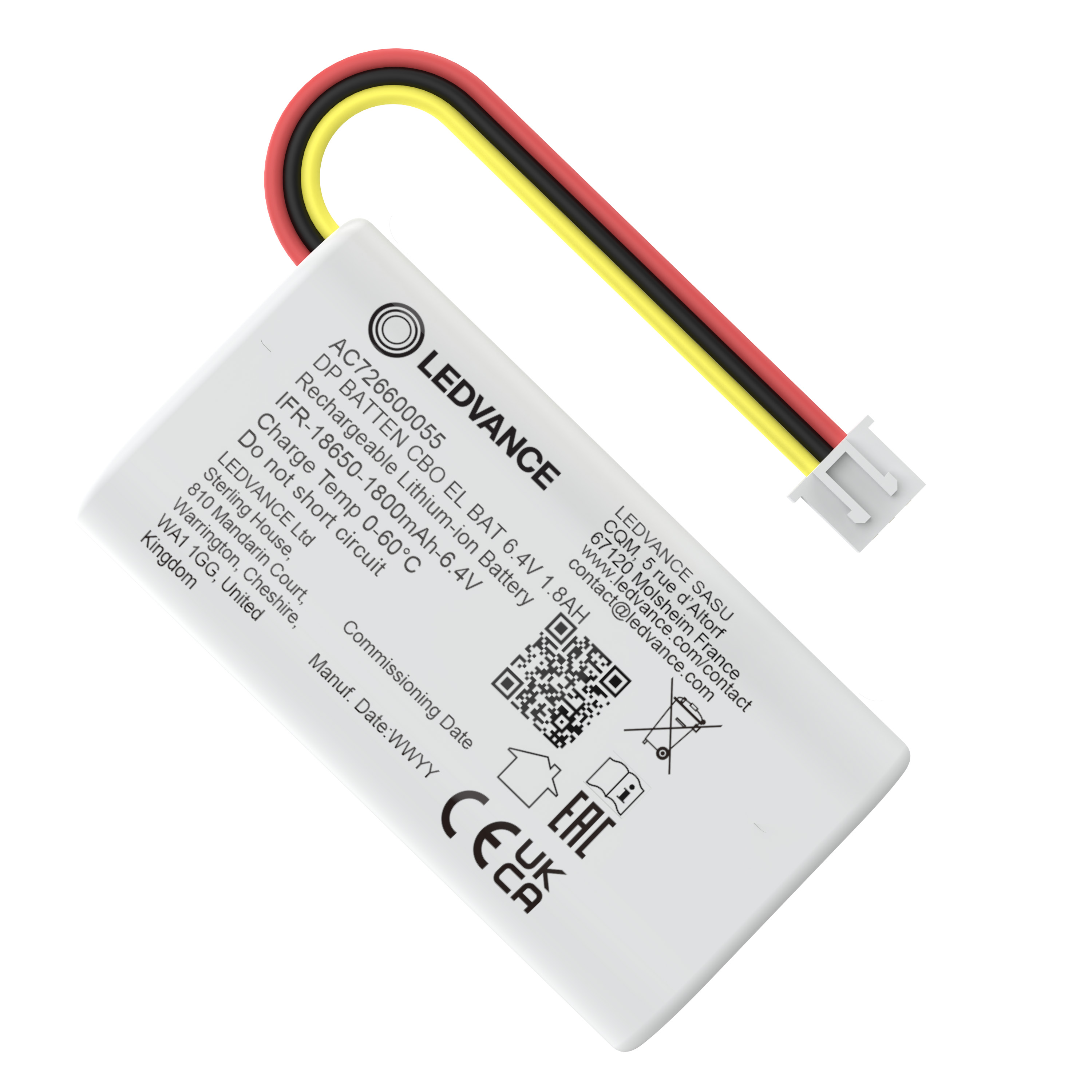

Product image: white background, diagonal
DP BATTEN CBO EL BAT 6.4V 1.8AH
DP BATTEN CBO EL BAT 6.4V 1.8AH

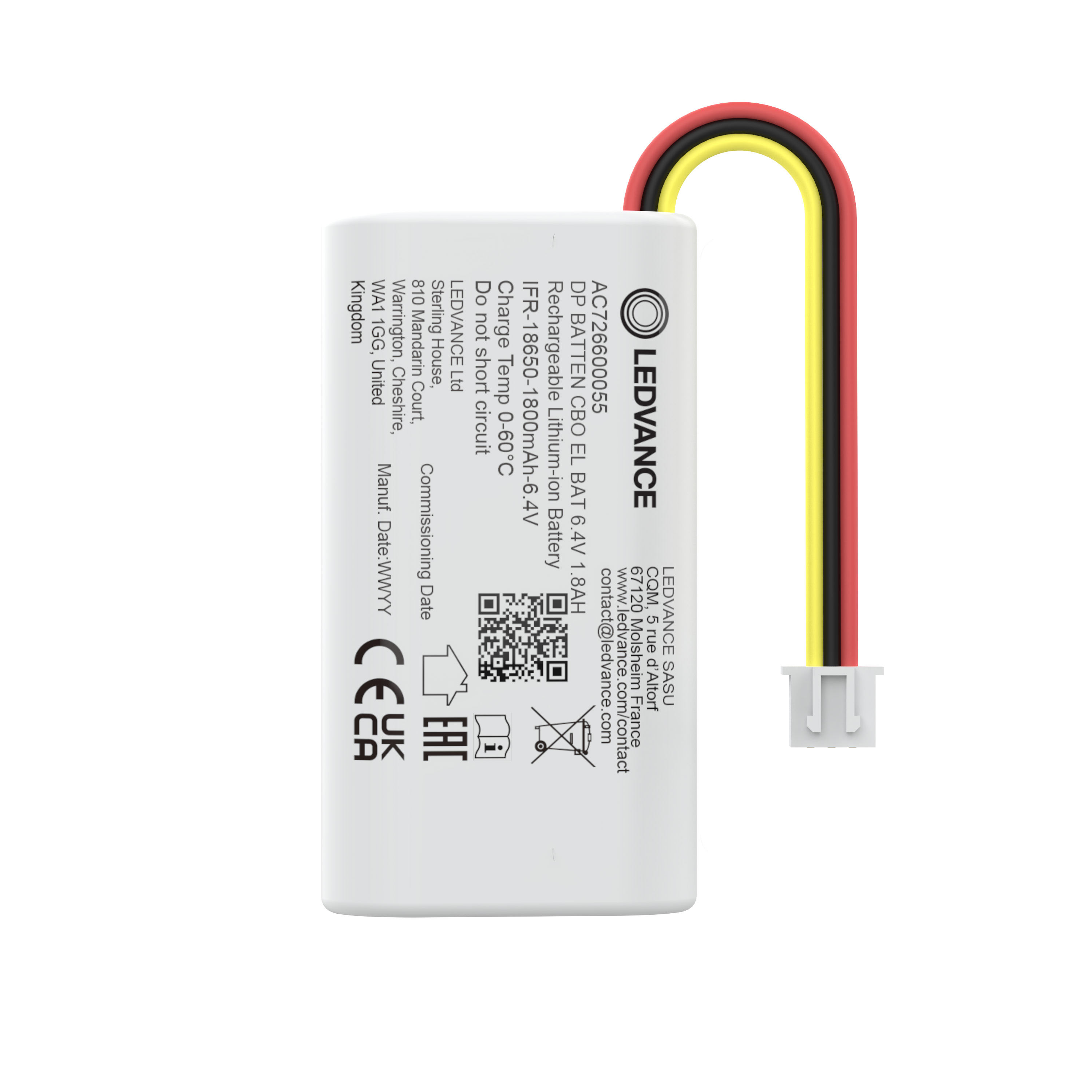

Product image: white background, upright
DP BATTEN CBO EL BAT 6.4V 1.8AH
DP BATTEN CBO EL BAT 6.4V 1.8AH
Product line drawing with letters
DP BATTEN CBO EL BAT 6.4V 1.8AH
DP BATTEN CBO EL BAT 6.4V 1.8AH
Product line drawing with numbers
DP BATTEN CBO EL BAT 6.4V 1.8AH
DP BATTEN CBO EL BAT 6.4V 1.8AH
Product line drawing - technical
DP BATTEN CBO EL BAT 6.4V 1.8AH
DP BATTEN CBO EL BAT 6.4V 1.8AH
| EAN | STK number |
|---|---|
| 4099854521515 | 4161135 |
