SENSOR DALI-2 LIGHT-PRESENCE-6 INFRARED CEILING INTEGRATION

SENSOR DALI-2 LIGHT/PRESENCE-6 INFRARED CEILING INTEGRATION

GTIN: 4058075837621 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Quick and easy installation using spring clips
  • Through-wiring using pre-assembled cable with WAGO connector
  • Integrated DALI bus power supply (no mains connection required)
  • Several sensors can be connected to a DALI line
  • Can be integrated into lighting and building management systems that support DALI-2 sensors
  • Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
  • Single rooms
  • Meeting, storage and break rooms
  • Sanitary areas
Product features
  • DALI-2 certified light and presence sensor for ceiling installation
  • Presence detection via passive IR element
  • Detection height up to 3,7 m
  • Function display with LED
  • Detection area up-to 6 m
References / Links
  • For current information see www.ledvance.com/light-management-systems
Electrical data
Nominal wattage 0.20 W
Nominal voltage 16 V
Type of current DC
Mains frequency 0 Hz
Dimensions & Weight
Length 83.00 mm
Width 83.00 mm
Height 32.00 mm
Diameter 83 mm
Cable cross-section, input side 0.2…1.3 mm²
Wire preparation length, input side 7…9 mm
Product weight 80.00 g
Colors & materials
Product color White
Temperatures & operating conditions
Ambient temperature range 0…+40 °C
Temperature range in operation 0…+40 °C
Capabilities
Dimmable No
Dimming interface DALI-2
Maximum installation height 3.7 m
Detection area 6 m
Max. presence detection area 6 m
Detection angle 360 °
Type of installation Ceiling integration
Operating range, light sensor 5…550 lx
Certificates & Standards
Approval marks – approval CE, UKCA, EAC
Protection class II
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075837621 Folding box
1		 45 mm x 86 mm x 100 mm 100.00 g 0.39 dm³
4058075837638 Shipping box
20		 245 mm x 192 mm x 225 mm 2274.00 g 10.58 dm³
User instruction / safety instructions
SENSOR DALI-2 LS-PD-6 IR CI
PDF (3.35 MB)
Legal information
Legal Insert DALI COMPONENTS
PDF (4.96 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
SENSOR DALI-2 LS-PD-4 IR CI
PDF (234.21 KB)

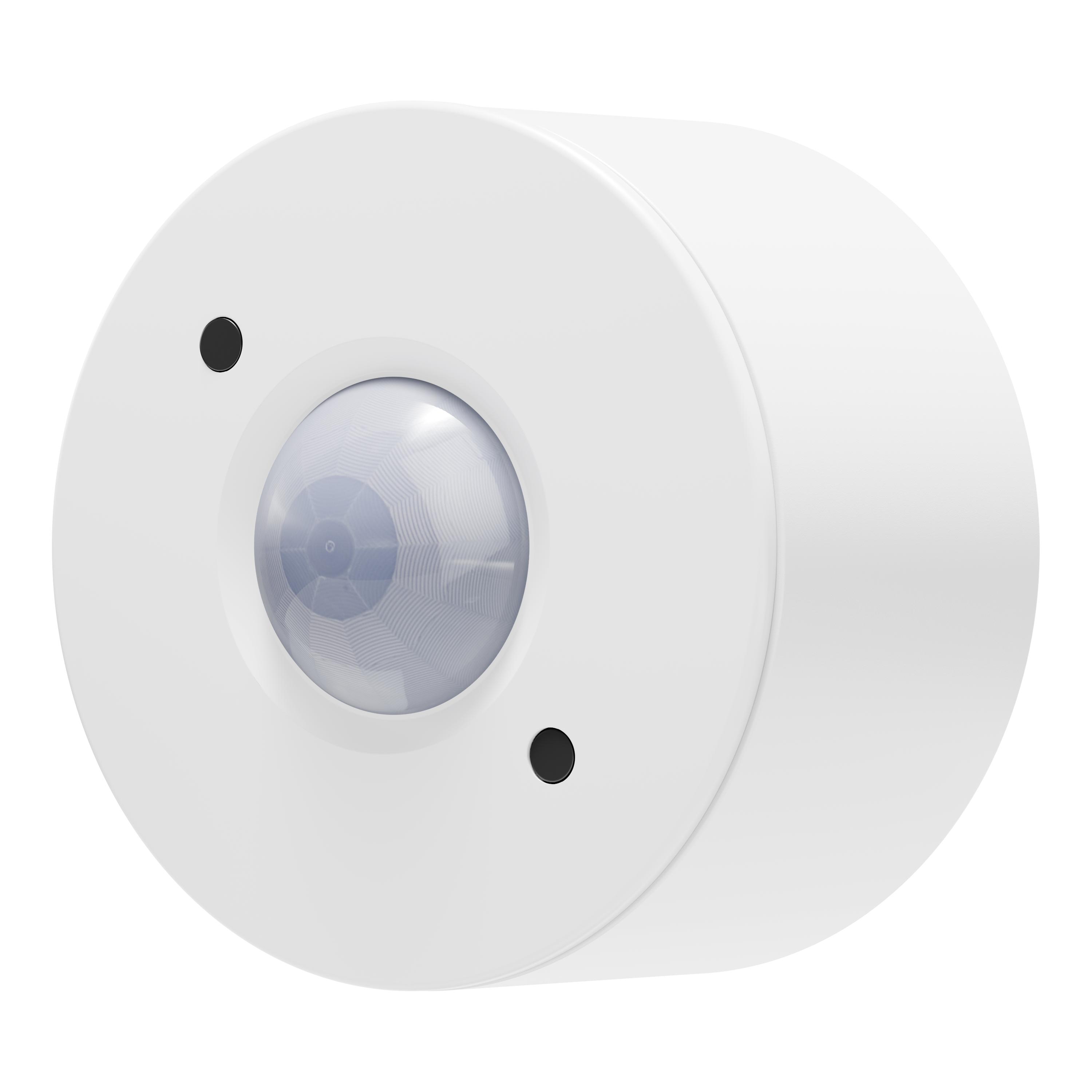

Product image: white background, spacial
