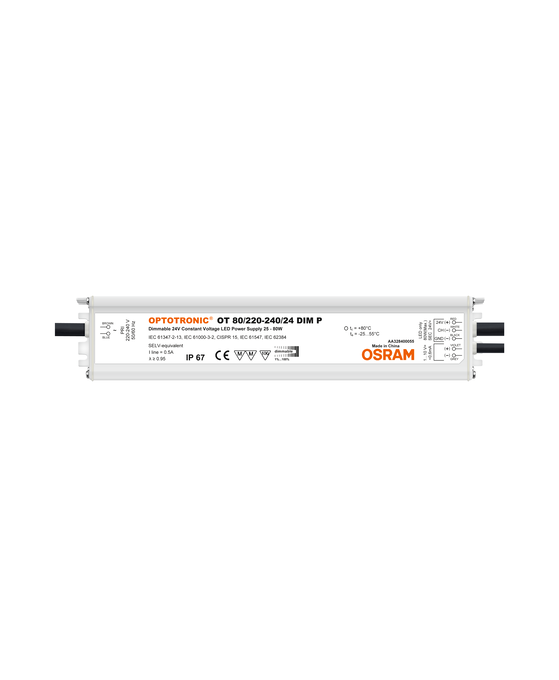

OT 80/220…240/24 DIM P

CV Power supplies 24 V with 1…10 V

GTIN: 4008321981677 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Versatile 1…10 V window driver up to 240 W due to flexible output characteristic
Very high efficiency and reliability
High IP protection (IP67)
High surge protection: up to 3 kV (L-N) / 6 kV (L/N-PE)

Areas of application

Suitable for use in tight, flat luminaires or installation in suspended ceilings
Suitable for indoor and outdoor SELV installations

Product features

Dimmable via fully isolated 1...10 V interface
Driver with output power range of up to 240 W

Electrical data

Nominal wattage	80.00 W
Nominal output power	80 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	24 V ²⁾
Input voltage AC	198…264 V ³⁾
U-OUT (working voltage)	24 V
Nominal current	0.4 A
Inrush current	35 A
Mains frequency	50/60 Hz
Total harmonic distortion	< 20 %
Power factor λ	0.90 ⁴⁾
ECG efficiency	87 % ⁵⁾
Device power loss	12 W ⁶⁾
Max. ECG no. on circuit breaker 10 A (B)	7
Max. ECG no. on circuit breaker 16 A (B)	10
Max. ECG no. on circuit breaker 25 A (B)	17
Surge capability (L-N)	3 kV
Galvanic isolation	SELV
Power loss in stand-by mode	< 1.5 W

¹⁾ Partial load 0…80 W
²⁾ +1.0/-0.5 V
³⁾ Permitted voltage range
⁴⁾ Minimum/Full load at 230 V/Half load at 230 V
⁵⁾ At full load and 230 V
⁶⁾ Maximum

Dimensions & Weight

Length	250.00 mm
Mounting hole spacing, length	241,0 mm
Width	50.00 mm
Height	34.00 mm
Cable cross-section, input side	1 mm² ¹⁾
Cable cross-section, output side	1.5 mm² ¹⁾
Wire preparation length, input side	10…11 mm
Wire preparation length, output side	10…11 mm
Product weight	900.00 g

¹⁾ Flexible

Colors & materials

Casing material	Metal
Body material	Metal

Temperatures & operating conditions

Ambient temperature range	-25…+55 °C
Maximum temperature at tc test point	80 °C ¹⁾
Max.housing temperature in case of fault	100 °C
Permitted rel. humidity during operation	5…85 % ²⁾

¹⁾ Maximum at the Tc-point
²⁾ Non-condensing

Lifespan

ECG lifetime

50000 h ¹⁾

¹⁾ At T_case = 70°C at T_c point / 10% failure rate

Additional product data

Encapsulated

Capabilities

Dimmable	Yes
Dimming interface	1…10 V ¹⁾
Dimming range	3…100 %
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	10 m
Suitable for fixtures with prot. class	II
Type of connection, output side	Wires

¹⁾ Do not switch off by 1…10 V interface to avoid infringing the ErP regulations

Certificates & Standards

Approval marks – approval	CE, CB, RCM, EAC, ENEC 18, BIS
Standards	Acc. to IEC 61347-1, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to CISPR 15, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 61547
Protection class	II
Type of protection	IP67

LOGISTICAL DATA

Temperature range at storage

-40…85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
