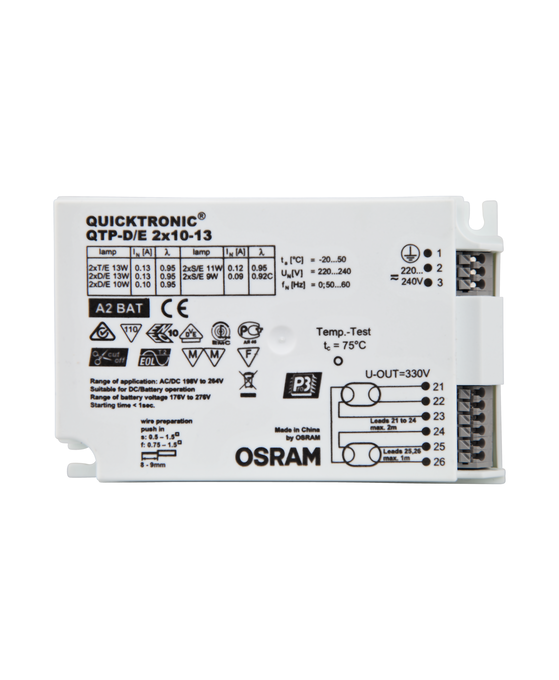

QTP-D/E 2X10…13

GTIN: 4008321181596 Unpacked / 1 Show all packages

Contact sales

Nominal wattage	28.00 W
Nominal voltage	220…240 V
Nominal output voltage	330 V
Input voltage AC	198…264 V
Input voltage DC	176…276 V ¹⁾
U-OUT (working voltage)	330 V
Inrush current	20 A
Mains frequency	50/60 Hz ²⁾
Max. ECG no. on circuit breaker 10 A (B)	16 ³⁾
Max. ECG no. on circuit breaker 16 A (B)	28 ³⁾
Operating frequency	44 kHz

¹⁾ Minimum voltage for lamp ignition: 198 V
²⁾ Approximately
³⁾ Type B

Starting time [PIM]

1 s

Length	123.00 mm
Mounting hole spacing, length	111,0 mm
Width	79.00 mm
Height	33.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Product weight	190.00 g

Casing material	Plastic
Body material	Plastic

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

50000 h ¹⁾

¹⁾ At T_case = 75°C at T_c point / 10% failure rate

Product remark

Optional cable clamp, see chapter ECG mountings - cable clamp

Dimmable	No
Max. cable length to lamp/LED module	2.0 m / 1.0 m
Suitable for fixtures with prot. class	I, II
End of lamp life safety shutdown	EOL T.2

Approval marks – approval	VDE, VDE-EMC, ENEC 10, GOST, RCM
Standards	Acc. to EN 61347-2-3, Acc. to EN 60929, Acc. to EN 55015:2006 + A1:2007, Acc. to EN 61000-3-2, Acc. to EN 61547
Protection class	I/II
Type of protection	IP20
Energy efficiency class	A2
EEI – Energy Label	A2

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
