SMART+ TABLE FRAME MULTICOLOR

SMART+ Wifi Frame Table Powerbank USB RGB + W

GTIN: 4058075564466 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Colorful garden lighting with smart and intelligent control options
  • USB chargeable for mobile use (cable included, fully charged in 6h)
  • Integrated Powerbank
Areas of application
  • Gardens
  • Patios, balconies
  • General illumination
Product features
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Color temperature: 3,000 K (Warm White)
  • Network protocol: WiFi
  • Type of protection: IP44
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 5.00 W
Nominal voltage 5 V
Mains frequency 50…60 Hz
Nominal current 1000.000 mA
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 270 lm
Total luminous flux of contained light sources 310 lm
Luminous efficacy 80 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) ≤1 %
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Dimensions & Weight
Length 120.00 mm
Height 203.00 mm
Width 120.00 mm
Product weight 701.00 g
Materials & Colors
Product color Dark gray
Housing color Dark gray
Body material Aluminum
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+60 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Mounting location Table
Application environment Outdoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 12500
BATTERY
Type of Battery Lithium ion
Battery size [GMS] 18650
Number of included batteries 1
Nominal voltage of battery 3.7 V
Nominal capacity of battery 5200 mAh
Battery charging time 5 h
Emergency lighting
Integrated test switch No
Certificates & Standards
Standards CE, UKCA
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075564466 Folding box
1
127 mm x 127 mm x 211 mm 911.00 g 3.40 dm³
4058075564473 Shipping box
4
270 mm x 270 mm x 240 mm 4049.00 g 17.50 dm³
User instruction / safety instructions
SMART TABLEFRAME
Legal information
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Declarations of conformity
EC_SMART OUTD WIFI TABLEFRAME USB RGBW

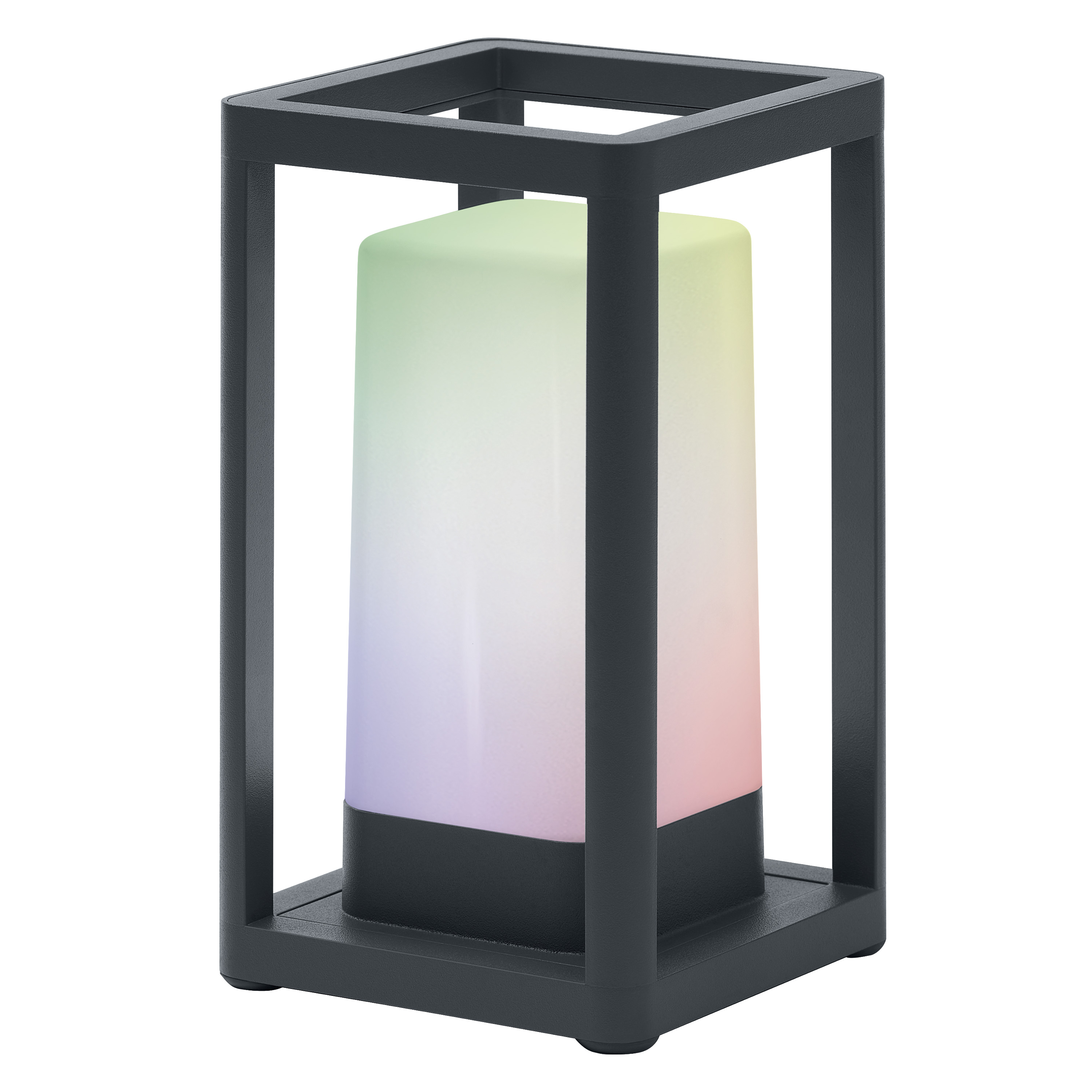

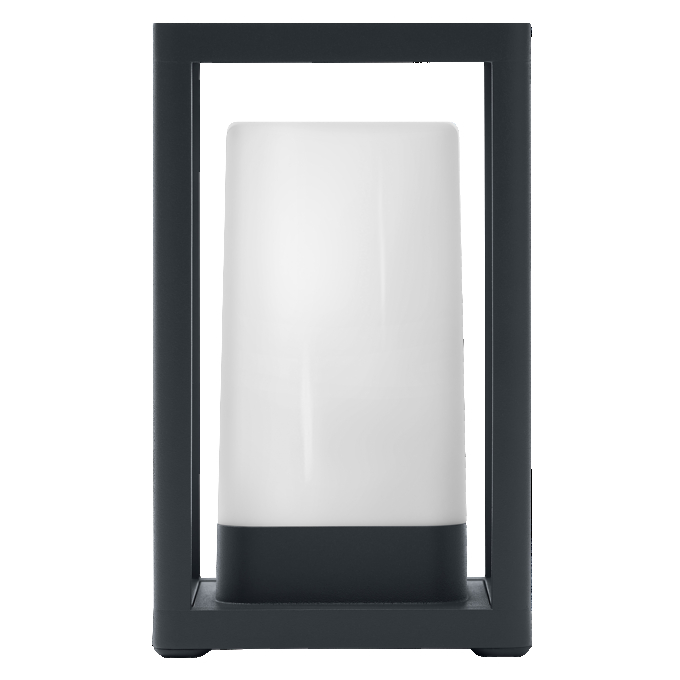

Product image: white background, upright
SMART OUTD WIFI TABLEFRAME USB RGBW

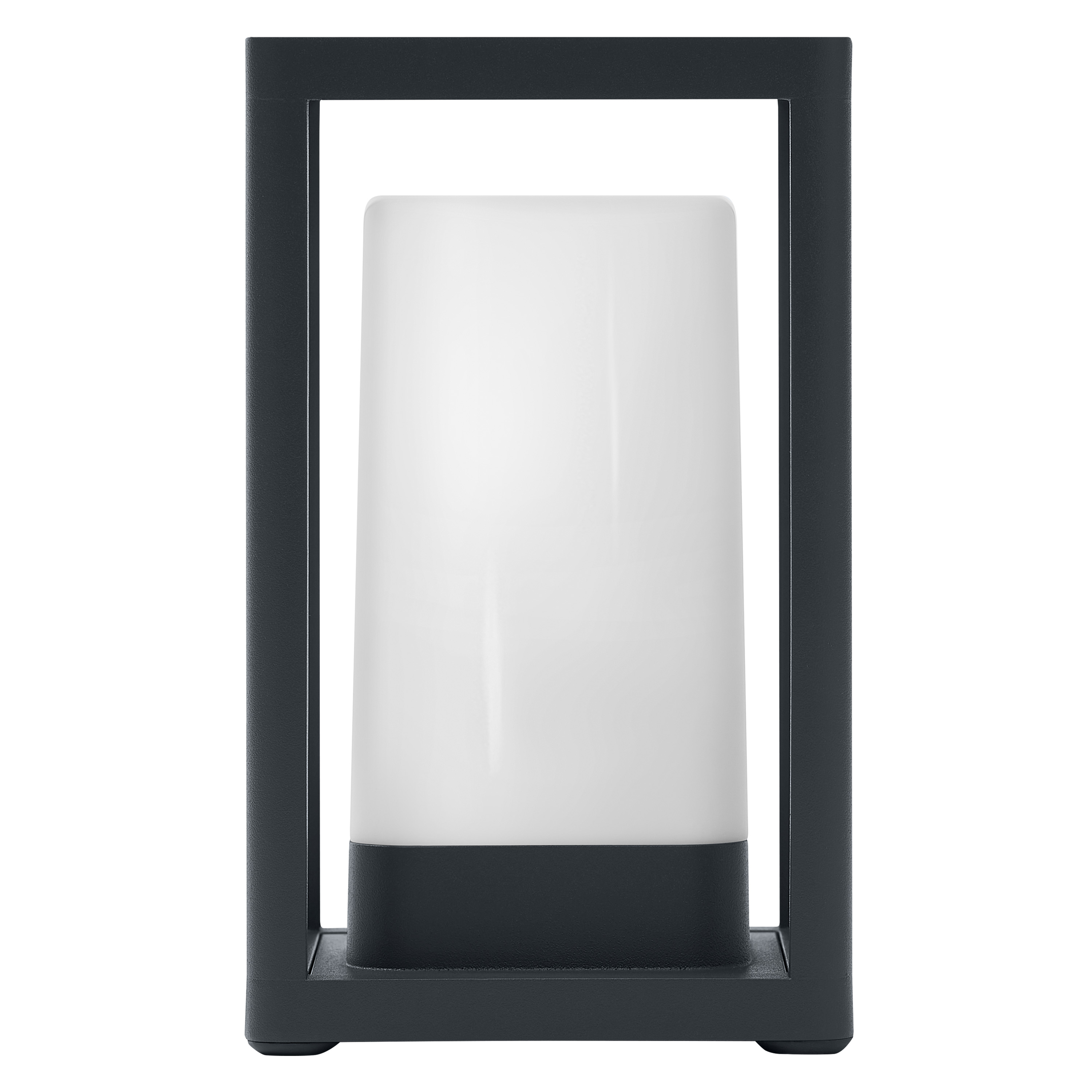

Product image: white background, upright, alternative image
SMART OUTD WIFI TABLEFRAME USB RGBW
Product image: white background, upright, switched on
SMART OUTD WIFI TABLEFRAME USB RGBW
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART OUTD WIFI TABLEFRAMEPBUSBRGBW
Product line drawing with numbers
SMART OUTD WIFI TABLEFRAMEPBUSBRGBW
Product line drawing, front, no dimensions
SMART OUTD WIFI TABLEFRAMEPBUSBRGBW
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI TABLEFRAME USB RGBW MiPRC
Packaging image, frontal
SH FC WIFI TABLEFRAME USB RGBW MiPRC
Packaging image, spacial
SH FC WIFI TABLEFRAME USB RGBW MiPRC

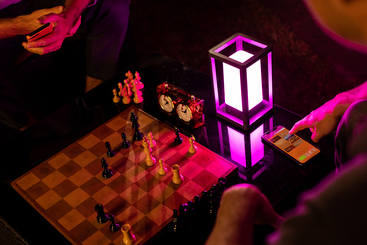

Application pictures
Smart WIFI Tableframe and WIFI App Smartphone
Application pictures

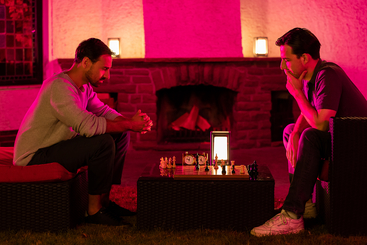

Smart WIFI Tableframe Two Men playing Chess
Application pictures

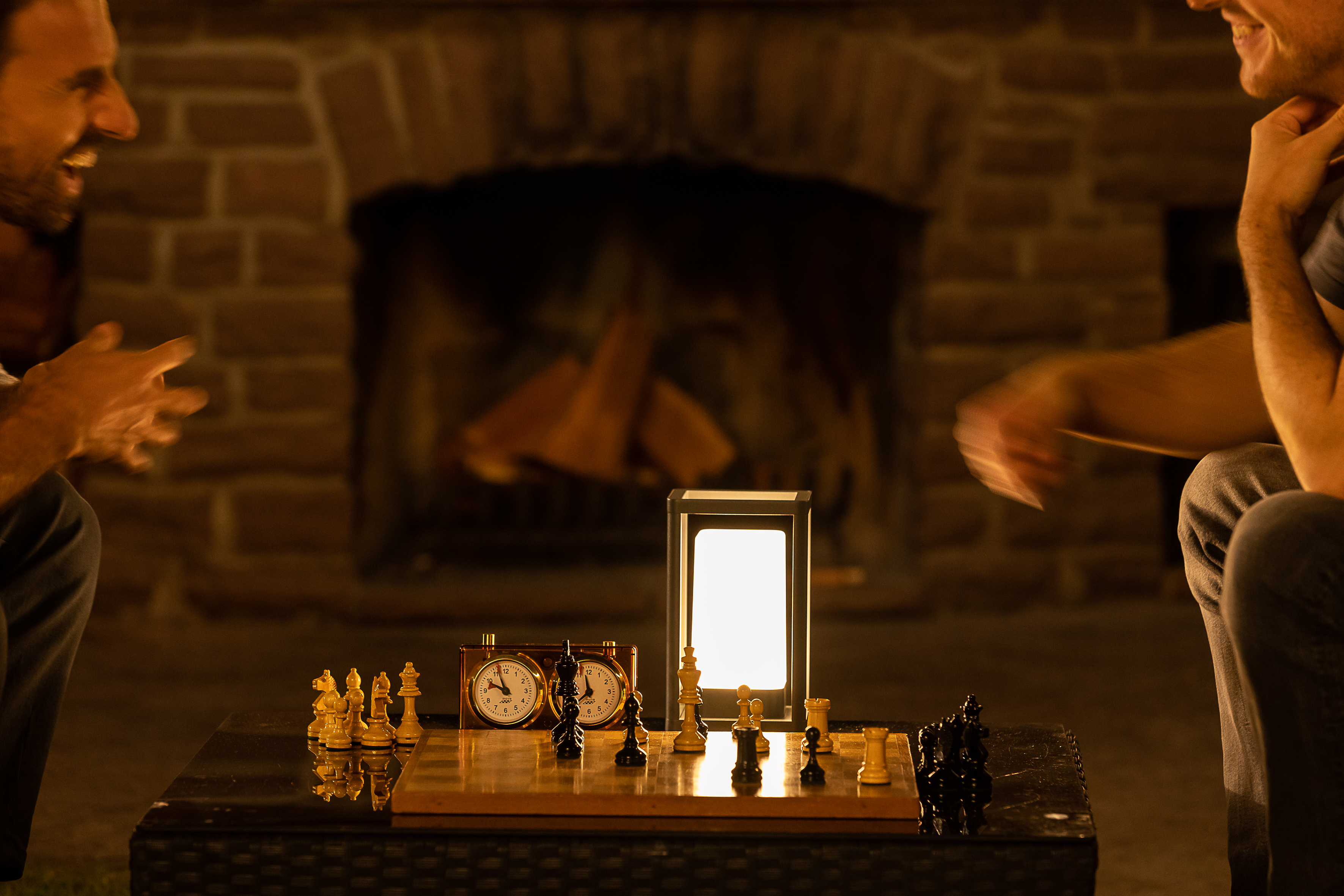

Smart WIFI Tableframe with chess

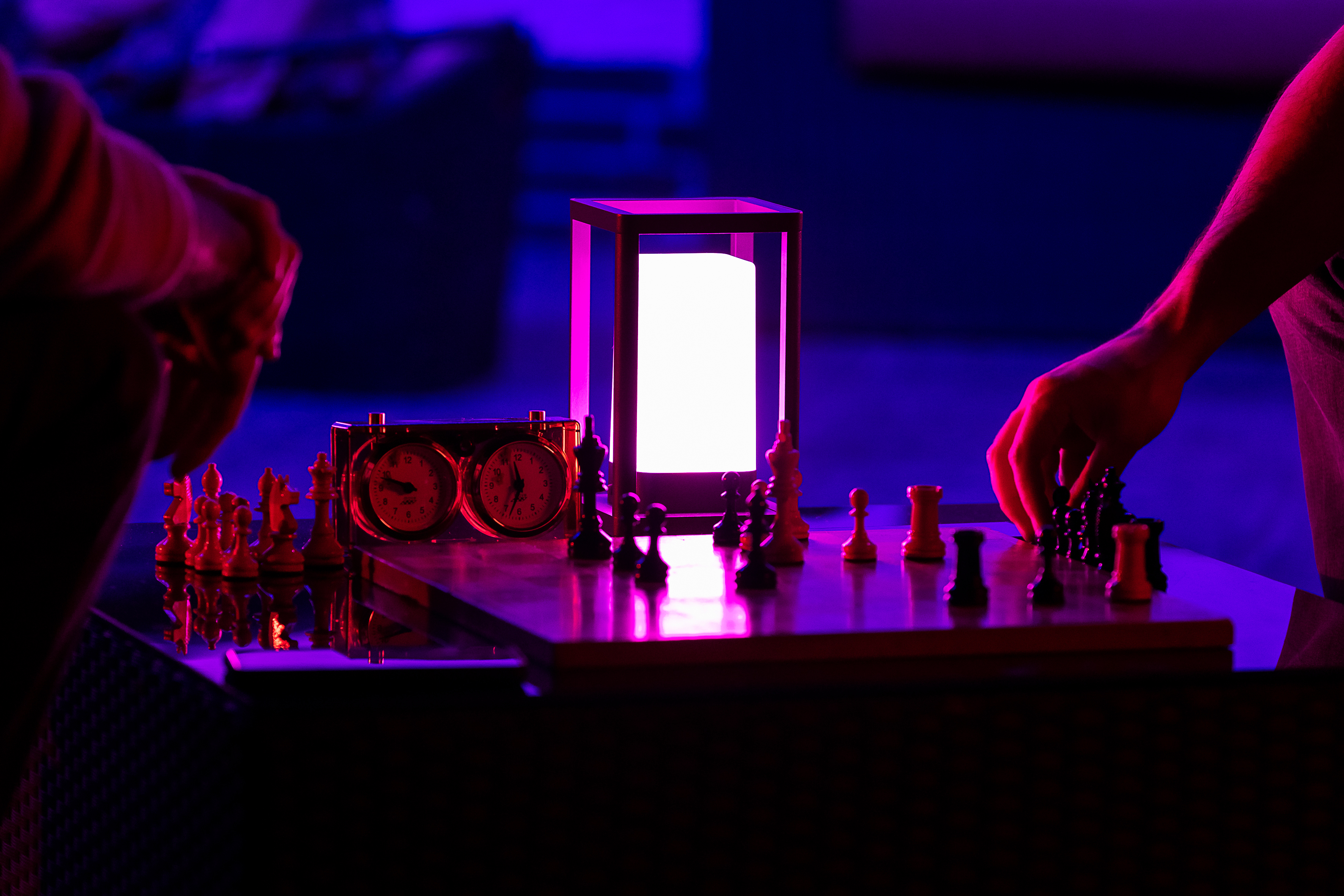

Application pictures
Smart WIFI Tableframe pink with chess
Application pictures

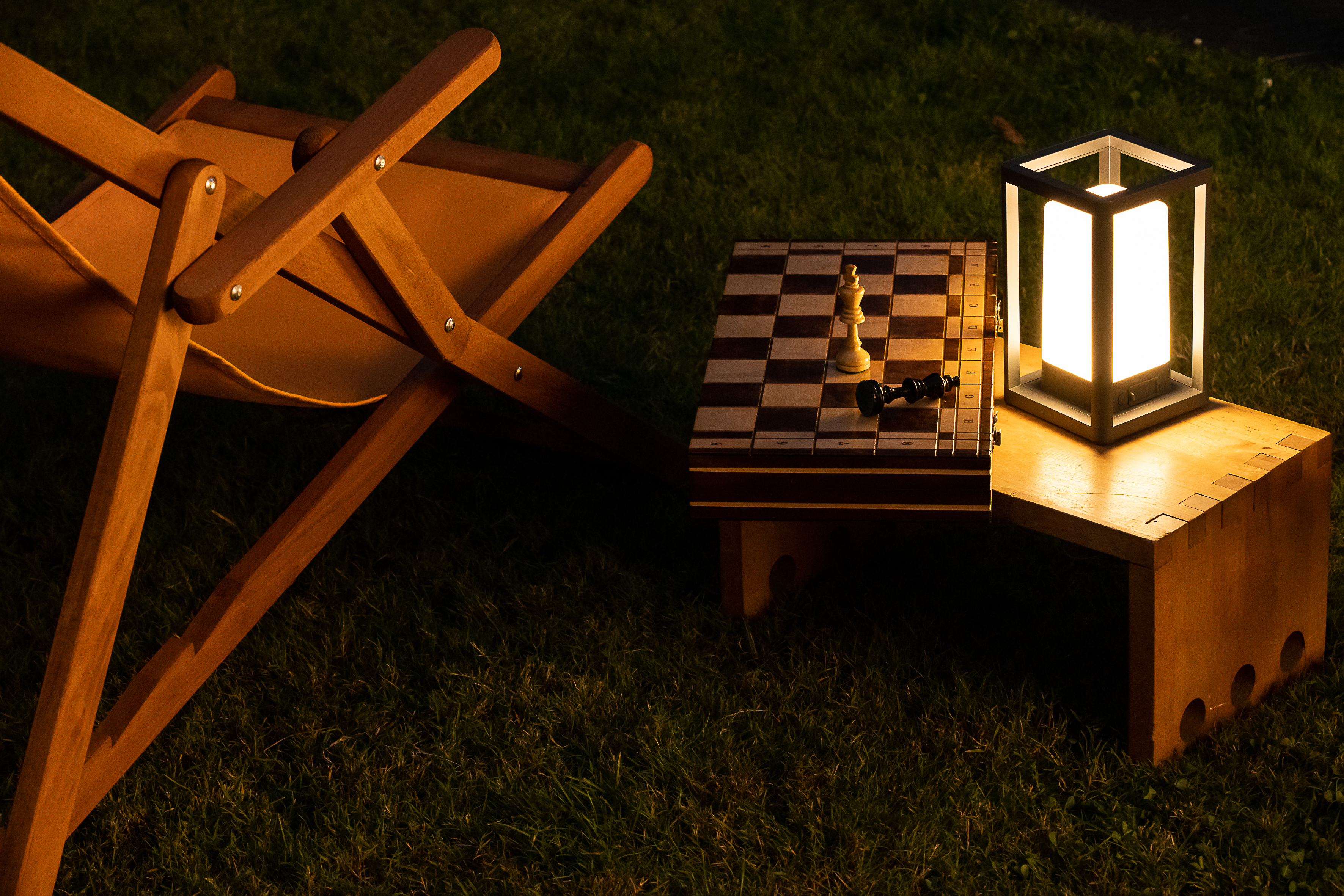

Smart WIFI Tableframe with chess in the garden

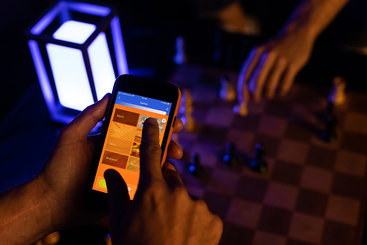

Application pictures
Smart WIFI Tableframe and WIFI App

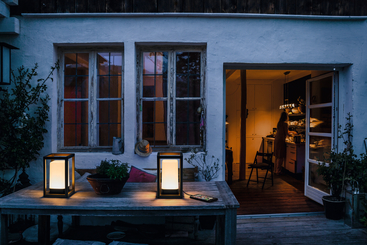

Application pictures Getty

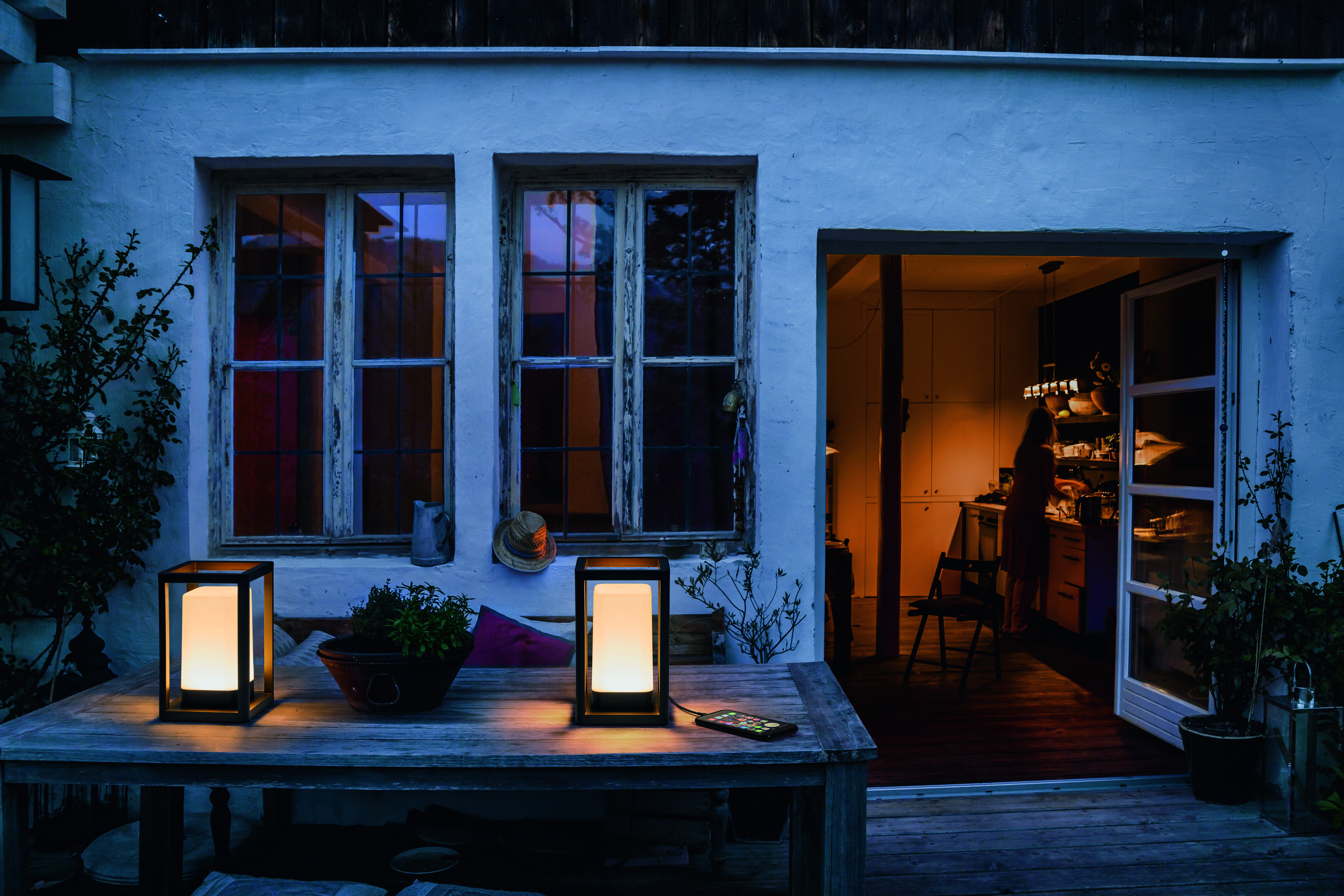

SMART OUTDOOR WIFI TABLEFRAME USB WARM LIGHT

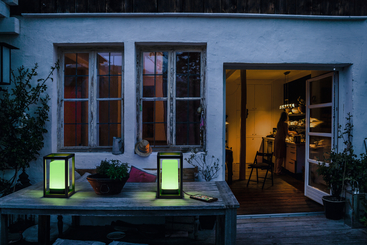

Application pictures Getty

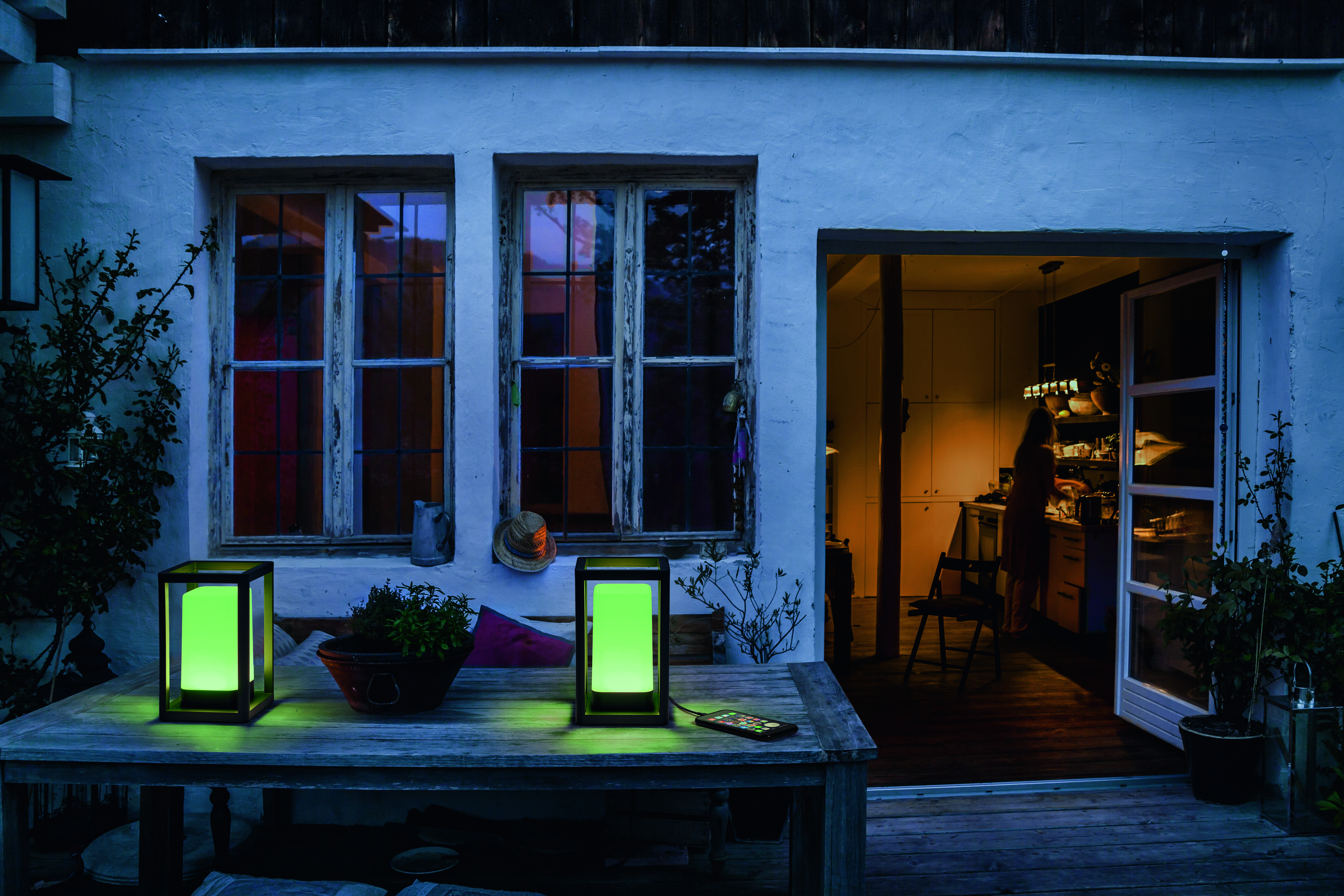

SMART OUTDOOR WIFI TABLEFRAME USB GREEN LIGHT
EAN ELDAS number
4058075564466 941700420
