SMART WIFI SYNCH BOX FLEX

Smart Wifi Flex 3.8M Magic RGB

GTIN: 4099854126000 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • MAGIC RGB Color Control for maximum flexible selection
  • Synchronize the Smart Flex Strip with the content on your screen
Areas of application
  • Living areas
  • Indirect lighting
  • Home Entertainment areas
  • Gaming corners
  • Applicable TV size 55”-65” (140-165 cm)
Product features
  • Dimmable
  • RGB color control, approx. 16 million color options adjustable
  • DIY function: You can adjust the color segment per segment and create your own lighting scenes or just use already available lighting scenes
  • Controllable via LEDVANCE SMART+ WiFi App (with minimum Android™️ 4.4 or iOS 10.0)

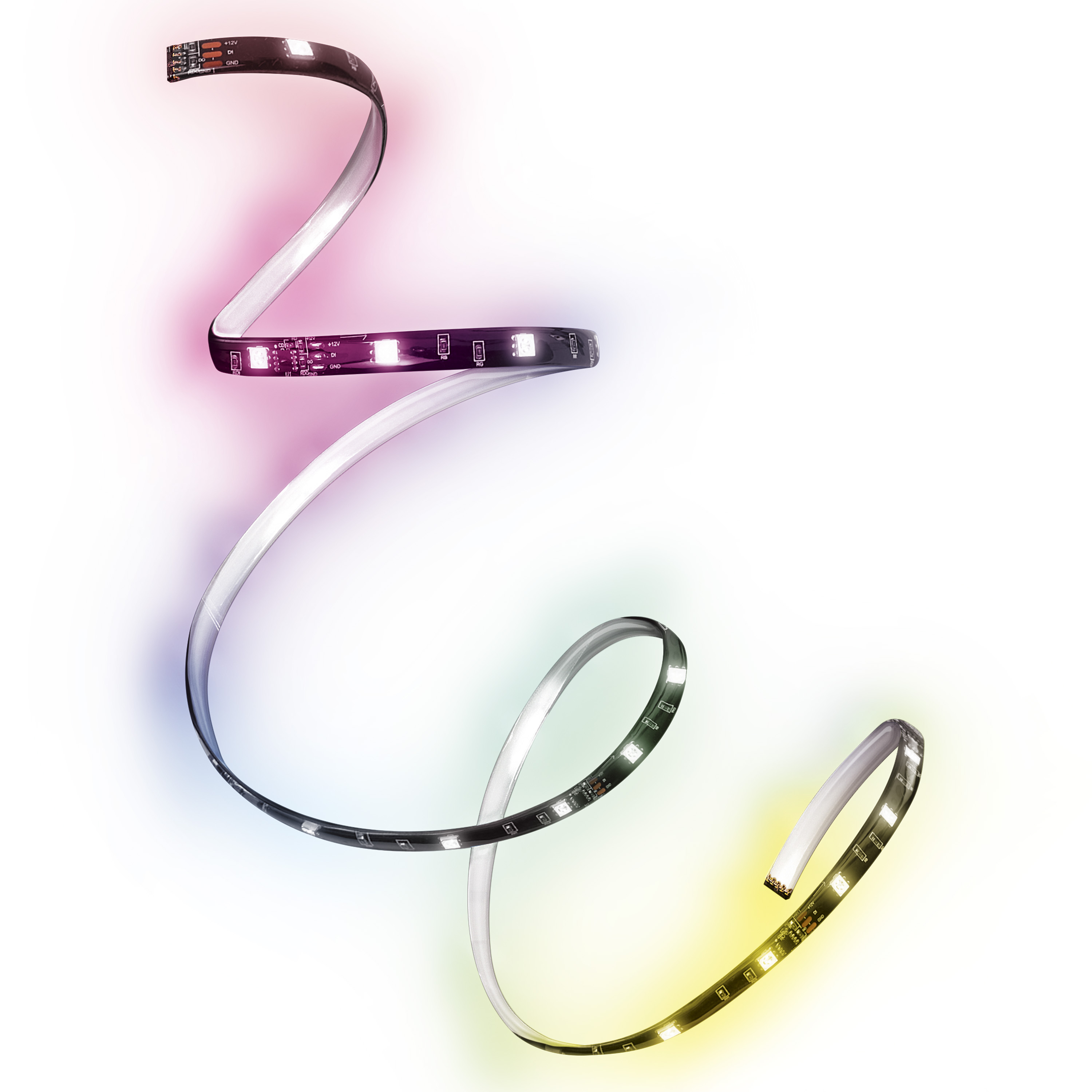

  • Flexible, bendable LED strips
Equipment / Accessories
  • Complete mounting and connecting accessories included

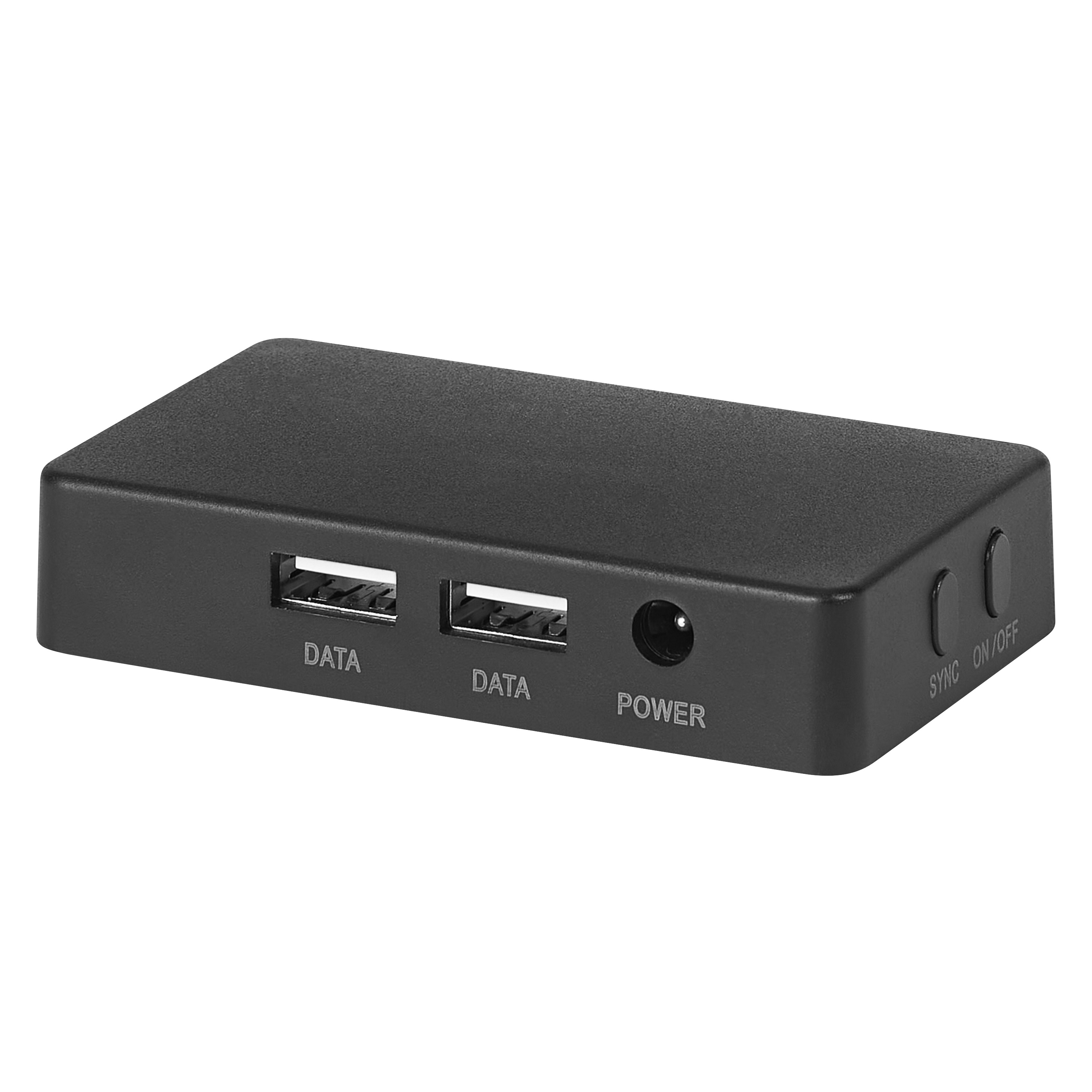

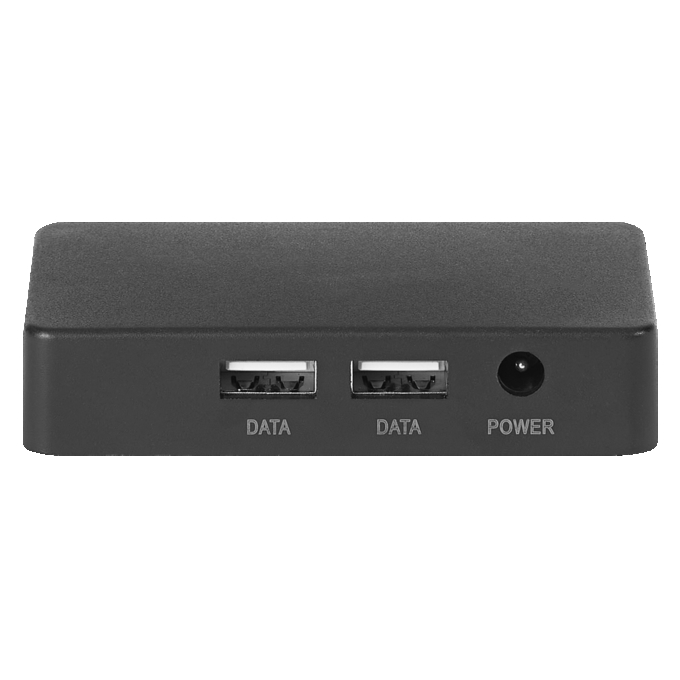

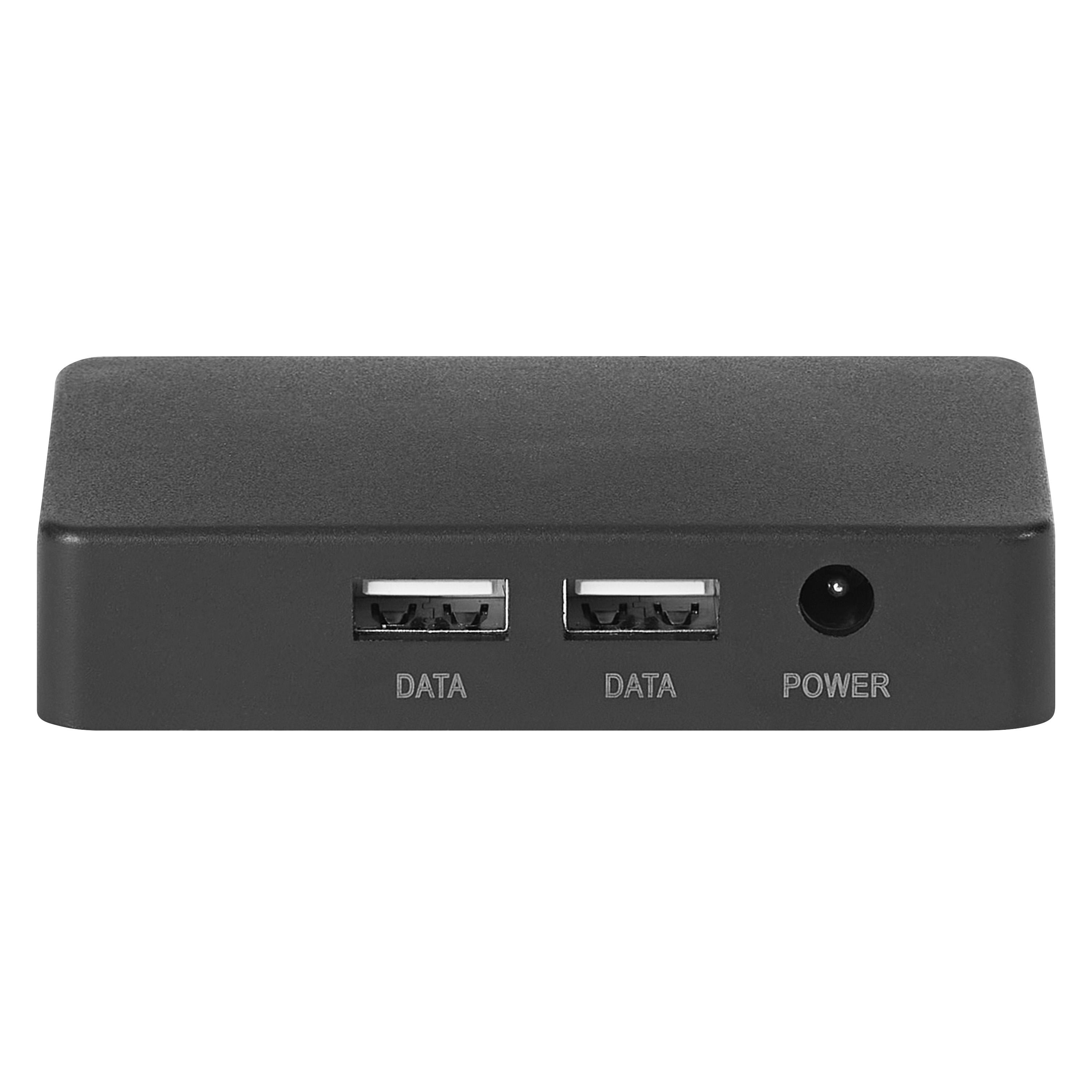

  • Synchronization Box and Control Box included
  • Connection cable included
Safety advice
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
Electrical data
Nominal wattage 22 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 600 mA
Inrush current 3 A
Power factor λ > 0.5
Total harmonic distortion < 20 %
Protection class II
Photometrical data
Light color (designation) Red, Green, Blue
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °

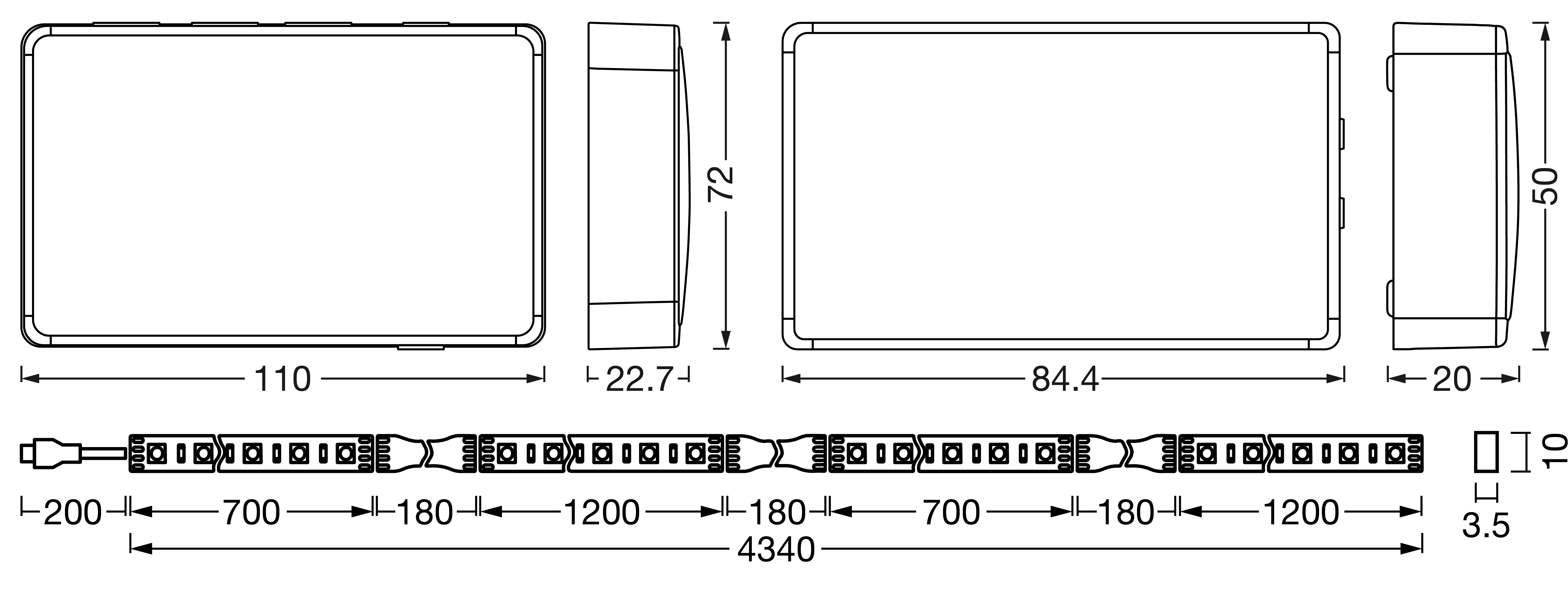

Dimensions & Weight
Length 4340 mm
Height 3 mm
Width 10 mm
Product weight 560.00 g
Materials & Colors
Product color Black
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Mounting type Surface
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 25000
Certificates & Standards
Standards CE
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854126000 Folding box
1		 99 mm x 215 mm x 200 mm 796.00 g 4.26 dm³
4099854126017 Shipping box
4		 364 mm x 223 mm x 225 mm 3620.00 g 18.26 dm³
User instruction / safety instructions
UI SMART WIFI SYNCH BOX FLEX5M MGC RGB
PDF (1.87 MB)

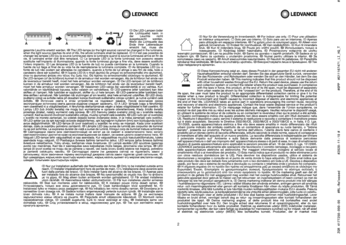

Legal information
FLEX RGB
PDF (871.18 KB)
Declarations of conformity
SMART WIFI SYNCH BOX
PDF (671.07 KB)

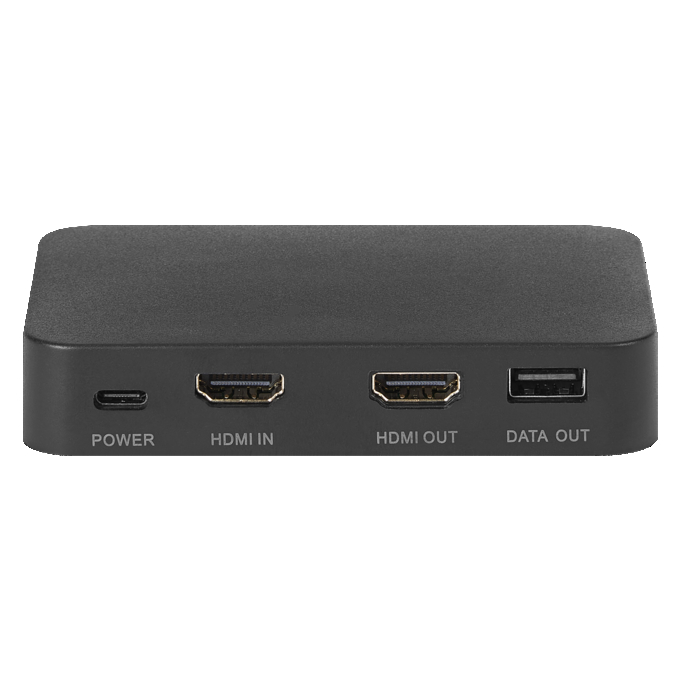

Product image: white background, upright
SMART WIFI SYNCH BOX FLEX5M MGC RGB
JPG (2.11 MB)

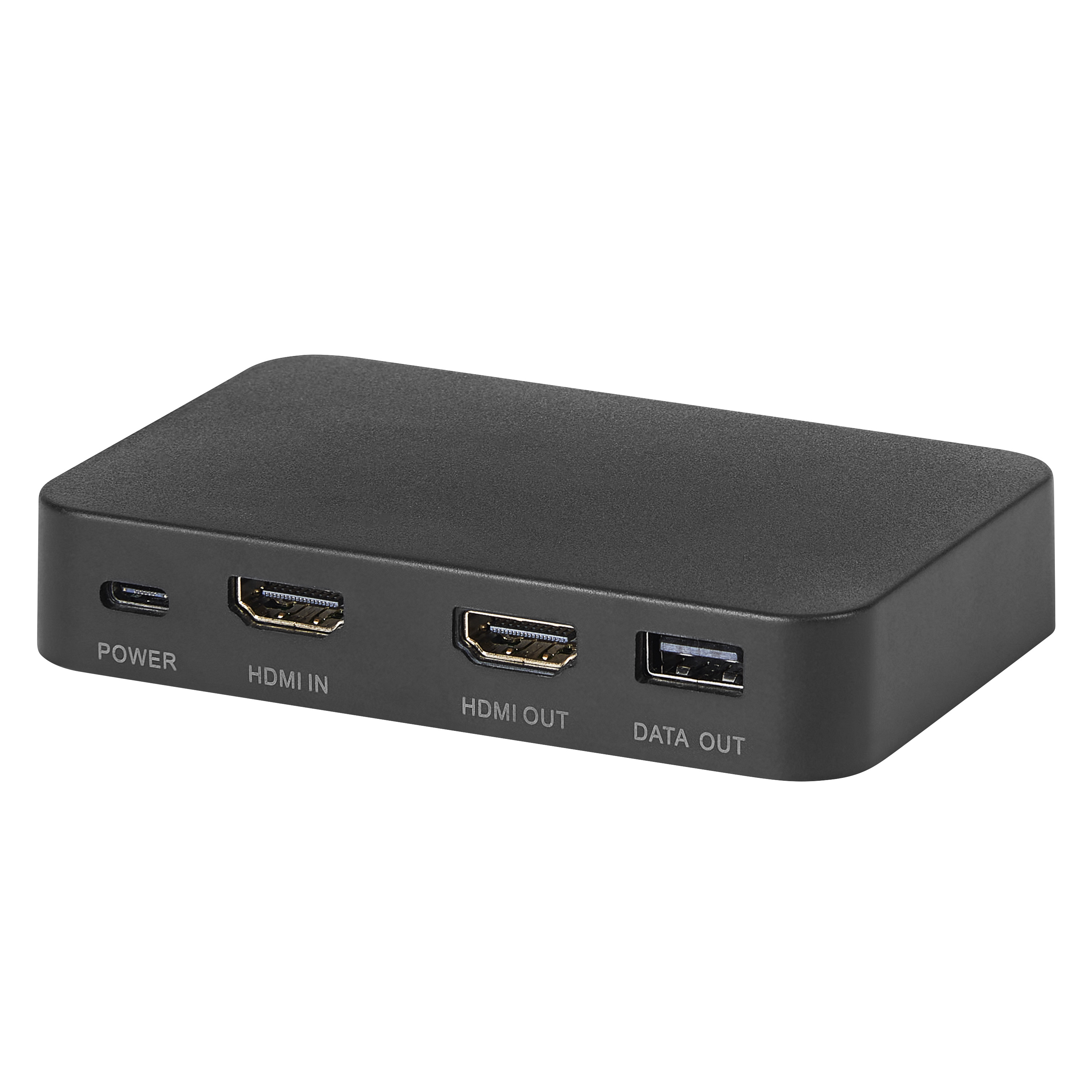

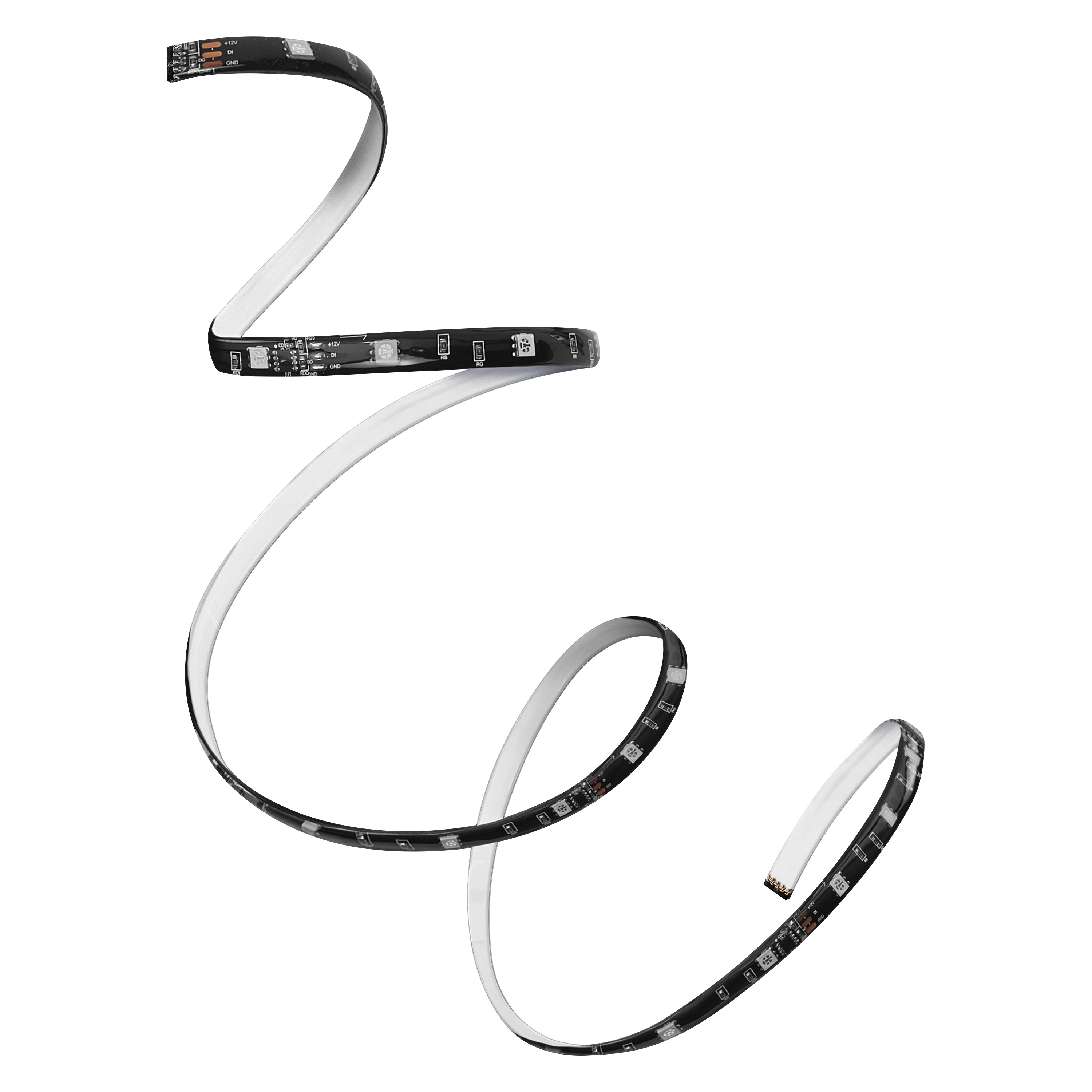

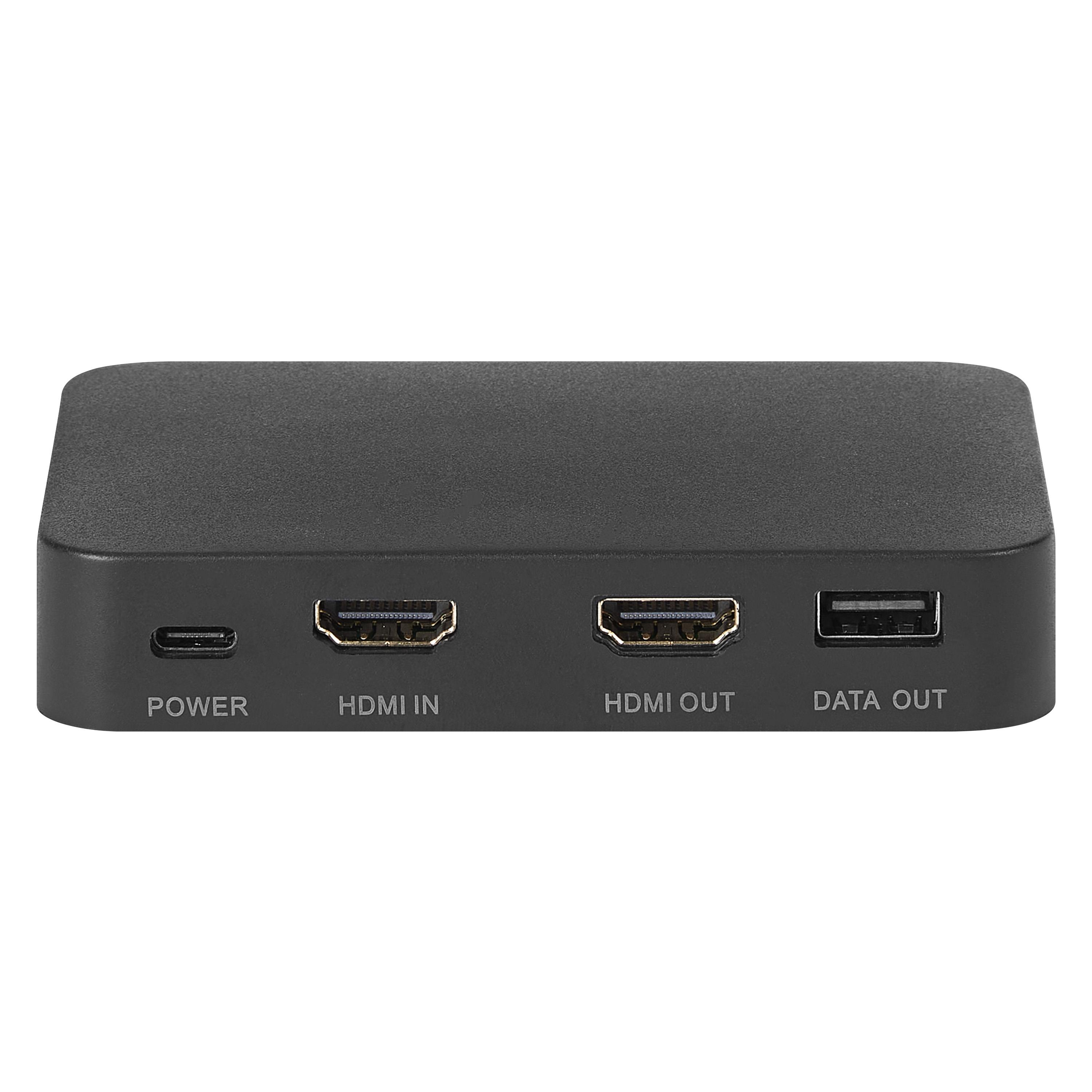

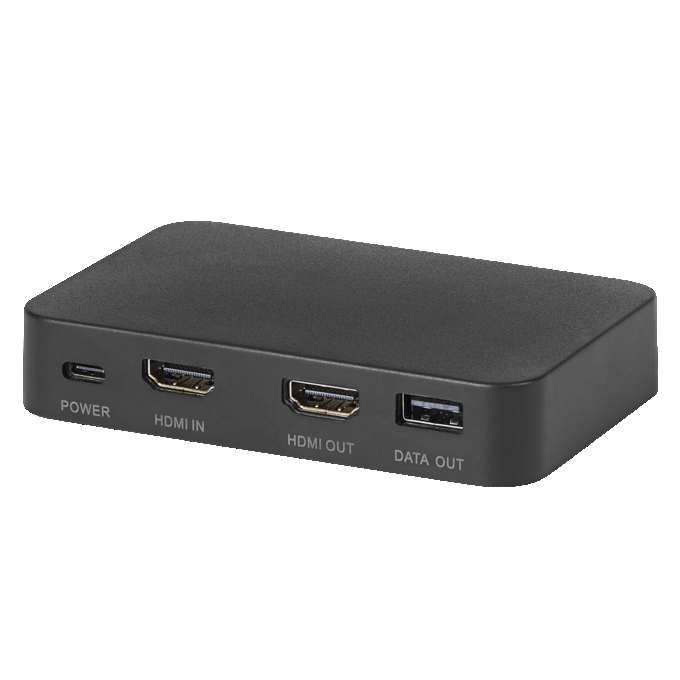

Product image: white background, upright, alternative image
SMART WIFI SYNCH BOX FLEX5M MGC RGB
JPG (486.77 KB)
Product image: white background, upright, alternative image
SMART WIFI SYNCH BOX FLEX5M MGC RGB
JPG (588.92 KB)
Product image: white background, upright, alternative image
SMART WIFI SYNCH BOX FLEX5M MGC RGB
JPG (741.49 KB)
Product image: white background, upright, alternative image
SMART WIFI SYNCH BOX FLEX5M MGC RGB
JPG (726.65 KB)
Product image: white background, upright, alternative image
SMART WIFI SYNCH BOX FLEX5M MGC RGB
JPG (637.59 KB)
Product image: white background, upright, alternative image
SMART WIFI SYNCH BOX FLEX5M MGC RGB
JPG (631.35 KB)
Product infographic (application image with text and graphic)
Entertainment E-Com_Grafik 1200x1200px 2023 EN
JPG (655.17 KB)
Product infographic (application image with text and graphic)
Entertainment E-Com Grafik 1200x1200px 2024 EN
JPG (638.8 KB)
Product line drawing with letters
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (6.87 KB)
Product line drawing with letters
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (6.85 KB)
Product line drawing with letters
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (138.45 KB)
Product line drawing with numbers
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (7.66 KB)
Product line drawing with numbers
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (8.12 KB)
Product line drawing with numbers
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (145.54 KB)

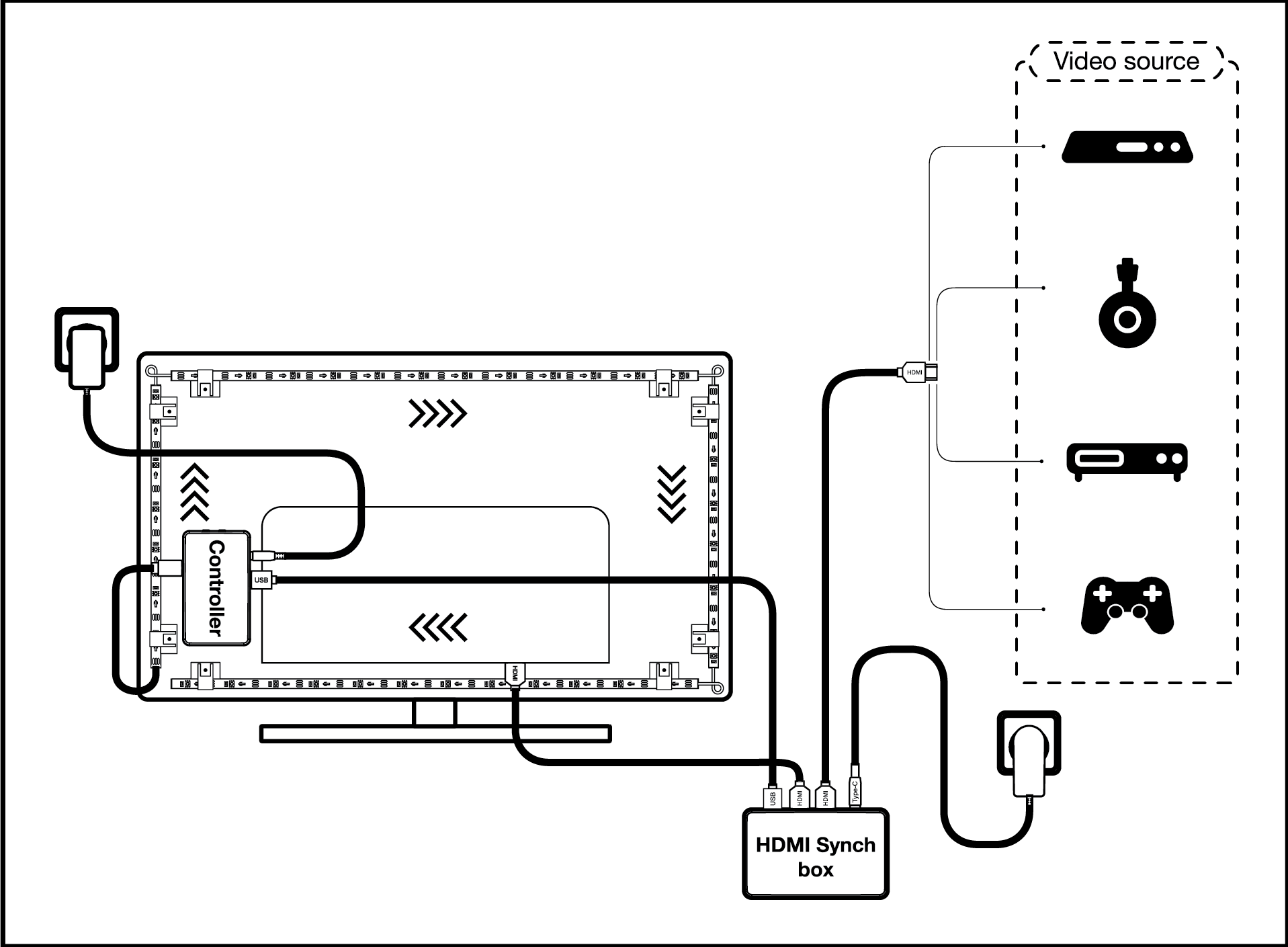

Product line drawing with numbers
SMART WIFI SYNCH BOX FLEX5M MGC RGB
PNG (154.27 KB)
Product line drawing, front, no dimensions
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (4.94 KB)
Product line drawing, front, no dimensions
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (4.94 KB)
Product line drawing, front, no dimensions
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (44.17 KB)
Product line drawing, front, no dimensions
SMART WIFI SYNCH BOX FLEX5M MGC RGB
SVG (24.04 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI SYNCH FLEX5M MGCRGB MiPRC
JPG (919.5 KB)
Packaging image, frontal
SH FC WIFI SYNCH FLEX5M MGCRGB MiPRC
JPG (3.34 MB)
Packaging image, spacial
SH FC WIFI SYNCH FLEX5M MGCRGB MiPRC
JPG (1.43 MB)
Catalog info 1
SMART WIFI SYNCH BOX FLEX 5M MGC RGB
PNG (107.28 KB)

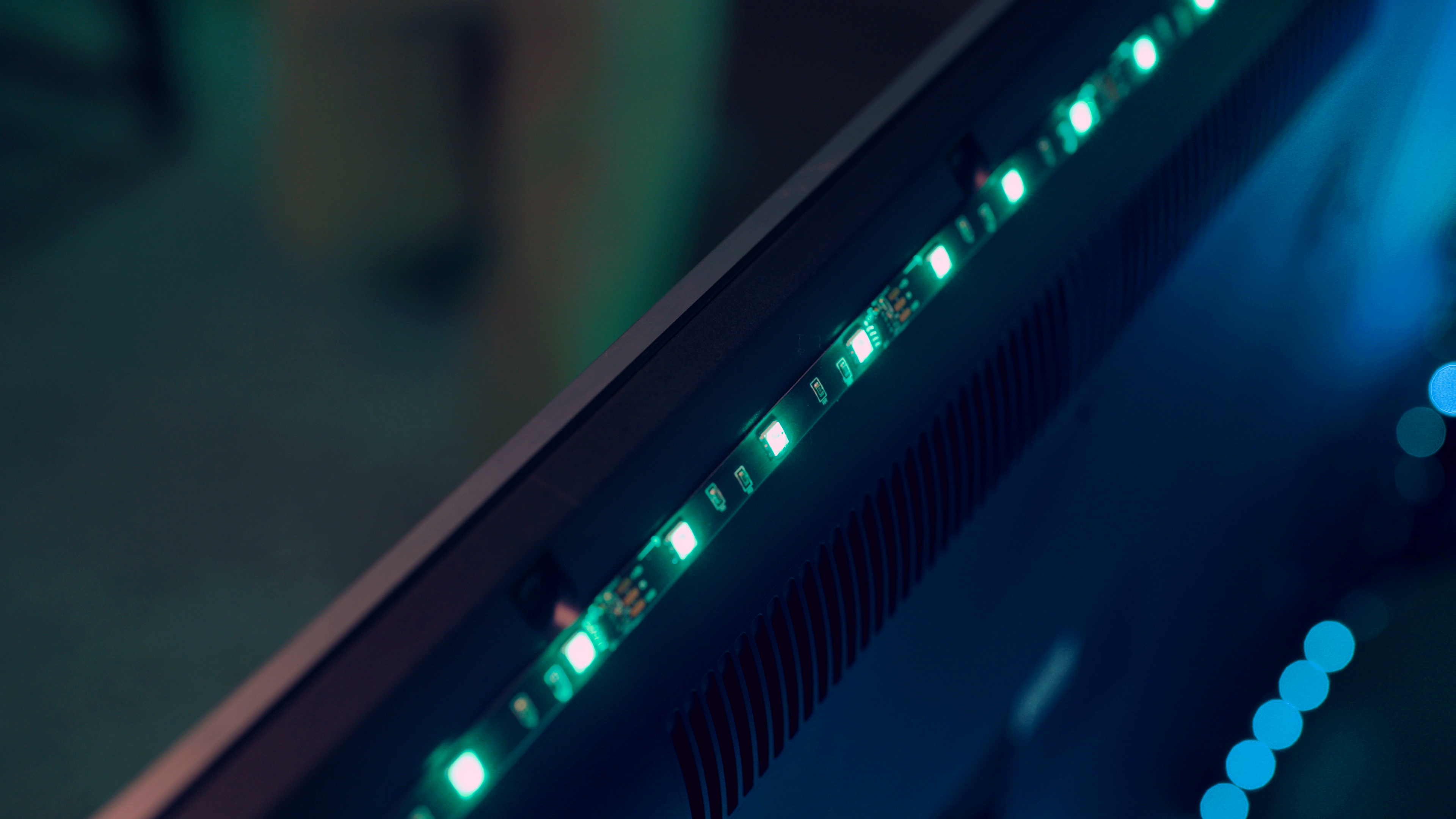

Application pictures
