NEW
LED Spot Set Recess GU10 Plastic
Spot Set Recess GU10 Press 2.6W 827 Black
GTIN: 4058075853270
Folding box / 5
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Excellent price/performance ratio
- Sustainable solution thanks to exchangeable light sources
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Recessed ceiling mounting
- GU10 lamp included
- Color temperature: 2,700 K
- Through wiring possible
- Type of protection: IP20
Equipment / Accessories
- GU10 Lamp holder + Connector Box
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 2.60 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 21.000 mA |
| Power factor λ | 0.50 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 200 lm |
| Total luminous flux of contained light sources | 230 lm |
| Luminous efficacy | 76 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Beam angle | 36 ° |
Dimensions & Weight
| Diameter | 85.00 mm |
| Height | 35.00 mm |
| Product weight | 39.5 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Spring recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 68 mm |
| Mounting depth | 140 mm |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Available from October 2025 |
| Number of illuminants | 5 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075853270 | Folding box 5 |
82 mm x 190 mm x 254 mm | 261.00 g | 3.96 dm³ |
| 4058075853287 | Shipping box 30 |
408 mm x 272 mm x 269 mm | 2111.00 g | 29.85 dm³ |
User instruction / safety instructions
Spot Set Press
Spot Set Press

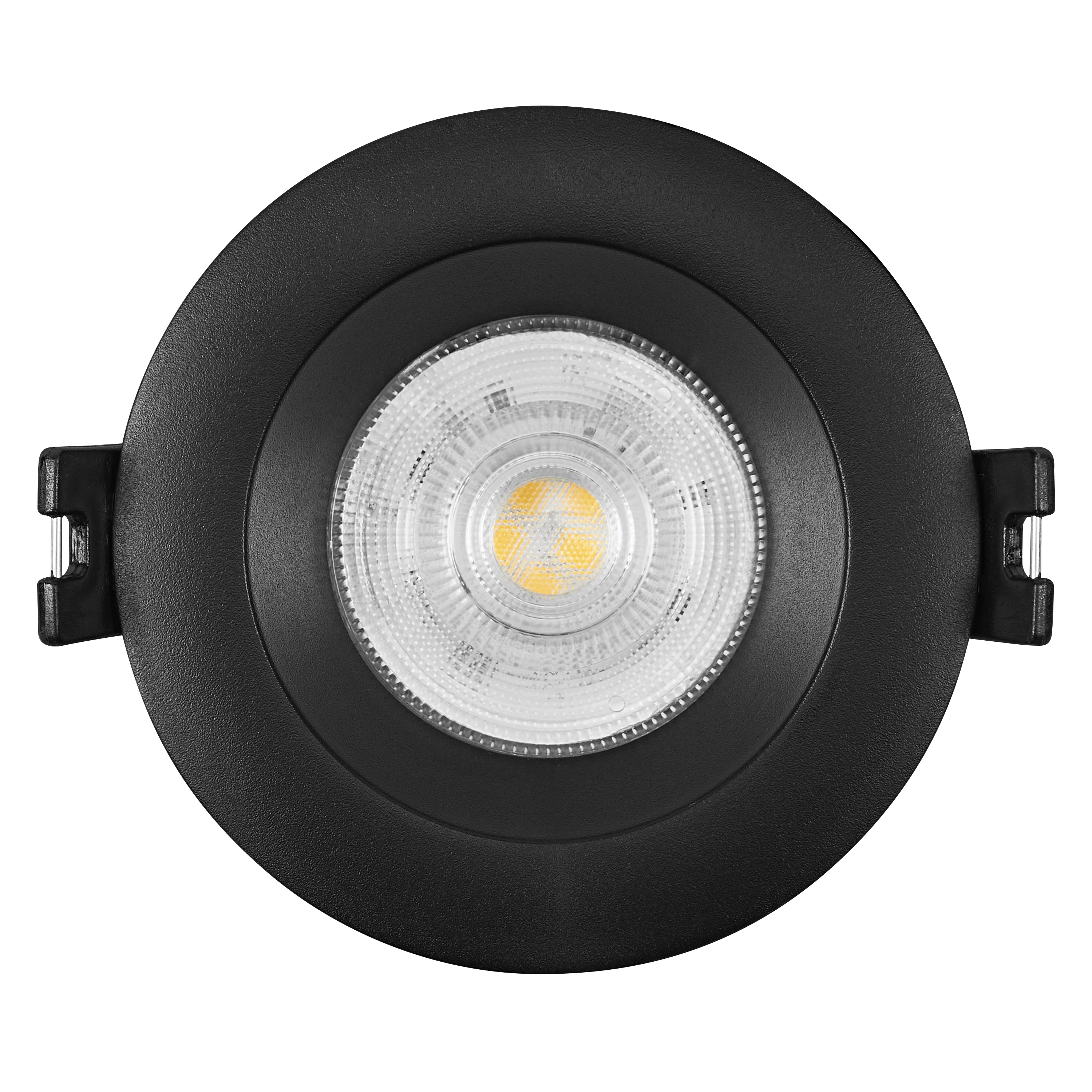

Product image: white background, upright
SPOT SET PRESS 2.6W 827GU10 BK 6X5
SPOT SET PRESS 2.6W 827GU10 BK 6X5

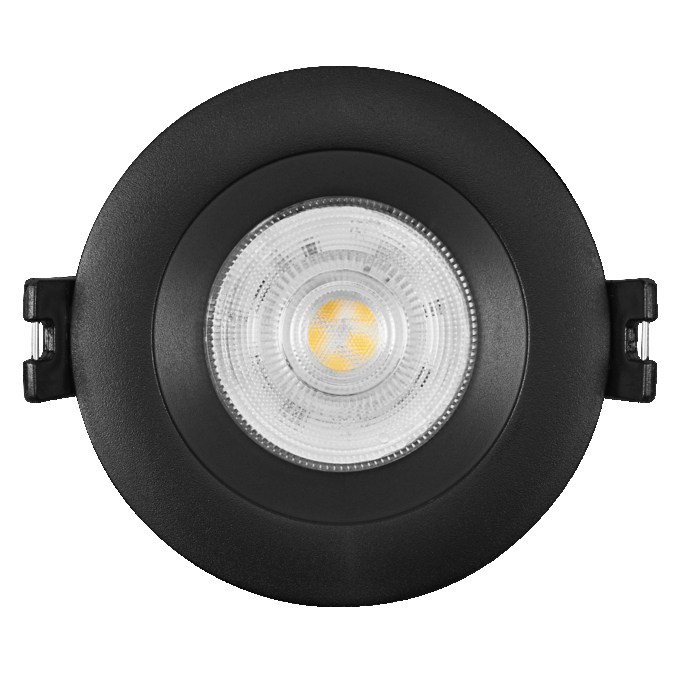

Product image: white background, upright, alternative image
SPOT SET PRESS 2.6W 827GU10 BK 6X5
SPOT SET PRESS 2.6W 827GU10 BK 6X5

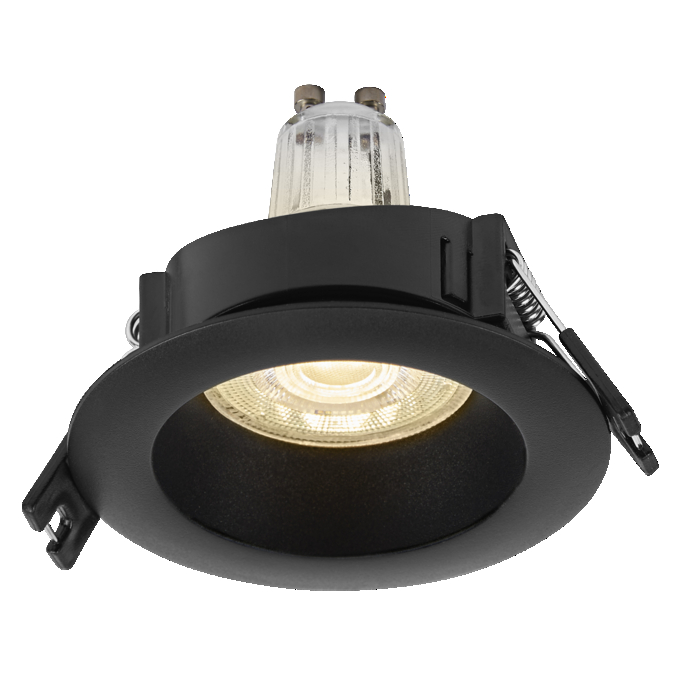

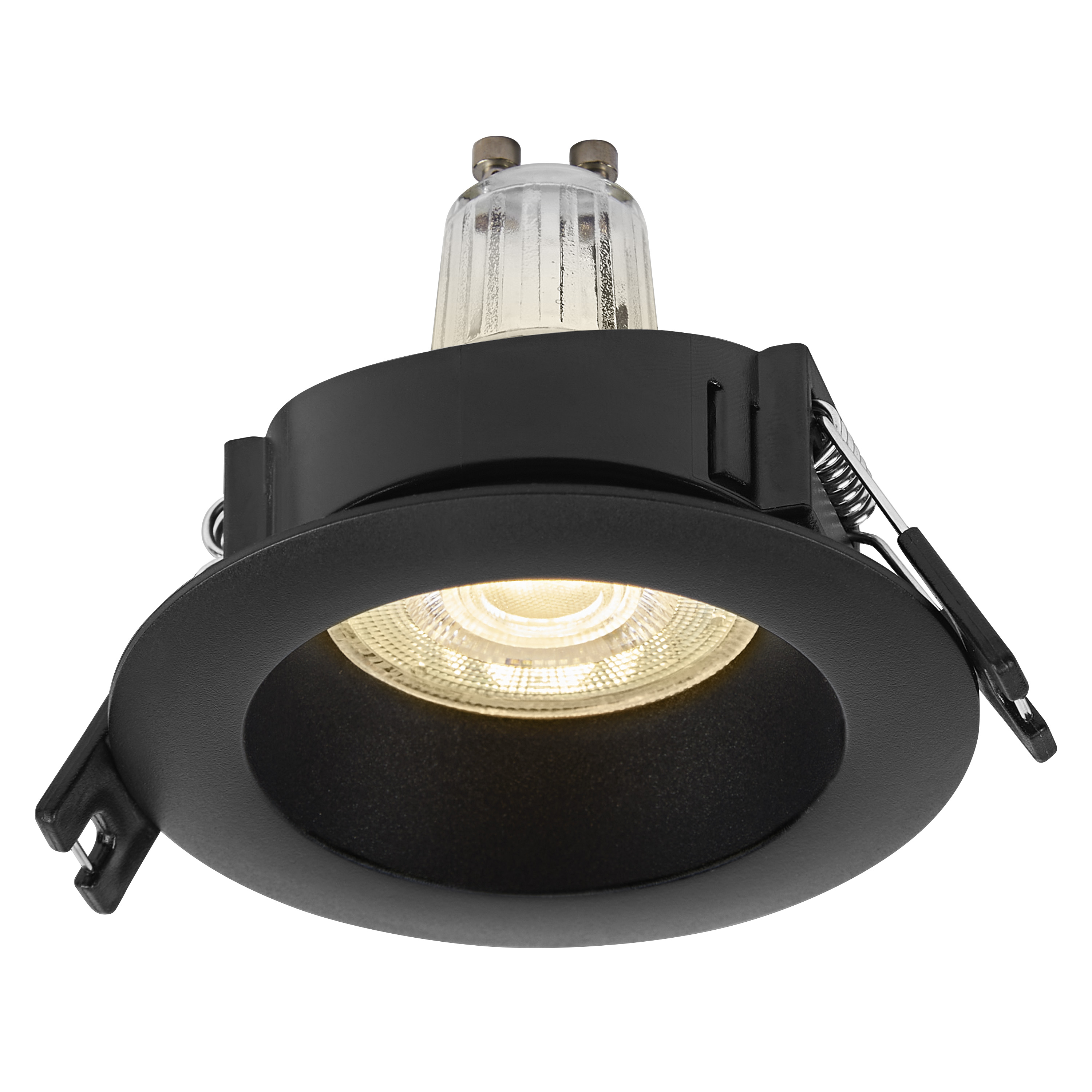

Product image: white background, upright, switched on
SPOT SET PRESS 2.6W 827GU10 BK 6X5
SPOT SET PRESS 2.6W 827GU10 BK 6X5
Product line drawing with letters
SPOT SET PRESS 2.6W 827GU10
SPOT SET PRESS 2.6W 827GU10
Product line drawing with numbers
SPOT SET PRESS 2.6W 827GU10
SPOT SET PRESS 2.6W 827GU10
Product line drawing, front, no dimensions
SPOT SET PRESS 2.6W 827GU10
SPOT SET PRESS 2.6W 827GU10

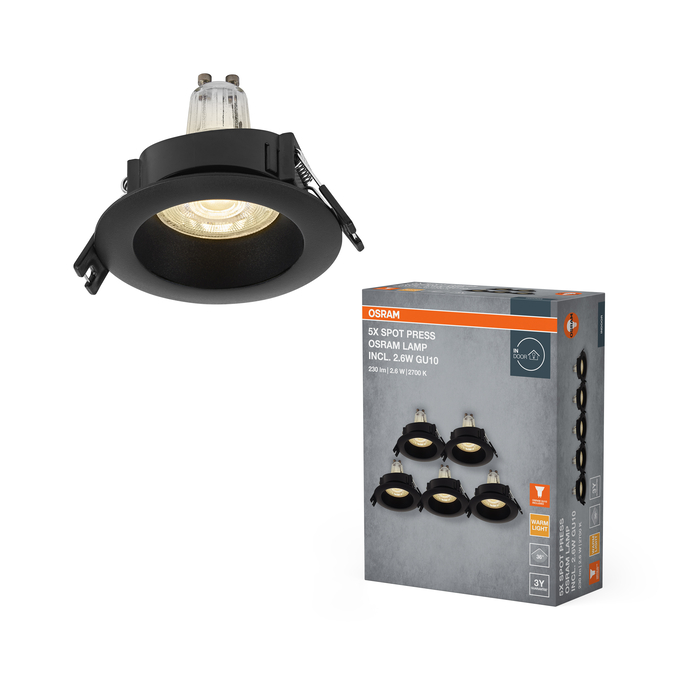

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SP PRESS 827 GU10 BK 5 OSRAM
LUM FC SP PRESS 827 GU10 BK 5 OSRAM
Packaging image, frontal
LUM FC SP PRESS 827 GU10 BK 5 OSRAM
LUM FC SP PRESS 827 GU10 BK 5 OSRAM
Packaging image, spacial
LUM FC SP PRESS 827 GU10 BK 5 OSRAM
LUM FC SP PRESS 827 GU10 BK 5 OSRAM

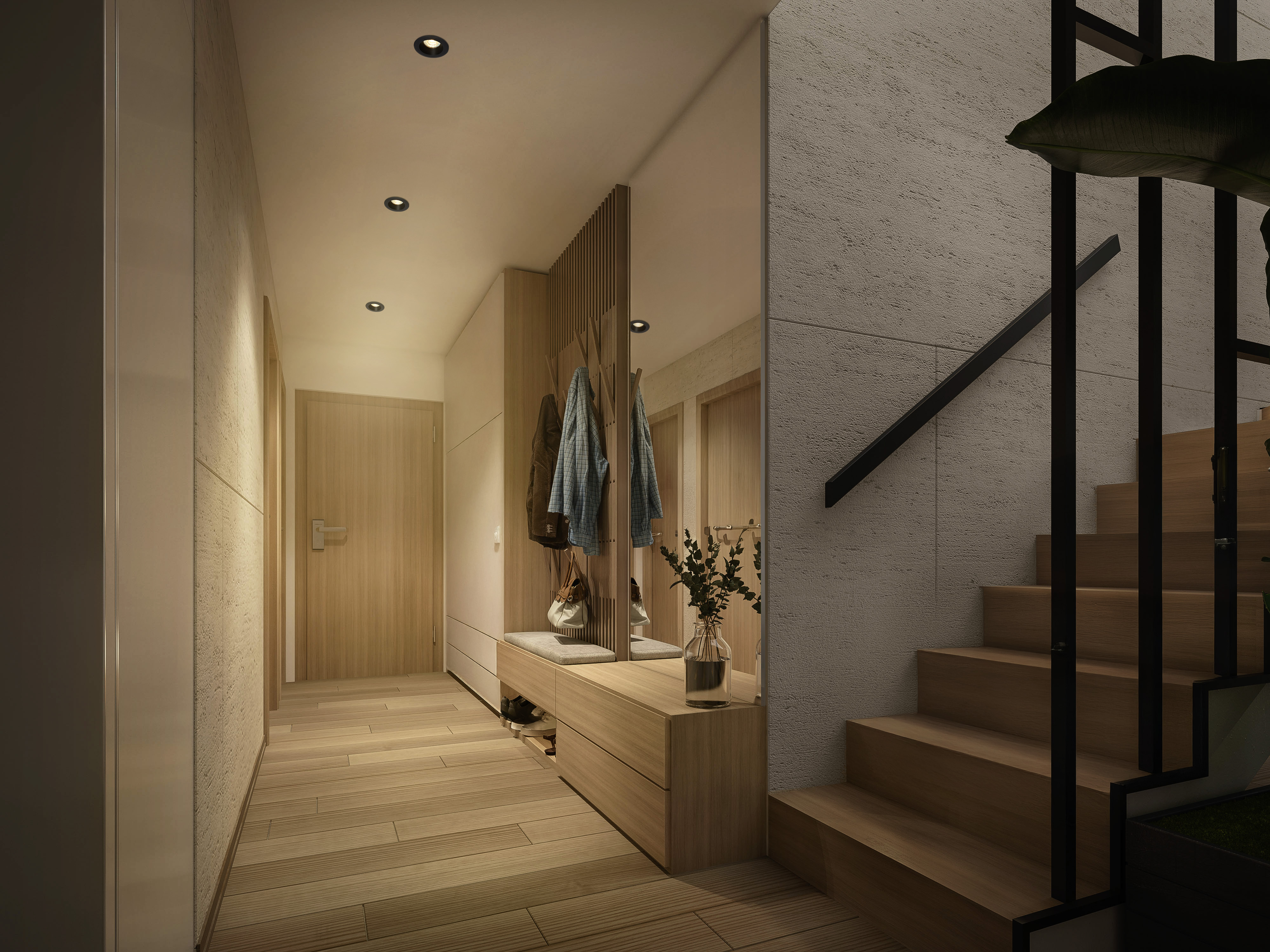

Application pictures Getty
SPOT SET PRESS 2.6W 827 GU10 BK 5X
SPOT SET PRESS 2.6W 827 GU10 BK 5X
