Orbis Alva
Orbis Alva 505MM 36W 830 Click DIM White and Wood Decor
GTIN: 4099854446351
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Stylish and modern design
- Easy to install and use
- Long lifetime thanks to LED technology
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Type of protection: IP20
- Lifetime up to 30,000 h
- Click-DIM version: dimmable in three steps by repeated switching
- Color temperature: 3,000 K (Warm White)
- Metal housing, PMMA cover
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 36.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 170.000 mA |
| Inrush current time Th50 | 3.19 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 75 |
| Max. number of luminaires per miniature circuit breaker C10 | 47 |
| Max. number of luminaires per miniature circuit breaker C16 | 75 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 30 % |
| Protection class | I |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 1600 lm |
| Luminous efficacy | 44 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 505.00 mm |
| Height | 140.00 mm |
| Product weight | 2650.00 g |
Materials & Colors
| Product color | White|Wood decor |
| Housing color | White|Wood decor |
| Body material | Metal |
| Cover material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854446351 | Folding box 1 |
157 mm x 527 mm x 533 mm | 3927.00 g | 44.10 dm³ |
| 4099854446368 | Shipping box 3 |
543 mm x 493 mm x 558 mm | 11780.00 g | 149.38 dm³ |
User instruction / safety instructions
ORBIS ALVA
ORBIS ALVA
Legal information
Safety insert G11219601
Safety insert G11219601
Declarations of conformity
ORBIS ALISON ORBIS WOODBURRY ORBIS ALICIA ORBIS YUMMY ORBIS LIVIA ORBIS ALVA
ORBIS ALISON ORBIS WOODBURRY ORBIS ALICIA ORBIS YUMMY ORBIS LIVIA ORBIS ALVA

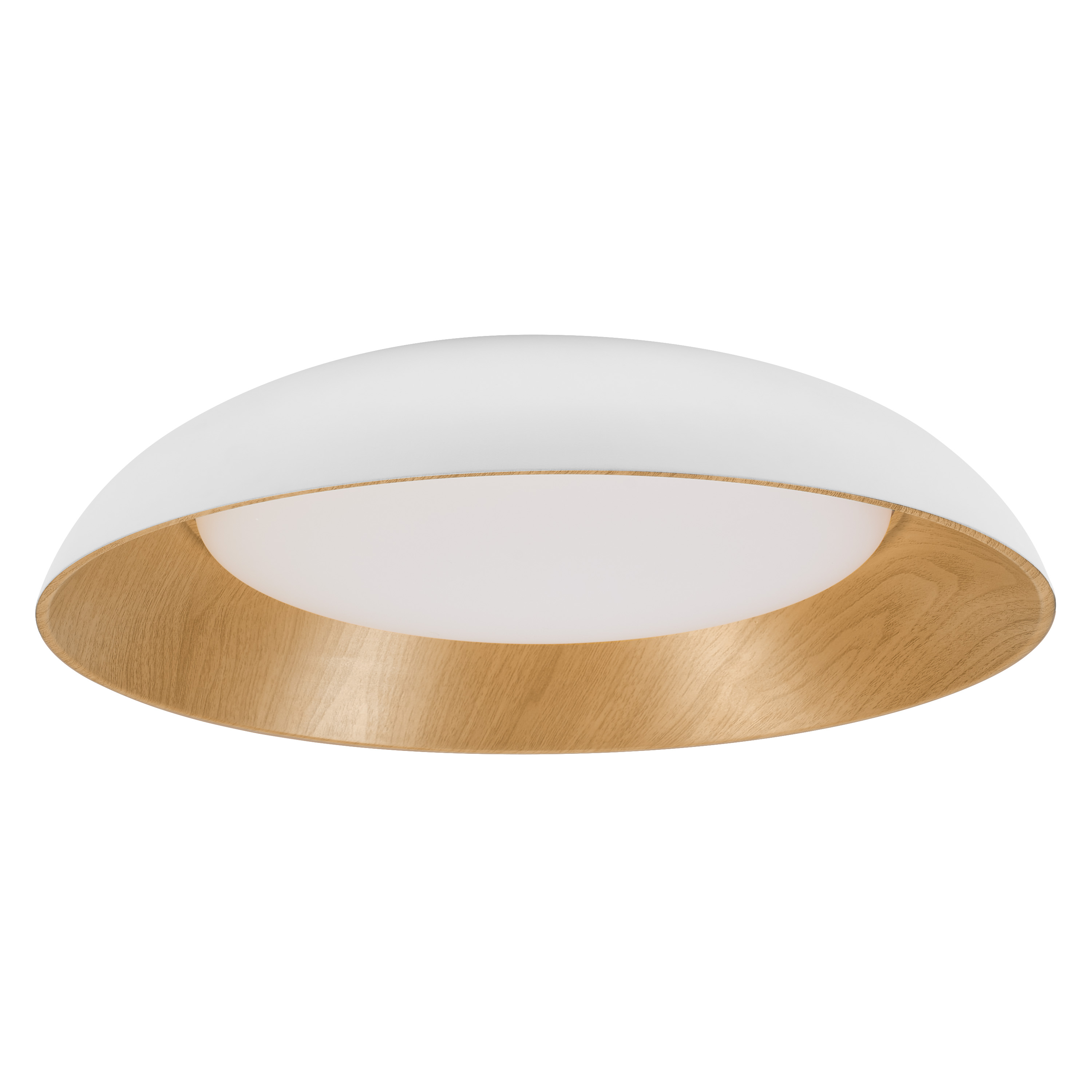

Product image: white background, upright
ORBIS ALVA 505 36W830 CLICKDIM WTWD
ORBIS ALVA 505 36W830 CLICKDIM WTWD

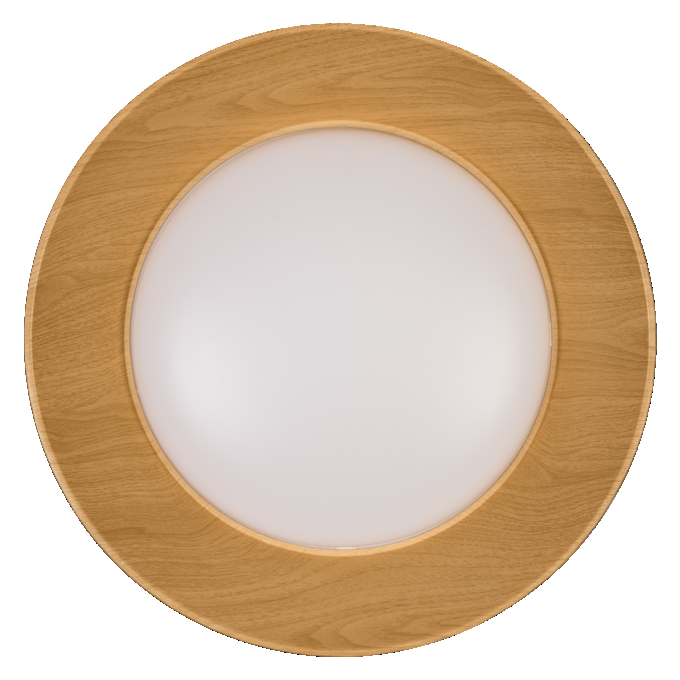

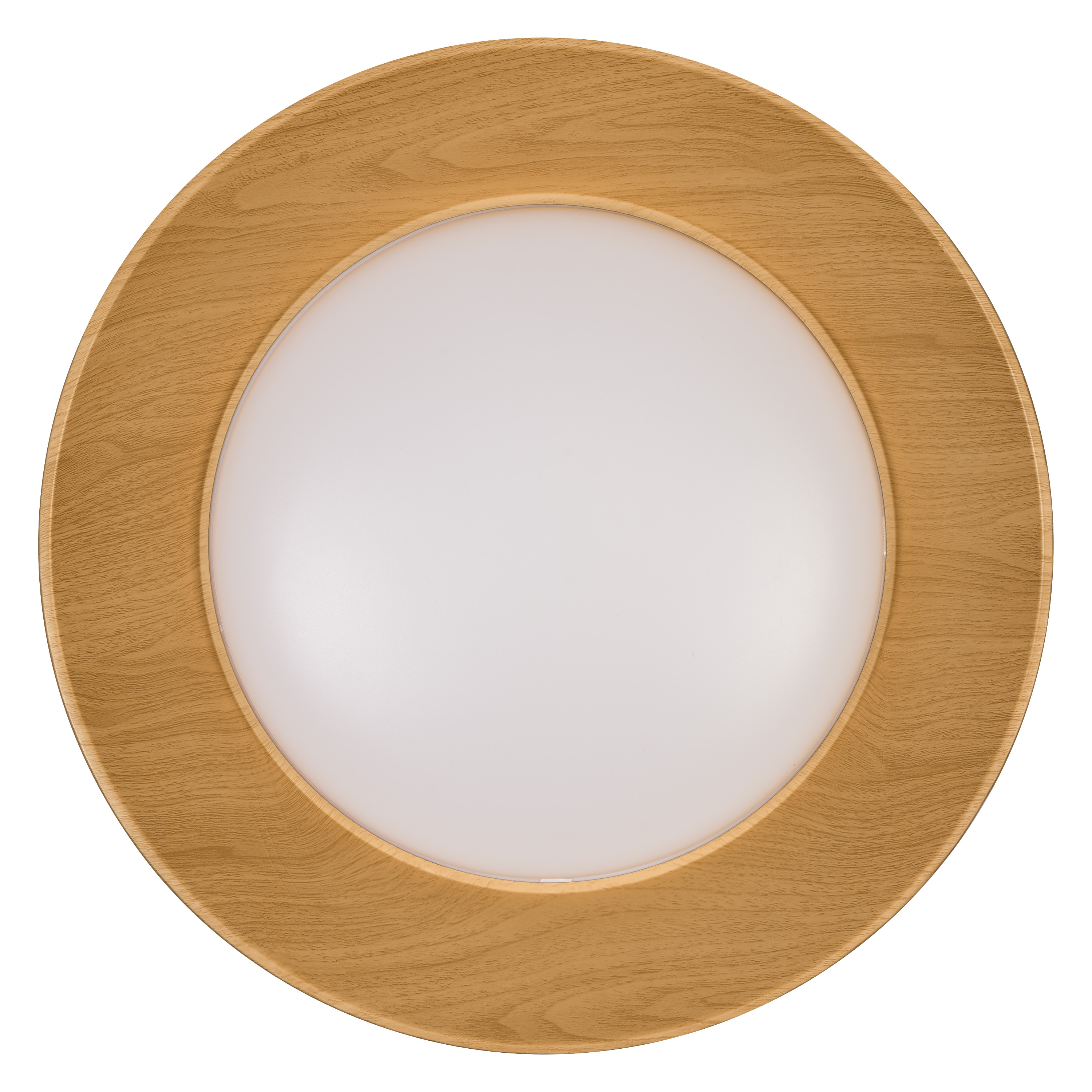

Product image: white background, upright, alternative image
ORBIS ALVA 505 36W830 CLICKDIM WTWD
ORBIS ALVA 505 36W830 CLICKDIM WTWD

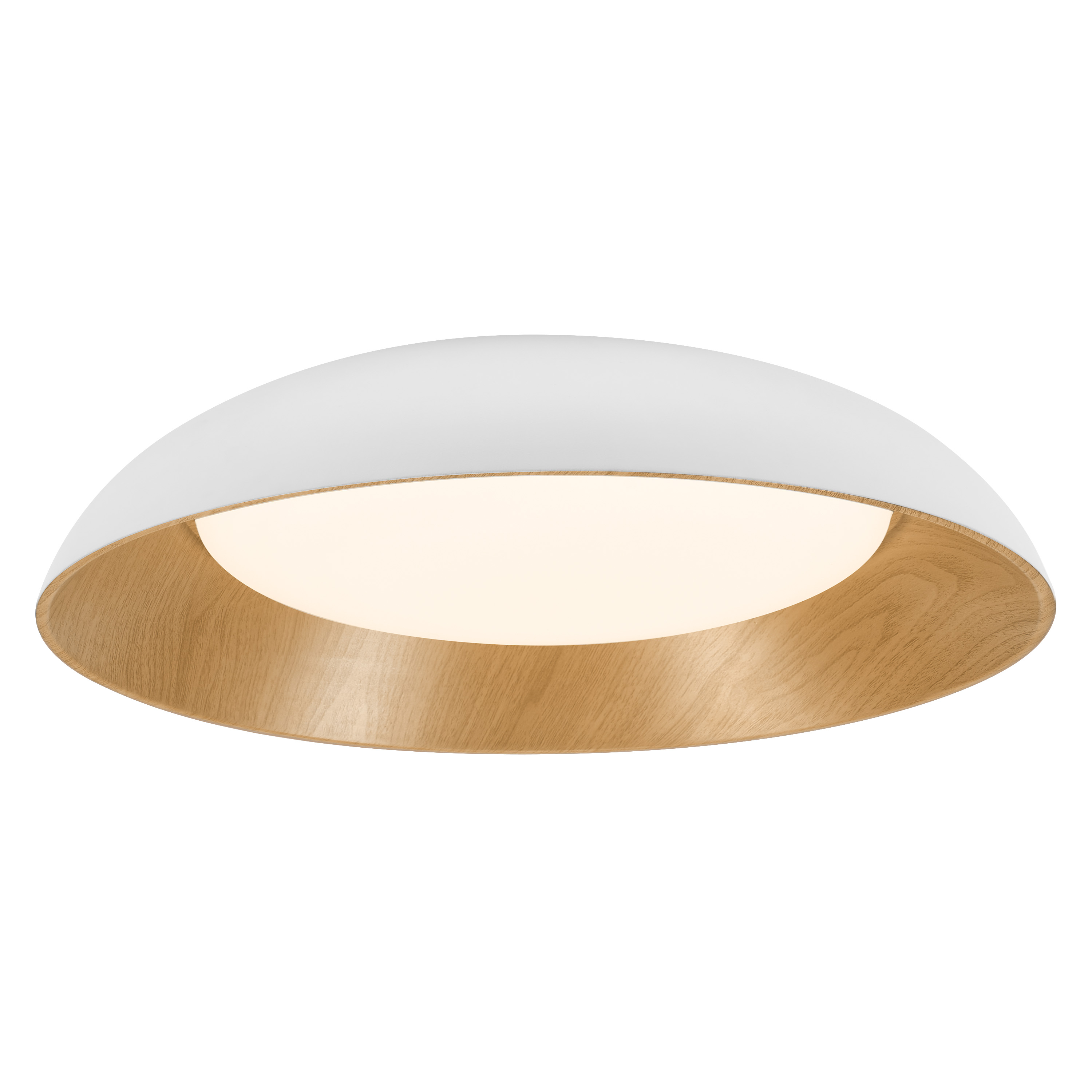

Product image: white background, upright, switched on
ORBIS ALVA 505 36W830 CLICKDIM WTWD
ORBIS ALVA 505 36W830 CLICKDIM WTWD
Product infographic (application image with text and graphic)
Decor Orbis Color e-Com graphic 1200x1200px 2024 EN
Decor Orbis Color e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
ORBIS ALVA 505 36W830 CLICKDIM
ORBIS ALVA 505 36W830 CLICKDIM
Product line drawing with numbers
ORBIS ALVA 505 36W830 CLICKDIM
ORBIS ALVA 505 36W830 CLICKDIM
Product line drawing, front, no dimensions
ORBIS ALVA 505 36W830 CLICKDIM
ORBIS ALVA 505 36W830 CLICKDIM

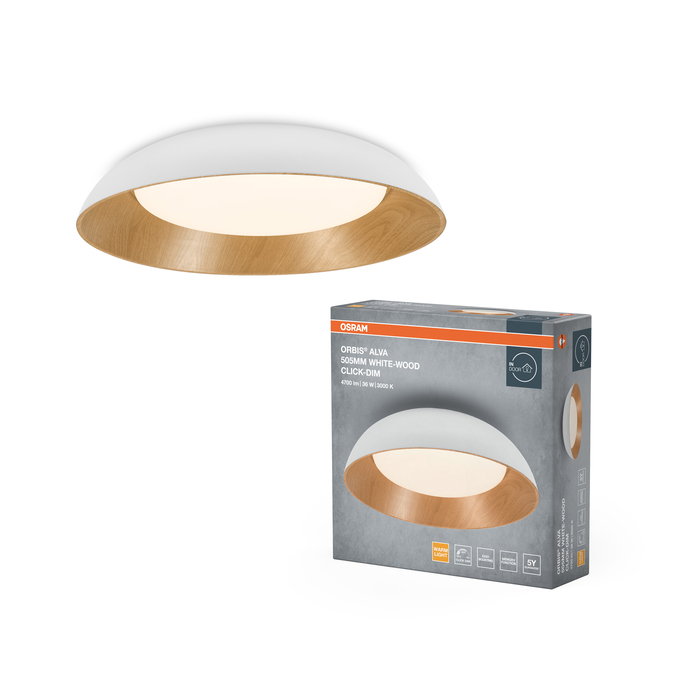

Combo Shot = Product Beauty Shot + Packaging Image
