LED BASE CLASSIC B
LED Base Classic B 40 4.9W 827 Frosted E14
GTIN: 4058075614413
Folding box / 2
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Lower thermal output (compared with the standard reference product)
- Lower energy consumption than incandescent or halogen lamps
- Shockproof and vibration-proof thanks to LED technology
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Simple direct replacement for conventional incandescent lamps
Areas of application
- General illumination
- Domestic applications
- Chandeliers
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not suitable for use with dimmers
- Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
- Base: E14, B22d
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 4.9 W |
| Construction wattage | 4.90 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 36 mA |
| Type of current | AC |
| Inrush current | 10 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 210 |
| Max. lamp number on MCB B16 A | 320 |
| Total harmonic distortion | 125 % |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 470 lm |
| Nominal useful luminous flux 90° | 470 lm |
| Luminous efficacy | 95 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.9 |
Light technical data
| Beam angle | 200 ° |
| Warm-up time (60 %) | 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 100.00 mm |
| Diameter | 37.00 mm |
| Maximum diameter | 37 mm |
| Product weight | 18.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 78 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 10000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
| Design / version | Frosted |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 5.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | ROHS 2.0, REACH, CE, CB, ERP |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | BASECLB40 4,9W/ |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E14 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 W |
| Claim of equivalent power | Yes |
| Length | 100.00 mm |
| Height | 37.00 mm |
| Width | 37.00 mm |
| Chromaticity coordinate x | 0.458 |
| Chromaticity coordinate y | 0.410 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 523316 |
| Model number | AC31158 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075614413 | Folding box 2 |
39 mm x 77 mm x 138 mm | 49.00 g | 0.41 dm³ |
| 4058075614420 | Shipping box 20 |
206 mm x 164 mm x 117 mm | 598.00 g | 3.95 dm³ |
Declarations of conformity
CLASS B,P LED lamp
CLASS B,P LED lamp
Product image: white background, diagonal with OSRAM logo
655095_Classic B 25-40 frosted non-dim E14
655095_Classic B 25-40 frosted non-dim E14
Product image: white background, diagonal
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product image: white background, upright, OSRAM logo
Classic B 25-40 frosted non-dim E14
Classic B 25-40 frosted non-dim E14
Product image: white background, upright
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product line drawing with letters
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product line drawing with numbers
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product line drawing, front, no dimensions
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14

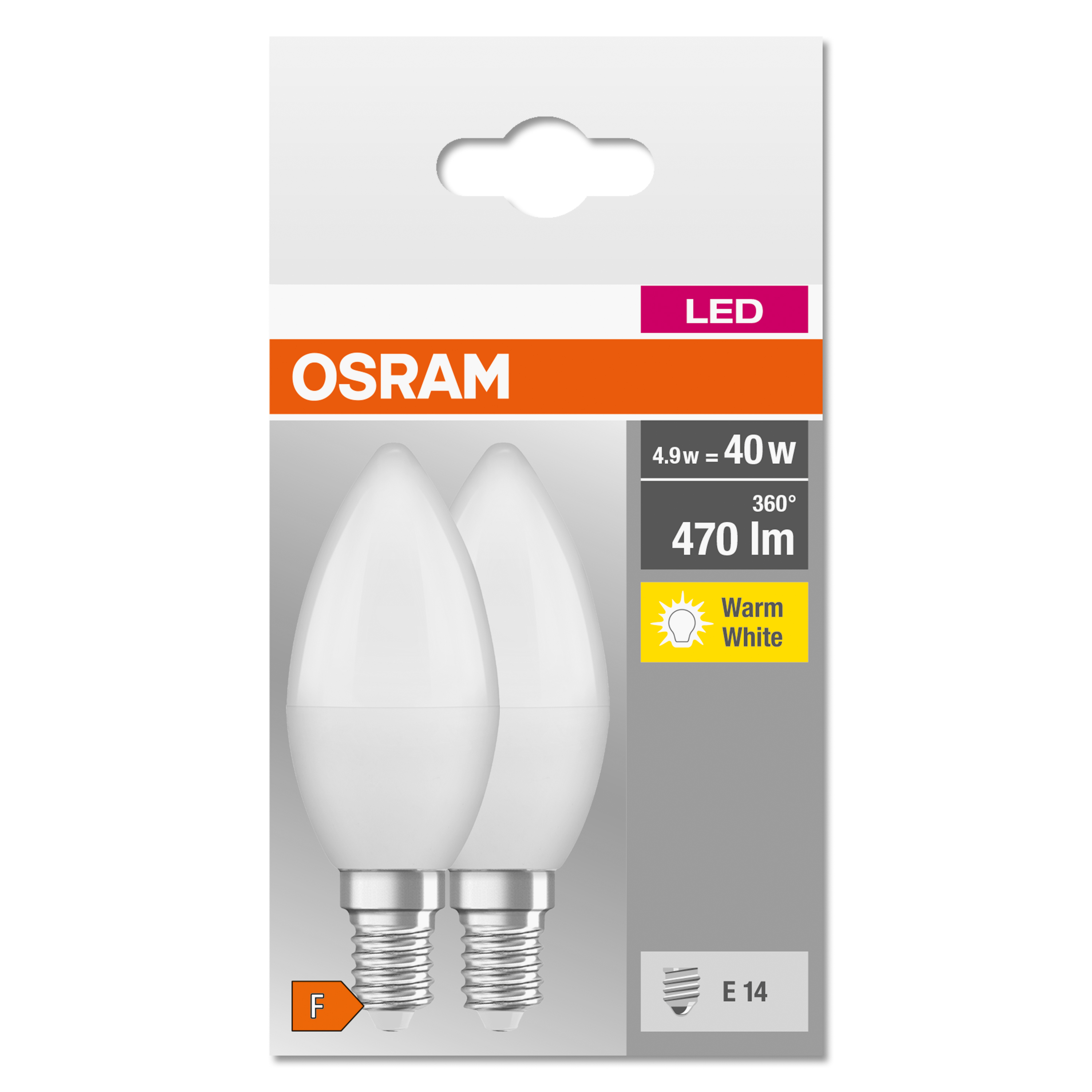

Packaging image, frontal
LED BASE CLB 40 4.9W 827 FR E14 MiCh
LED BASE CLB 40 4.9W 827 FR E14 MiCh

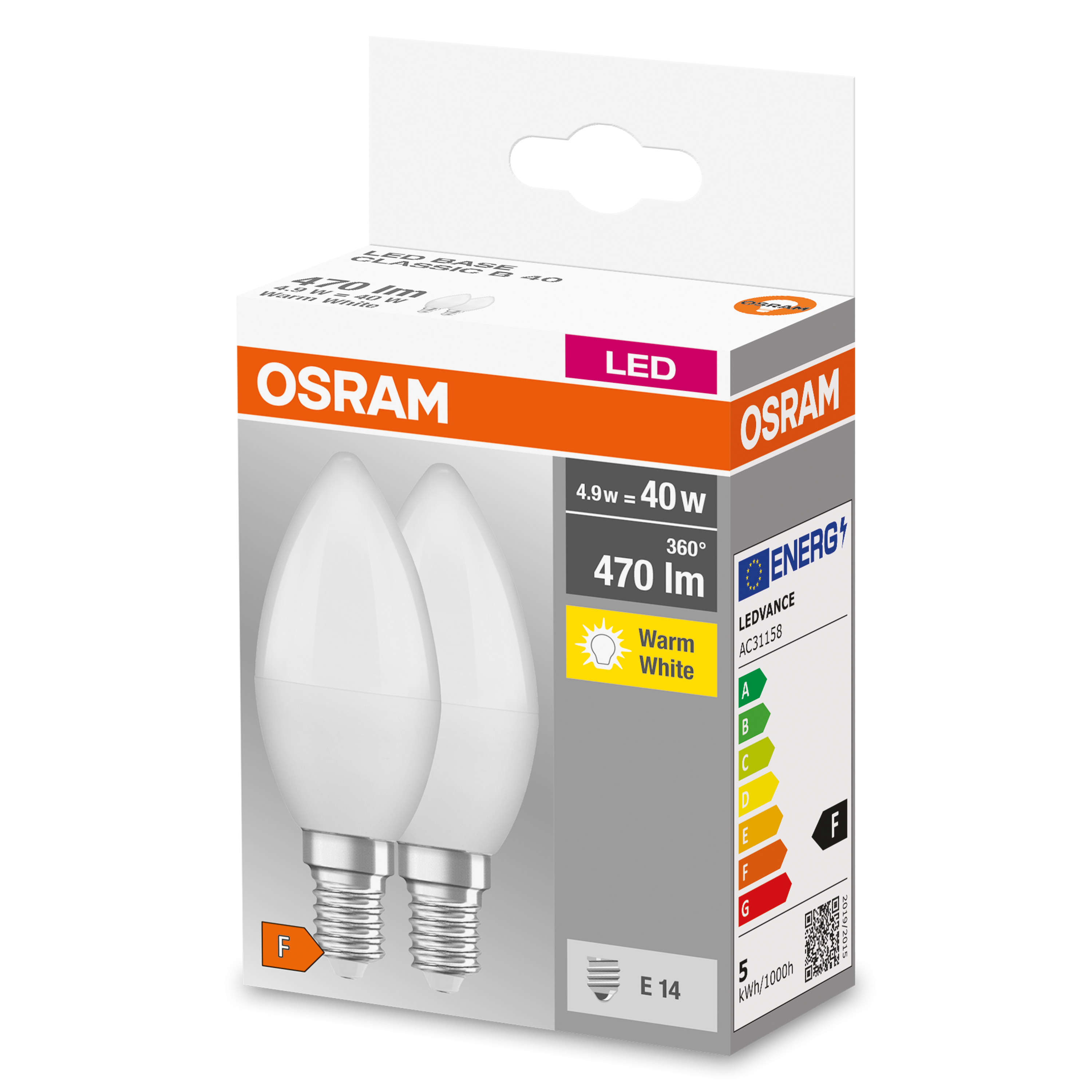

Packaging image, spacial
LED BASE CLB 40 4.9W 827 FR E14 MiCh
LED BASE CLB 40 4.9W 827 FR E14 MiCh
Energy label
EL-4058075614413-AC311 58
EL-4058075614413-AC311 58
Spectral power distribution
349927_2700K_Evl_5630. eps
349927_2700K_Evl_5630. eps
