EXIT SIGNS STANDARD
EXIT 1A R DV U WH EM
NAED: 60761
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Offices, education, public buildings
Product features
- Slim profile, lightweight, easy to install exit sign that replaces traditional incandescent and fluorescent exit signs
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Universal mounting
- 6500K color temperature (combination versions only)
- CRI > 80
- Offered in 0.5W (exit version only) and 2.2W (combination versions only)
Extended installation guide
Installation Guide Exit Signs
Installation Guide Exit Signs
Product information bulletin
ValueLED Exit Signs
ValueLED Exit Signs
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Electrical data
| Nominal wattage | 0.90 W |
| Nominal voltage | 120…277 V |
Photometrical data
| Luminous flux | 4 lm |
| Luminous efficacy | 5 lm/W |
Dimensions & Weight
| Length | 294.90 mm |
| Height | 190.00 mm |
| Width | 43.90 mm |
| Product weight | 830.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135607615 | Folding box 1 |
208 mm x 311 mm x 63 mm | 975.00 g | 4.08 dm³ |
| 4058118120116 | Shipping box 6 |
330 mm x 395 mm x 235 mm | 6667.00 g | 30.57 dm³ |

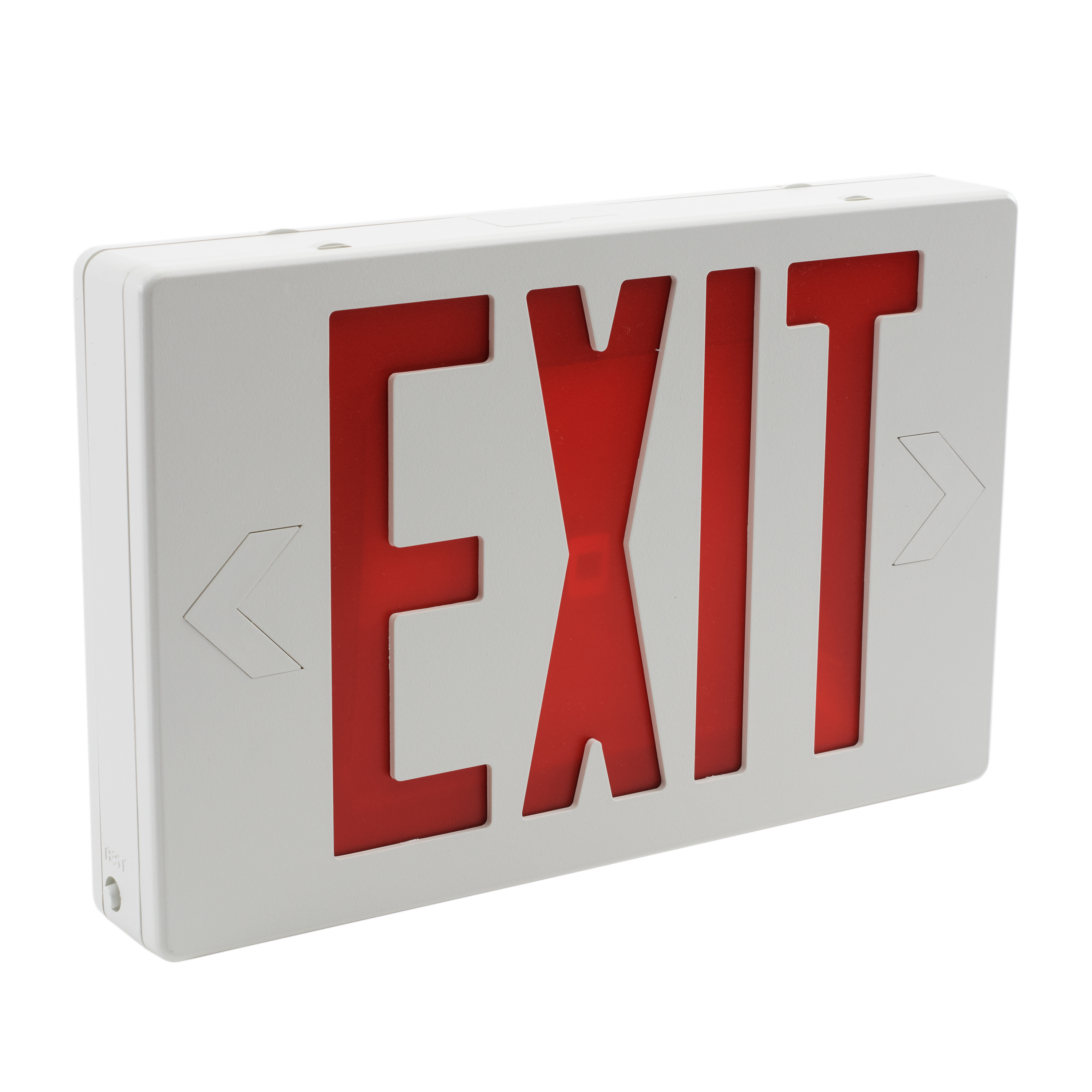

Product image: white background, diagonal
ValueLED™ Exit Signs - Red Diagonal
ValueLED™ Exit Signs - Red Diagonal

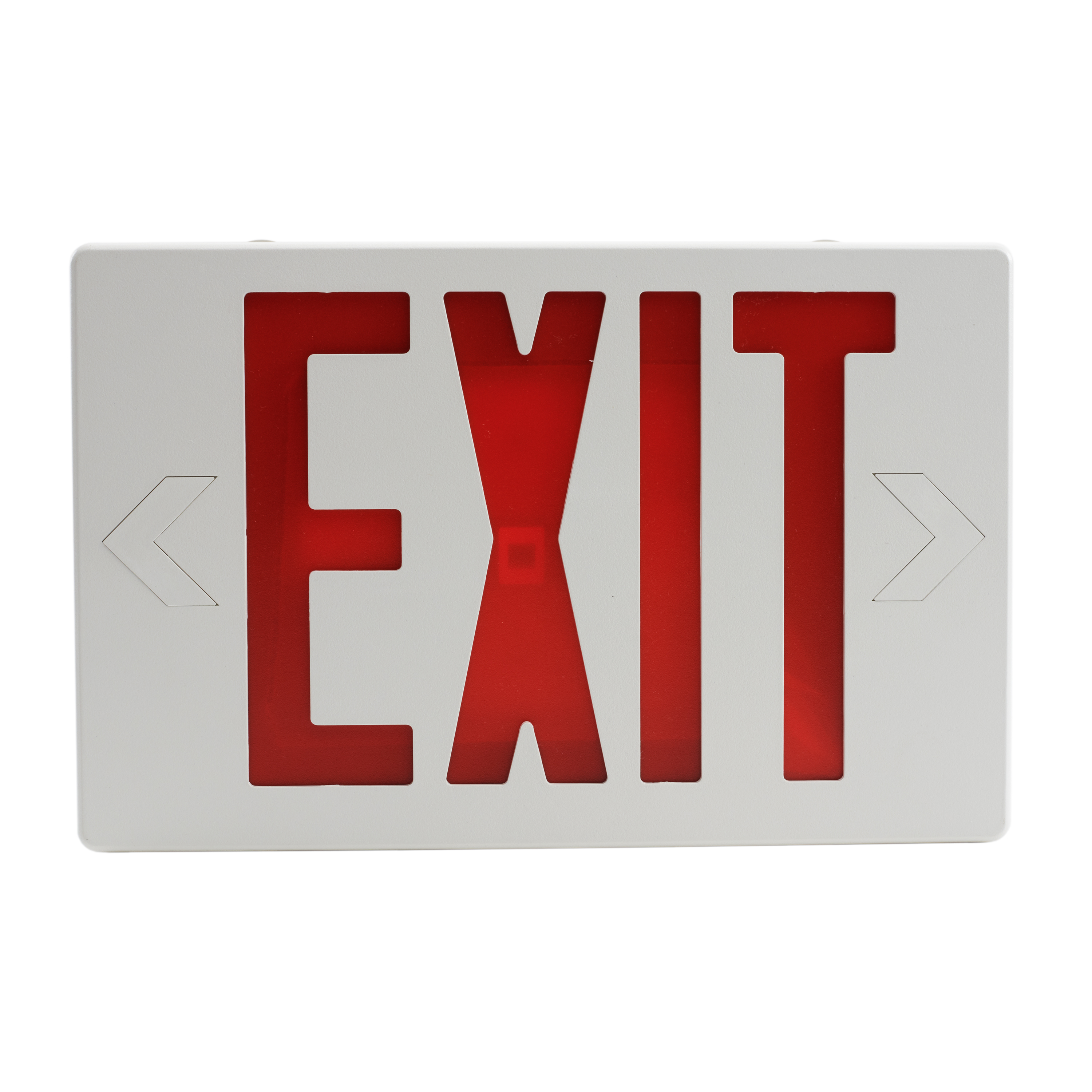

Product image: white background, horizontal
