EMERGENCY LIGHTS SELF DIAGNOSTIC
REMOTE LED 1O GR
NAED: 66078
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product features
- Slim profile, lightweight, easy to install emergency light that replaces traditional incandescent and fluorescent emergency lights
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Offered in watts up to 2W
- Surface mounting
- 6500K color temperature
- CRI > 80
- Optional self-diagnostic and remote capable
Extended installation guide
EXIT & EMERGENCY LIGHT
EXIT & EMERGENCY LIGHT
Product information bulletin
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
LEDVANCE Product Launch Flyer August 2025
Electrical data
| Nominal wattage | 1.20 W |
| Nominal voltage | 3,6 V |
Photometrical data
| Luminous flux | 100 lm |
| Luminous efficacy | 83 lm/W |
| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
Dimensions & Weight
| Diameter | 115.00 mm |
| Height | 161.50 mm |
| Product weight | 250.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135660788 | Folding box 1 |
121 mm x 121 mm x 172 mm | 334.00 g | 2.52 dm³ |
| 4099854335112 | Shipping box 12 |
375 mm x 252 mm x 360 mm | 4206.00 g | 34.02 dm³ |

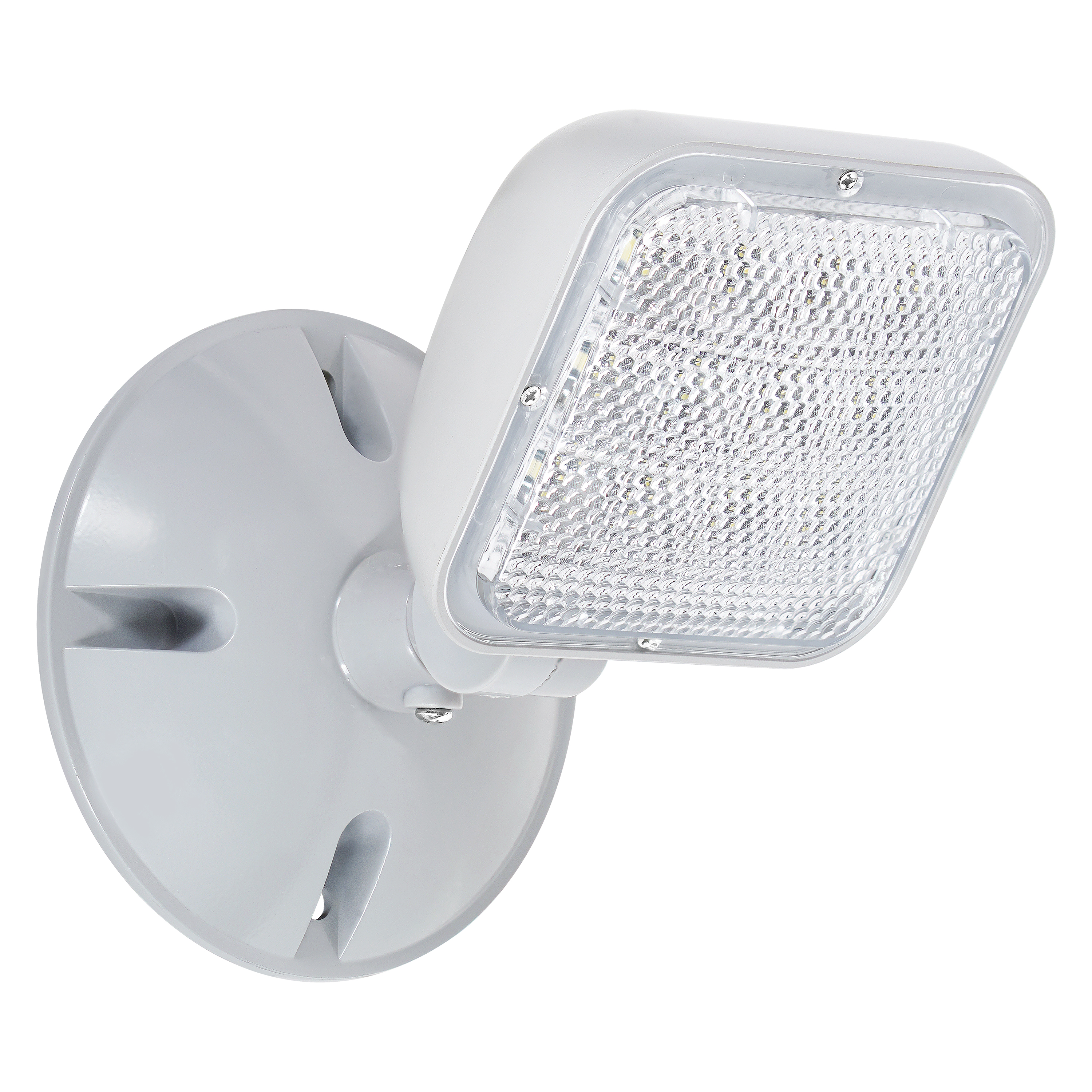

Product image: white background, diagonal
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

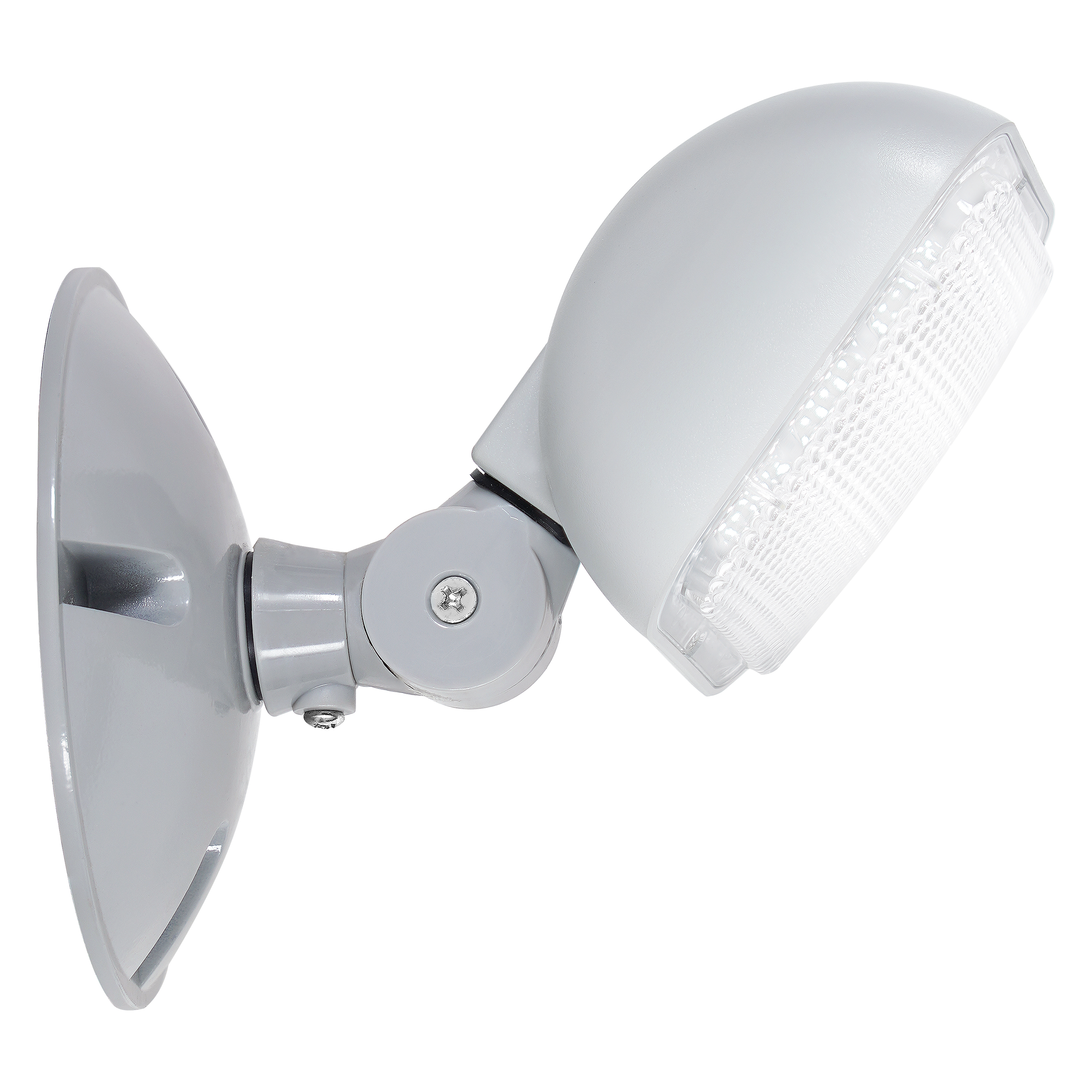

Product image: white background, diagonal
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

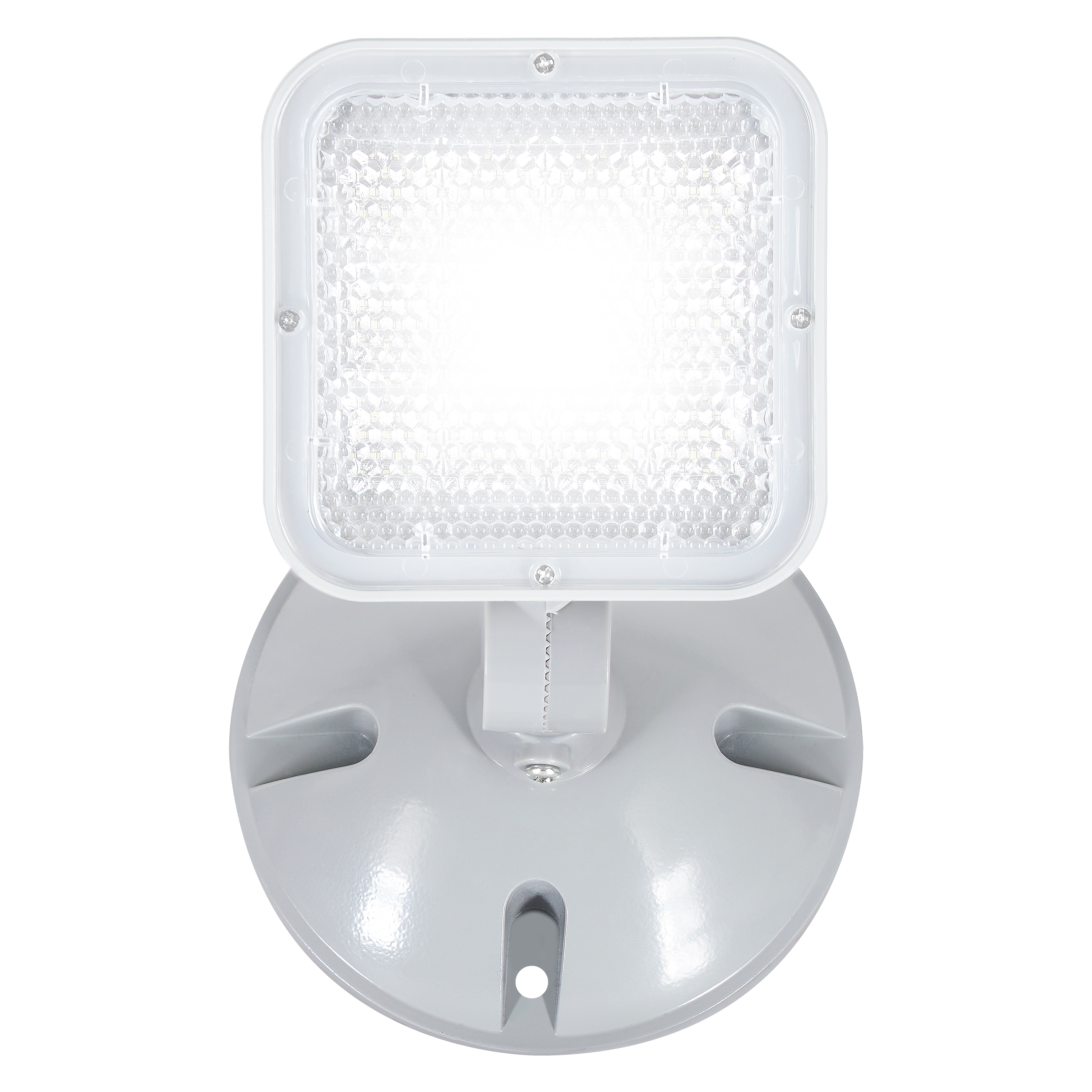

Product image: white background, diagonal, switched on
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

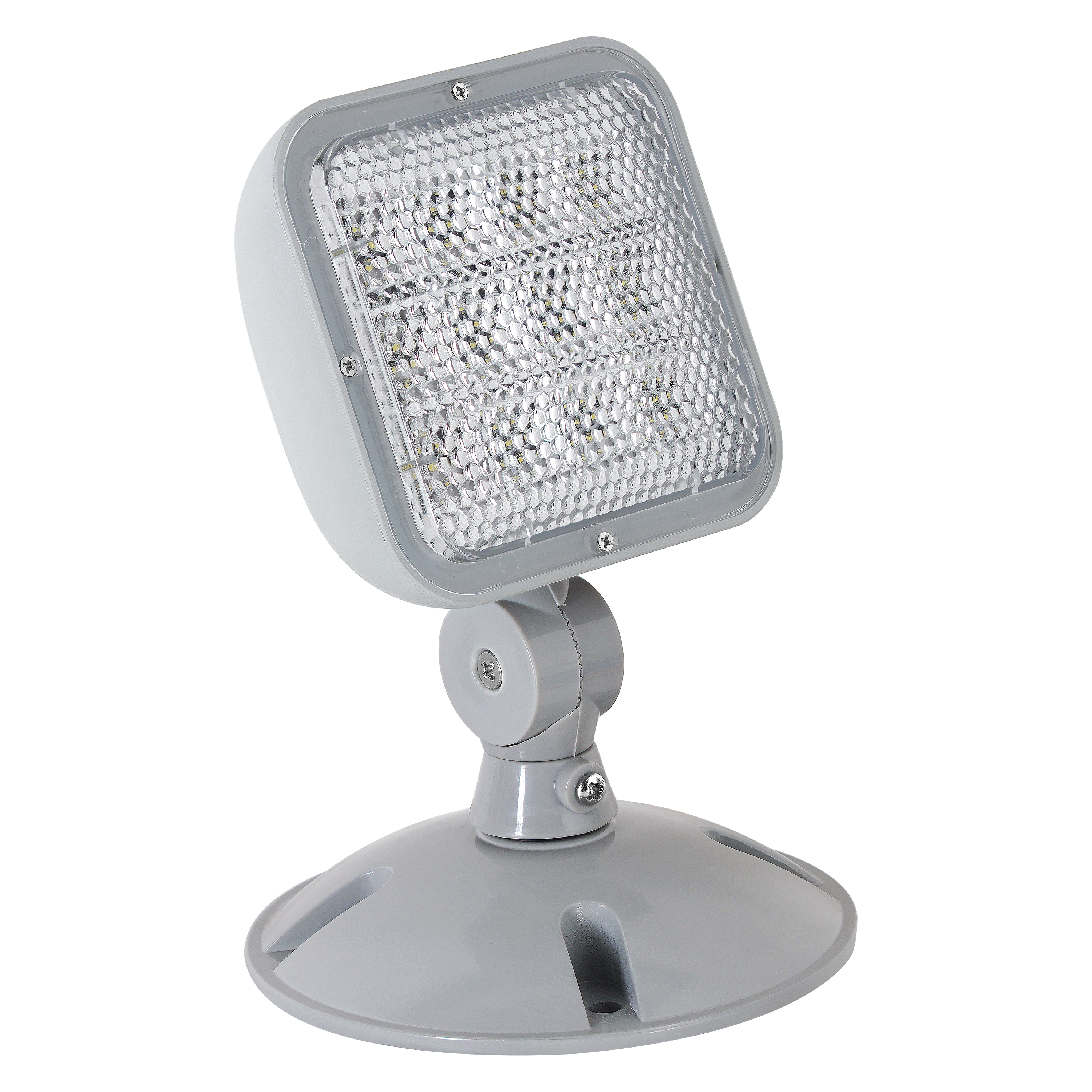

Product image: white background, horizontal, switched on
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

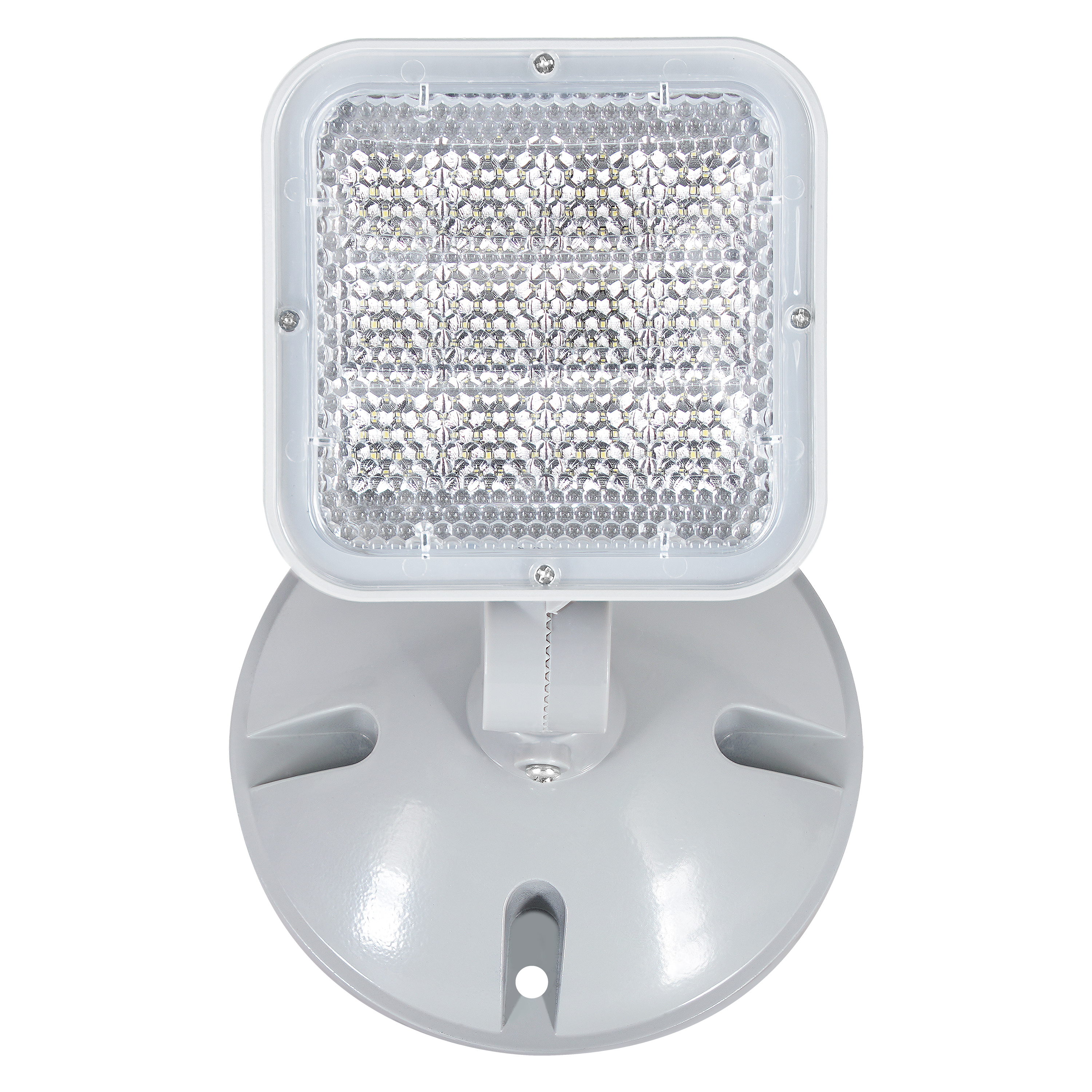

Product image: white background, upright
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

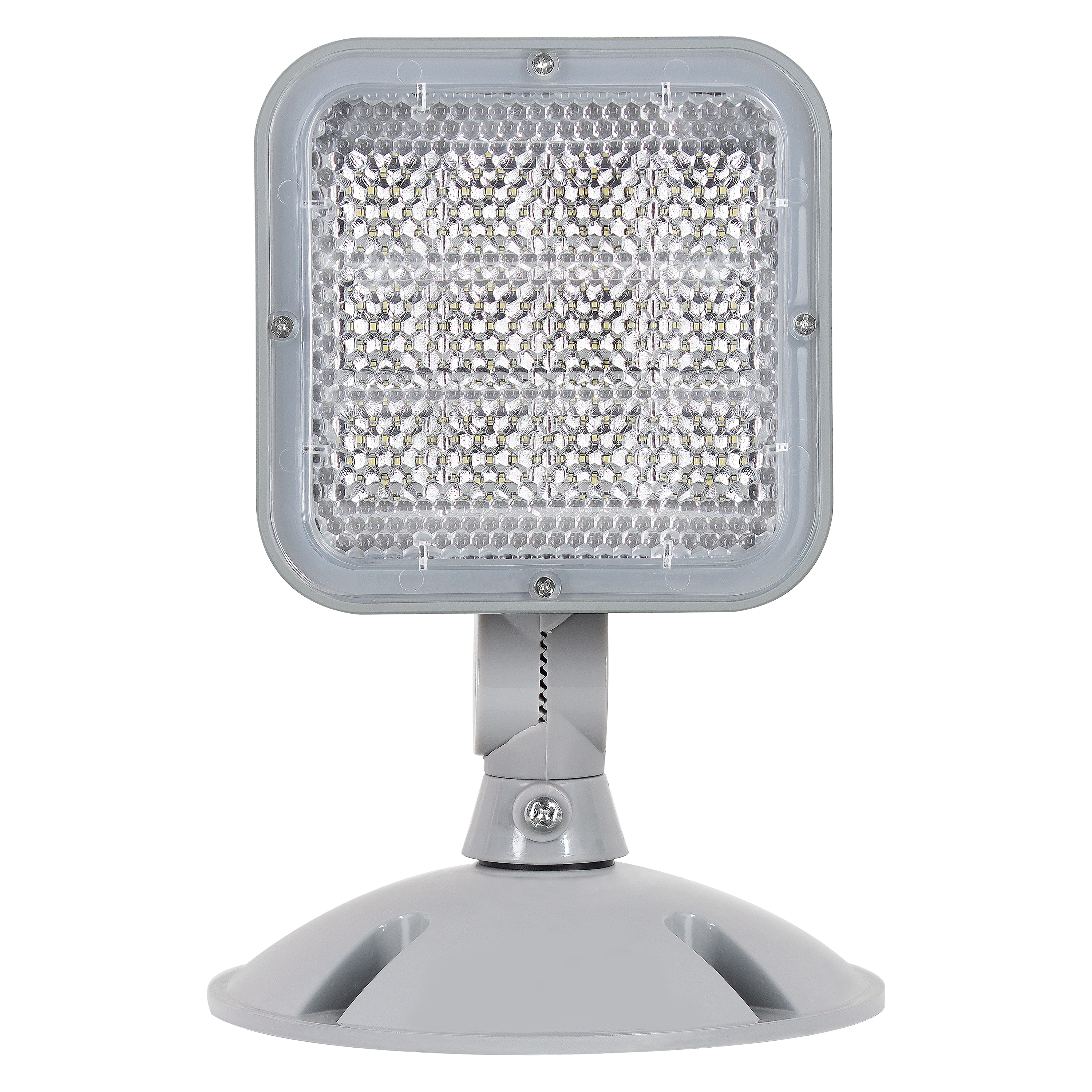

Product image: white background, upright
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

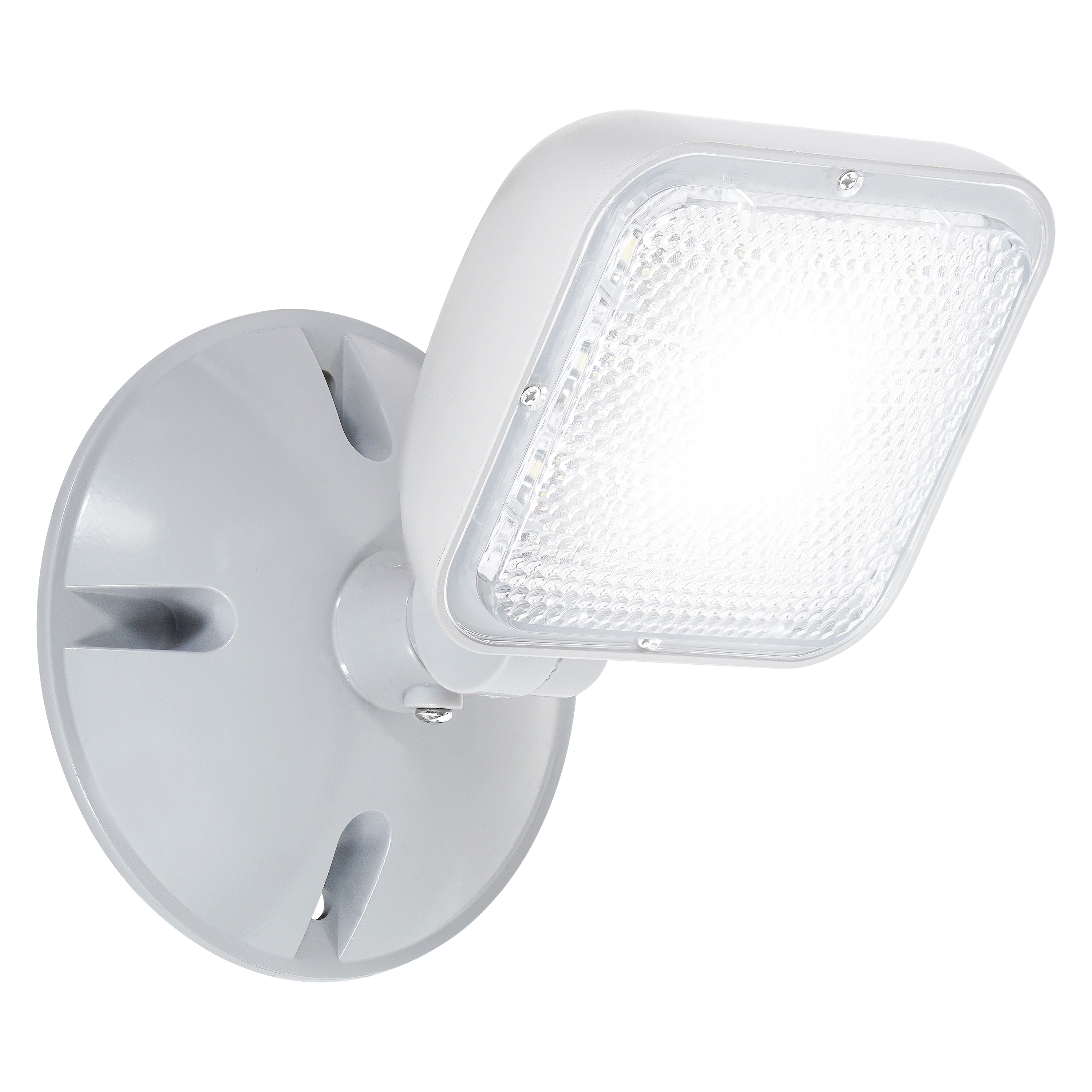

Product image: white background, upright, switched on
