EMERGENCY LIGHTS SELF DIAGNOSTIC

EML V THR WH R SD

NAED: 66075 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • Slim profile, lightweight, easy to install emergency light that replaces traditional incandescent and fluorescent emergency lights
  • Bright, energy-efficient LEDs provide energy savings up to 97%
  • Offered in watts up to 2W
  • Surface mounting
  • 6500K color temperature
  • CRI > 80
  • Optional self-diagnostic and remote capable
Extended installation guide
EXIT & EMERGENCY LIGHT
PDF (1.07 MB)
Product information bulletin
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
PDF (1.47 MB)
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
PDF (960.79 KB)
Electrical data
Nominal wattage 1.80 W
Nominal voltage 120…277 V
Photometrical data
Luminous flux 160 lm
Luminous efficacy 89 lm/W
Color temperature 6500 K
Color rendering index Ra 80
Dimensions & Weight
Length 280.00 mm
Height 110.00 mm
Width 67.00 mm
Product weight 500.00 g
Materials & Colors
Product color White
Housing color White
Mercury content 0.0 mg
Application & Mounting
Dimmable No
Mounting type Surface
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135660757 Folding box
1		 288 mm x 121 mm x 80 mm 605.00 g 2.79 dm³
4099854335082 Shipping box
6		 305 mm x 245 mm x 260 mm 3949.00 g 19.43 dm³

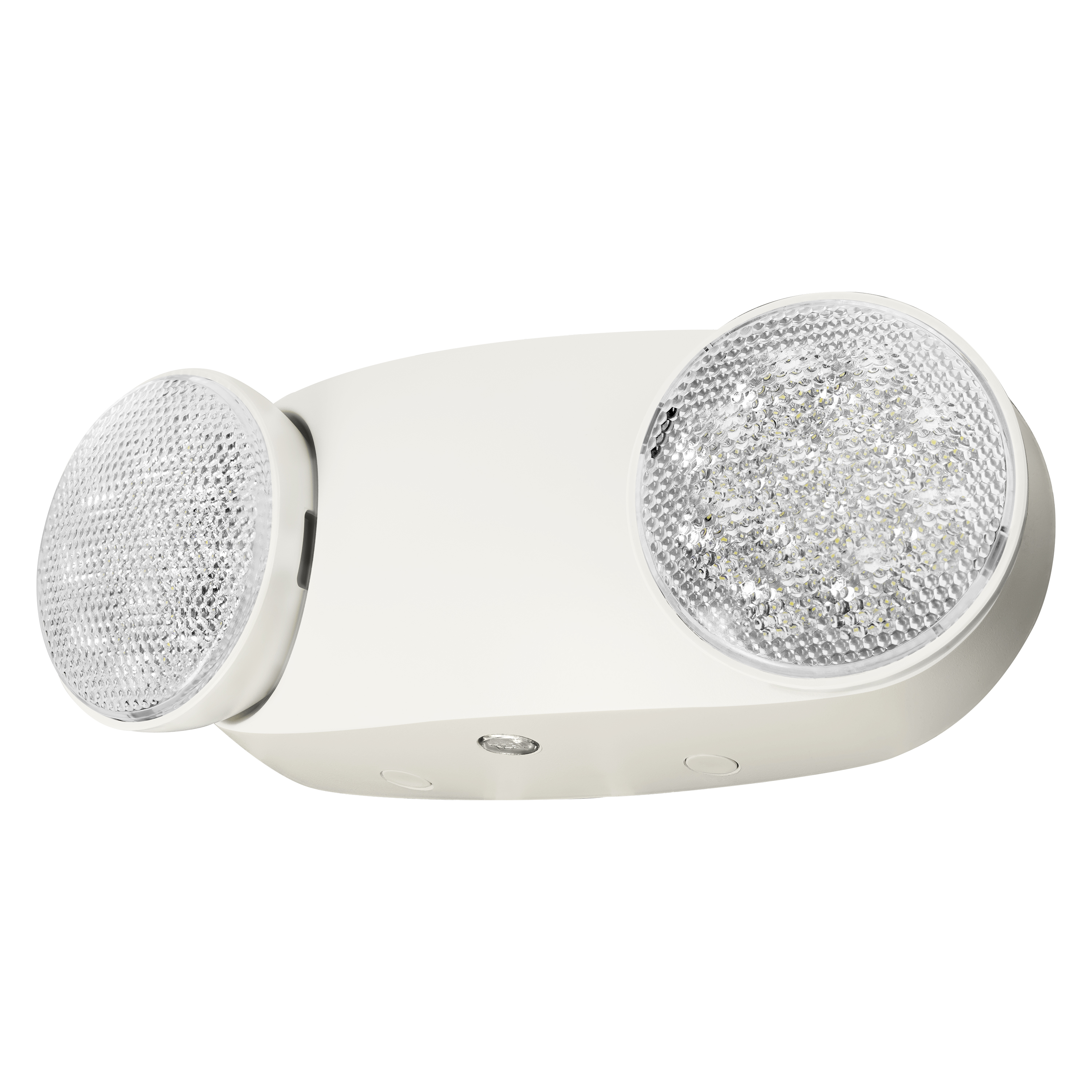

Product image: white background, diagonal
VALUE CLASS EXIT AND EMERGENCY
JPG (1.83 MB)

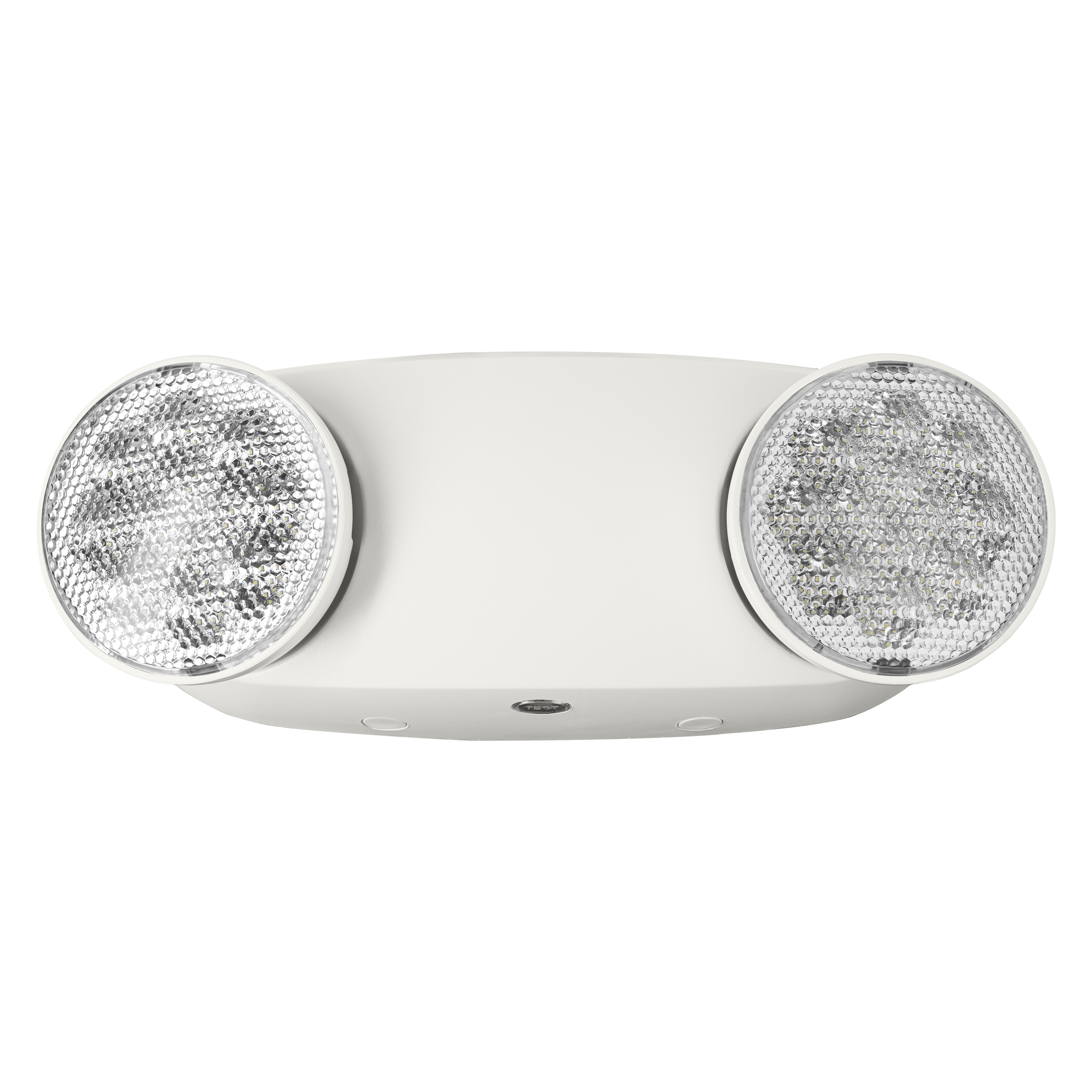

Product image: white background, horizontal
VALUE CLASS EXIT AND EMERGENCY
JPG (1.93 MB)

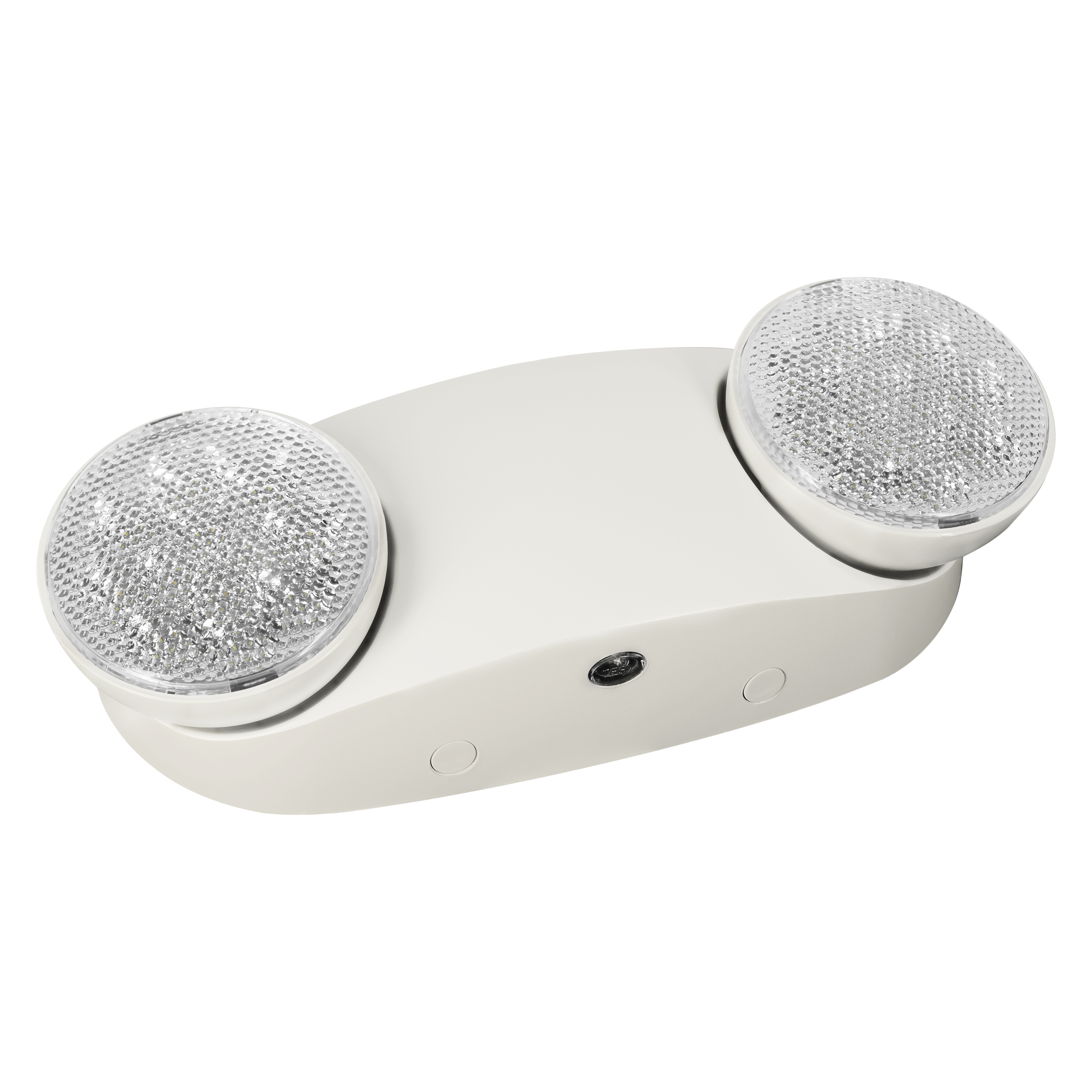

Product image: white background, spacial
VALUE CLASS EXIT AND EMERGENCY
JPG (1.9 MB)
IES file (IES)
VALUE CLASS EXIT AND EMERGENCY
ZIP (33.87 KB)
