DOWNLIGHT RETROFIT SELECTABLE
RT SELECT 1A 5/6" 5CCT 1200LM BA
NAED: 62873
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Bedrooms
- Kitchens
- Bathrooms
Product features
- Integrated white trim, E26 medium base socket adapter
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Available in 120VAC
- Up to 100 LPW
- Energy savings up to 89 %
- Flicker-free dimming, phase-cut down to 10 %
- Color trim rings available as optional accessory
- No warm-up time, instant-on with full light output
Safety advice
- Suitable for indoor dry, damp and wet locations.
- For use in housings that can structurally support a lamp weighing one pound.
- RT5/6 designed to install in standard 5" and 6" insulated and non-insulated housings.
- Not intended for use with emergency light luminaires or exit lights.
Extended installation guide
Install Guide- Downlights
Install Guide- Downlights
Product information bulletin
DUAL SELECTABLE SCREW-BASE DOWNLIGHT
DUAL SELECTABLE SCREW-BASE DOWNLIGHT
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
LEDVANCE Product Launch Flyer NOV 2022
Other documents / promotion
LEDVANCE Performance Class Selectable Screw-Base Downlight Sales Flyer
LEDVANCE Performance Class Selectable Screw-Base Downlight Sales Flyer
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
LEDVANCE Product Launch Flyer NOV 2022
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Electrical data
| Nominal wattage | 13.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 1200 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 187.00 mm |
| Height | 70.00 mm |
| Product weight | 200.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135628733 | Folding box 1 |
80 mm x 193 mm x 194 mm | 285.00 g | 3.00 dm³ |
| 4099854011870 | Shipping box 6 |
393 mm x 251 mm x 209 mm | 1899.00 g | 20.61 dm³ |

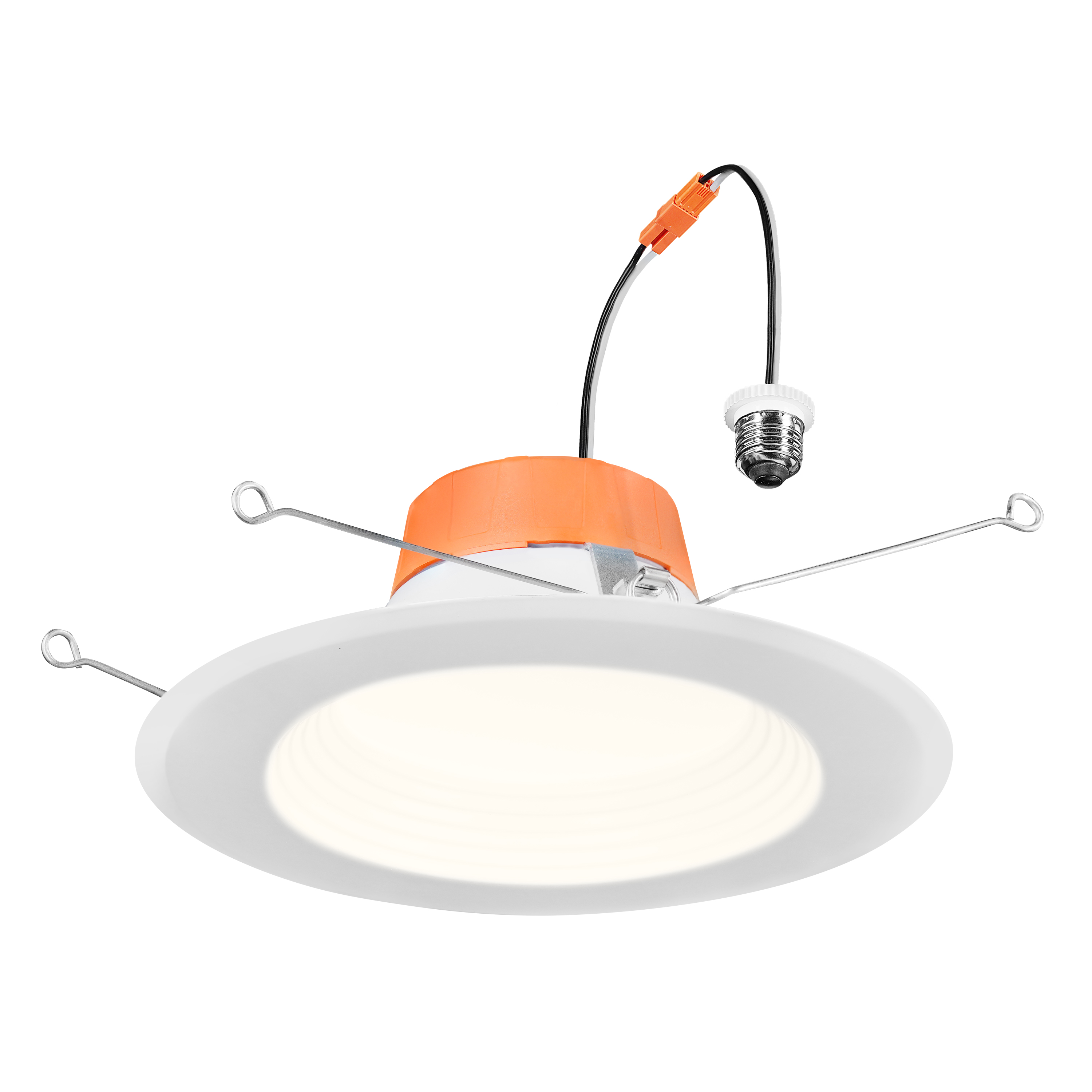

Product image: white background, spacial
