SYLVANIA Specialty LED Lamps

SPECIALTY LED LAMPS WEDGE 2W 3000K FR 1PK

NAED: 74664 Blister / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • Residential and commercial
Product features
  • Available in a variety of shapes, sizes, and base configurations
  • Available in 3000K CCT
  • RoHS compliant, mercury and lead free
  • UV and IR free
Safety advice
  • Suitable for damp locations.
  • Non-dimmable.
  • -4°F to +113°F (-20°C to +45°C)
  • Not for use with emergency light fixtures or exit lights.
Electrical data
Nominal wattage 2 W
Construction wattage 2.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 25 W
Photometrical data
Luminous flux 160 lm
Luminous efficacy 80 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Dimensions & Weight
Overall length 41.66 mm
Diameter 19.30 mm
Product weight 3.00 g
Additional product data
Mercury content 0.0 mg
Capabilities
Dimmable No
Country-specific categorizations
Order reference 2W/830 12V W2.1
Energy labelling regulation data acc EU 2019/2015
Length 41.66 mm
Height 19.30 mm
Width 19.30 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135746642 Blister
1		 25 mm x 98 mm x 149 mm 12.00 g 0.37 dm³
10046135746649 Shipping box
6		 164 mm x 116 mm x 164 mm 168.00 g 3.10 dm³
PRODUCT DATASHEET
Insert Sheet - LED Specialty Lamps
PDF (184.97 KB)
Product information bulletin
SYLVANIA LED Micro Specialty Lamps
PDF (1.01 MB)
Other documents / promotion
Insert Sheet - LED Specialty Lamps
PDF (218.85 KB)
Other documents / promotion
LED Ultra General Purpose Lamps Limited Warranty
PDF (201.02 KB)

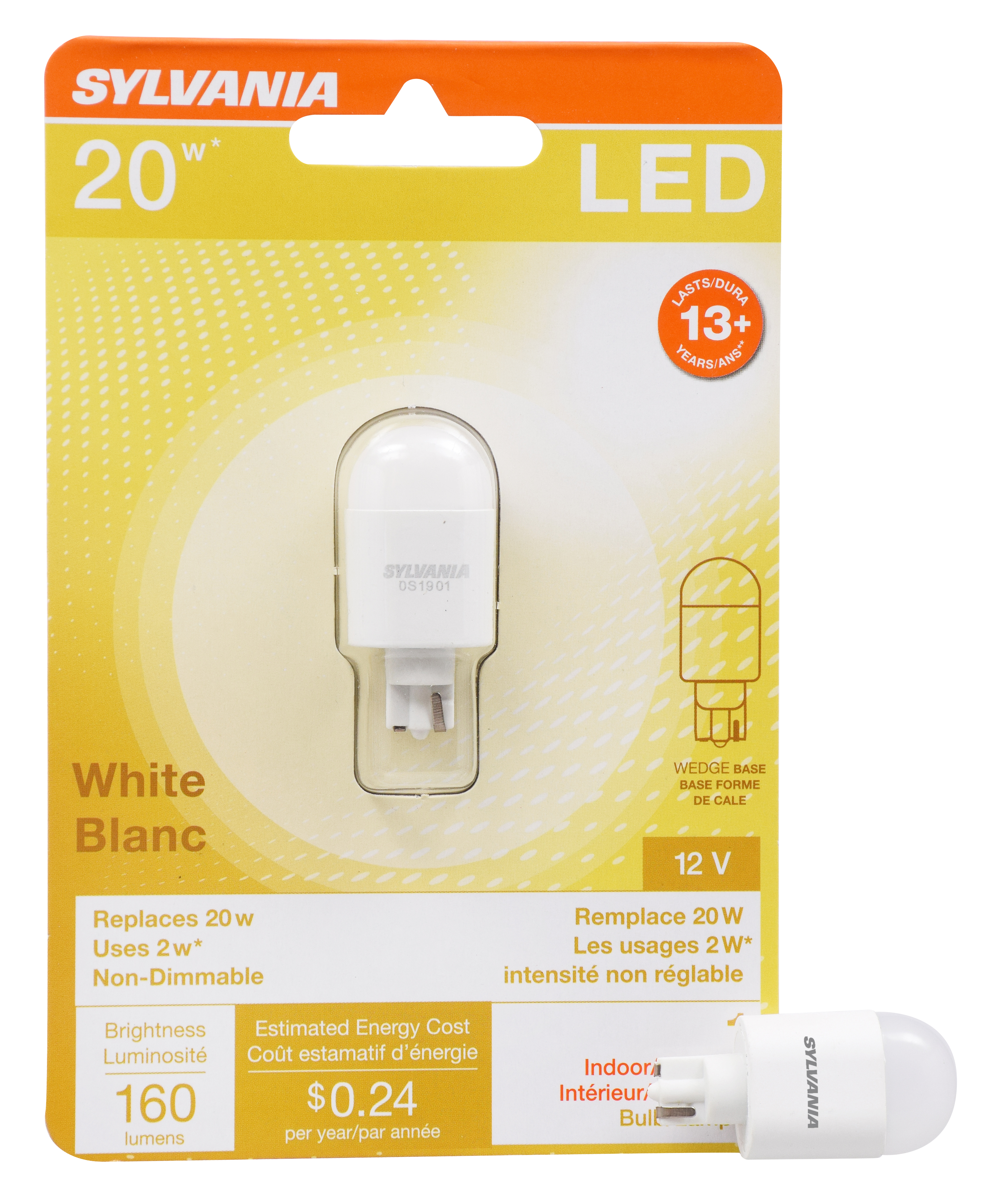

Packaging image, beauty shot
04613574664 bb Beauty Shot
JPG (7.82 MB)
Packaging image, frontal
LED Specialty Frosted 2W Wedge EN/FR
TIF (83.92 MB)

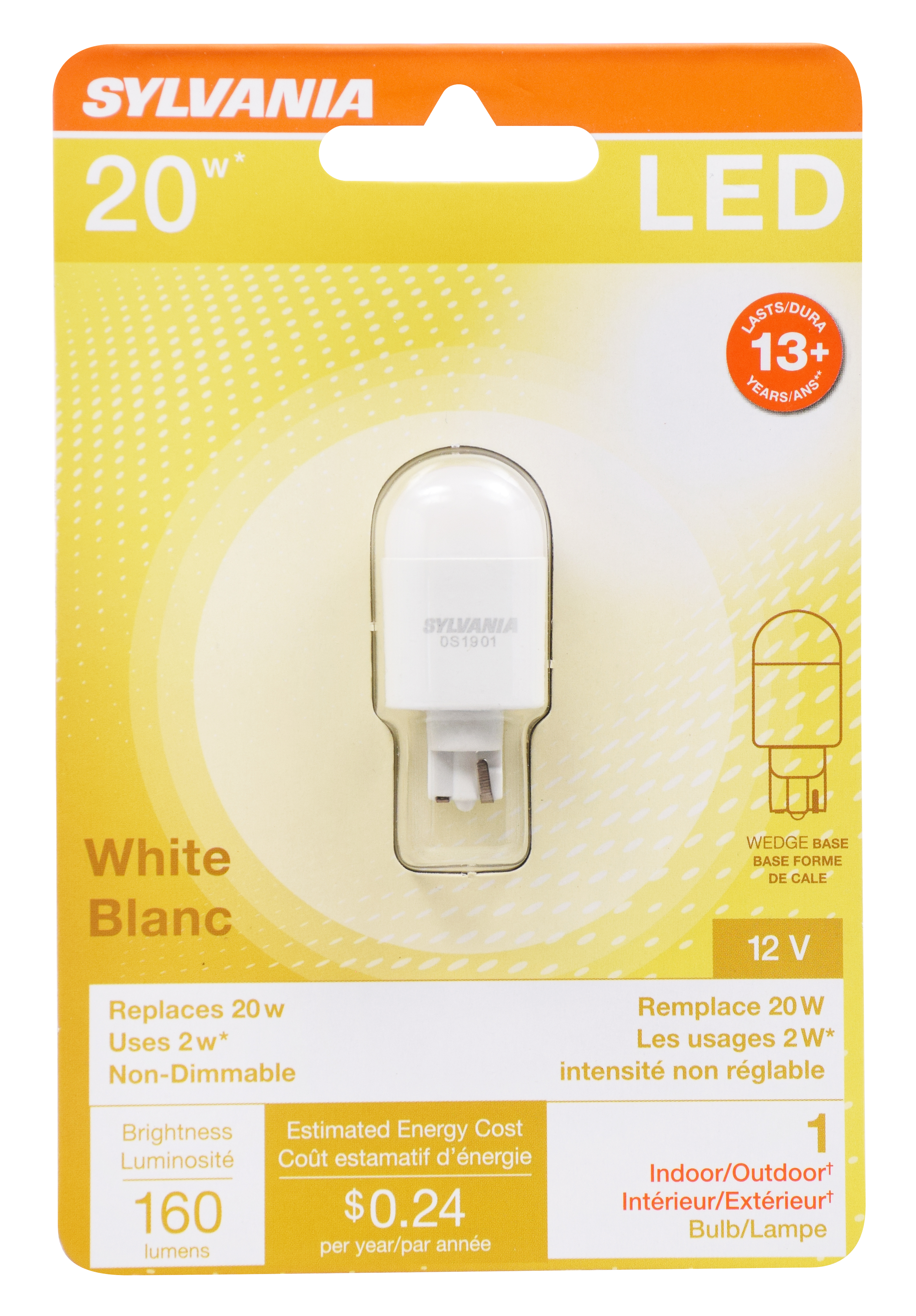

Packaging image, frontal
