SYLVANIA Specialty LED Lamps

SPECIALTY LED LAMPS T6 2W G4 3000K 1PK

Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • Residential and commercial
Product features
  • Available in a variety of shapes, sizes, and base configurations
  • Available in 3000K CCT
  • RoHS compliant, mercury and lead free
  • UV and IR free
Safety advice
  • Suitable for damp locations.
  • Non-dimmable.
  • -4°F to +113°F (-20°C to +45°C)
  • Not for use with emergency light fixtures or exit lights.
Electrical data
Nominal wattage 2 W
Construction wattage 2.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 20 W
Photometrical data
Luminous flux 160 lm
Luminous efficacy 80 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Dimensions & Weight
Overall length 50.04 mm
Diameter 13.21 mm
Product weight 4.00 g
Additional product data
Base (standard designation) G4
Mercury content 0.0 mg
Capabilities
Dimmable No
Country-specific categorizations
Order reference CL 2W/830 12V G
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) G4
Length 50.04 mm
Height 13.21 mm
Width 13.21 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058118265619 Blister
1		 25 mm x 98 mm x 149 mm 13.00 g 0.37 dm³
4058118250585 Shipping box
6		 164 mm x 116 mm x 164 mm 131.00 g 3.10 dm³
PRODUCT DATASHEET
Insert Sheet - LED Specialty Lamps
PDF (184.97 KB)
Product information bulletin
SYLVANIA LED Micro Specialty Lamps
PDF (1.01 MB)
Other documents / promotion
Insert Sheet - LED Specialty Lamps
PDF (218.85 KB)
Other documents / promotion
LED Ultra General Purpose Lamps Limited Warranty
PDF (201.02 KB)

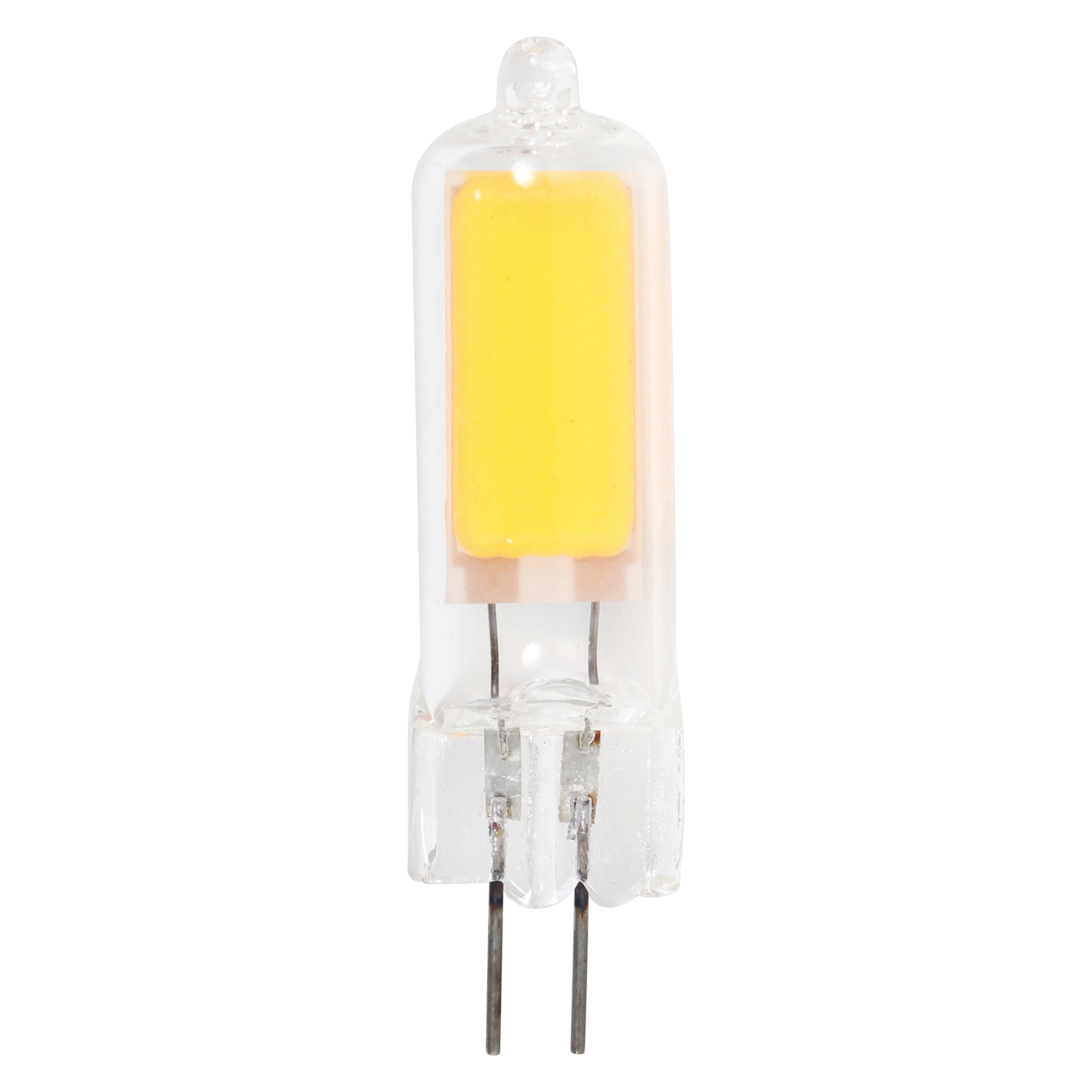

Product image: white background, upright
