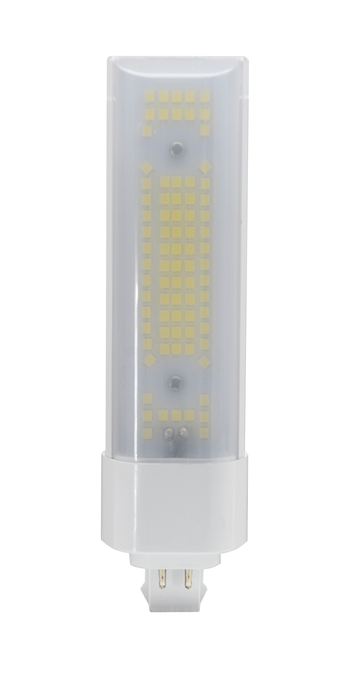

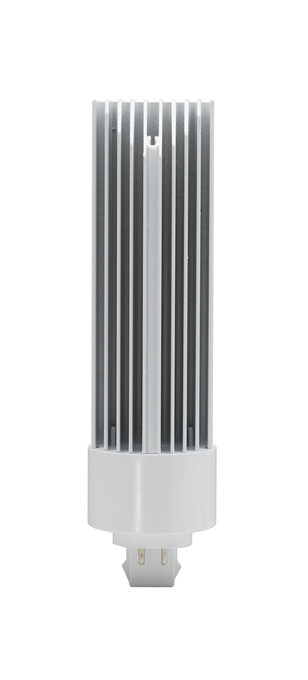

SYLVANIA DULUX SubstiTUBE High Output LED Pin Base Lamps (UL TYPE A)

LED PBG24Q DIM SUB 15W H 841

NAED: 41709 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights
  • Sconces
  • Task Lighting
  • Recessed ceiling fixtures
Product features
  • LED replacement for conventional compact fluorescent lamps for use with existing ballast
  • Available in 15W
  • Static color temperature
  • CRI ≥ 80
  • Frosted plastic finish
  • Energy savings up to 68 %
  • High output lamps with either 110° or 120° beam angle and light emitting angle of 260°
  • Compatible with electronic (4-pin) ballast
  • Lifetime (L70): up to 50,000 h
  • 0-10V dimmable with select compatible 0-10V dimming ballasts
  • 5-year limited lamp warranty (24/7 operation)
  • Power factor: > 0.9
Safety advice
  • Check ballast compatibility guide for approved ballasts for SubstiTUBE Type A operation.
  • High Output lamps are not suitable for use in enclosed (lens or diffuser) luminaire.
  • Not approved for use in vapor tight or sealed luminaire.
  • Ambient Operating Range: -4°F to +104°F (-20°C to +40°C)
  • Refer to the installation manual included inside the packaging.
  • THD < 20 %
  • Check Pin Based Socket Guide
Electrical data
Nominal wattage 15 W
Construction wattage 15.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 42 W
Photometrical data
Luminous flux 1950 lm
Luminous efficacy 130 lm/W
Color temperature 4100 K
Color rendering index Ra 80
Light color 841
Dimensions & Weight
Overall length 169.01 mm
Diameter 45.01 mm
Product weight 368.00 g
Additional product data

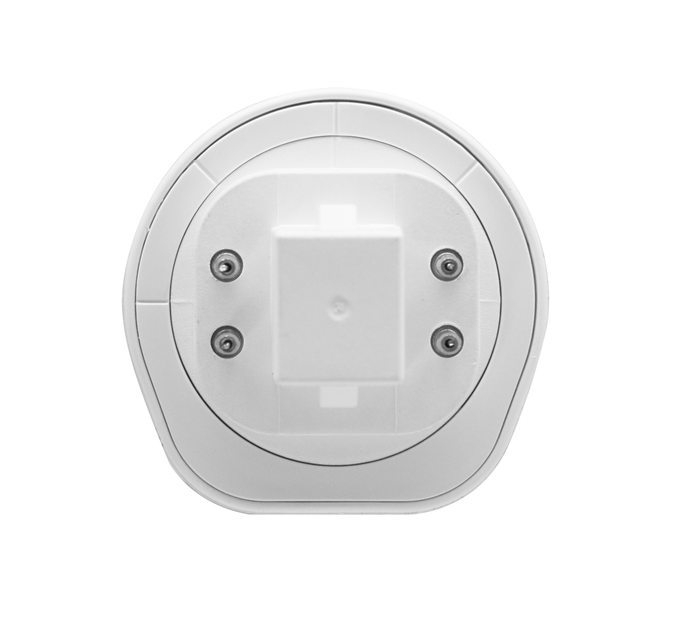

Base (standard designation) G24q-1
Mercury content 0.0 mg
Capabilities
Dimmable No
Country-specific categorizations
Order reference 15W/841 120V G2
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) G24q-1
Correlated colour temperature type SINGLE_VALUE
Length 170.18 mm
Height 45.01 mm
Width 45.01 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135417092 Folding box
1		 47 mm x 47 mm x 173 mm 403.00 g 0.38 dm³
4058118252282 Shipping box
24		 297 mm x 203 mm x 197 mm 10023.00 g 11.88 dm³
