SYLVANIA Low Bay Surface Light Lamps

LOW BAY 47W 5000K MED

Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Indoor low bay
  • Residential
  • Hospitality
  • Retail
Product features
  • Ultra slim design for a modern look
  • Available in 120V only
  • Clear bright light (5000K) offers uniform, glare free illumination distribution
  • Up to 100 LPW
  • E26 Medium Screw-based design intended to replace traditional technologies
  • 80 CRI, R9>0
  • Energy savings up to 84 %
Safety advice
  • Not for use with dimmers.
  • Please read and comply with all instructions, including the installation manual included inside the packaging before attempting installation.
  • All installation, inspection, and maintenance of lighting fixtures should be done with the power to the fixture turned off.
  • Lamps should be installed and operated in compliance with the National Electrical Code (NEC), Underwriters Laboratories Inc. (UL) requirements, and all applicable codes and regulations.
Product information bulletin
Low Bay Surface Light
PDF (418.79 KB)
Electrical data
Nominal wattage 47 W
Construction wattage 47.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 100 W
Photometrical data
Luminous flux 4600 lm
Luminous efficacy 97 lm/W
Color temperature 5000 K
Color rendering index Ra > 80
Light color 850
Dimensions & Weight
Overall length 105.99 mm
Diameter 299.72 mm
Product weight 652.00 g
Additional product data
Base (standard designation) E26
Capabilities
Dimmable No
Country-specific categorizations
Order reference 47W/850 120V 3X
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Correlated colour temperature type SINGLE_VALUE
Length 106.17 mm
Height 299.72 mm
Width 299.72 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058118235780 Folding box
1
4058118217700 Shipping box
3		 370 mm x 325 mm x 340 mm 3402.00 g 40.88 dm³

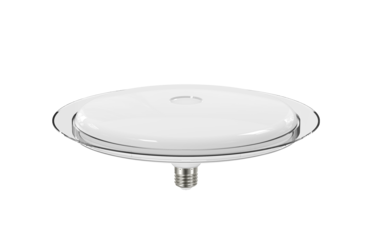

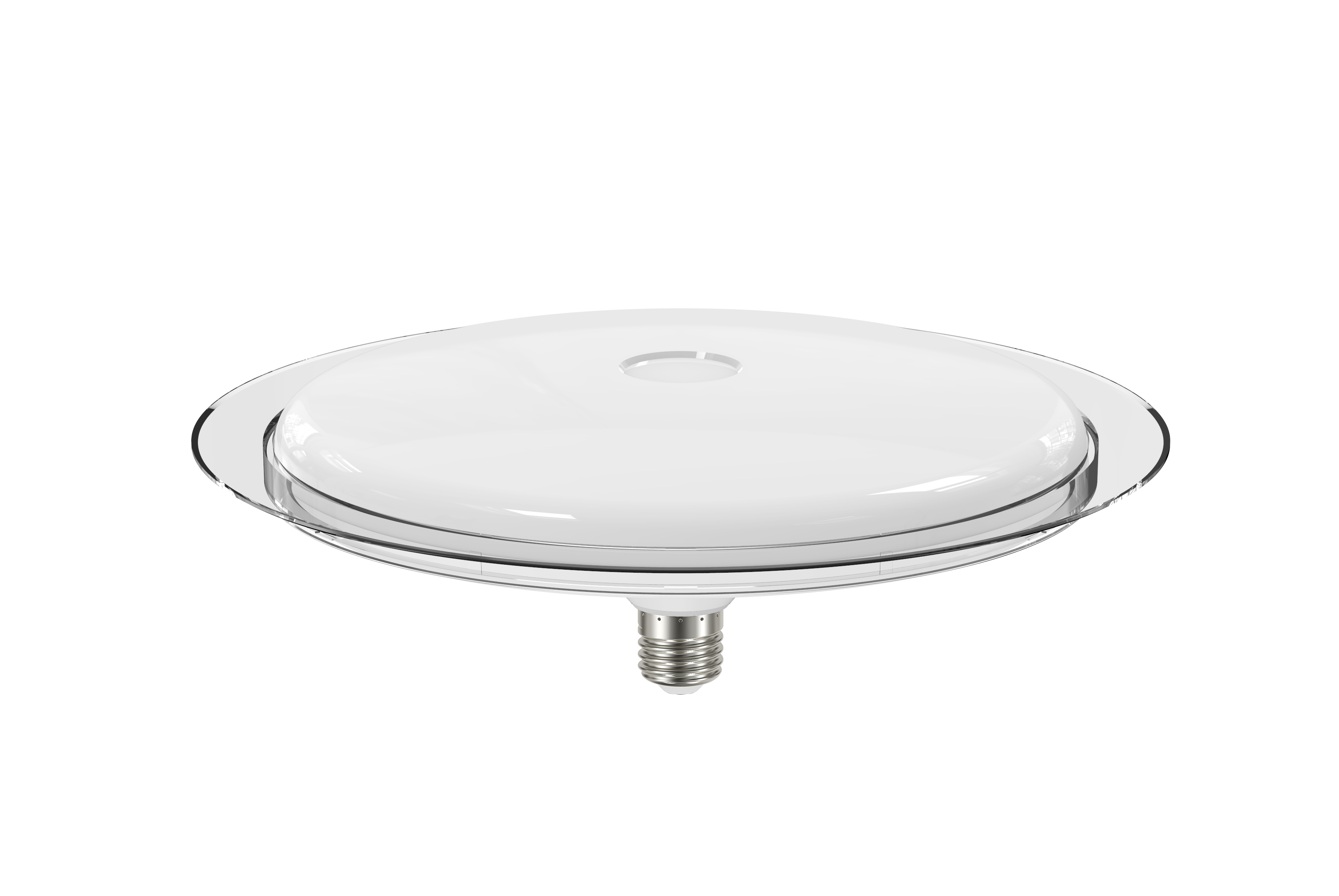

Product image: white background, horizontal
Low Bay Lamp with ring
PNG (505.17 KB)
