SYLVANIA Low Bay Surface Light Lamps

LOW BAY 14.5W 5000K MED

Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Indoor low bay
  • Residential
  • Hospitality
  • Retail
Product features
  • Ultra slim design for a modern look
  • Available in 120V only
  • Clear bright light (5000K) offers uniform, glare free illumination distribution
  • Up to 100 LPW
  • E26 Medium Screw-based design intended to replace traditional technologies
  • 80 CRI, R9>0
  • Energy savings up to 84 %
Safety advice
  • Not for use with dimmers.
  • Please read and comply with all instructions, including the installation manual included inside the packaging before attempting installation.
  • All installation, inspection, and maintenance of lighting fixtures should be done with the power to the fixture turned off.
  • Lamps should be installed and operated in compliance with the National Electrical Code (NEC), Underwriters Laboratories Inc. (UL) requirements, and all applicable codes and regulations.
Electrical data
Nominal wattage 14.5 W
Construction wattage 14.50 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 90 W
Photometrical data
Luminous flux 1450 lm
Luminous efficacy 100 lm/W
Color temperature 5000 K
Color rendering index Ra > 80
Light color 850
Dimensions & Weight
Overall length 68.00 mm
Diameter 124.46 mm
Product weight 116.00 g
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Capabilities
Dimmable No
Country-specific categorizations
Order reference 14,5W/850 120V
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Correlated colour temperature type SINGLE_VALUE
Length 68.07 mm
Height 124.46 mm
Width 124.46 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058118235766 Folding box
1
4058118217694 Shipping box
4		 335 mm x 135 mm x 145 mm 855.00 g 6.56 dm³
Product information bulletin
Low Bay Surface Light
PDF (418.79 KB)

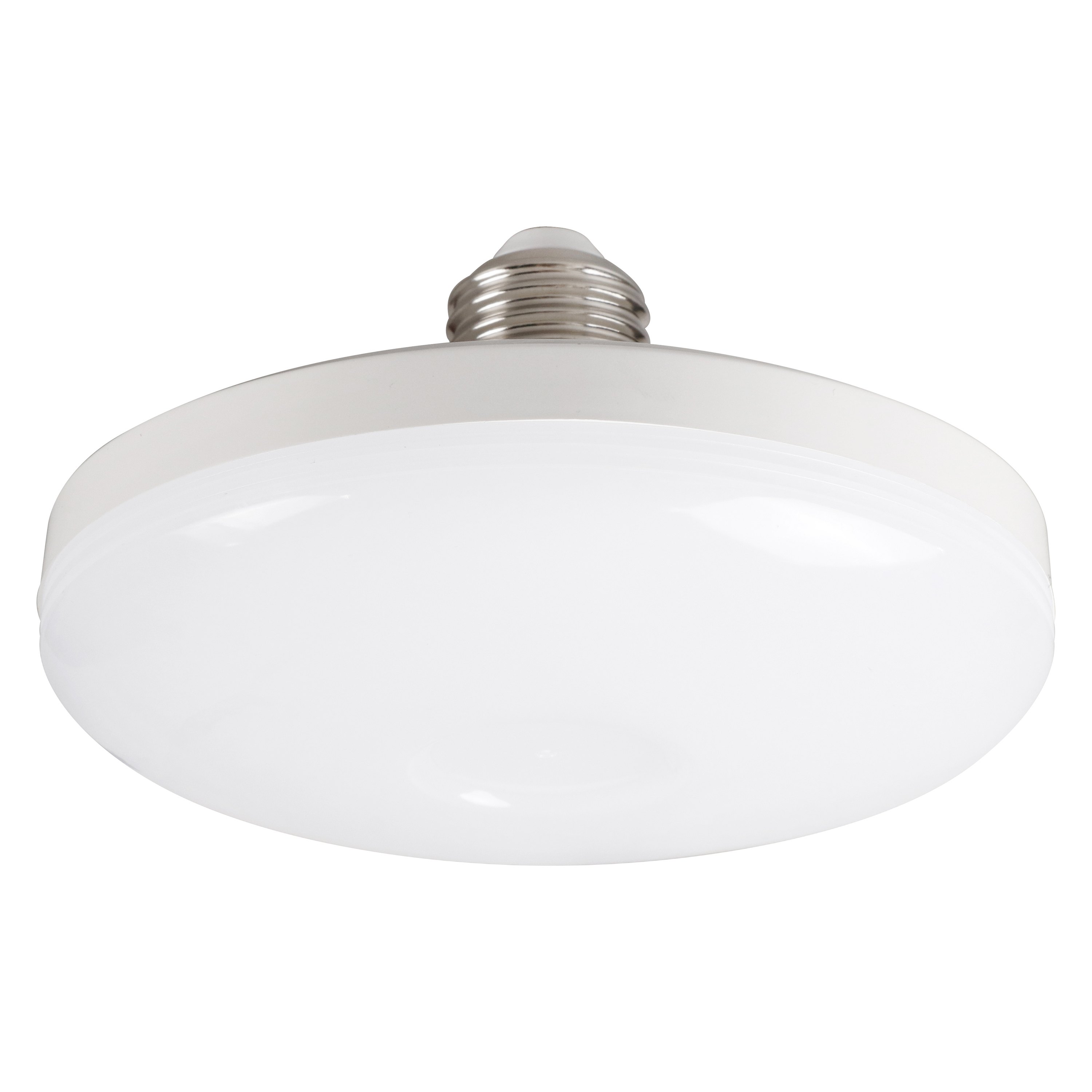

Product image: white background, horizontal
