SYLVANIA TruWave 3-Way A21/A23 Lamps

TruWave® 3-Way A23 33W FR 3500K 1PK

NAED: 42081 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • Controls blue wavelengths for lower glare and reduced eye strain to improve readability
  • Supports an improved sleep-wake cycle
  • Clean light color rendering for seeing realistic, vivid colors
  • Exceptional color quality without the loss of efficacy typical of most 90+ CRI solutions
  • Properly saturates red to make building spaces and flesh tones accurate and vibrant
  • 15,000 hours lifetime (L70)
  • Three lumen outputs - one lamp
  • CRI 90+ for exceptional color quality
  • Dimmable down to 10 %
Safety advice
  • Suitable for damp locations.
  • Not for use in totally enclosed fixtures.
  • -4°F to +113°F (-20°C to +45°C)
  • Not intended for use with dimmers.
Product information bulletin
Natural Series A21 3-Way LED538
PDF (941.09 KB)
Electrical data
Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 250 W
Photometrical data
Luminous flux 800 lm
Luminous efficacy 100 lm/W
Color temperature 3500 K
Color rendering index Ra 90
Light color 935
Dimensions & Weight
Overall length 182.00 mm
Diameter 90.00 mm
Product weight 228.00 g
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Capabilities
Dimmable No
Country-specific categorizations
Order reference 8/28W/935 120V
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 182.00 mm
Height 90.00 mm
Width 90.00 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135420818 Folding box
1		 87 mm x 87 mm x 169 mm 312.00 g 1.28 dm³
4058118285112 Shipping box
6		 293 mm x 201 mm x 181 mm 2219.00 g 10.66 dm³

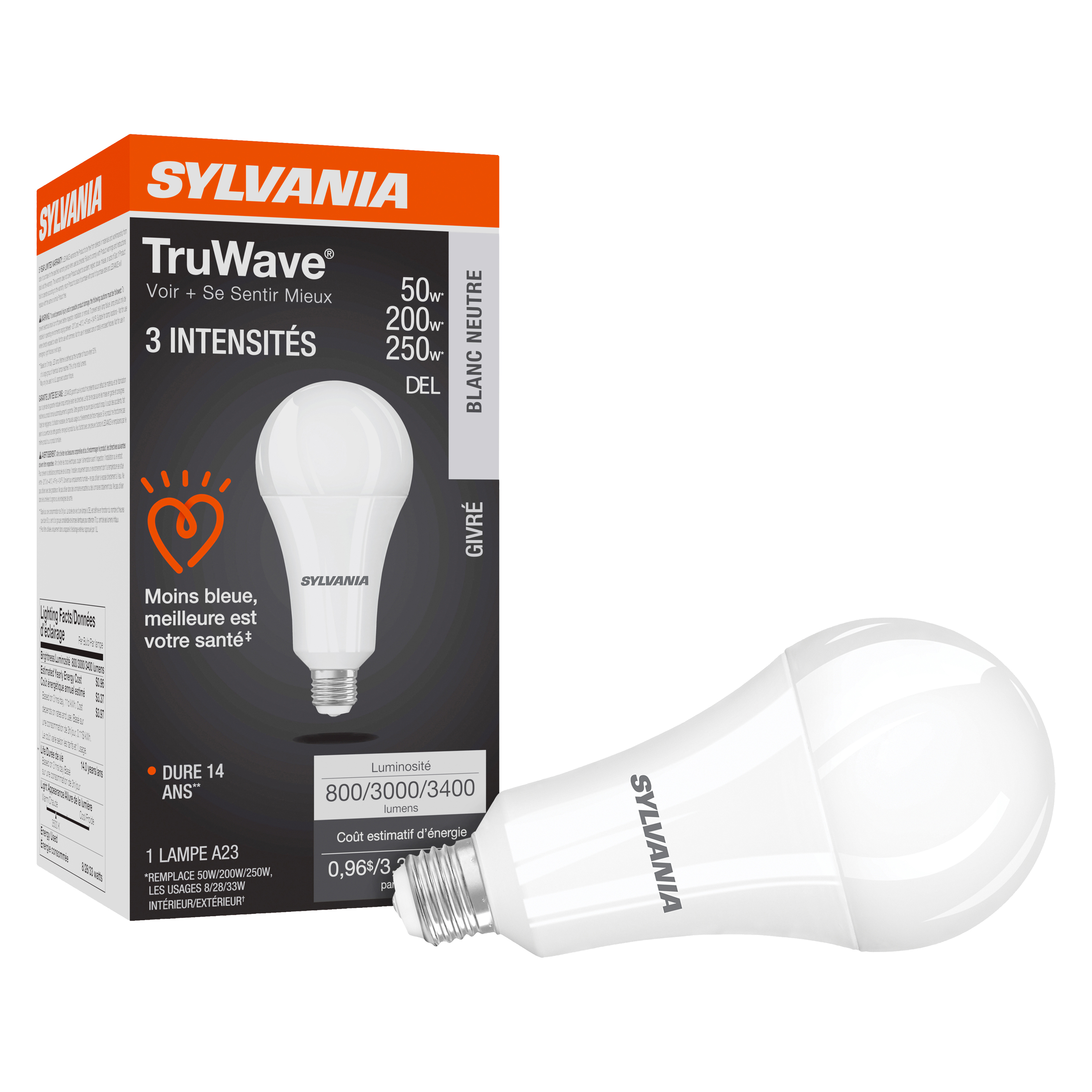

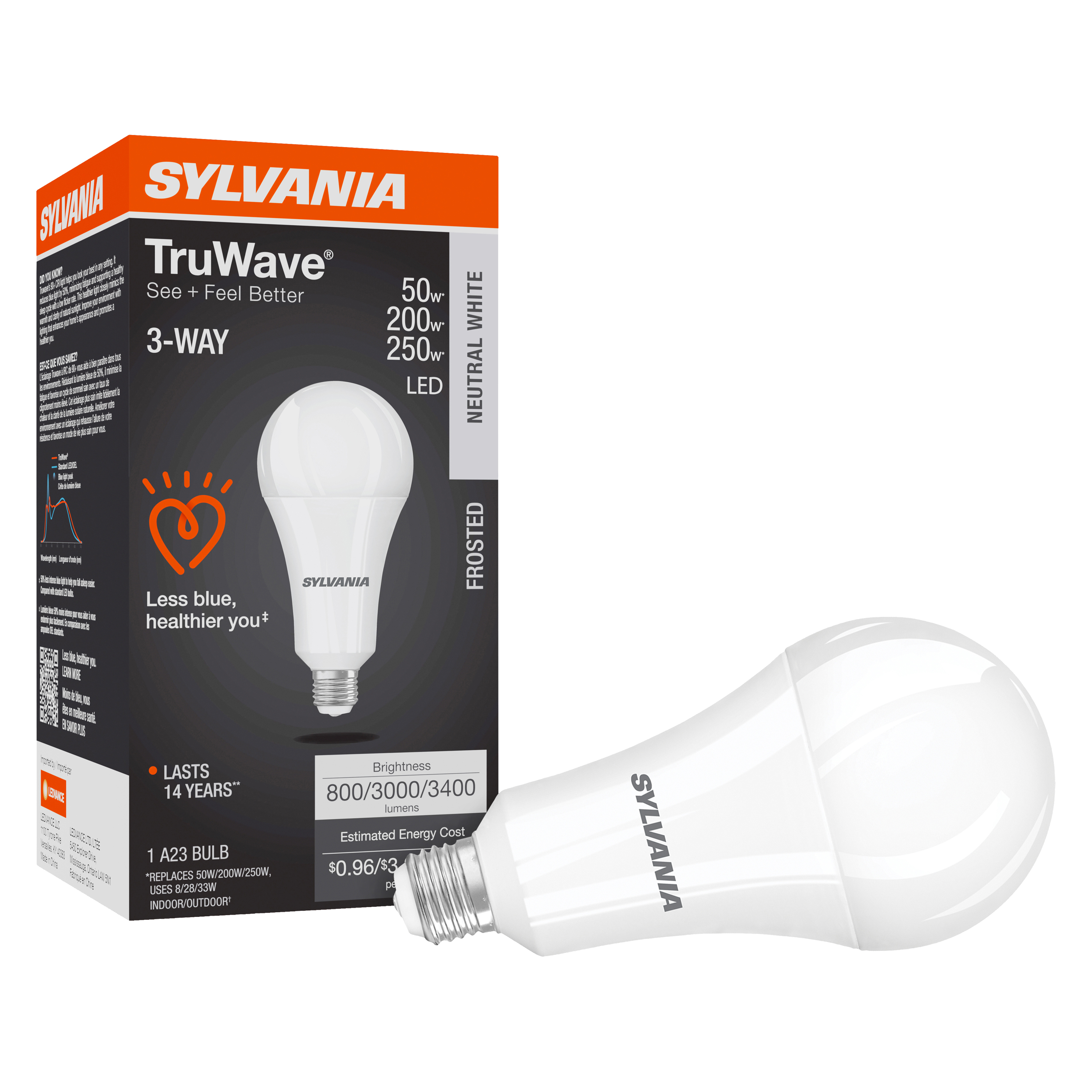

Combo Shot = Product Beauty Shot + Packaging Image
LED A23 3WAY 8/28/33W 800/3000/3400 LM 3500K E26 Frosted
JPG (2.01 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED A23 3WAY 8/28/33W 800/3000/3400 LM 3500K E26 Frosted
JPG (2.06 MB)

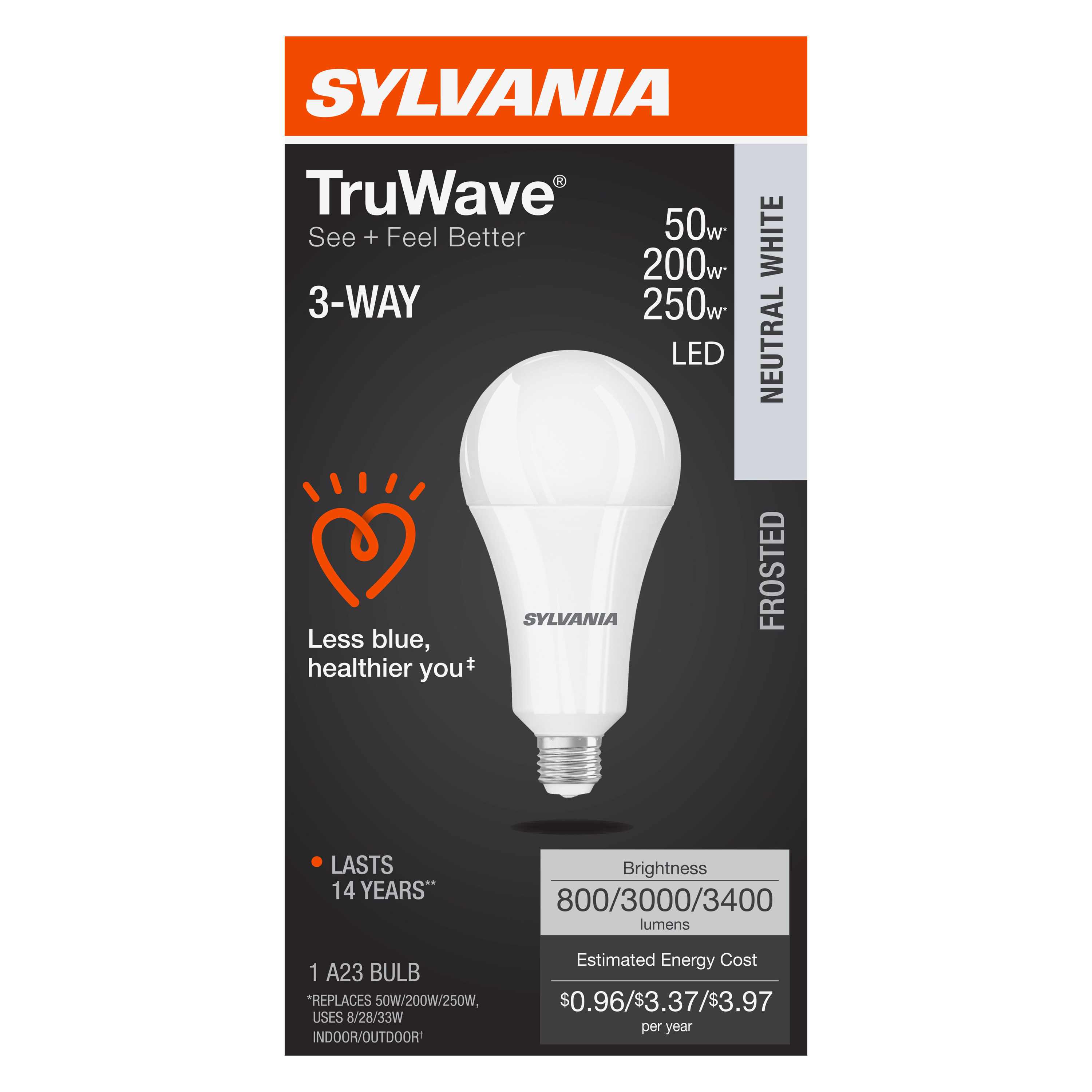

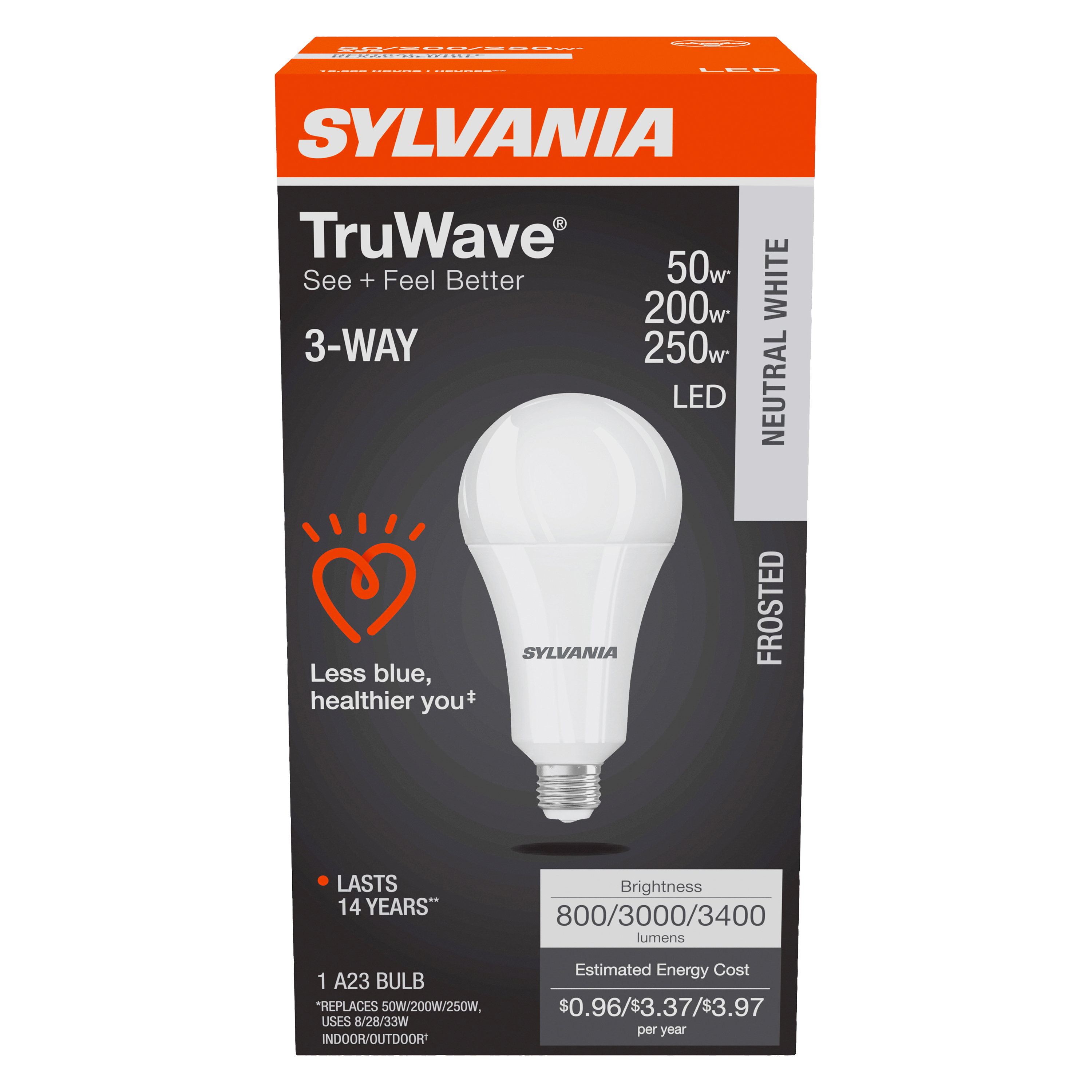

Packaging image, frontal
LED A23 3WAY 8/28/33W 800/3000/3400 LM 3500K E26 Frosted
JPG (1.29 MB)
Packaging image, frontal
LED A23 3WAY 8/28/33W 800/3000/3400 LM 3500K E26 Frosted
JPG (2.08 MB)

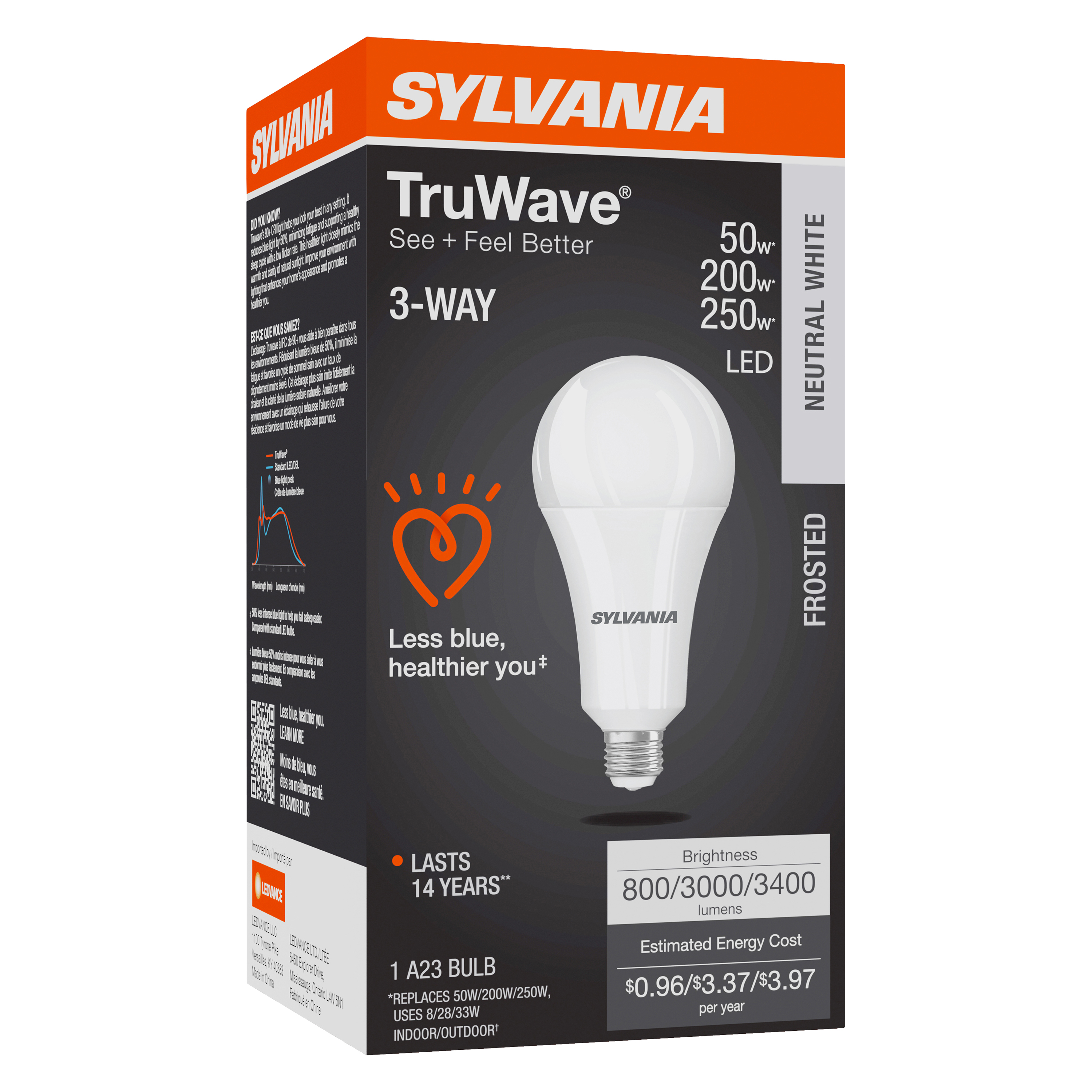

Packaging image, spacial
