SYLVANIA Rough Service A19 Lamps

Rough Service A19 8.5W FR 3000K 1PK

NAED: 40221 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Inspection lamps, garage door lamps, shop lights, task lights
  • Indoor and outdoor
Product features
  • Shatter and vibration resistant
  • 11,000 hours lifetime (L70)
  • Lasts up to 10 times longer than incandescent lamps
  • No warm-up time, instant-on with full light output and stable color
  • Approved for enclosed fixtures
Safety advice
  • Not for use with emergency light fixtures or exit lights.
  • Suitable for damp locations – not for use where directly exposed to water.
  • Not intended for use with dimmers.
  • -4°F and +104°F (-20°C and +40°C)
  • Suitable for use in totally enclosed fixtures
Electrical data
Nominal wattage 8.5 W
Construction wattage 8.50 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 60 W
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Photometrical data
Luminous flux 800 lm
Luminous efficacy 94 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Dimensions & Weight
Overall length 110.01 mm
Diameter 60.00 mm
Product weight 50.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Standards RoHS, FTC, FCC, CSA, cETLus
Country-specific categorizations
Order reference 8,5W/830 120V 6
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 110.01 mm
Height 60.00 mm
Width 60.00 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135402210 Folding box
1		 60 mm x 60 mm x 114 mm 77.00 g 0.42 dm³
10046135402217 Shipping box
6		 194 mm x 133 mm x 130 mm 558.00 g 3.36 dm³
Product information bulletin
ULTRA LED Rough Service Lamps
PDF (251.2 KB)

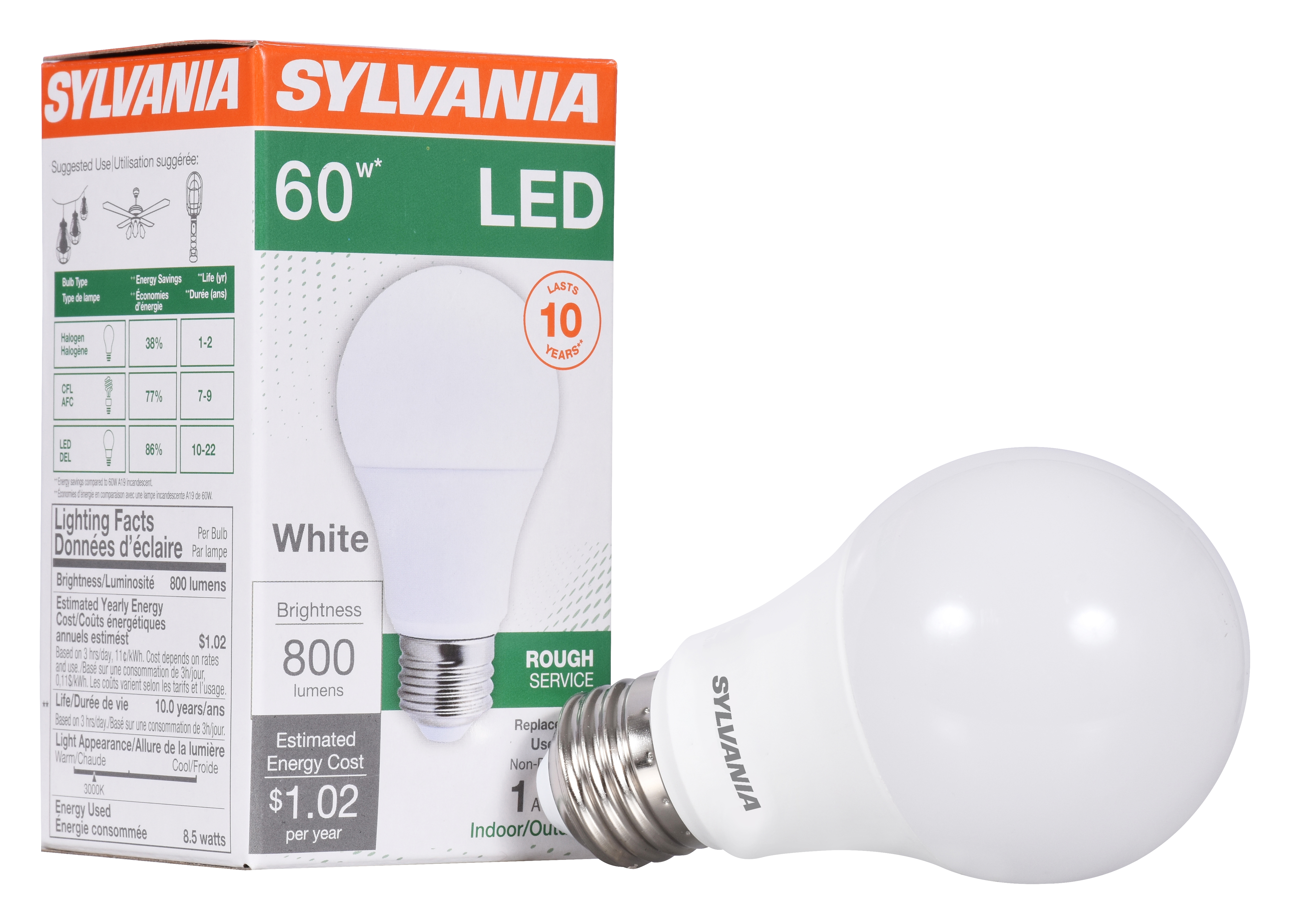

Packaging image, beauty shot
SYLVANIA LED Rough Service A19 Light Bulb 60W
JPG (5.38 MB)

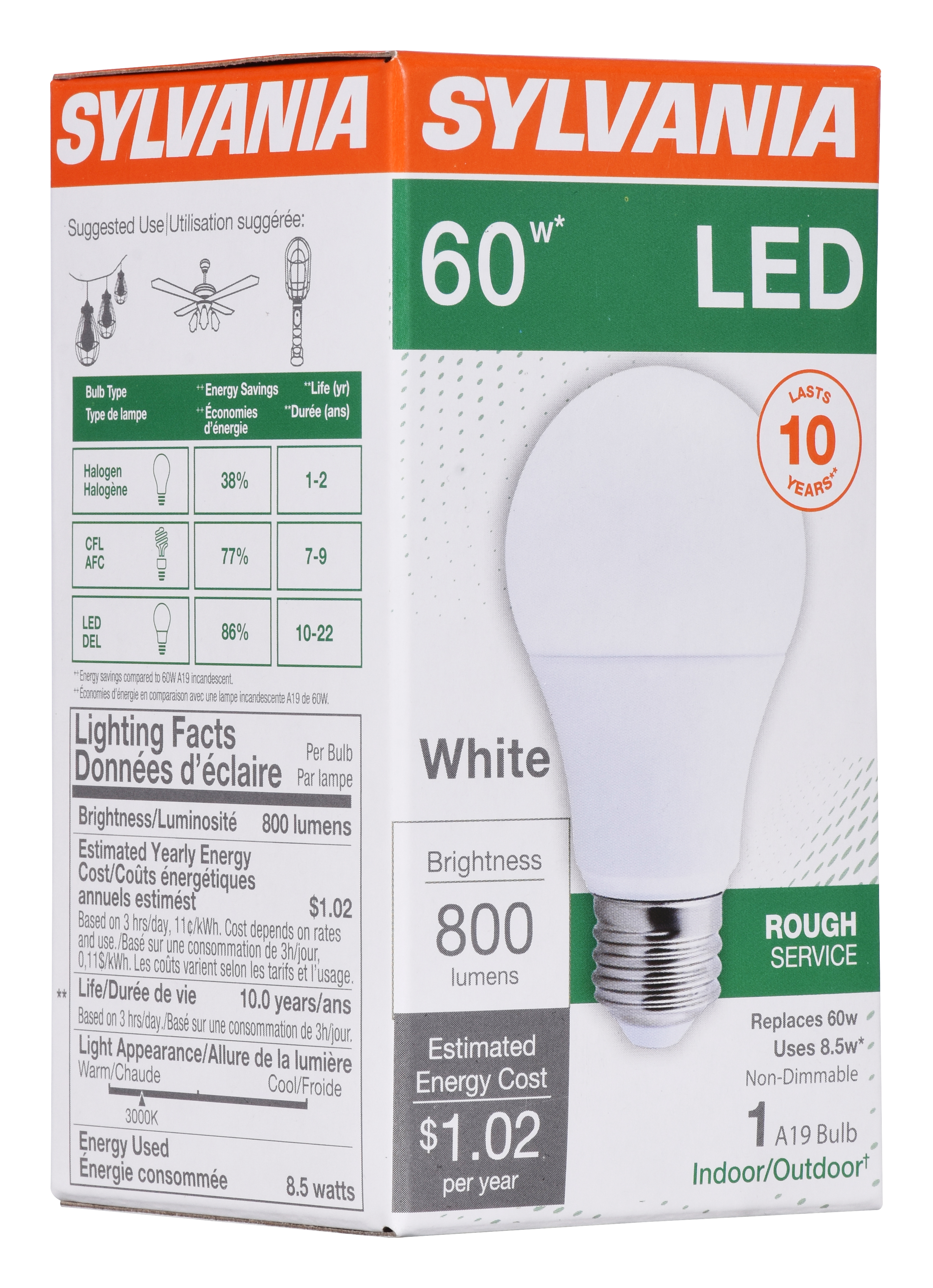

Packaging image, spacial
