SYLVANIA ULTRA A19 Lamps

ULTRA LED A19 9W DIM FR 3500K 1PK

NAED: 71185 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • Indoor and outdoor
  • Suitable for rough service
Product features
  • 15,000 hours lifetime (L70)
  • RoHS compliant, mercury and lead free
  • UV and IR free
  • Reduces energy consumption up to 85 %
  • Last up to 20 times longer than incandescent lamps
  • No warm-up time, instant-on with full light output and stable color
  • Dimmable down to 10 %
  • Approved for enclosed fixtures
Safety advice
  • Suitable for damp locations.
  • Not for use with emergency light fixtures or exit lights.
  • -4°F and + 113°F (-20°C and +45°C)
Product information bulletin
ULTRA LED A-line Lamps
PDF (258.61 KB)
Other documents / promotion
LED Ultra General Purpose Lamps Limited Warranty
PDF (201.02 KB)
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 60 W
Photometrical data
Luminous flux 800 lm
Luminous efficacy 88 lm/W
Color temperature 3500 K
Color rendering index Ra 80
Light color 835
Dimensions & Weight
Overall length 107.54 mm
Diameter 59.99 mm
Product weight 53.00 g
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 9W/835 120V 6X1
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 107.54 mm
Height 59.99 mm
Width 59.99 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135711855 Folding box
1		 64 mm x 95 mm x 140 mm 108.00 g 0.84 dm³
10046135711852 Shipping box
6		 279 mm x 260 mm x 187 mm 826.00 g 13.63 dm³
Packaging image, beauty shot

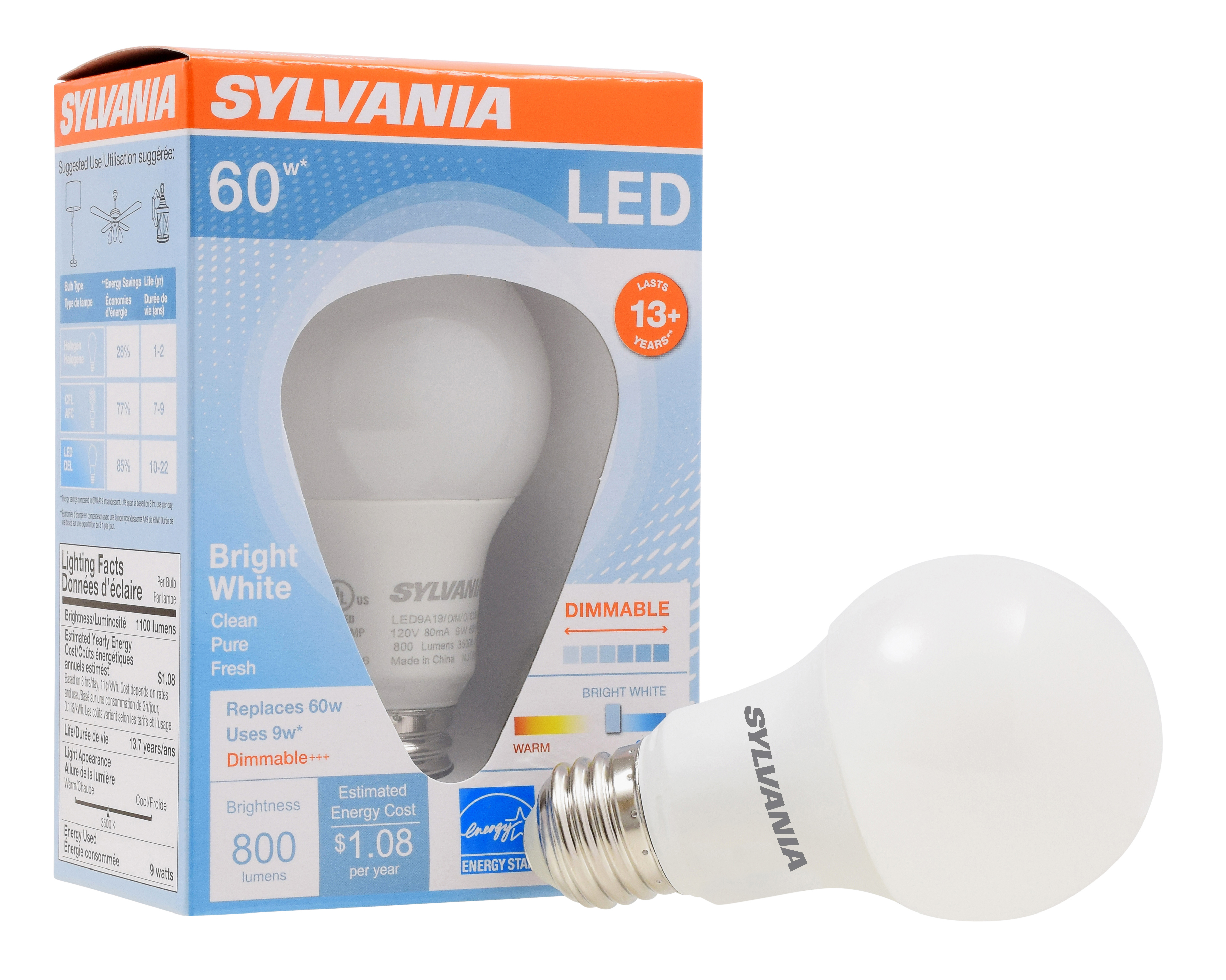

04613571185 bb Beauty Shot
JPG (4.03 MB)
Packaging image, spacial

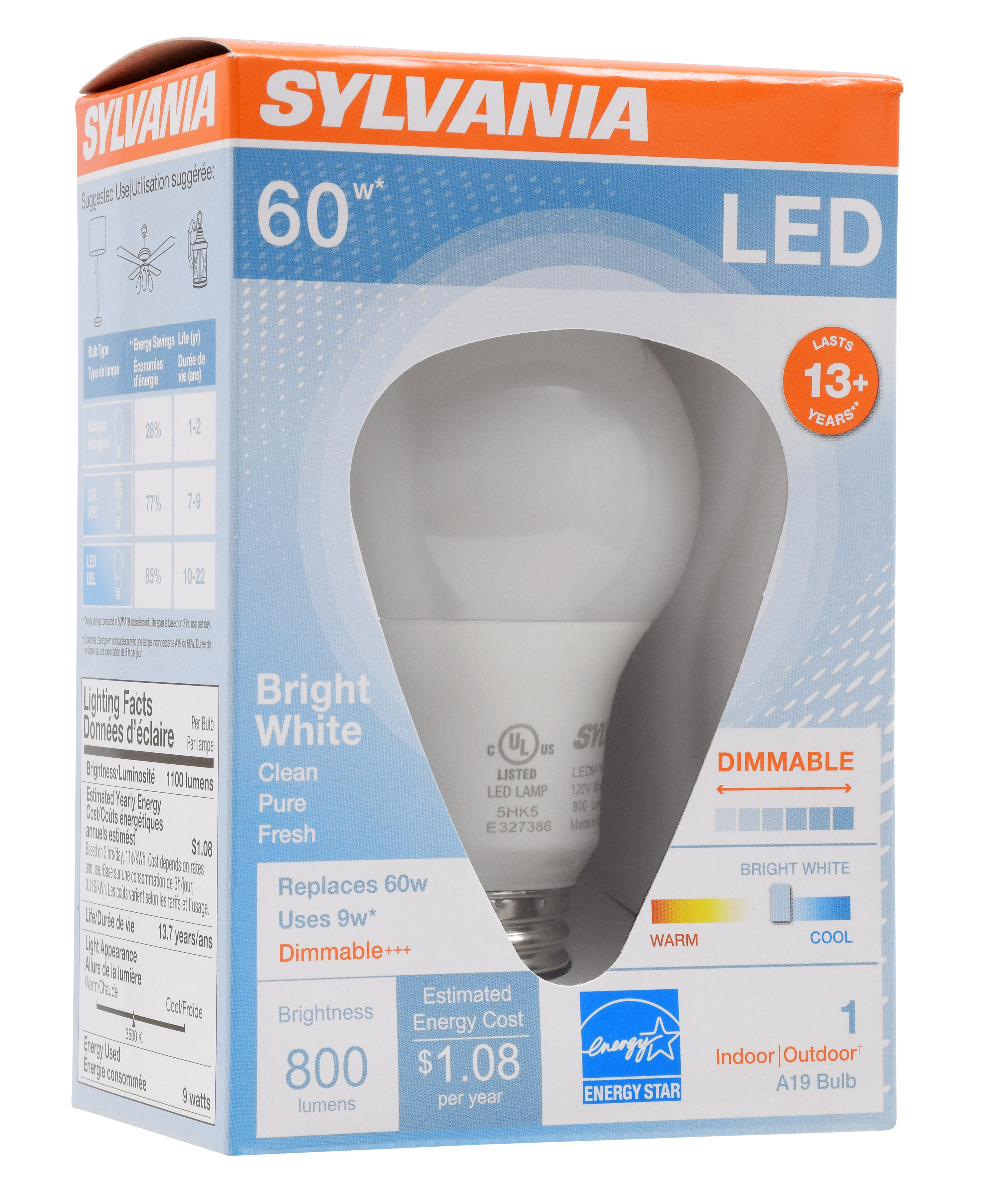

04613571185 bt Package Shot
