PHASE EV™ EV Charger Residential

EV RESIDENTIAL 48 AMPS

Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Single family residential
  • Multi-family residential
  • EV dealerships
  • EV repair stations
  • Indoor and outdoor
Product features
  • 11.5 kW max. output power @240 VAC
  • Hardwired with a 28" input cable for a secure, reliable connection

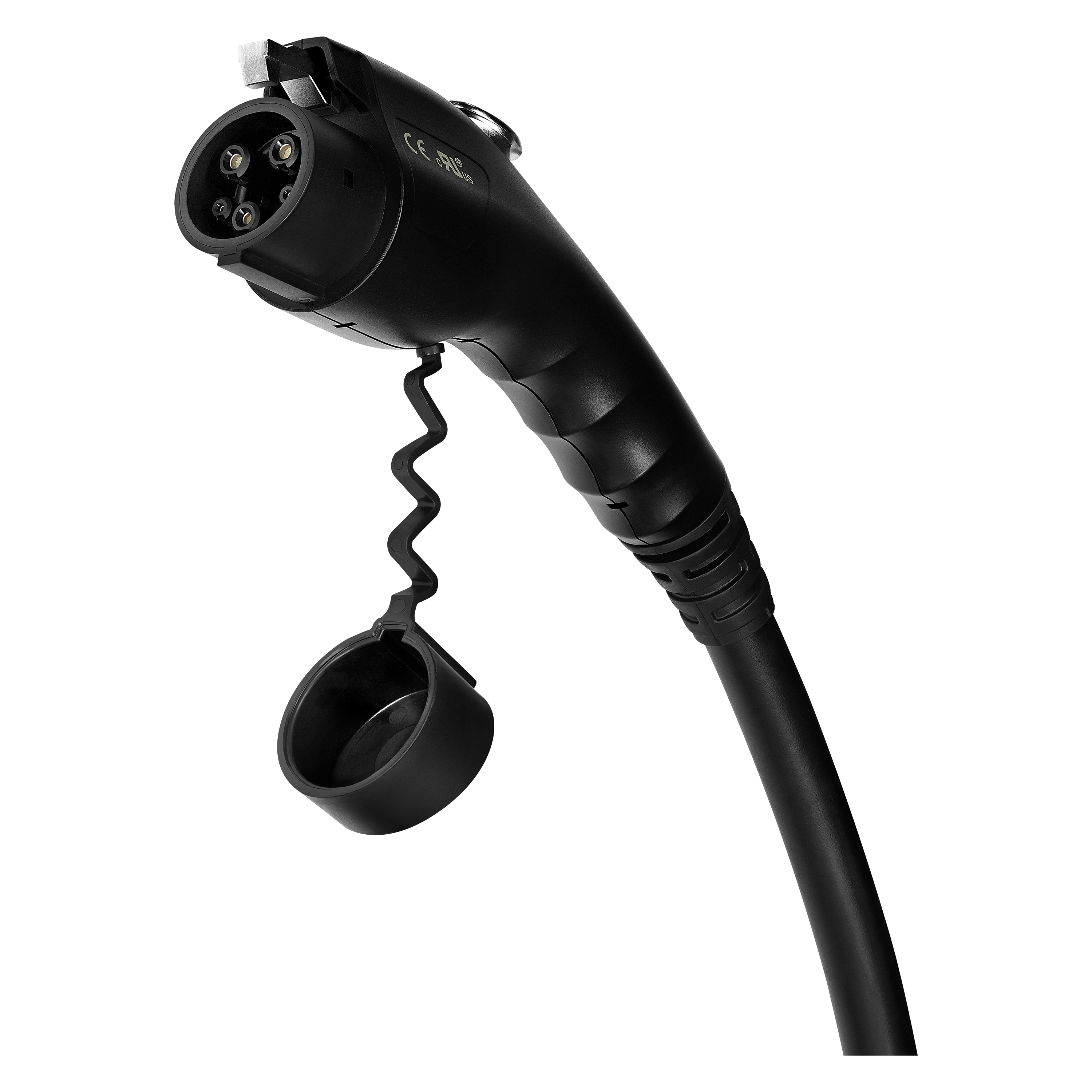

  • SAE J1772 connector
  • 48A max. current can be adjusted to meet the requirements of the installation
  • Plug & Play or controlled using smart app
  • 25 ft charging cable
  • Built-in WiFi / Bluetooth® Connectivity
  • IP65 for indoor or outdoor use
  • IK10 impact protection
  • Dynamic LED status light
  • Charging handle cradle with integrated cable management
Equipment / Accessories

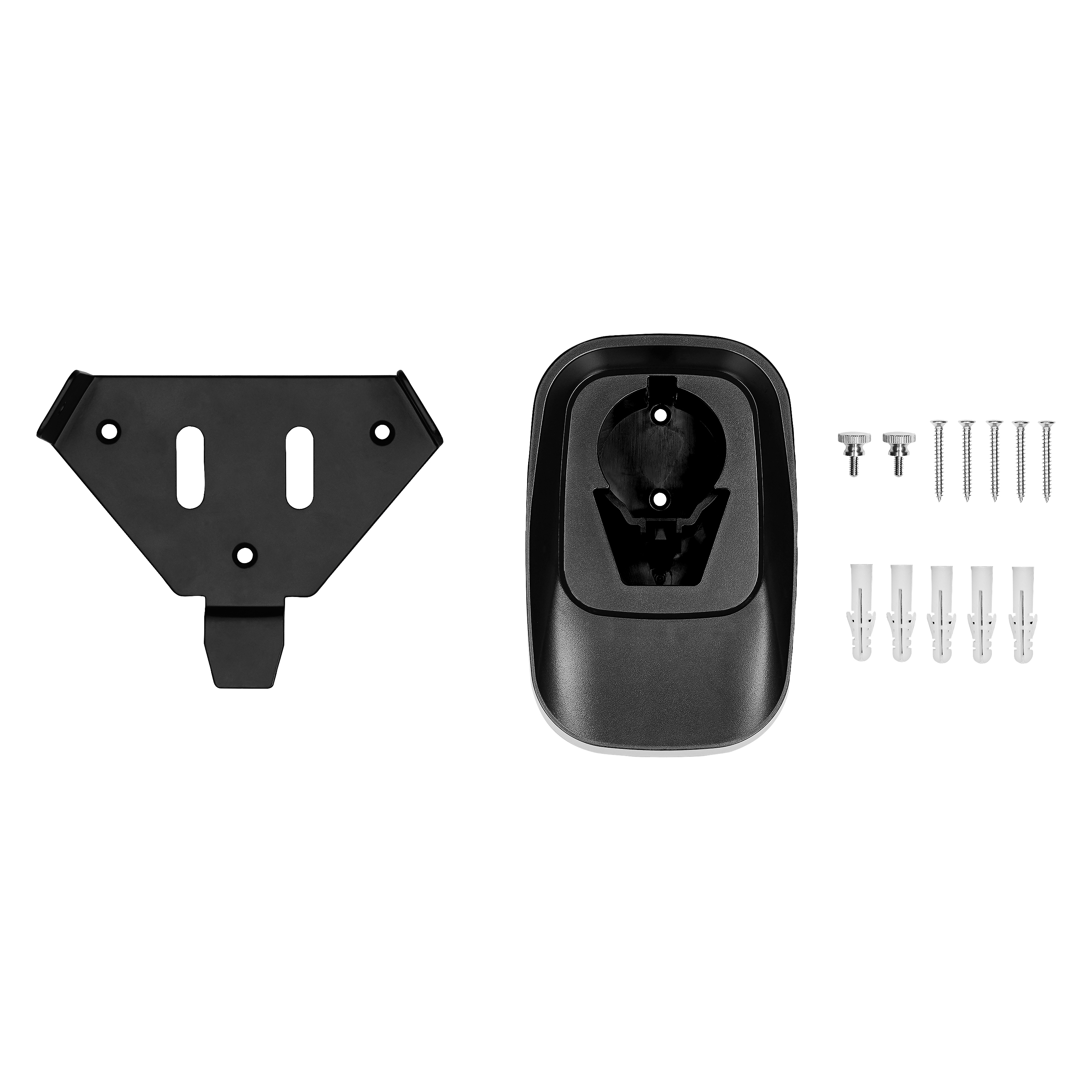

  • Wall mounting hardware
Safety advice
  • cETLus
  • FCC
  • UL2594 compliant
  • NEC625 compliant
  • Requires hardwiring to a UL approved junction box.
Electrical data
Nominal wattage 11500.00 W
Nominal voltage 208…240 V
Mains frequency 60 Hz
Dimensions & Weight
Length 211.00 mm
Width 191.00 mm
Height 84.60 mm
Product weight 8165.00 g
Capabilities
Dimmable No
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854293092 Folding box
1
4099854231063 Shipping box
2		 464 mm x 413 mm x 430 mm 19709.00 g 82.40 dm³
Extended installation guide
Residential EV Charger Installation Instructions
PDF (1.81 MB)
Other documents / promotion
PHASE EV™ Level 2 Residential Charging Station Limited Warranty
PDF (138.31 KB)
Other documents / promotion
LEDVANCE Product Launch Flyer May 2024
PDF (736.09 KB)

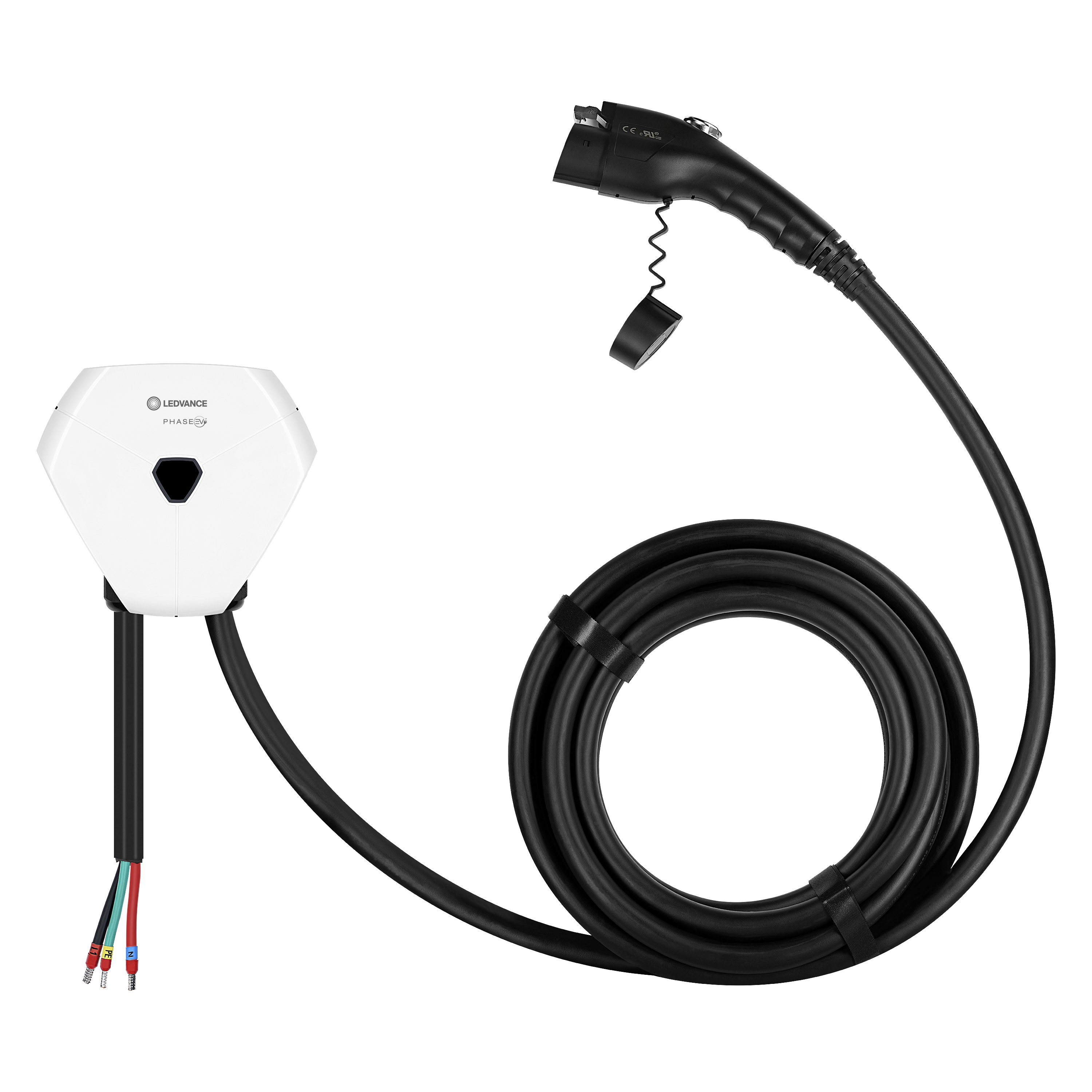

Product image: white background, diagonal
Electric Vehicle level 2 residential charger, 48A, 240V, 11.5kW
JPG (938.36 KB)

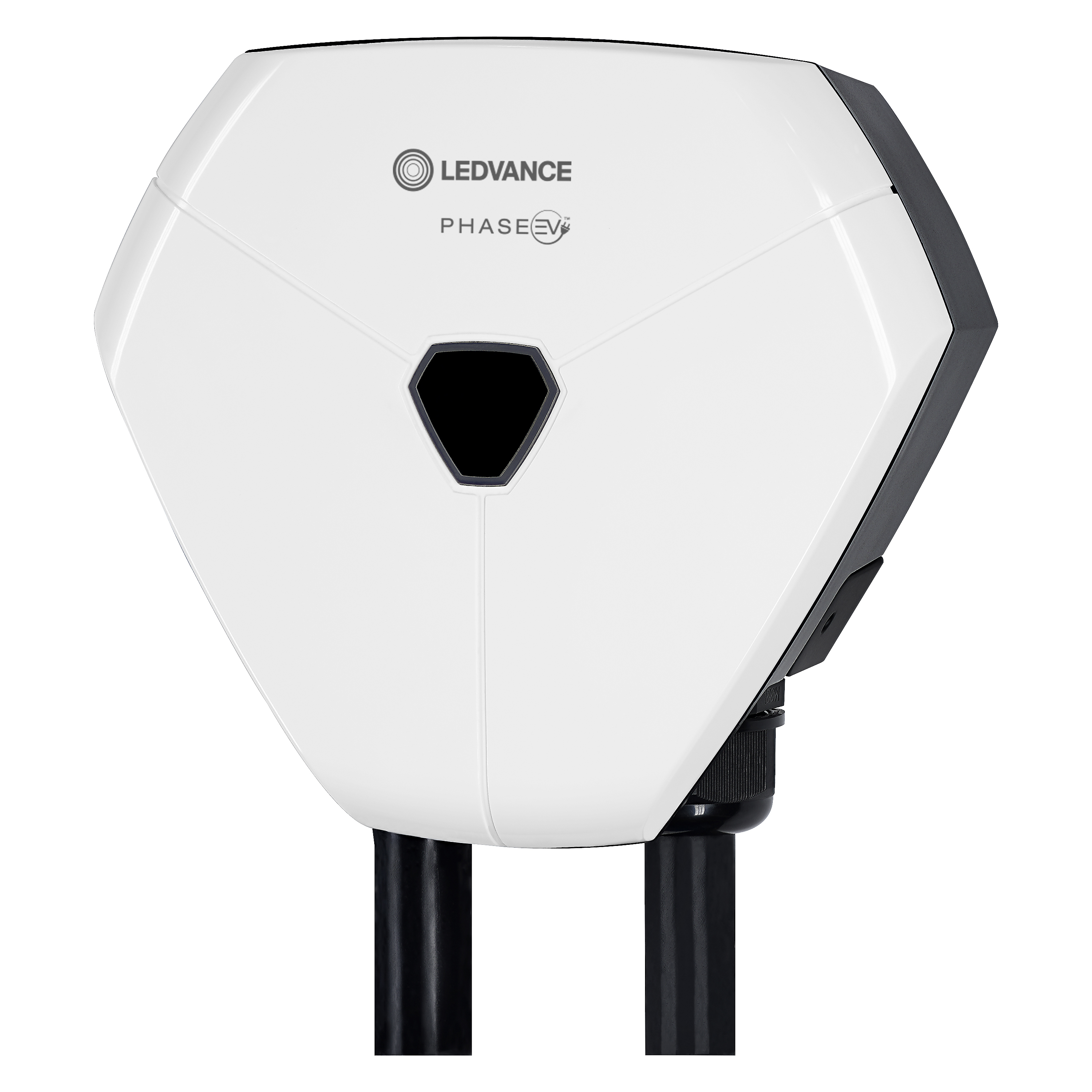

Product image: white background, upright
Electric Vehicle level 2 residential charger, 48A, 240V, 11.5kW
JPG (1.37 MB)

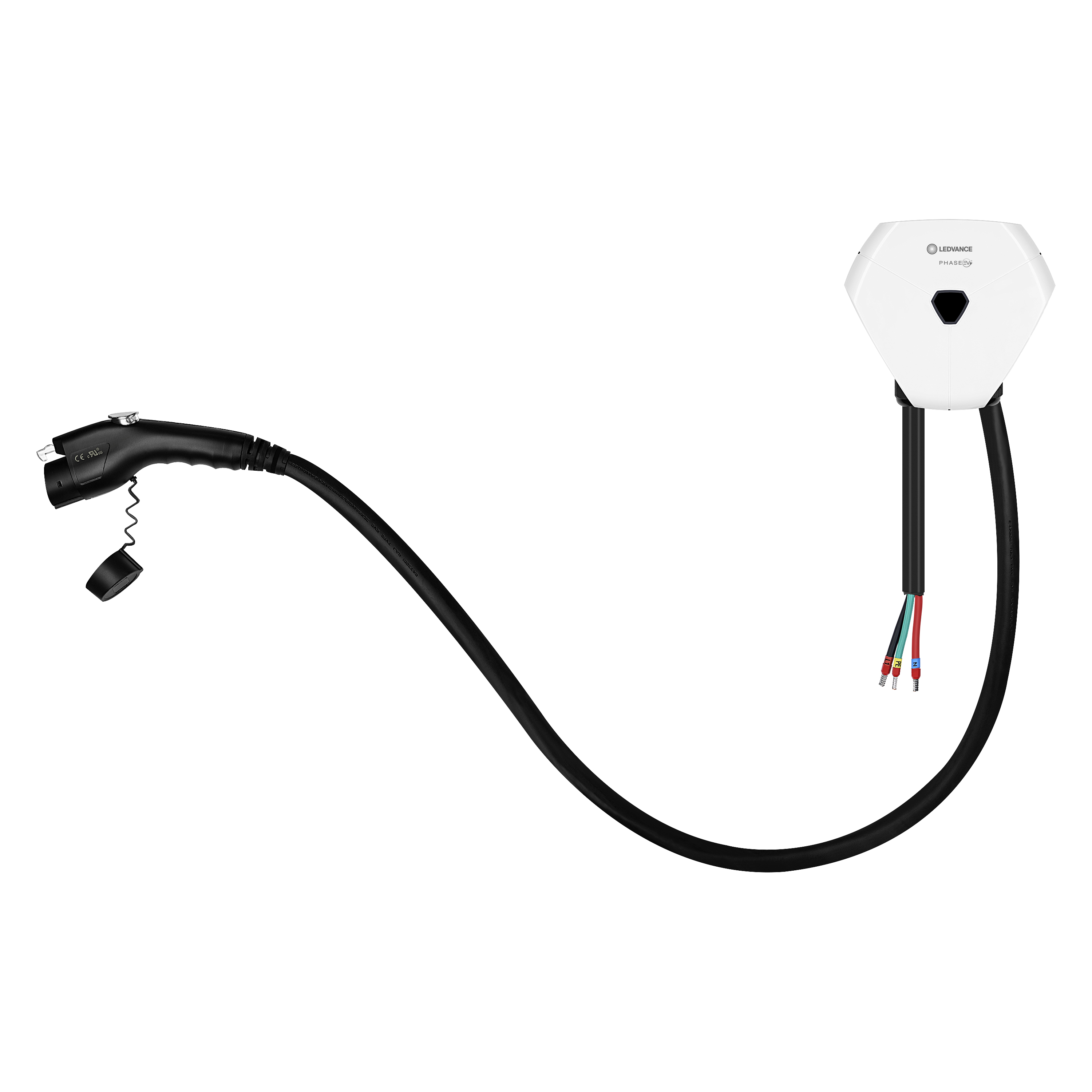

Product image: white background, spacial
