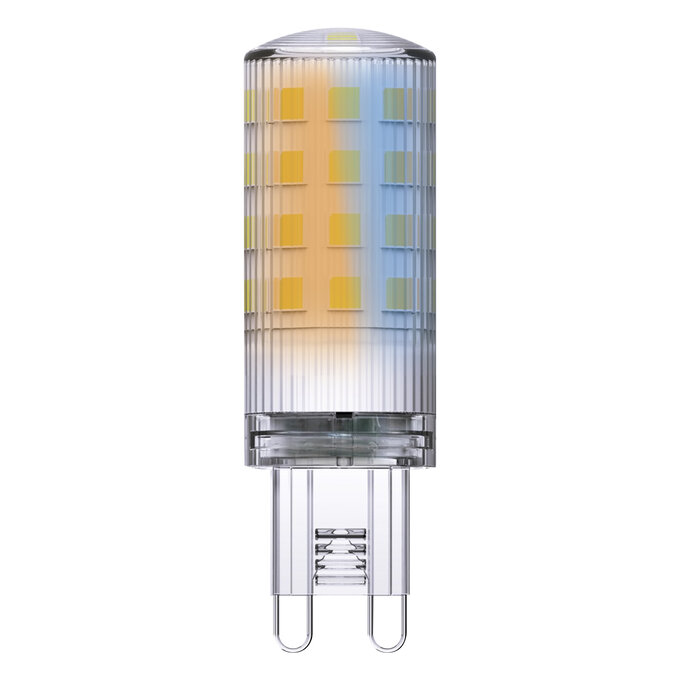

SMART WIFI PIN 3,5W 827 230V TW CL G9

GTIN: 4058075826656 Folding box / 1 Show all packages

Contact sales

Controllable via Google Assistant and Amazon Alexa possible
Network protocol: WiFi
Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
Dimmable
Lifetime: up to 20,000 h
Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)

For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)

Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq

Nominal wattage	3.5 W
Construction wattage	3.50 W
Nominal voltage	220…240 V
Nominal current	28 mA
Operating frequency	50…60 Hz
Mains frequency	50/60 Hz
Power factor λ	0.40
Claimed equiv. conventional lamp power	30 W
Operating mode	AC Mains

Light color (designation)	Tunable White
Lumen main.fact.at end of nom.life time	0.95
Standard deviation of color matching	≤6 sdcm
Nominal luminous flux	320 lm
Luminous flux	320 lm
Luminous efficacy	91 lm/W
Adjustable color temperature	2700…6500 K
Color temperature	2700…6500 K
Color rendering index Ra	80
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Number of switching cycles	100000
Lifespan	20000 h
Lumen maintenance at end of service lifetime	0.95

Ambient temperature range

-20…+40 °C

Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation)	G9

Dimmable

Yes ¹⁾

¹⁾ Via App

¹⁾ Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	G9
Connected light source (CLS)	Yes
Color-tuneable light source	Yes
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	RANGE
Standby power	<0.5 W
Networked standby power for CLS	<0.5 W
Claim of equivalent power	Yes
Chromaticity coordinate x	0.463
Chromaticity coordinate y	0.42
R9 Colour rendering index	>0
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	> 0.4
LED light source replaces a fluorescent light source	No
EPREL ID	1452501
Model number	AC47300

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075826656	Folding box 1	42 mm x 80 mm x 98 mm	48.00 g	0.33 dm³
4058075826663	Shipping box 4	173 mm x 108 mm x 98 mm	253.00 g	1.83 dm³
4058075826670	Shipping box 32	359 mm x 229 mm x 216 mm	2339.00 g	17.76 dm³
