SMART+ WiFi Filament Edison Dimmable

SMART+ Filament WiFi Classic Edison 60 5,5W E27

GTIN: 4058075528277 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via Google Assistant and Amazon Alexa possible
  • Network protocol: WiFi
  • Dimmable
  • Lifetime up to 15,000 h
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 220…240 V
Nominal current 50 mA
Operating frequency 50…60 Hz, 50
Mains frequency 50…60 Hz
Power factor λ > 0.50
Claimed equiv. conventional lamp power 60 W
Operating mode AC Mains
Photometrical data
Light color (designation) Warm White
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 806 lm
Luminous flux 806 lm
Luminous efficacy 134 lm/W
Adjustable color temperature 2700 K
Color temperature 2700 K
Color rendering index Ra 80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 300 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 46.00 g
Diameter 64.00 mm
Maximum diameter 64 mm
Length 143.00 mm
Width 64.00 mm
Height 64.00 mm
Outer bulb [PICOS] ST64
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Lumen maintenance at end of service lifetime 0.70
Colors & materials
Product color Clear
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Google Assistant, Amazon Alexa
1) Via App
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 6.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.5 W
Networked standby power for CLS 0.50
Claim of equivalent power Yes
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 1403153,644660,644680
Model number AC32957,AC32942,AC28989
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075528277 Folding box
1
111 mm x 114 mm x 169 mm 121.00 g 2.14 dm³
4058075528284 Shipping box
4
243 mm x 238 mm x 185 mm 645.00 g 10.70 dm³
Extended installation guide
SH Insert WIFI StartUpG Lamps DIM LDV
Declarations of conformity
SMART WiFi FILAMENT
Product image: white background, diagonal with LEDVANCE logo
SMARTWF E60D5,5W/827230VFILCLE 27
Product image: white background, upright LEDVANCE logo
SMARTWF E60D5,5W/827230VFILCLE 27
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product line drawing with letters
SMARTWF E60D5,5W/827230VFILCLE 27
Product line drawing with numbers
SMARTWF E60D5,5W/827230VFILCLE 27
Product line drawing - technical
SMARTWF E60D5,5W/827230VFILCLE 27

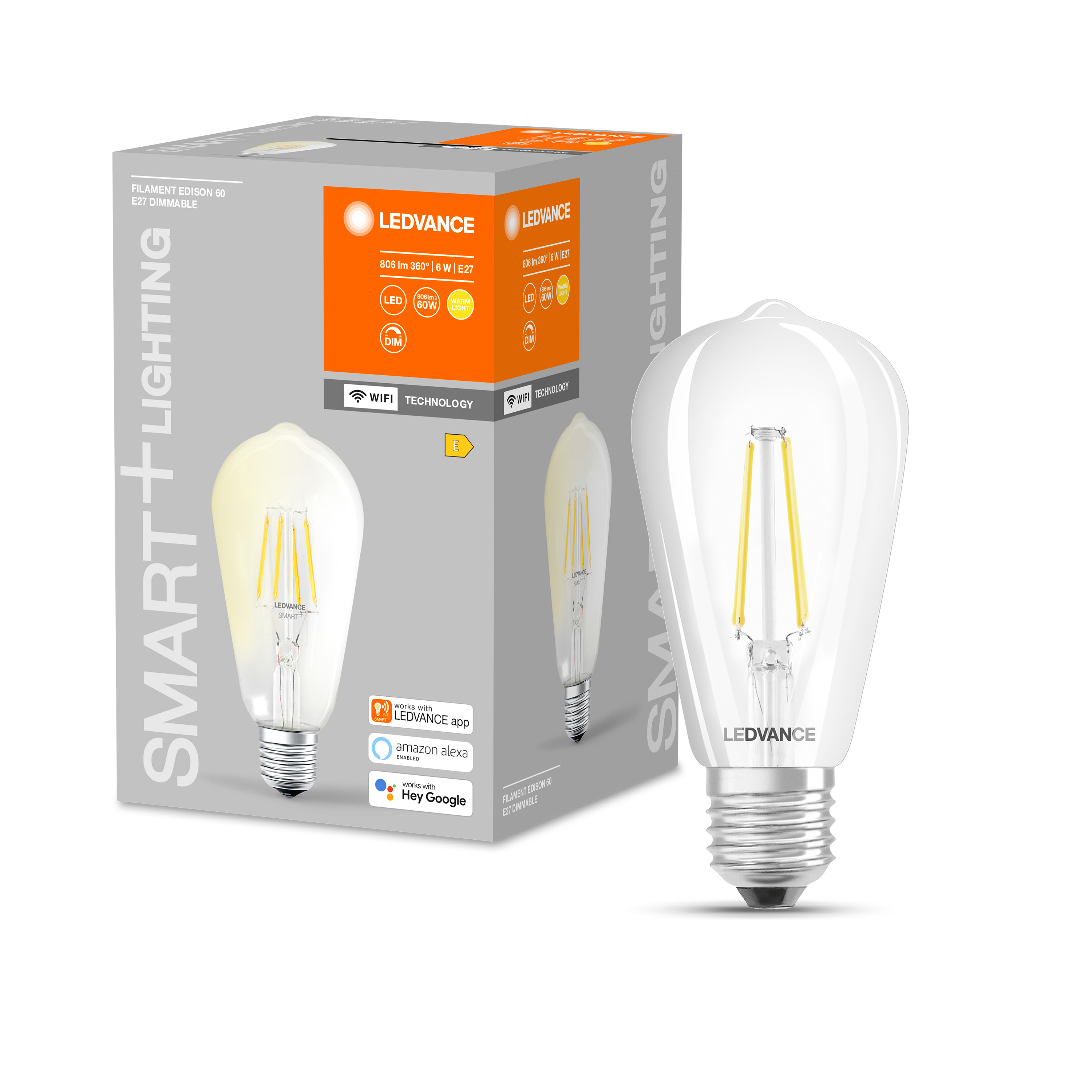

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI E60D 5 5W FIL E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI E60D 6 827 FICL E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI E60D 6 827 FICL E27 MiPRC
Packaging image, frontal
SH FC WIFI E60D 5 5W FIL E27 MiPRC
Packaging image, spacial
SH FC WIFI E60D 5 5W FIL E27 MiPRC
Energy label
EL-4058075528277-AC329 57
Energy label
EL-4058075528277-AC329 42
Energy label
EL-4058075528277-AC289 89
Spectral power distribution
EPREL data spectral diagram PROF LEDr 2700K
EAN SEG number EFO number ELDAS number
4058075528277 8297219 3760277 941804580
