SMART+WIFI Filament Globe RGBTW
SMART+ WiFi Filament Globe 40 Multicolour E27
GTIN: 4058075777897
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Wireless control via app
- Easy to install and use
- Contains no mercury
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- General illumination
- Residential interiors
- Professional (hotels, bars, boutiques etc.)
- Outdoor applications only in suitable luminaires
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
- RGB color control, approx. 16 million color options adjustable
- Dimmable
- Network protocol: WiFi
- Lifetime up to 15,000 h
- Voice control works with Hey Google or Alexa
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- Do not touch the lamp if broken.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 4.8 W |
| Construction wattage | 4.80 W |
| Nominal voltage | 220…240 V |
| Nominal current | 50 mA |
| Mains frequency | 50/60 Hz |
| Power factor λ | 0.40 |
| Claimed equiv. conventional lamp power | 40 W |
| Operating mode | AC Mains |
Photometrical data
| Light color (designation) | RGBTW |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Standard deviation of color matching | ≤6 sdcm |
| Nominal luminous flux | 470 lm |
| Luminous flux | 470 lm |
| Luminous efficacy | 97 lm/W |
| Adjustable color temperature | 2700…6500 K |
| Color temperature | 2700…6500 K |
| Color rendering index Ra | 80 |
| Flickering metric (Pst LM) | <1.0 |
| Stroboscope effect metric (SVM) | <0.4 |
Light technical data
| Beam angle | 320 ° |
| Starting time | 0.5 s |
Dimensions & Weight
| Product weight | 100.00 g |
| Diameter | 124.00 mm |
| Maximum diameter | 124 mm |
| Length | 173.00 mm |
| Width | 124.00 mm |
| Height | 124.00 mm |
| Outer bulb [PICOS] | G125 |
Lifespan
| Number of switching cycles | 100000 |
| Lifespan | 15000 h |
Colors & materials
| Product color | Clear |
| Housing color | Clear |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Additional product data
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Base (standard designation) | E27 |
Capabilities
| Dimmable | Yes 1) |
| Compatible smart home technology | Amazon Alexa, Google Assistant |
1) Via App
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 5.00 kWh/1000h |
| Standards | CE |
| Type of protection | IP20 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | Yes |
| Color-tuneable light source | Yes |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | RANGE |
| Standby power | ＜ 0.5 W |
| Networked standby power for CLS | ＜ 0.5 W |
| Claim of equivalent power | Yes |
| Chromaticity coordinate x | 0.463 |
| Chromaticity coordinate y | 0.420 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1254723 |
| Model number | AC42288 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075777897 | Folding box 1 |
143 mm x 140 mm x 195 mm | 188.00 g | 3.90 dm³ |
| 4058075777903 | Shipping box 4 |
304 mm x 290 mm x 207 mm | 1018.00 g | 18.25 dm³ |
Extended installation guide
SH Insert WIFI StartUpG Lamps RGBTW LDV
SH Insert WIFI StartUpG Lamps RGBTW LDV
Declarations of conformity
SMART WIFI A40 / E40 / G40
SMART WIFI A40 / E40 / G40
Product image: white background, upright
Smart WiFi Globe40D 4,8W/827 230V FIL RGBTW E27
Smart WiFi Globe40D 4,8W/827 230V FIL RGBTW E27

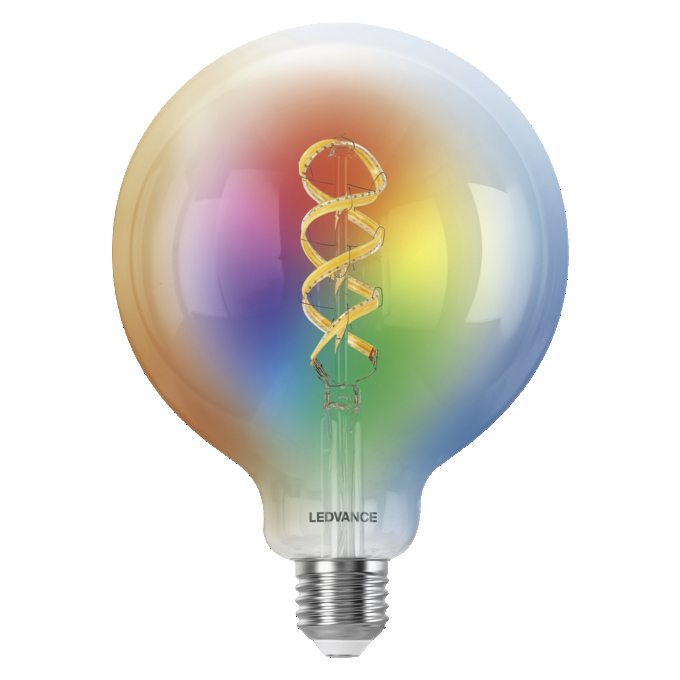

Product image: white background, upright, switched on
Smart WiFi Globe40D 4,8W/827 230V FIL RGBTW E27
Smart WiFi Globe40D 4,8W/827 230V FIL RGBTW E27

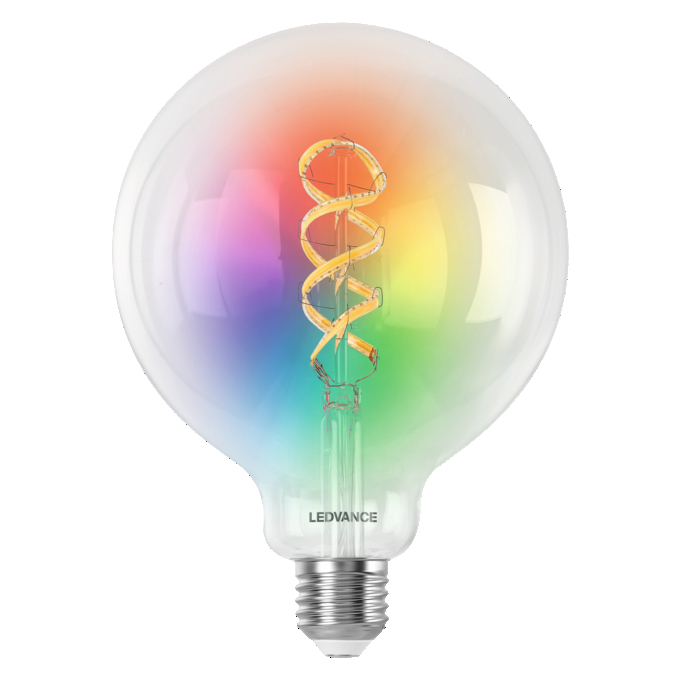

Product image: white background, upright, switched on
Smart WiFi Globe40D 4,8W/827 230V FIL RGBTW E27
Smart WiFi Globe40D 4,8W/827 230V FIL RGBTW E27
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
Smart WiFi Globe 125 50D 8W/822 230V FIL Globe TW E27
Smart WiFi Globe 125 50D 8W/822 230V FIL Globe TW E27
Product line drawing with numbers
Smart WiFi Globe 125 50D 8W/822 230V FIL Globe TW E27
Smart WiFi Globe 125 50D 8W/822 230V FIL Globe TW E27
Product line drawing, front, no dimensions
Smart WiFi Globe 125 50D 8W/822 230V FIL Globe TW E27
Smart WiFi Globe 125 50D 8W/822 230V FIL Globe TW E27
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF G40D 5W 827 RGBTW E27 MiPRC
SH FC WF G40D 5W 827 RGBTW E27 MiPRC
Packaging image, frontal
SH FC WF G40D 5W 827 RGBTW E27 MiPRC
SH FC WF G40D 5W 827 RGBTW E27 MiPRC
Packaging image, spacial
SH FC WF G40D 5W 827 RGBTW E27 MiPRC
SH FC WF G40D 5W 827 RGBTW E27 MiPRC
Energy label
EL-4058075777897-AC422 88
EL-4058075777897-AC422 88
Spectral power distribution
EPREL Data Spectral Diagram LEDr AC42286 AC42287 AC42288 RGBTW
EPREL Data Spectral Diagram LEDr AC42286 AC42287 AC42288 RGBTW
Application pictures
Living room SMART+ blue
Living room SMART+ blue
Application pictures
Living room SMART+ pink
Living room SMART+ pink
Application pictures
Living room SMART+ warm white
Living room SMART+ warm white
Application pictures
Living room SMART+ cool white
Living room SMART+ cool white
| EAN | EFO number |
|---|---|
| 4058075777897 | 3758102 |
