Smart+ Wifi Filament Edison Tunable White

SMART+ WiFi Filament Edison 60 Tunable White E27

GTIN: 4058075777996 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor applications only in suitable luminaires
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via Google Assistant and Amazon Alexa possible
  • Network protocol: WiFi
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • Dimmable
  • Lifetime up to 15,000 h
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp if broken.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 220…240 V
Nominal current 55 mA
Mains frequency 50/60 Hz
Power factor λ 0.50
Claimed equiv. conventional lamp power 60 W
Operating mode AC Mains
Photometrical data
Light color (designation) Tunable White
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 806 lm
Luminous flux 806 lm
Luminous efficacy 100 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra 80
Flickering metric (Pst LM) <1.0
Stroboscope effect metric (SVM) <0.4
Light technical data
Beam angle 320 °
Starting time 0.5 s
Dimensions & Weight
Product weight 48.00 g
Diameter 64.00 mm
Maximum diameter 64 mm
Length 140.00 mm
Width 64.00 mm
Height 64.00 mm
Outer bulb [PICOS] ST64
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Colors & materials
Product color Clear
Housing color Clear
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 8.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power ＜ 0.5 W
Networked standby power for CLS ＜ 0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 1254731
Model number AC42296
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075777996 Folding box
1		 111 mm x 114 mm x 169 mm 123.00 g 2.14 dm³
4058075778009 Shipping box
4		 243 mm x 238 mm x 185 mm 653.00 g 10.70 dm³
Extended installation guide
SH Insert WIFI StartUpG Lamps RGBTW LDV
PDF (2.52 MB)
Declarations of conformity
SMART WIFI A40 / G80 / G95 / G125 / E60 / E50
PDF (300.55 KB)

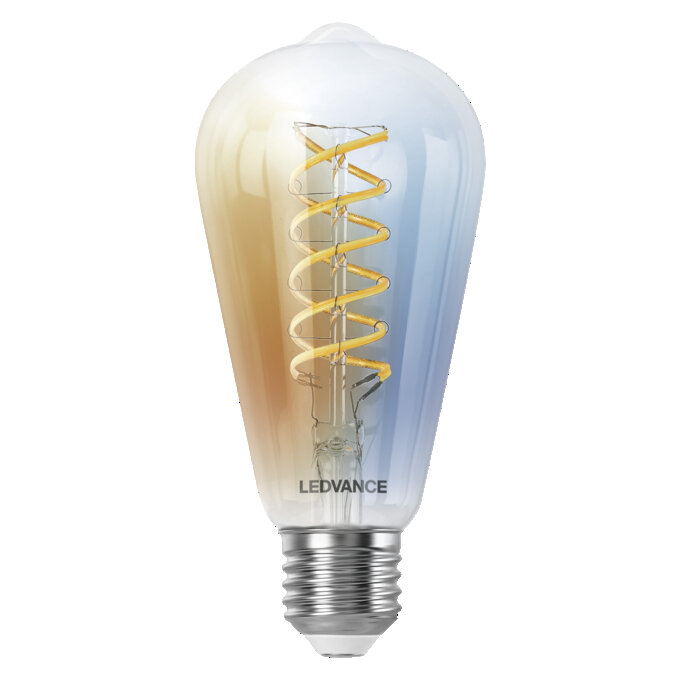

Product image: white background, upright
Smart WiFi Edison60D 8W/827 230V FILClear TW E27
JPG (524.46 KB)
Product image: white background, upright, switched on
Smart WiFi Edison60D 8W/827 230V FILClear TW E27
JPG (560.26 KB)
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
JPG (822.84 KB)
Product line drawing with letters
Smart WiFi Edison50D 8W/822 230V FIL Gold TW E27
SVG (2.42 KB)
Product line drawing with numbers
Smart WiFi Edison50D 8W/822 230V FIL Gold TW E27
PNG (2.85 KB)
Product line drawing, front, no dimensions
Smart WiFi Edison50D 8W/822 230V FIL Gold TW E27
SVG (1.09 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF E60D 8W 827 CL TW E27 MiPRC
JPG (850.46 KB)

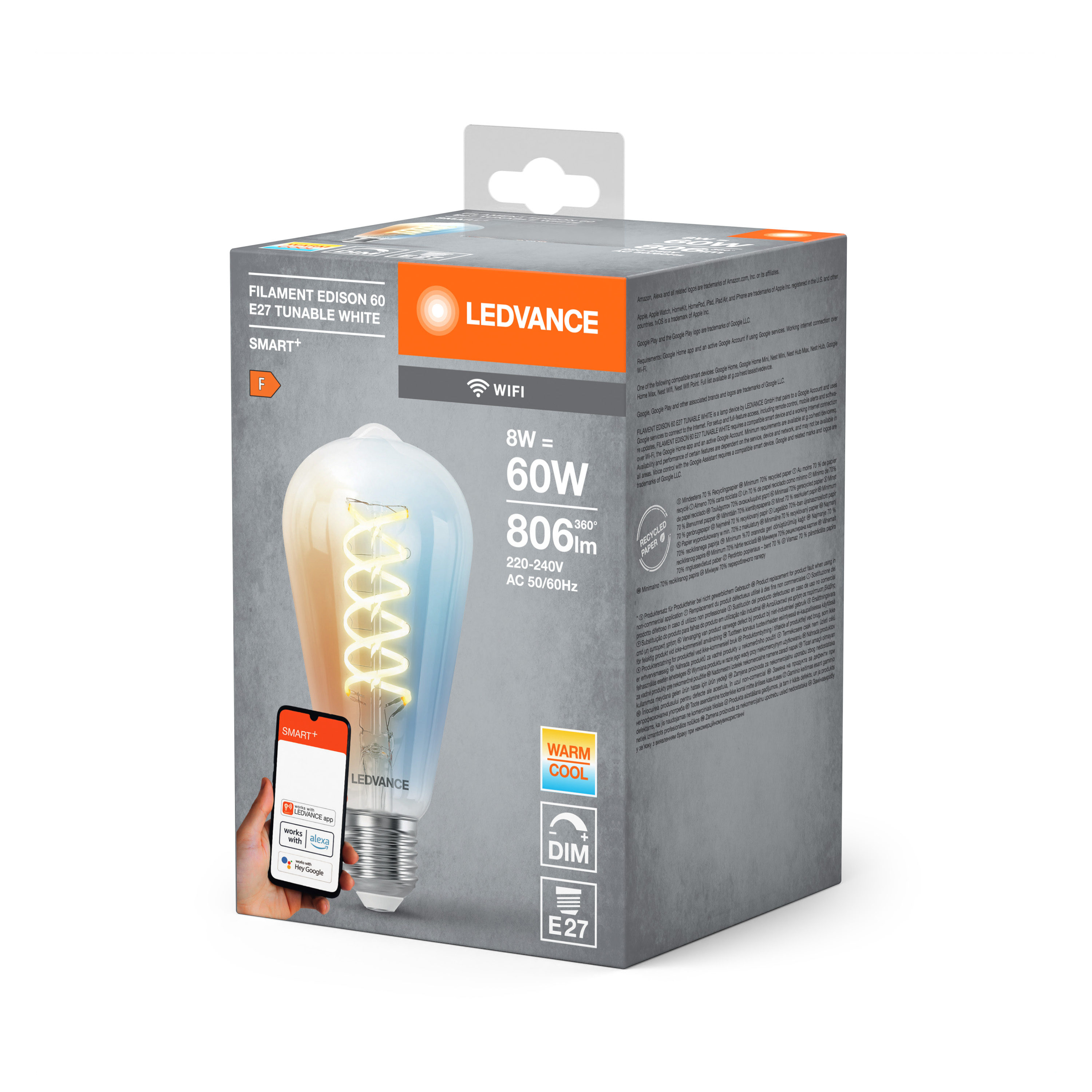

Packaging image, frontal
SH FC WF E60D 8W 827 CL TW E27 MiPRC
JPG (711.98 KB)
Packaging image, spacial
SH FC WF E60D 8W 827 CL TW E27 MiPRC
JPG (916.03 KB)
Energy label
EL-4058075777996-AC422 96
PDF (21.64 KB)
Spectral power distribution
EPREL Data Spectral Diagram LEDr AC42296 2700K TW
PNG (99.27 KB)
EAN EFO number
4058075777996 3758110
