Sun@Home Lamps

SUN@Home Classic A75 E27 TW

GTIN: 4058075762176 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Product benefits
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Indoor applications
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Adjustable color temperature via Tunable White: 2,200…5,000 K
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via Google Assistant and Amazon Alexa possible
  • Dimmable
  • Innovative Fullspectrum SunLike LEDs with CRI95
  • SunLike LEDs with reduced Blue Light in LED Spectrum
  • Innovative luminaire coating-technology fighting household germs and odors
  • Automated biorhythm feature
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 220…240 V
Nominal current 85 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.5
Claimed equiv. conventional lamp power 75 W
Operating mode AC Mains
Photometrical data
Light color (designation) Tunable White
Lumen main.fact.at end of nom.life time 0.96
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 1055 lm
Luminous flux 1055 lm
Luminous efficacy 87 lm/W
Adjustable color temperature 2200…5000 K
Color temperature 2200…5000 K
Color rendering index Ra 95
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 60.00 g
Diameter 64.00 mm
Maximum diameter 64 mm
Length 120.00 mm
Width 64.00 mm
Height 64.00 mm
Outer bulb [PICOS] A65
Lifespan
Number of switching cycles 100000
Lifespan 25000 h
Lumen maintenance at end of service lifetime 0.95
Colors & materials
Product color White
Housing color White
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 12.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source Yes
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power < 0.5 W
Networked standby power for CLS < 0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.346
Chromaticity coordinate y 0.359
R9 Colour rendering index > 0
Beam angle correspondence SPHERE_360
Survival factor 0,9
Displacement factor ≥0.7
LED light source replaces a fluorescent light source No
EPREL ID 1230141
Model number AC42415
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075762176 Folding box
1
61 mm x 96 mm x 154 mm 150.00 g 0.90 dm³
4058075762183 Shipping box
4
210 mm x 165 mm x 156 mm 801.00 g 5.41 dm³
Extended installation guide
SUNATHOME
Declarations of conformity
SUNATHOME CLASSIC A75 E27 TW

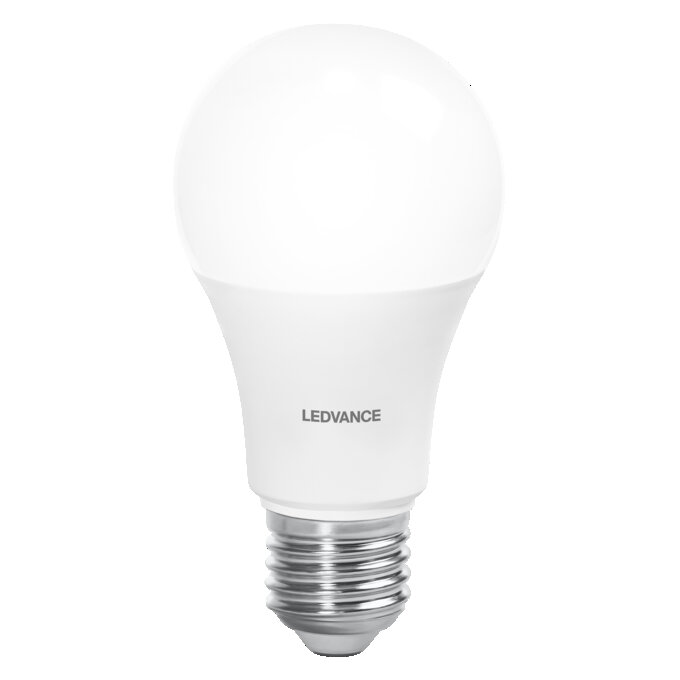

Product image: white background, upright LEDVANCE logo
HCL SMART A60 230V TW E27
Product line drawing with letters
SUNATHOME CLASSIC A75 E27 TW
Product line drawing with numbers
SUNATHOME CLASSIC A75 E27 TW
Product line drawing, front, no dimensions
SUNATHOME CLASSIC A75 E27 TW
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI SUN A75 E27 TW MiPRC
Packaging image, frontal
SH FC WIFI SUN A75 E27 TW MiPRC
Packaging image, spacial
SH FC WIFI SUN A75 E27 TW MiPRC
Energy label
EL-4058075762176-AC424 15
Spectral power distribution
SPECTRUM CONVENTIONAL LED Graphic 1 & SPECTRUM SUN AT HOME LED Graphic 2
Application pictures
Sun at Home Family Schooling 4400K
Application pictures
Sun at Home Family CRI 5000K
Application pictures
Sun at Home Homeoffice Evening 2700K
Application pictures
Sun at Home Homeoffice Morning Coffee 2700K
Application pictures
SUN@HOME SMART Indoor A60 E27 on packaging front
Application pictures
SUN@HOME SMART Indoor HCL Packaging Front
Application pictures Getty
SMART INDOOR WIFI HCL A60 E27 TW 3000K
Application pictures Getty
SMART INDOOR WIFI HCL A60 E27 TW 5000K
Application pictures Getty
SMART INDOOR WIFI HCL A60 E27 TW 2200K
EAN ELDAS number
4058075762176 941842070
