PANEL PROTECT 600 PS
PL PROT 600 P 36W 840 PS
GTIN: 4099854082887
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable for use in applications where a higher IP protection is needed
- Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 140 lm/W
- High color consistency with SDCM 3
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- External driver for extended flexibility and easy installation
- Easy cleanable frontside thanks to the smooth PMMA surface of the diffuser
- Suitable for battery emergency installations acc. to EN 60598-2-22
- Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
- Hospitals
- Laboratories
- Kitchens, canteens, workspaces
Product features
- Type of protection: IP54 (frontside), IP20 (backside)
- Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
- PMMA diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Luminaire versions with IoT-ready DALI-2 driver available
- Lifetime (L90/B10): 50,000 h (at 25° C)
- Panel can be customized with optical sensors on individual request
Equipment / Accessories
- Accessories for several mounting options available
- Connector box with 5-pole terminal pre-installed
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Suitable for use with seperate Emergency Conversion Box
- Special mounting frame with an overall height of only 50 mm available separately
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 36 W / 31 W / 26 W / 22 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 165.000 mA |
| Inrush current | 0.2 A |
| Inrush current time Th50 | 450 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Max. number of luminaires per miniature circuit breaker C10 | 24 |
| Max. number of luminaires per miniature circuit breaker C16 | 38 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
1) The Panel Protect family is fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires
Photometrical data
| Luminous flux | 5040 lm / 4340 lm / 3640 lm / 3080 lm 1) |
| Luminous efficacy | 140 lm/W 1) |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
1) The Panel Protect family is fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires
Dimensions & Weight
| Length | 595.00 mm |
| Height | 34.00 mm |
| Width | 595.00 mm |
| Product weight | 2020.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+50 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP54/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 575 mm |
| Mounting width | 575 mm |
| Mounting depth | 50,0 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 800 mA |
| ECG - Output ripple current | < 5 % |
| ECG - Length | 125,0 mm |
| ECG - Width | 60 mm |
| ECG - Height | 26,7 mm |
| Recommended control gear | OSRAM OTi_DALI_50/220-240/1A4 NFC / TRIDONIC LCA 45W 500–1400mA one4all SC PRE |
Emergency lighting
| Type of Emergency Lighting (EL) | Optional EL unit (battery and controller) for decentral operation available separately, EL certified driver (0Hz / DC operation) for central battery operation included |
Certificates & Standards
| Standards | CE, CB, ENEC, UKCA, EAC, EL, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00039-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854082887 | Folding box 1 |
41 mm x 602 mm x 602 mm | 2408.00 g | 14.86 dm³ |
| 4099854082894 | Shipping box 5 |
620 mm x 229 mm x 631 mm | 13122.00 g | 89.59 dm³ |
User instruction / safety instructions
UI PL PROT 600 P 36W and PL PROT 625 P 36W
UI PL PROT 600 P 36W and PL PROT 625 P 36W
Legal information
LSI PL PROT P 36W
LSI PL PROT P 36W
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
EM Insert PL PROTECT
EM Insert PL PROTECT
Declarations of conformity
CE Declaration PL PROT
CE Declaration PL PROT
EPD
EPD EN PANEL PROTECT
EPD EN PANEL PROTECT

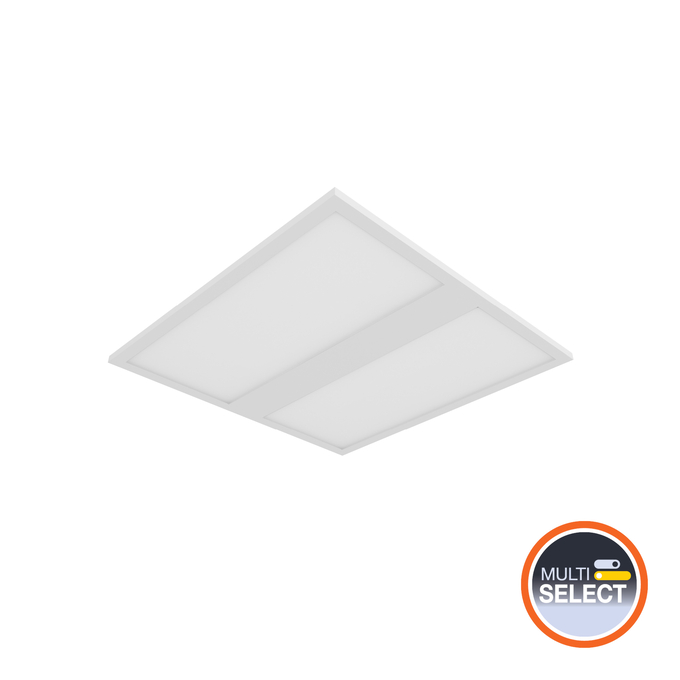

Product image: white background, diagonal
PL PROT 36W
PL PROT 36W
Product image: white background, upright
PL PROT 36W
PL PROT 36W
Product image: white background, spacial
PL PROT 36W
PL PROT 36W
Product image: white background, spacial
Panel Protect with optional SF Mount Kit H50
Panel Protect with optional SF Mount Kit H50
Product line drawing with letters
PL PROT 600 P 36W
PL PROT 600 P 36W
Product line drawing with numbers
PL PROT 600 P 36W
PL PROT 600 P 36W
Product line drawing with numbers
PL PROT 600 P 36W
PL PROT 600 P 36W
Product line drawing - technical
PL PROT 600 P 36W
PL PROT 600 P 36W

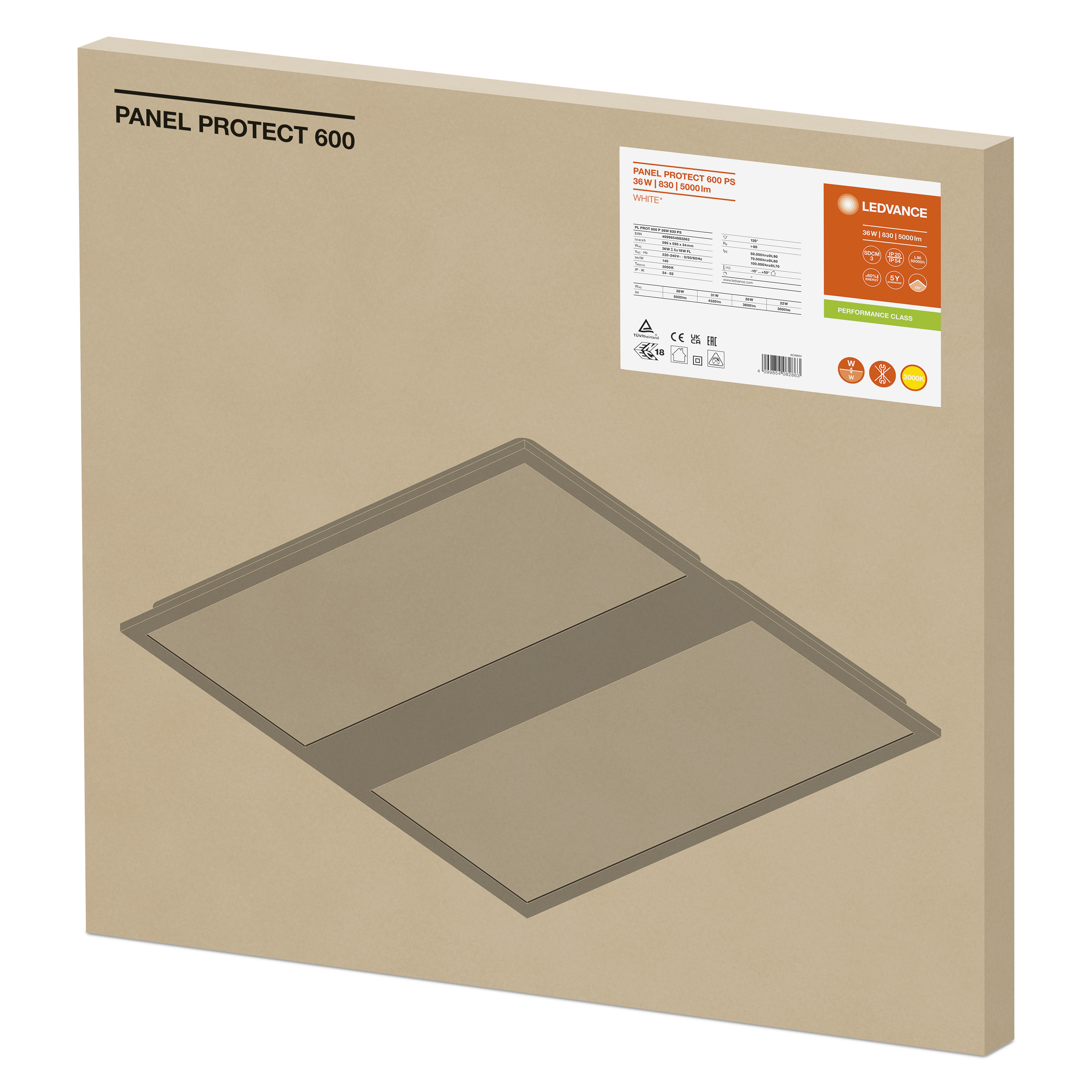

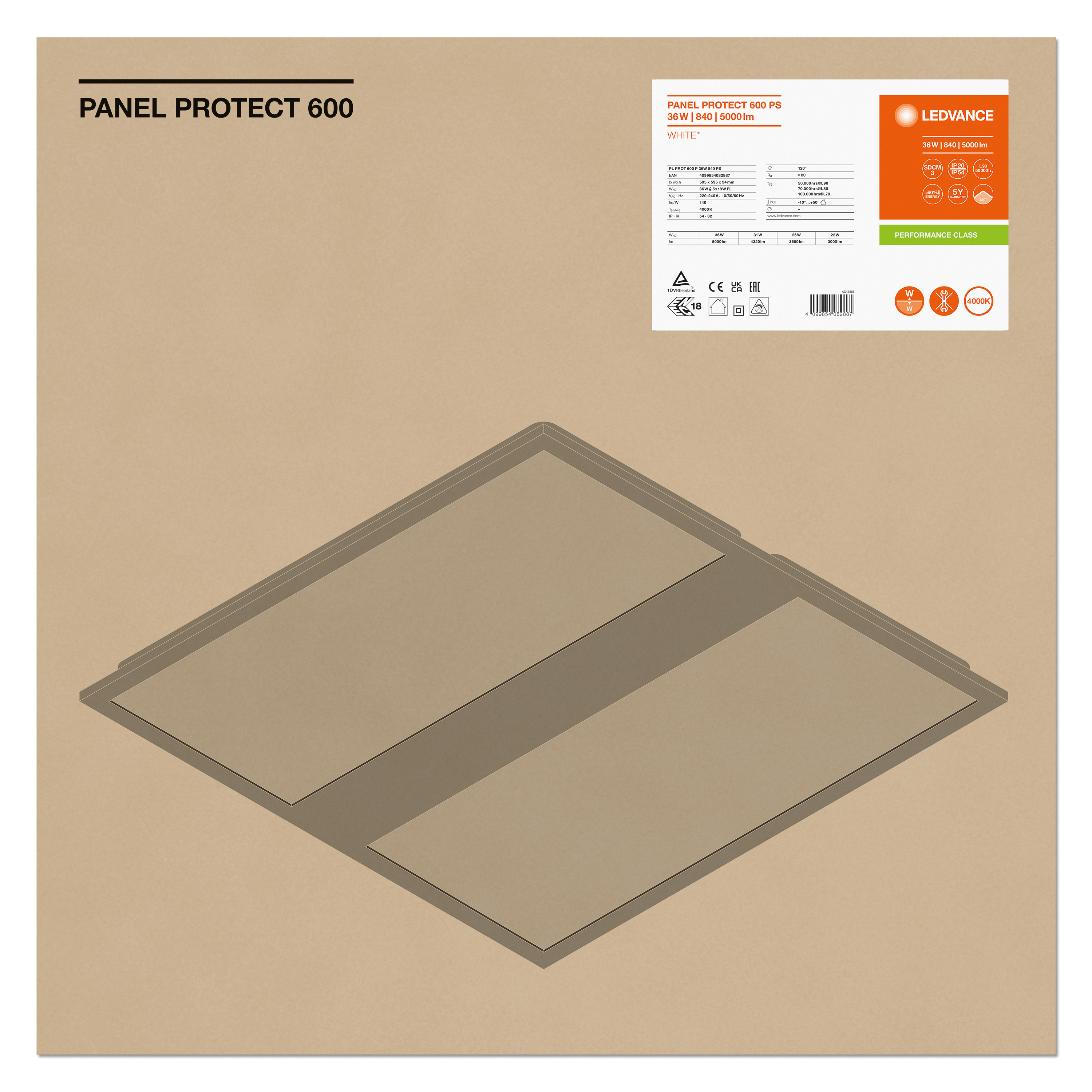

Packaging image, frontal
