PANEL VALUE 1200x600 TPB
PANEL VALUE 1200x600 TPB 65 W 4000 K WT
GTIN: 4058075384361
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Value for money luminaire
- 3 years guarantee
- Low flicker light thanks to special electronic control gear
- External driver for extended flexibility and easy installation
- Emergency lighting possible with LEDVANCE Emergency Conversion Box
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 600 mm
Product features
- Lifetime (L70/B50): 50,000 h (at 25 °C)
- Extruded aluminum frame
- Polystyrene diffuser (TP(B) rated)
Equipment / Accessories
- Accessories for several mounting options available
- External control gear included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 65.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 300.000 mA |
| Inrush current | 13.2 A |
| Inrush current time Th50 | 300 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 14 |
| Max. number of luminaires per miniature circuit breaker C10 | 14 |
| Max. number of luminaires per miniature circuit breaker C16 | 22 |
| Power factor λ | ≥0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 5850 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1195.00 mm |
| Height | 34.00 mm |
| Width | 595.00 mm |
| Product weight | 3600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polystyrene (PS) |
| Light emitting surface material | Polystyrene |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+45 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP40 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Mounting length | 1180 mm |
| Mounting width | 580 mm |
| Mounting depth | 50,0 mm |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Output ripple current | ≤ 5 % |
Certificates & Standards
| Standards | CE, CB |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075384361 | Folding box 1 |
602 mm x 40 mm x 1,248 mm | 4303.00 g | 30.05 dm³ |
| 4058075384378 | Shipping box 3 |
1,267 mm x 142 mm x 634 mm | 16980.00 g | 114.07 dm³ |
User instruction / safety instructions
PANEL
PANEL
Legal information
LSI PL PFM AND VAL
LSI PL PFM AND VAL
Legal information
Legal Insert
Legal Insert

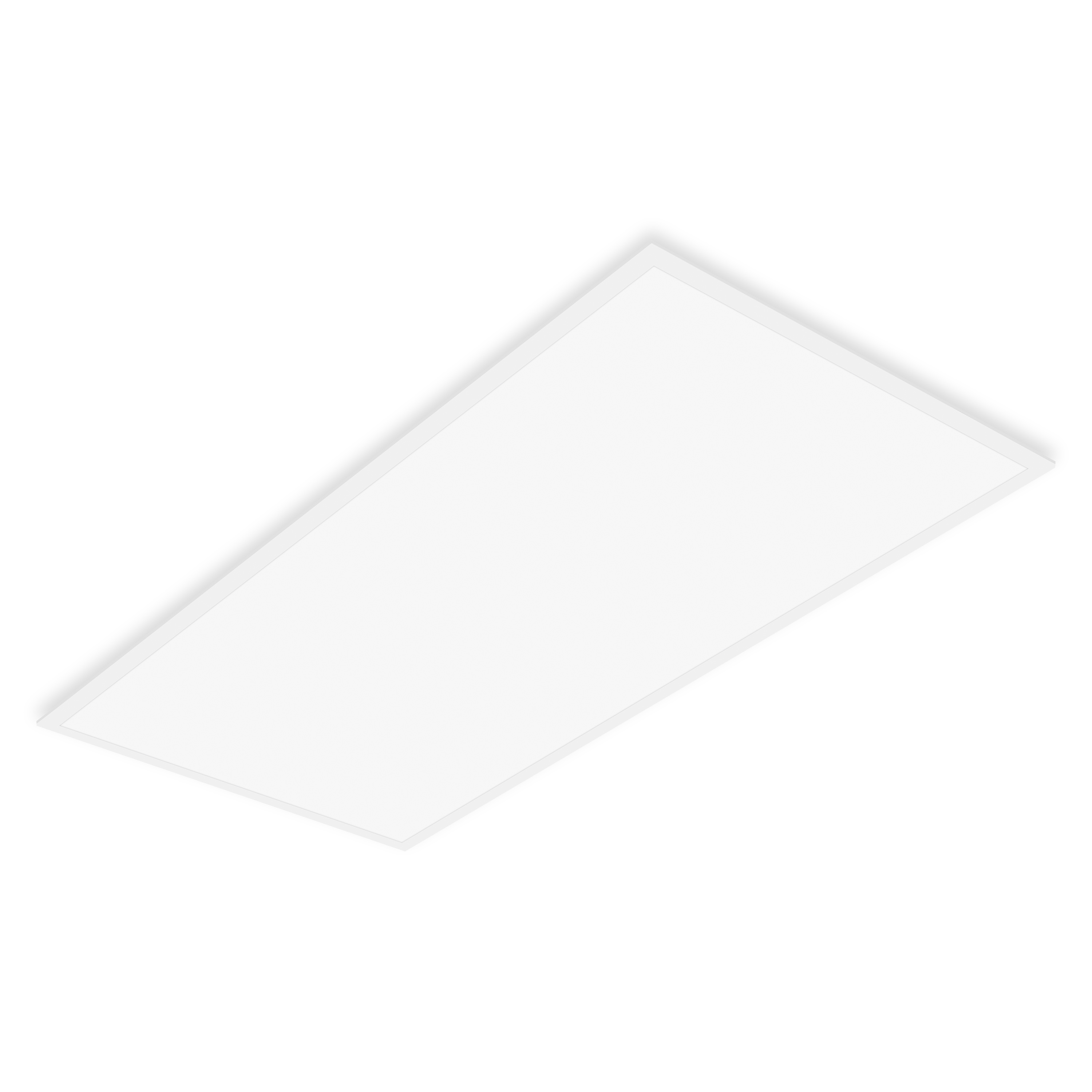

Product image: white background, diagonal
PL VAL 1200X600 65W
PL VAL 1200X600 65W

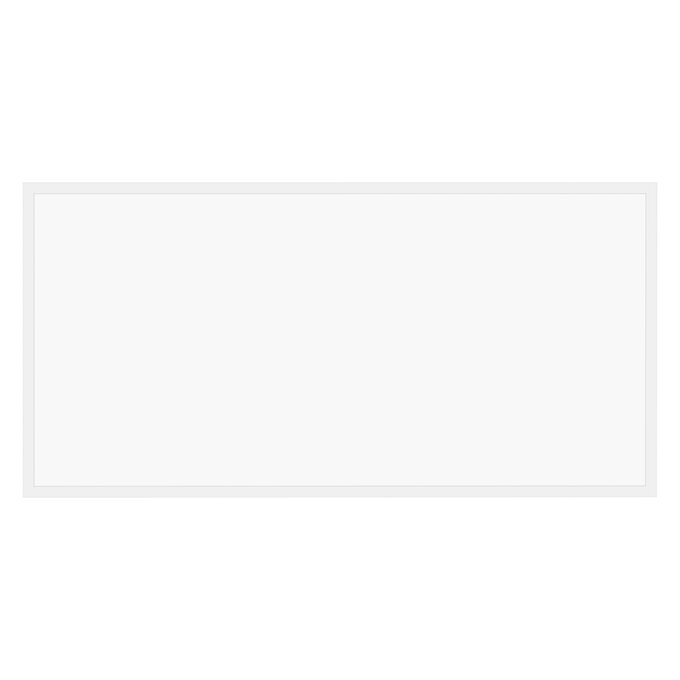

Product image: white background, horizontal
PL VAL 1200X600 65W
PL VAL 1200X600 65W

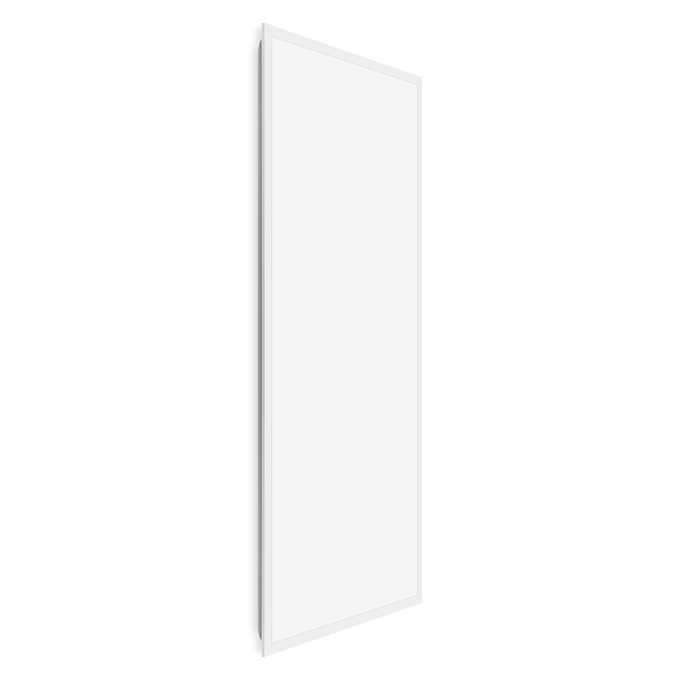

Product image: white background, upright
