PANEL IndiviLED 625 ZIGBEE
PANEL INDV 625 33W 4000 K ZBVR
GTIN: 4058075521865
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Suitable luminaire for VIVARES and other Zigbee 3.0 Light Management Systems
- Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors
- Offices
- Conference rooms
- Reception areas
- Foyers
- Elevators
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
- Lifetime (L80/B50): up to 50,000 h (at 25 °C)
- Metal housing, polycarbonate (PC) lenses and reflectors
- Luminous flux: up to 4,000 lm
- Luminous efficacy: up to 120 lm/W
- Initial color consistency: 3 SDCM
- Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- External control gear included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 33.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Inrush current | 30 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 11 |
| Max. number of luminaires per miniature circuit breaker C10 | 10 |
| Max. number of luminaires per miniature circuit breaker C16 | 16 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | ≤ 10 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 4000 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 3 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 70 ° |
| UGR | < 16 |
Dimensions & Weight
| Length | 620.00 mm |
| Height | 13.00 mm |
| Width | 620.00 mm |
| Product weight | 3600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP40/IP20 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | ZIGBEE |
| Mounting type | Surface/Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 600,0 mm |
| Mounting width | 600,0 mm |
| Mounting depth | 50,0 mm |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 750 mA |
| ECG - Output ripple current | ≤ 5 % |
Certificates & Standards
| Standards | CE, CB, ENEC, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075521865 | Folding box 1 |
668 mm x 723 mm x 38 mm | 4024.00 g | 18.35 dm³ |
| 4058075521872 | Shipping box 3 |
685 mm x 135 mm x 735 mm | 12998.00 g | 67.97 dm³ |
User instruction / safety instructions
PANEL IndiviLED 600/625 ZBVR
PANEL IndiviLED 600/625 ZBVR
Extended installation guide
Quick Installation Guide VIvares Zigbee
Quick Installation Guide VIvares Zigbee
Legal information
LSI PANEL INDV EM
LSI PANEL INDV EM
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
PL INDV 33W 4000K ZBVR
PL INDV 33W 4000K ZBVR
Product image: white background, diagonal
PANEL INDV
PANEL INDV
Product image: white background, horizontal
PANEL INDV
PANEL INDV
Product image: white background, spacial
PANEL INDV
PANEL INDV
Product line drawing with numbers
PANEL INDV 625 33W
PANEL INDV 625 33W

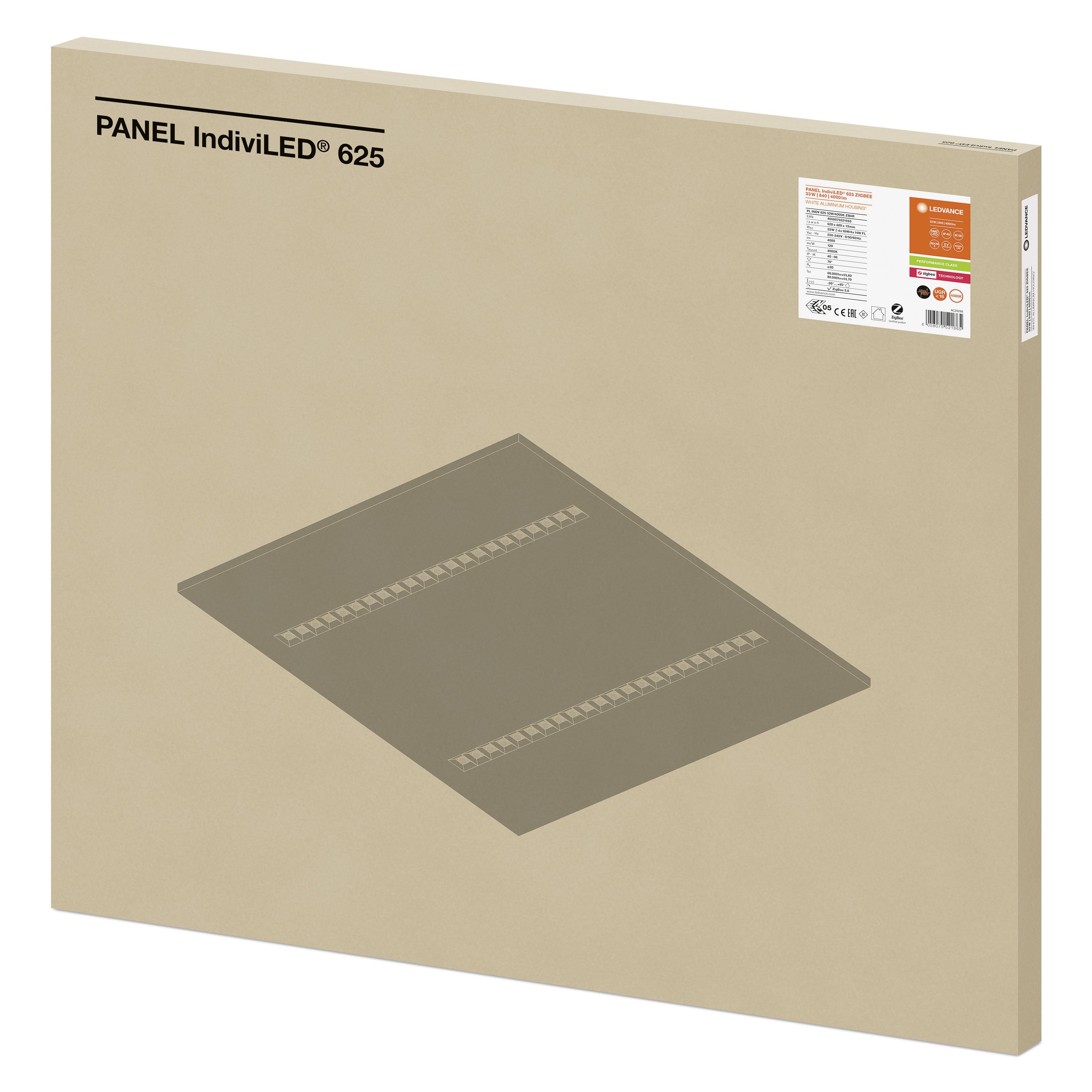

Packaging image, spacial
