BATTEN COMBO

BAT CBO 1800 V 65W ML 84065 WT

GTIN: 4099854529030 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Replacement of conventional T8 luminaires with up to 9,750 lm
  • Robust structure with IK08
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairwells, basements
  • Industrial and storage facilities
  • Public areas
  • Indoor applications
Product features
  • High luminous efficacy: up to 153 lm/W
  • Luminous flux: up to 9,750 lm
  • Impact resistance: IK08
  • Push wire terminal for tool-free connection
  • Lifetime (L70/B50): up to 54,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+40 °C
  • Through wiring possible
Equipment / Accessories
  • Plug & Upgrade high frequency sensor and emergency kit separately available
  • DP BAT CBO EL KIT only compatible with 1200, 1500 and 1800 versions (not with 600 version)
  • Mounting screws and dowels included
Safety advice
  • Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Electrical data
Nominal wattage 65 W / 33 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 290mA / 195 mA
Inrush current 20 A
Inrush current time Th50 118 µs
Max. number of luminaires per miniature circuit breaker B16 33
Max. number of luminaires per miniature circuit breaker C10 25
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 9750 lm / 5050 lm
Luminous efficacy 150 lm/W / 153 lm/W
Color temperature 4000 K / 6500 K
Light color (designation) Cool White, Cool Daylight
Color rendering index Ra ≥80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
33 W 4000 K 5050 lm 153 lm/W
33 W 6500 K 5050 lm 153 lm/W
65 W 4000 K 9750 lm 150 lm/W
65 W 6500 K 9750 lm 150 lm/W
Dimensions & Weight
Length 1818.80 mm
Height 70.00 mm
Width 64.00 mm
Product weight 1790.00 g
Materials & Colors
Product color White
Housing color White
RAL Color (most similar) RAL 9003
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push-in
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 54000 h 1)
Lifespan L80/B10 at 25 °C 42000 h 1)
Lifespan L90/B10 at 25 °C 32000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
ECG - Output ripple current < 5 %
Emergency lighting
Type of Emergency Lighting (EL) Optional EL unit (battery and controller) for decentral operation available separately
Certificates & Standards
Standards CE, CB, ERP, UKCA, EAC
Ball shot safe No
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854529030 Folding box
1		 72 mm x 1,832 mm x 77 mm 2050.00 g 10.16 dm³
4099854529047 Shipping box
4		 1,852 mm x 157 mm x 174 mm 8950.00 g 50.59 dm³
User instruction / safety instructions
BATTEN CBO
PDF (2.8 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11205497
PDF (178.17 KB)
Legal information
Legal Insert DP CBO AND BATTEN CBO
PDF (841.65 KB)
Legal information
LISO insert G111256082 Batten Combo
PDF (2.18 MB)
Declarations of conformity
BATTEN CBO
PDF (365.76 KB)
Product image: white background, diagonal

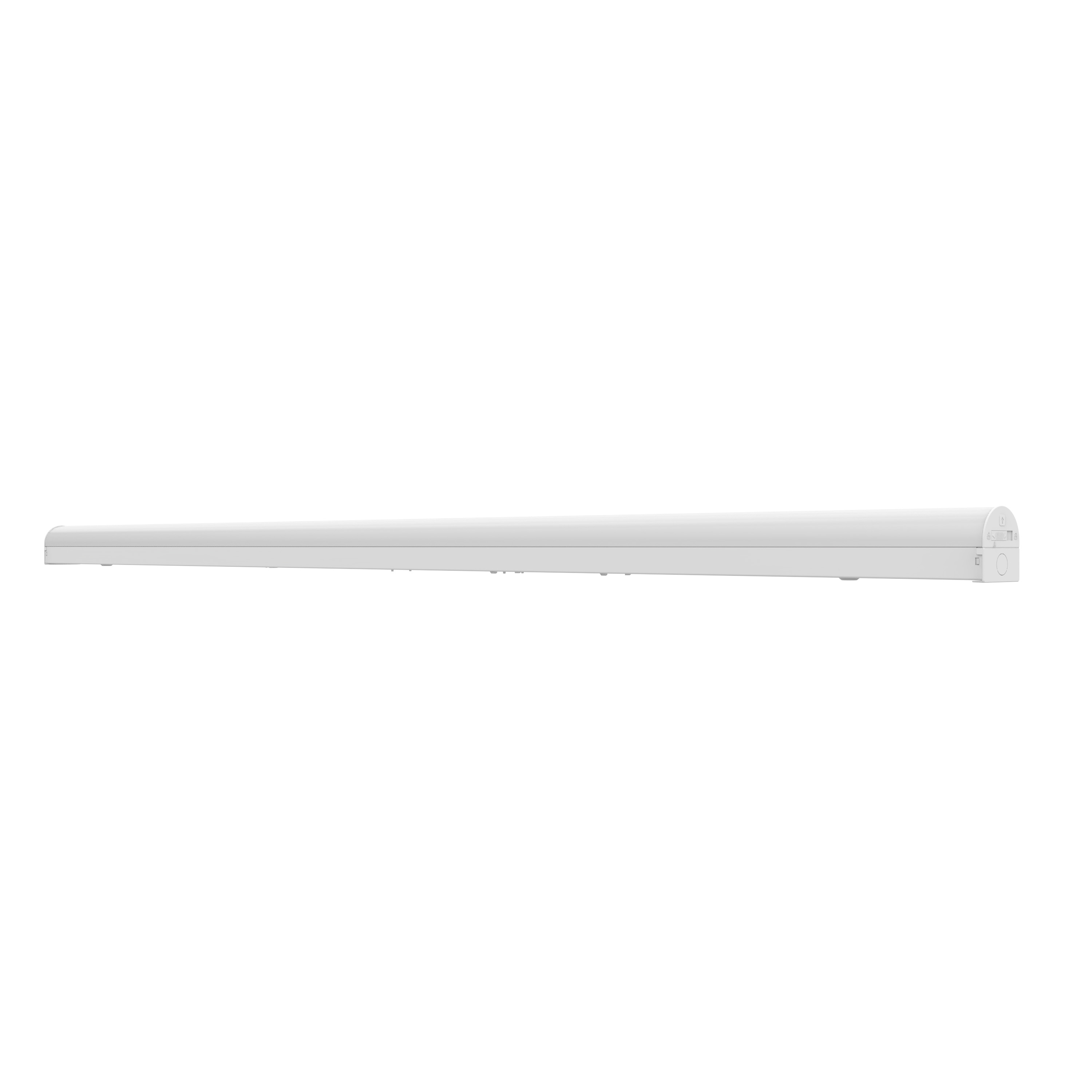

Batten CBO diagonal 1800
JPG (296.71 KB)
Product image: white background, diagonal, alternative image

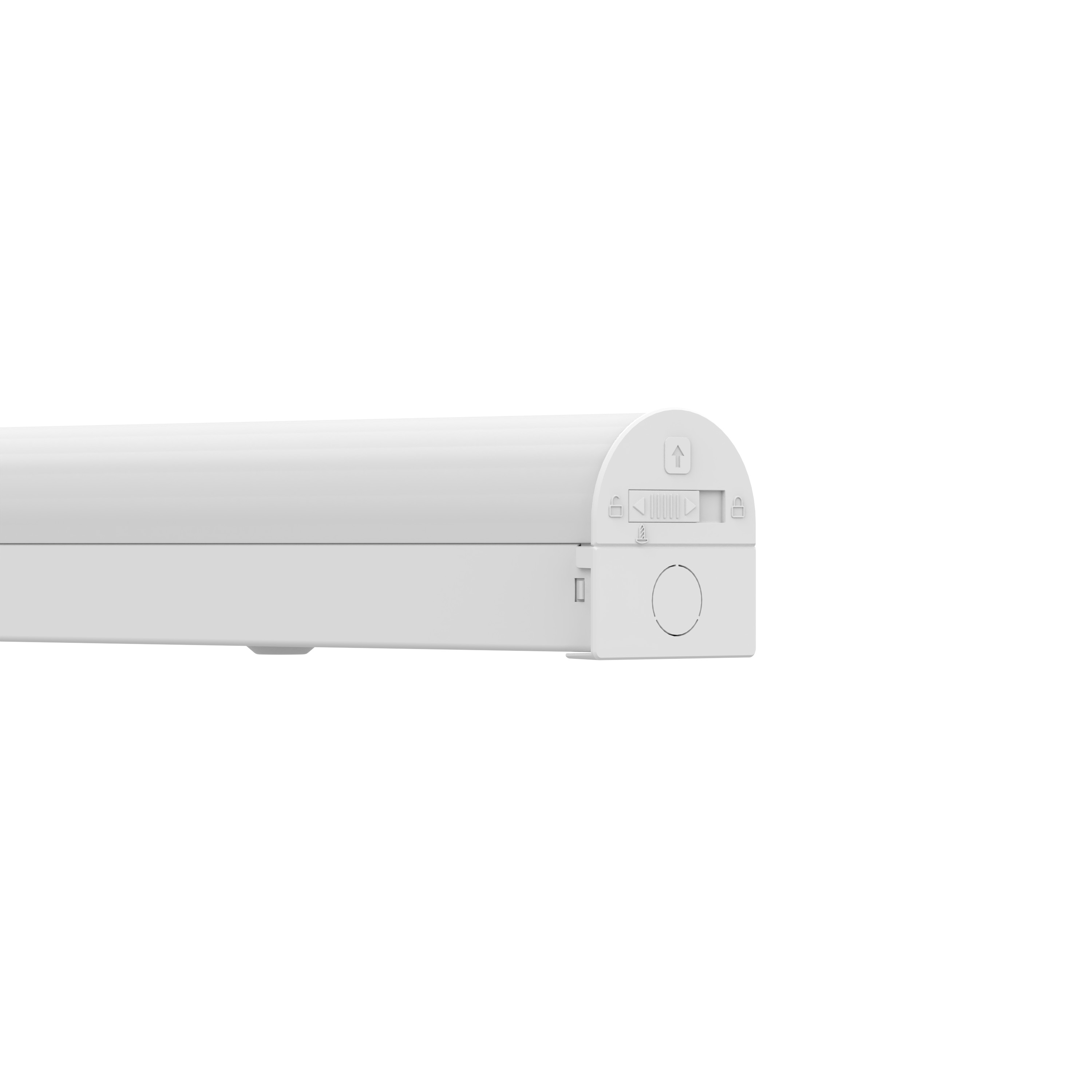

Batten CBO diagonal alternative 1800
JPG (309.53 KB)
Product image: white background, horizontal

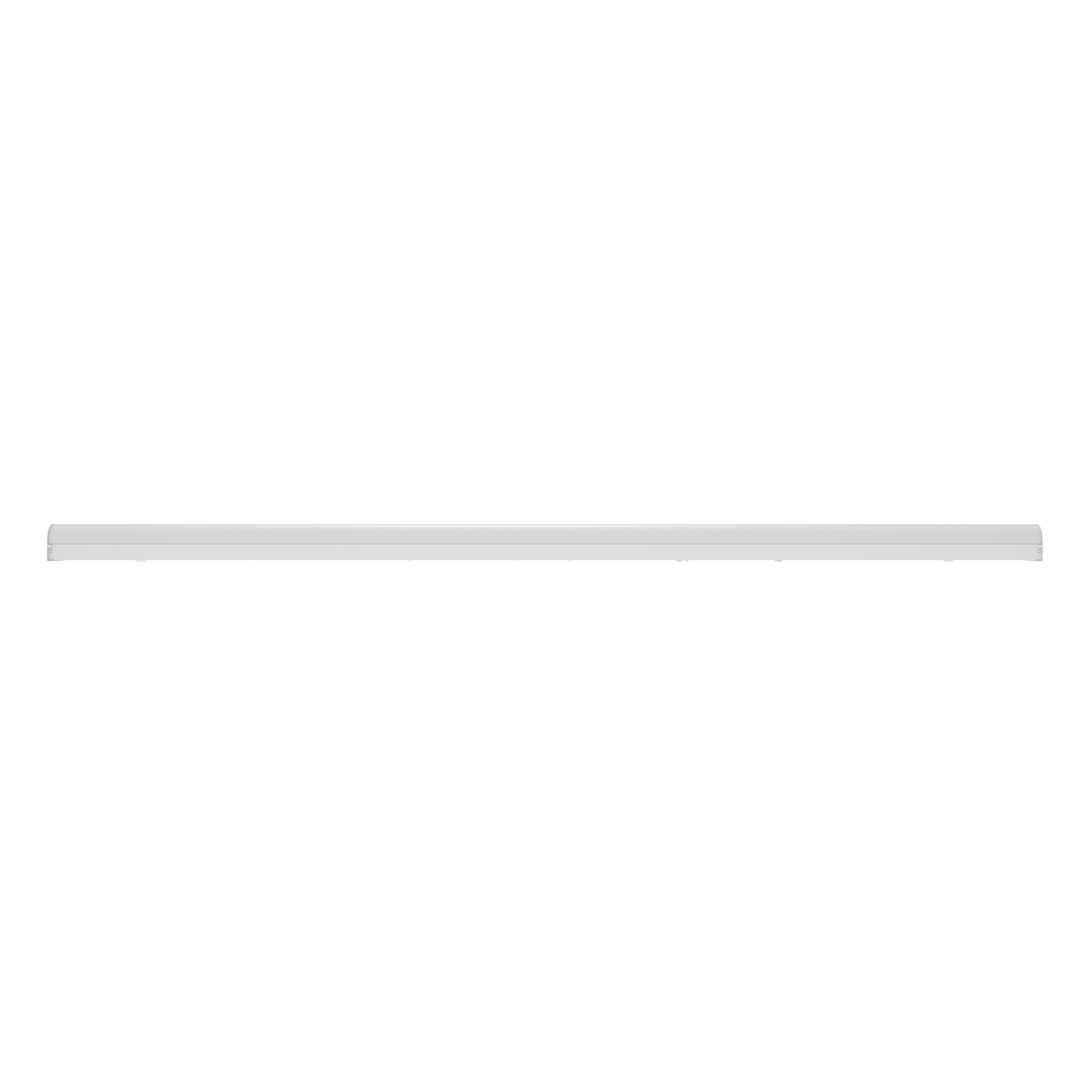

Batten CBO horizontal 1800
JPG (292.15 KB)
Product image: white background, upright

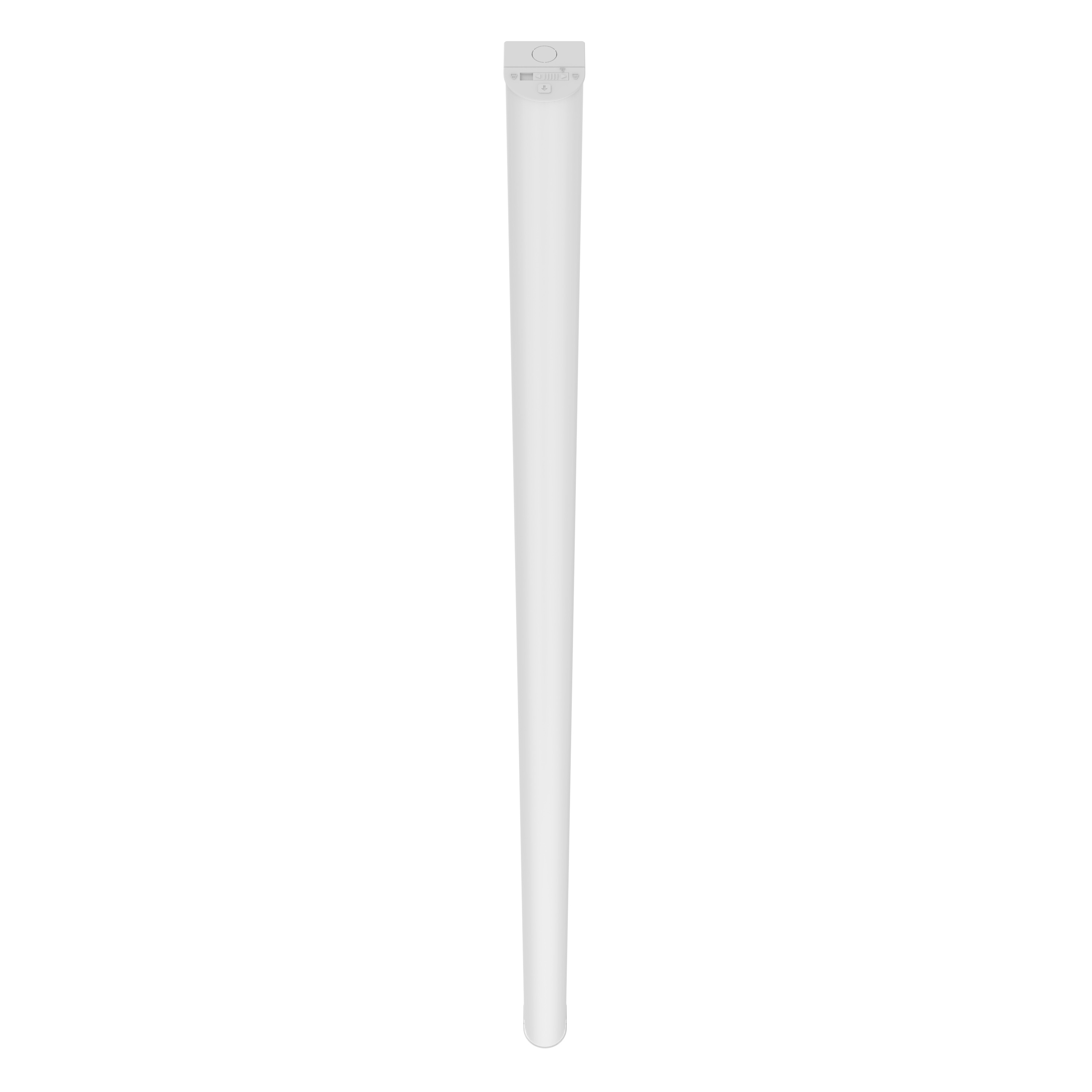

Batten CBO spacial 1800
