HIGH BAY GEN 3
HB 93 W 4000 K 110DEG IP65
GTIN: 4058075452367
Shipping box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
- High luminous efficacy
- Energy savings of up to 60 % compared to conventional high bay luminaires
- 5 years guarantee
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 14 m in 4000 K or 6500 K
Equipment / Accessories
- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 93.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 430 mA |
| Inrush current | 44 A |
| Inrush current time Th50 | 380 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 6 |
| Max. number of luminaires per miniature circuit breaker C10 | 6 |
| Max. number of luminaires per miniature circuit breaker C16 | 8 |
| Power factor λ | > 0.95 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 13000 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 280.00 mm |
| Height | 143.00 mm |
| Product weight | 1800.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+55 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 200000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Output ripple current | ≤ 10 % |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075452367 | Shipping box 1 |
337 mm x 337 mm x 152 mm | 2497.00 g | 17.26 dm³ |
User instruction / safety instructions
HIGHBAY Gen3
HIGHBAY Gen3
Legal information
LSI upload_HB
LSI upload_HB
Legal information
Legal insert HB P GEN 4 AND HB GEN 3
Legal insert HB P GEN 4 AND HB GEN 3
Declarations of conformity
HB
HB
Product image: white background, diagonal
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Product image: white background, upright
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Product line drawing with letters
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Product line drawing with numbers
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Product line drawing - technical
HIGHBAY PERFORMANCE
HIGHBAY PERFORMANCE
Packaging image, spacial
HighBay LED 93W MiCh
HighBay LED 93W MiCh
Catalog info 1
Highbay Gen3
Highbay Gen3
IES file (IES)
HB 93W/4000K 110DEG IP65
HB 93W/4000K 110DEG IP65
LDT file (Eulumdat)
HB 93W/4000K 110DEG IP65
HB 93W/4000K 110DEG IP65
UGR file (UGR table)
HB 93W4000K 110DEG IP65
HB 93W4000K 110DEG IP65
Light distribution curve type cone
HB PFM 93W4000K 110DEG IP65
HB PFM 93W4000K 110DEG IP65
Light distribution curve type polar
HB PFM 93W4000K 110DEG IP65
HB PFM 93W4000K 110DEG IP65
BIM Revit 3D
HB GEN3
HB GEN3
CAD STEP 3D
High Bay gen3 93W
High Bay gen3 93W
Application pictures

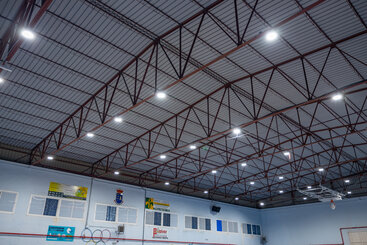

Pabellon Torres de Cotillas
