FLOODLIGHT PHOTOCELL 150
FL 150 PCELL P 100W 840 15KLM PS BK
GTIN: 4099854307003
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Automatically switches on and off according to the amount of available daylight
- Always-on override, activated via special mains switching pattern
- Breather membrane to optimize air exchange, without compromising IP protection
- Highly versatile due to selectable power steps (Multi Lumen) on the housing
- Robust cable gland with integrated waterstop function
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- Bright, robust and durable
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Energy savings of up to 90 % compared to halogen lamp floodlights
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Building facades
- Construction areas
- Parking
Product features
- Daylight sensor, integrated in glass cover
- Switch on below 35 lux, switch off above 95 lux illuminance
- High luminous efficacy: up to 150 lm/W
- Type of protection: IP66
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Mounting bracket with 30° angle and wide rotation area
- Integrated voltage driver, suitable for 220 - 240 V AC
Safety advice
- Max. wind load surface 0.070 m²
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 100 W / 83 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 443/368 mA |
| Inrush current | 30 A |
| Inrush current time Th50 | 452 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 5 |
| Max. number of luminaires per miniature circuit breaker C10 | 6 |
| Max. number of luminaires per miniature circuit breaker C16 | 9 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Surge capability (L-N) | 4 kV |
| Surge capability (L/N-Ground) | 6 kV |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 15000 lm / 12500 lm |
| Luminous efficacy | 150 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 5 sdcm |
| Stroboscope effect metric (SVM) | ≤0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 100 ° x 100 ° |
Dimensions & Weight
| Length | 266.00 mm |
| Height | 343.00 mm |
| Width | 55.00 mm |
| Product weight | 2828.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| RAL Color (most similar) | RAL 9017 |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Corrosion resistance class acc. to EN 12944 | C4 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Pole, Floor |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 75000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 480 mA |
| ECG - Output ripple current | < 20 % |
Sensor
| Type of sensor | Light |
| Sensor technology | Photocell |
| Detection threshold of daylight sensor | 35…95 lx |
| Sensor IP rating | IP66 |
Certificates & Standards
| Standards | CE, CB, ENEC, EAC, UKCA, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00030-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data

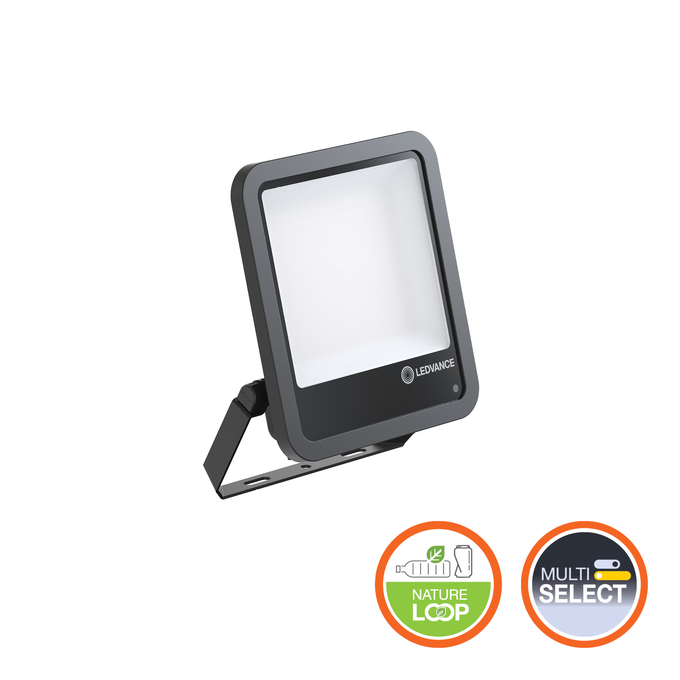

| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854307003 | Folding box 1 |
72 mm x 285 mm x 370 mm | 3009.00 g | 7.59 dm³ |
| 4099854307010 | Shipping box 3 |
301 mm x 234 mm x 397 mm | 9565.00 g | 27.96 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
FL TRAVERSE 1/2 42/60/76MM | 4099854680038 |
User instruction / safety instructions
G11193709_UI_Floodligh t_Photocell
G11193709_UI_Floodligh t_Photocell
Legal information
Insert_LSI_Floodlight_ Sensor_Photocell_G1119 5969
Insert_LSI_Floodlight_ Sensor_Photocell_G1119 5969
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205496
Safety Insert G11205496
Legal information
Legal Insert G11257402
Legal Insert G11257402
Declarations of conformity
FLOODLIGHT GEN4
FLOODLIGHT GEN4
EPD
EPD EN FLOODLIGHT GEN 4 MP PHOTOCELL
EPD EN FLOODLIGHT GEN 4 MP PHOTOCELL

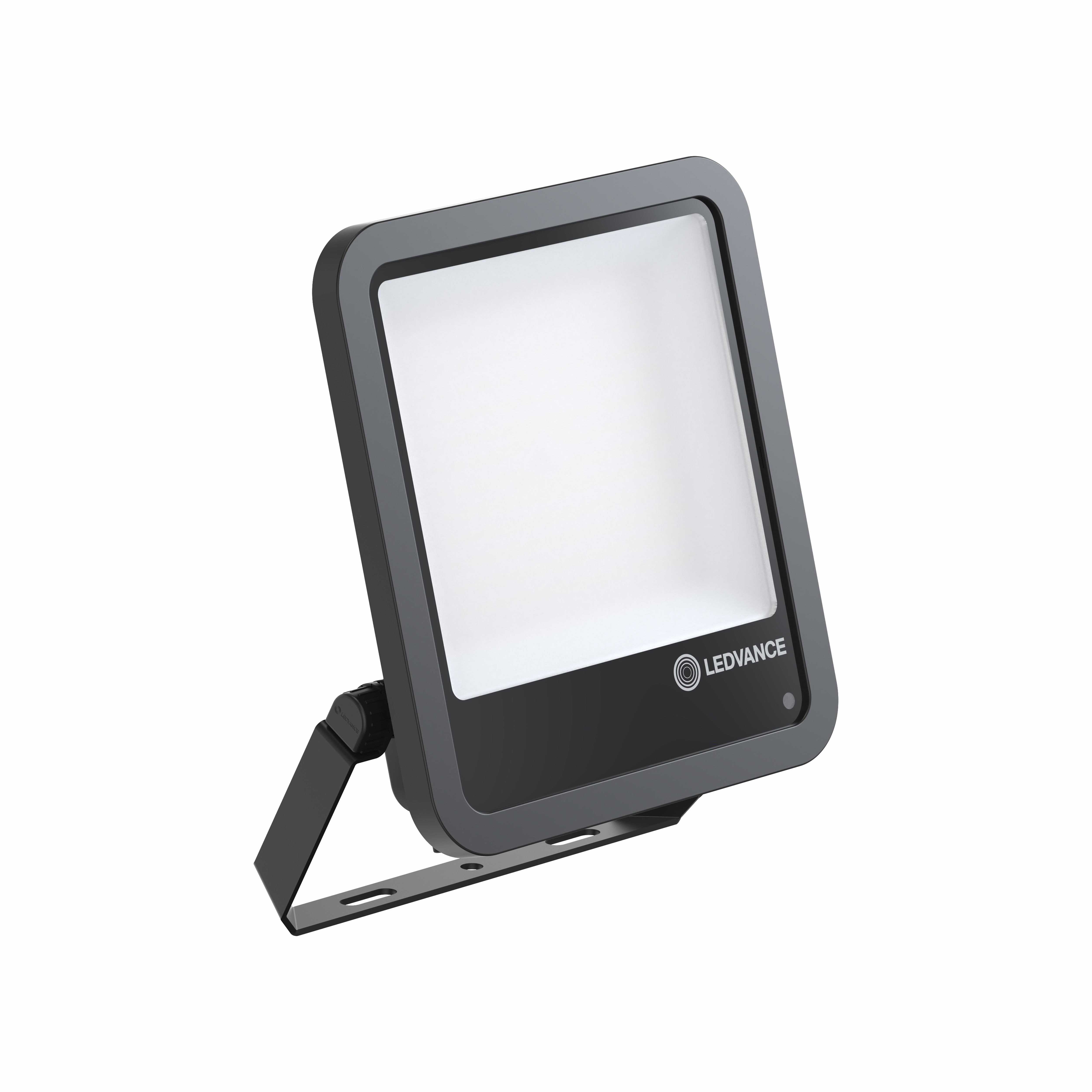

Product image: white background, diagonal
FL 150 PCELL P 100W
FL 150 PCELL P 100W

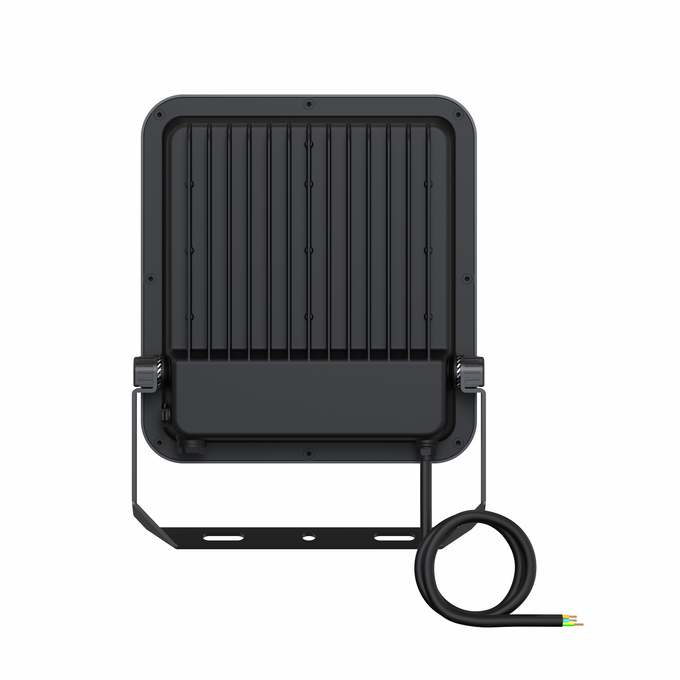

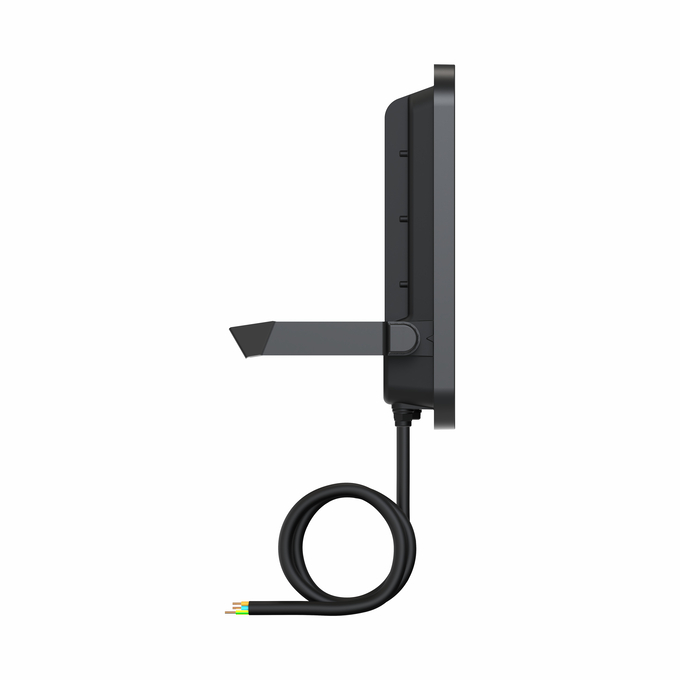

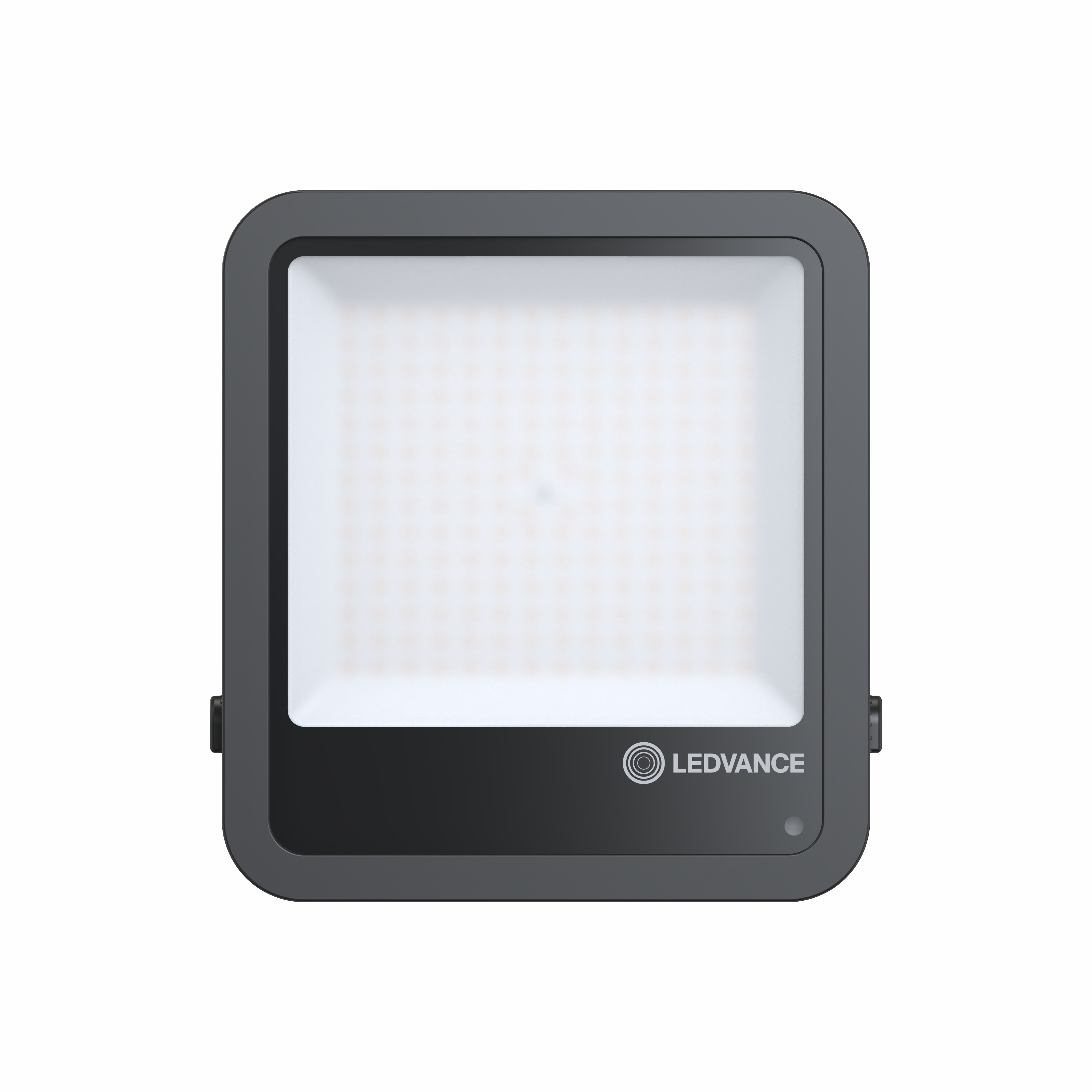

Product image: white background, upright
FL 150 PCELL P 100W
FL 150 PCELL P 100W
Product line drawing with letters
FL 150 PCELL 15KLM
FL 150 PCELL 15KLM
Product line drawing with numbers
FL 150 PCELL 15KLM
FL 150 PCELL 15KLM
Product line drawing - technical
FL 150 PCELL 15KLM
FL 150 PCELL 15KLM

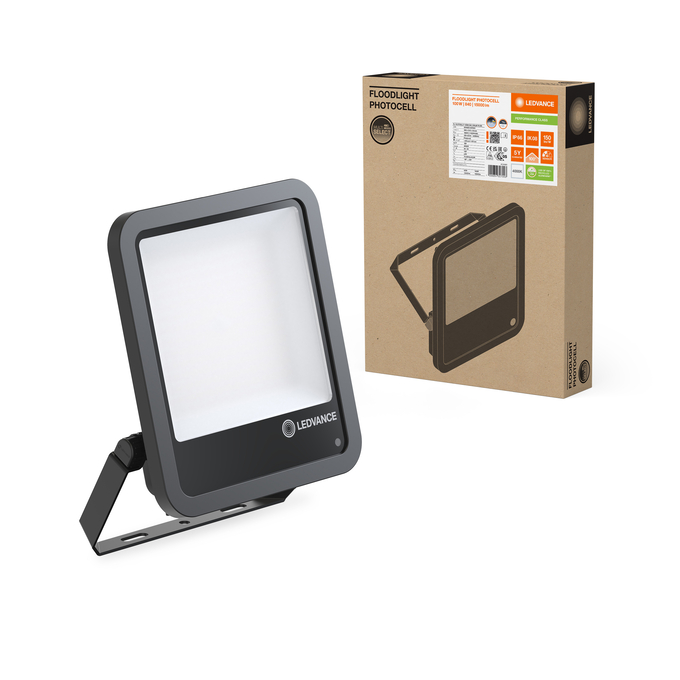

Combo Shot = Product Beauty Shot + Packaging Image
FL150 PCLL P 100W 840 15KLM PS BK
FL150 PCLL P 100W 840 15KLM PS BK
Packaging image, frontal
FL150 PCLL P 100W 840 15KLM PS BK
FL150 PCLL P 100W 840 15KLM PS BK
Packaging image, spacial
FL150 PCLL P 100W 840 15KLM PS BK
FL150 PCLL P 100W 840 15KLM PS BK

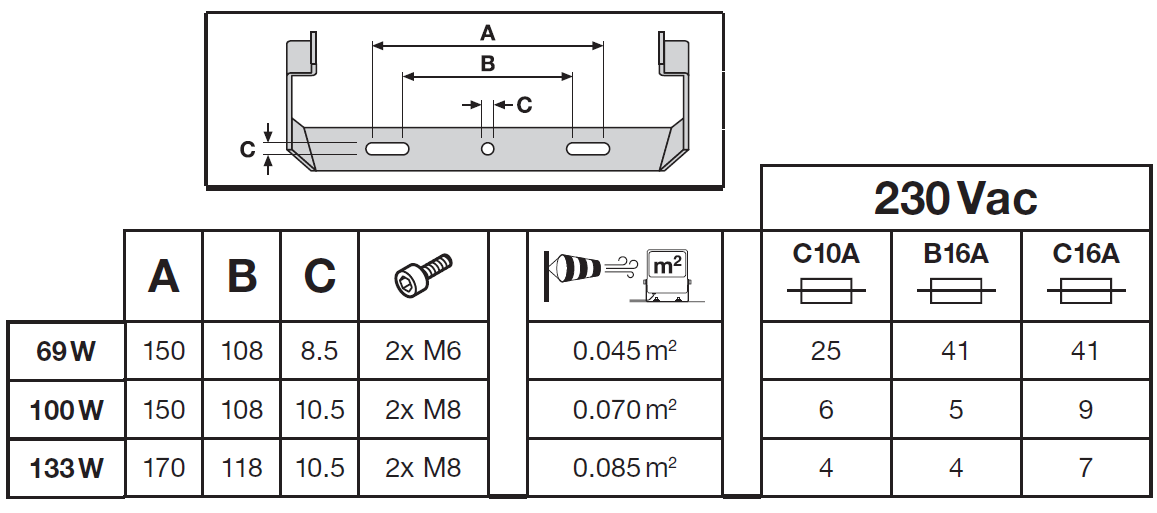

Catalog info 1
FL 100/150/200 PCELL P 840 PS BK
FL 100/150/200 PCELL P 840 PS BK

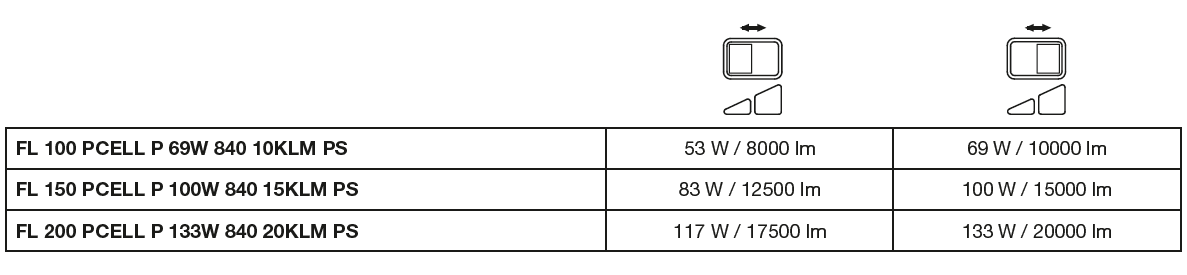

Catalog info 2
