PANEL INDV EM 600 33 W 3000K

GTIN: 4058075201293 Folding box / 1 Show all packages

Contact sales

Tools

Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
Seamless integration of luminaires with emergency lighting function into general lighting
Easy wiring thanks to included prewired driver and battery for Emergency lighting function
Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
Convenient visualization of results of automatic test with an included control LED
Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
Robust structure with IK08
Low flicker light thanks to special electronic control gear
3 years guarantee

Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
Luminaire suited for normal lighting and emergency lighting
Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
Self-contained luminaires
Emergency lighting function: battery discharge time of 3 h
Function test of emergency lighting: automatic (AT)
Battery technology: LiFePO4
Metal housing, polycarbonate (PC) lenses and reflectors
Luminous efficacy: up to 120 lm/W
Initial color consistency: 3 SDCM
Glow Wire Test according to IEC 60695-2-12: 850 °C

Nominal wattage	33.00 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Nominal current	180.000 mA
Inrush current	36.4 A
Inrush current time T_h50	80 µs
Max. number of luminaires per miniature circuit breaker B16	58
Max. number of luminaires per miniature circuit breaker C10	36
Max. number of luminaires per miniature circuit breaker C16	58
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	II
Operating mode	External LED driver

Luminous flux	3800 lm
Luminous efficacy	115 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	≥80
Standard deviation of color matching	3 sdcm
Luminous intensity	-
Low flicker	Yes
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62778	RG1
Beam angle	70 °

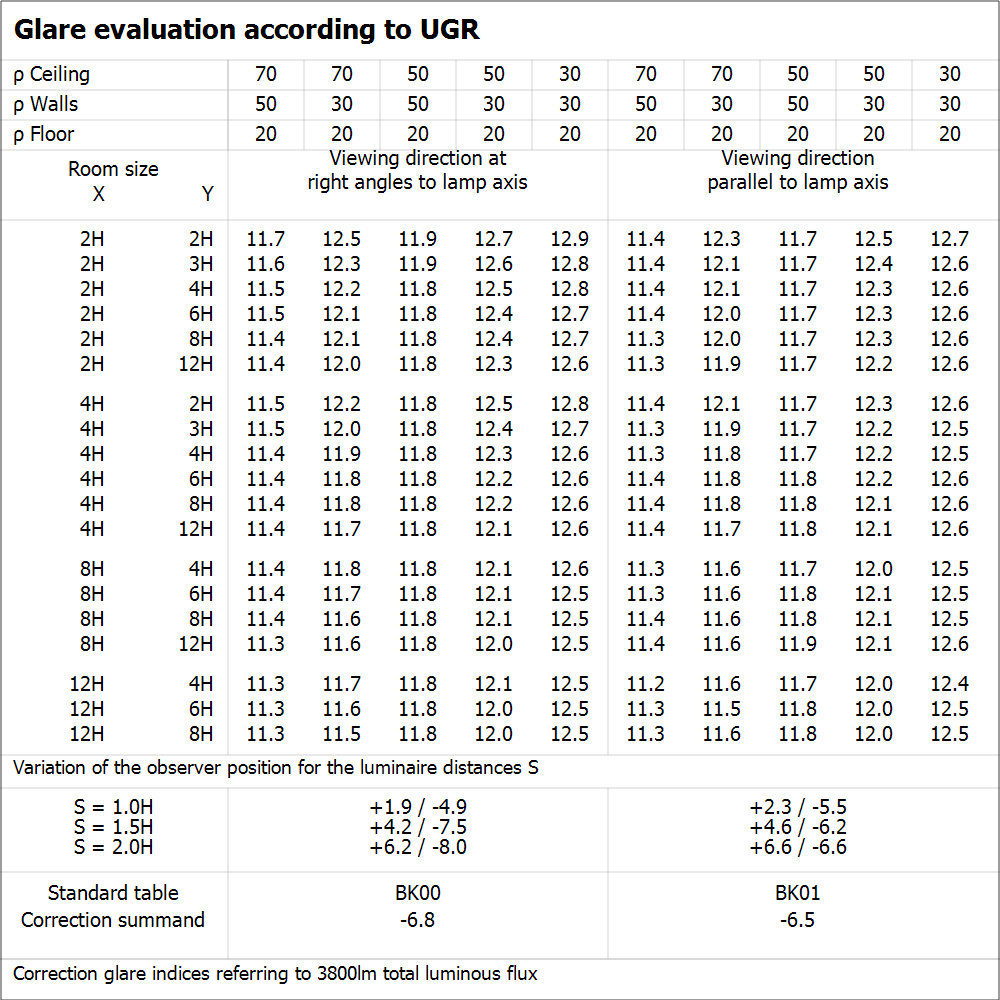

UGR	< 16

Product color	White
Housing color	White
Body material	Steel
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Ambient temperature range	+5…+40 °C
Temperature range at storage	5…+35 °C
Type of connection	Screw terminal, 2-POLE (N, L. L switchable)
Type of protection	IP40
Protection class IK (shock resistance)	IK08
Dimmable	No
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting length	575 mm
Mounting width	575 mm
Mounting depth	50,0 mm
With light source	Yes

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Area of emergency application	Anti-panic lighting, Escape route lighting
Type of emergency light operation	Maintained, Non-maintained
Type of emergency operation test	Automatic
Wattage in maintained operation mode	33 W
Wattage in emergency operation mode	3,0 W
Luminous flux in maintained operation mode	3800 lm
Luminous flux in emergency operation mode	450 lm
Battery life in emergency operation mode	3 h
Integrated test switch	No

Standards	CE, CB, EAC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
