PANEL PRINT SKY 625 DALI
PL PRINT SKY1 DA 625 V 33W
GTIN: 4099854536038
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Brings natural looking sky into buildings
- Luminous ceiling creating an atmosphere that comforts people
- Available as a single panel, set of 6 and set of 9
- Other images, customized patterns and logos on request
Areas of application
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
- Lounges, reception areas, foyers, corridors, elevators
- Decorative illumination
Product features
- Extruded aluminum frame, metal housing
- Color coated polystyrene diffuser
- UGR ≤ 22 with a 120° beam angle
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- External DALI-2 driver included
Equipment / Accessories
- Accessories for several mounting options available
- Security brackets preinstalled
- External control gear included
Safety advice
- The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 33.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 190.000 mA |
| Inrush current | 1.7 A |
| Inrush current time Th50 | 52 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 83 |
| Max. number of luminaires per miniature circuit breaker C10 | 52 |
| Max. number of luminaires per miniature circuit breaker C16 | 83 |
| Power factor λ | > 0.90 |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 3630 lm 1) |
| Luminous efficacy | 110 lm/W 1) |
| Color rendering index Ra | 80 1) |
| Standard deviation of color matching | > 5 sdcm 1) |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
1) Decorative Panel: Lumen/Efficacy as well as SDCM and CRI will vary from the original Panel values based on the printed image
Dimensions & Weight
| Length | 620.00 mm |
| Height | 32.00 mm |
| Width | 620.00 mm |
| Product weight | 1600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polystyrene (PS) |
| Light emitting surface material | Polystyrene |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+45 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Push connector, 2-Pole (L/N) |
| Type of protection | IP40/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| IoT ready | Support of DALI data type PART 251, 252, 253 1) |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 600 mm |
| Mounting width | 600 mm |
| Mounting depth | 50,0 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Lifespan
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 700 mA |
| ECG - Output ripple current | < 7 % |
| ECG - Length | 168 mm |
| ECG - Width | 44 mm |
| ECG - Height | 32 mm |
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from April 2025 |
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854536038 | Folding box 1 |
627 mm x 37 mm x 674 mm | 1988.00 g | 15.64 dm³ |
| 4099854536045 | Shipping box 4 |
689 mm x 164 mm x 653 mm | 8881.00 g | 73.79 dm³ |
User instruction / safety instructions
PL PRINT SKY1 DA
PL PRINT SKY1 DA
Legal information
Legal Insert PANEL COMPACT
Legal Insert PANEL COMPACT
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
PL PRINT SKY1 DA
PL PRINT SKY1 DA
Legal information
PL PRINT SKY1 DA
PL PRINT SKY1 DA
Declarations of conformity
PL PRINT SKY
PL PRINT SKY

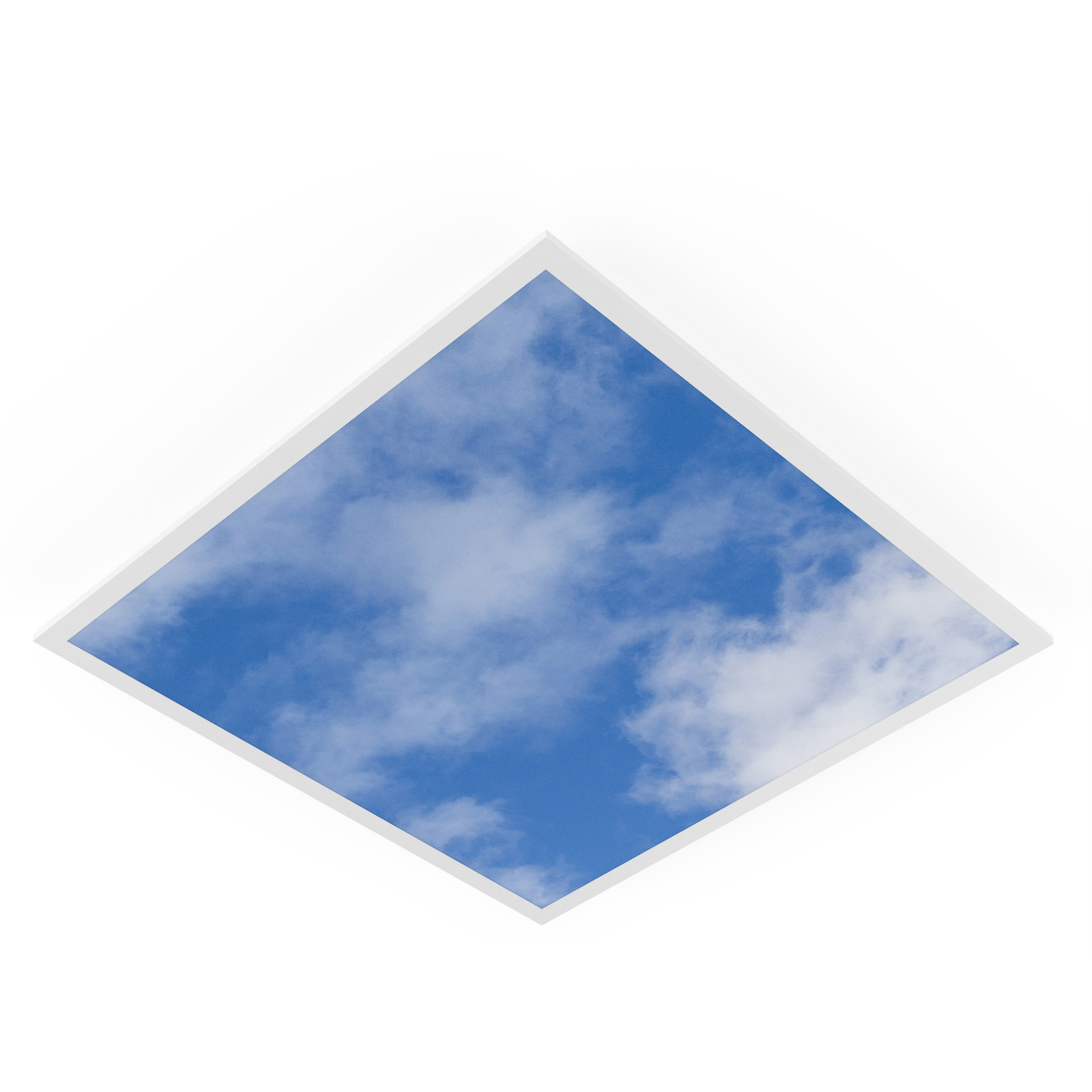

Product image: white background, diagonal
PN SKY1 1
PN SKY1 1

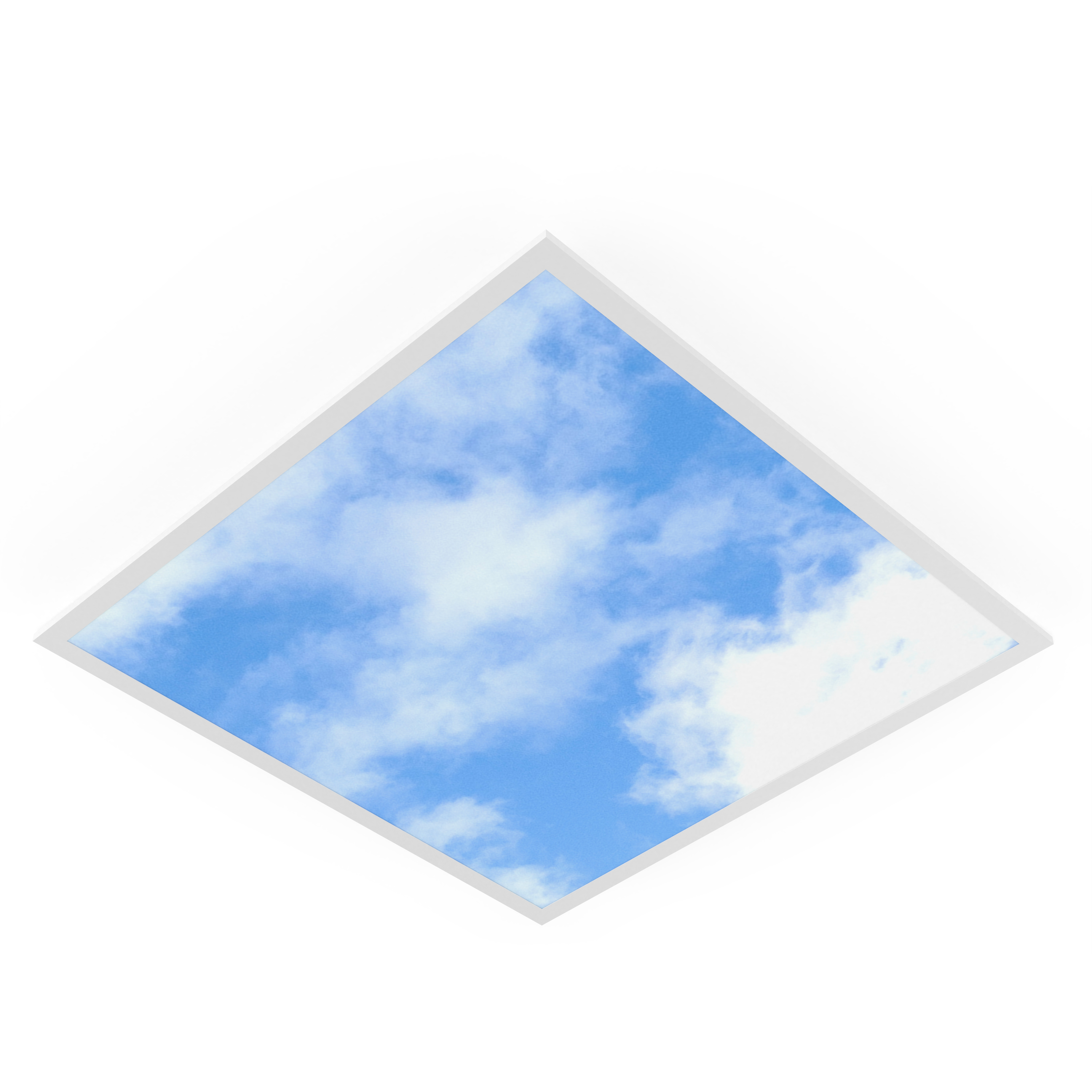

Product image: white background, diagonal, switched on
PN SKY 1 319
PN SKY 1 319

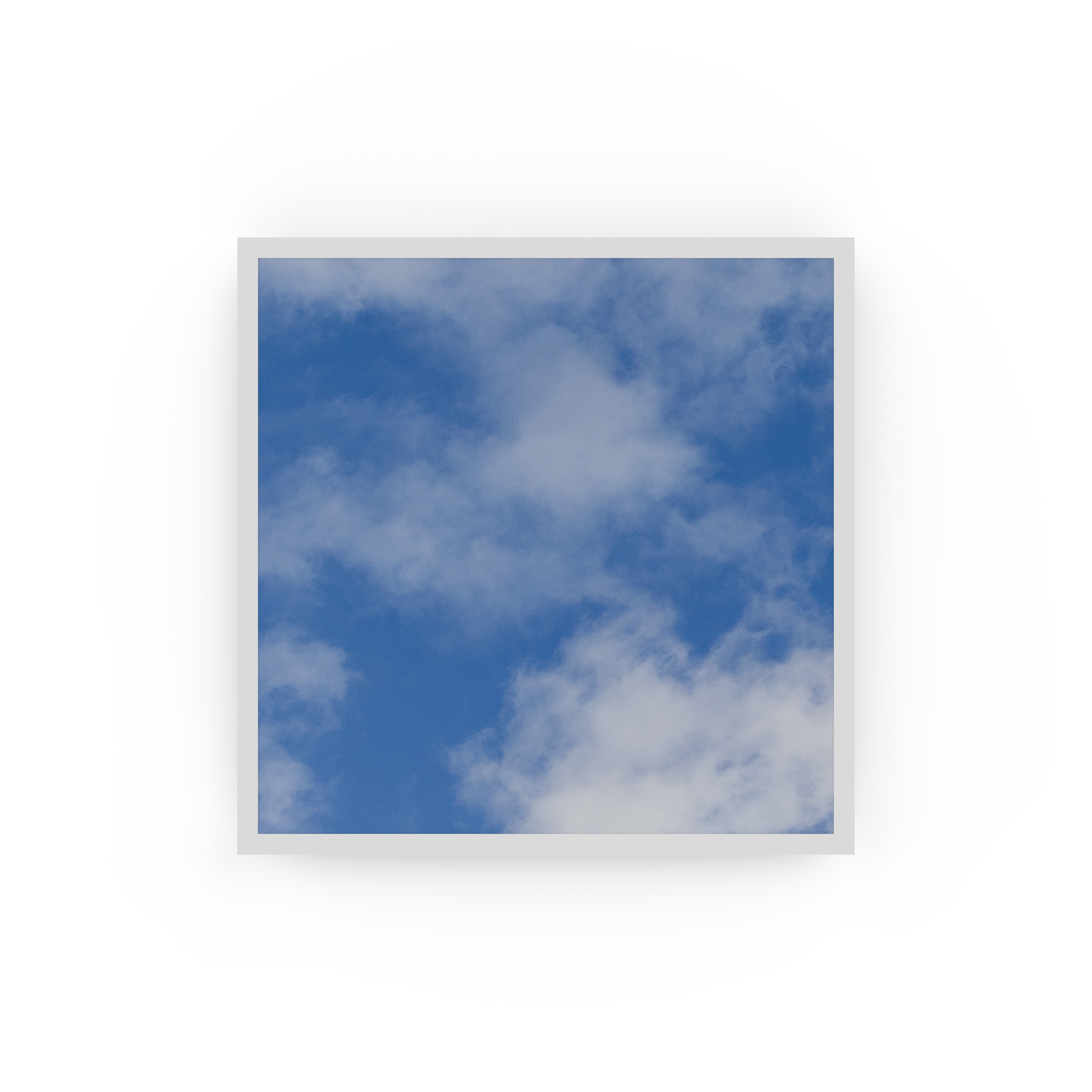

Product image: white background, horizontal
PN SKY1
PN SKY1

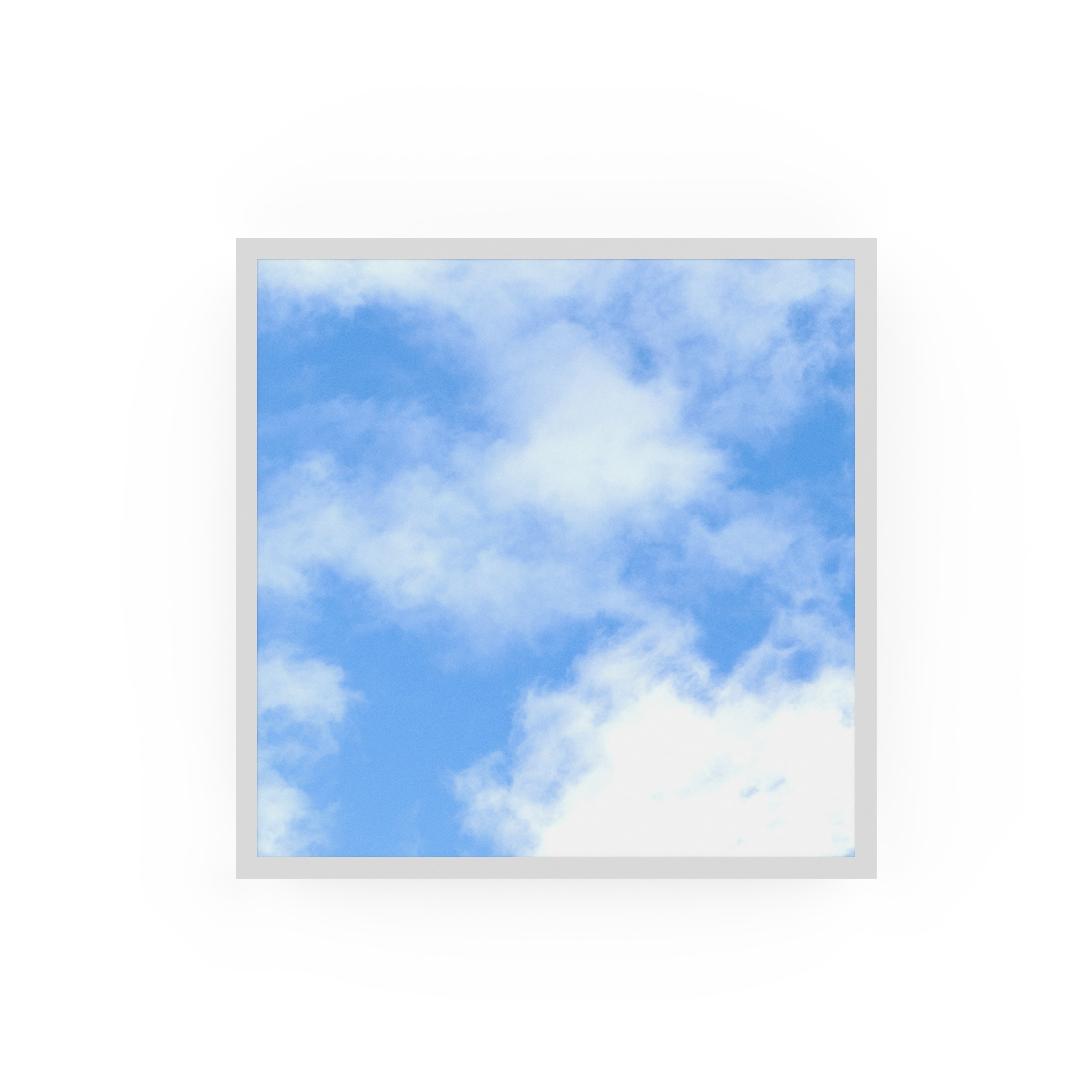

Product image: white background, horizontal, switched on
PN SKY 1 320
PN SKY 1 320
Product line drawing with letters
PL VAL 625
PL VAL 625
Product line drawing with numbers
PANEL 36W
PANEL 36W
Product line drawing, front, no dimensions
PL VAL 625
PL VAL 625
Catalog info 1
PL COMP 600_625 DALI
PL COMP 600_625 DALI
Catalog info 5
Panel COMFORT DALI 600 625
Panel COMFORT DALI 600 625
Application pictures

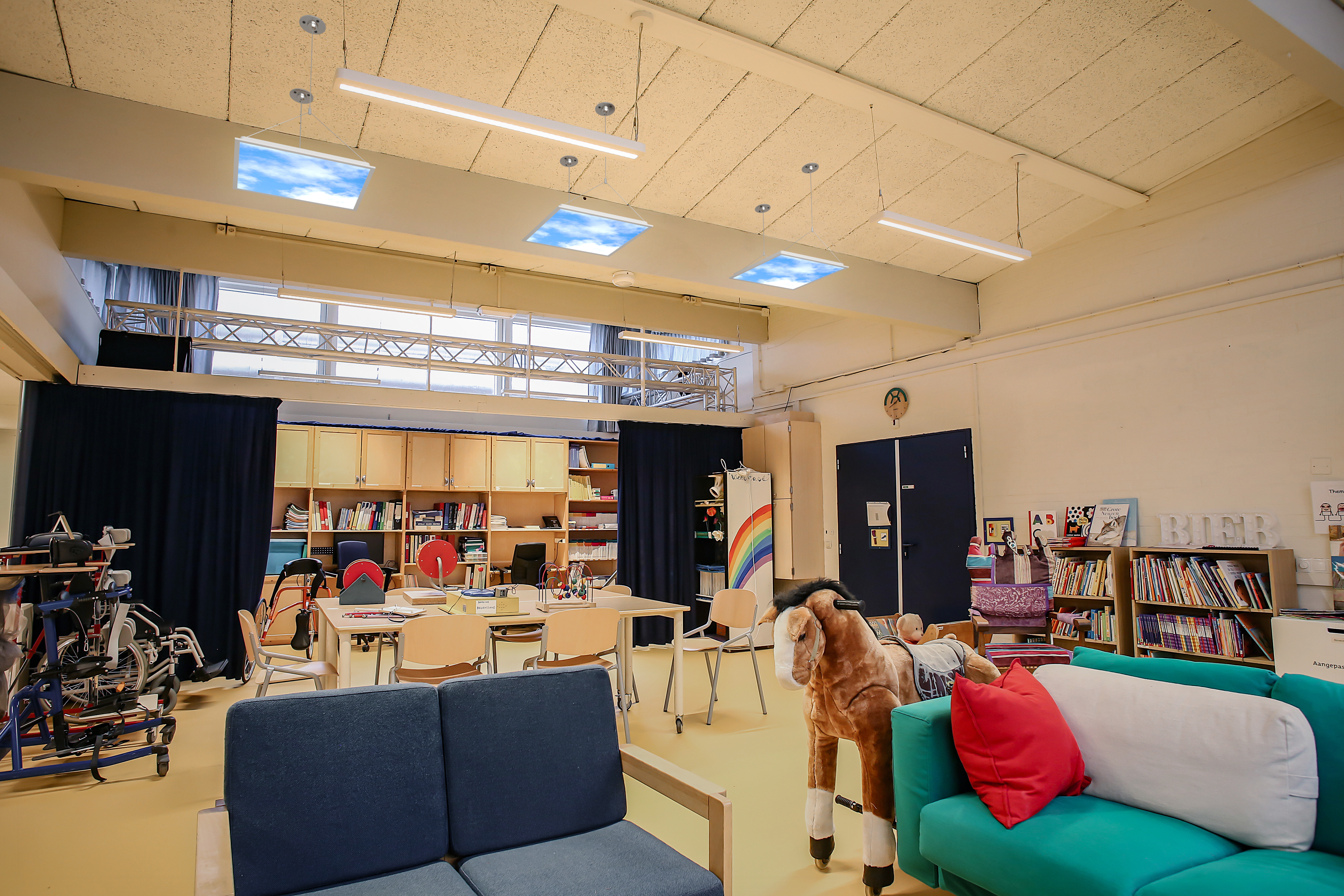

Project Visio School with Panel Print Sky
Project Visio School with Panel Print Sky
Application pictures Getty

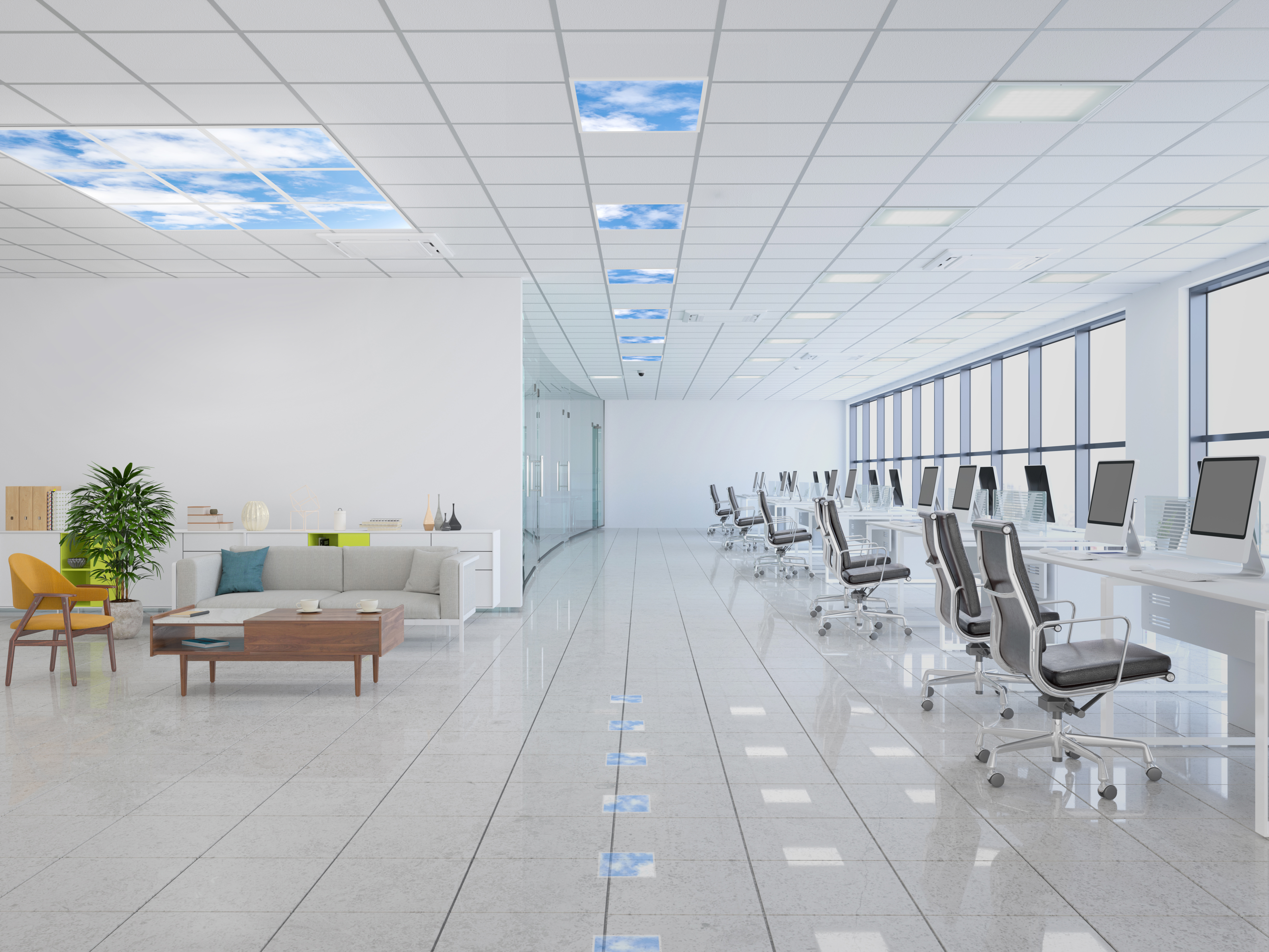

Large modern office with lobby with Panel Print Sky
Large modern office with lobby with Panel Print Sky
Application pictures Getty

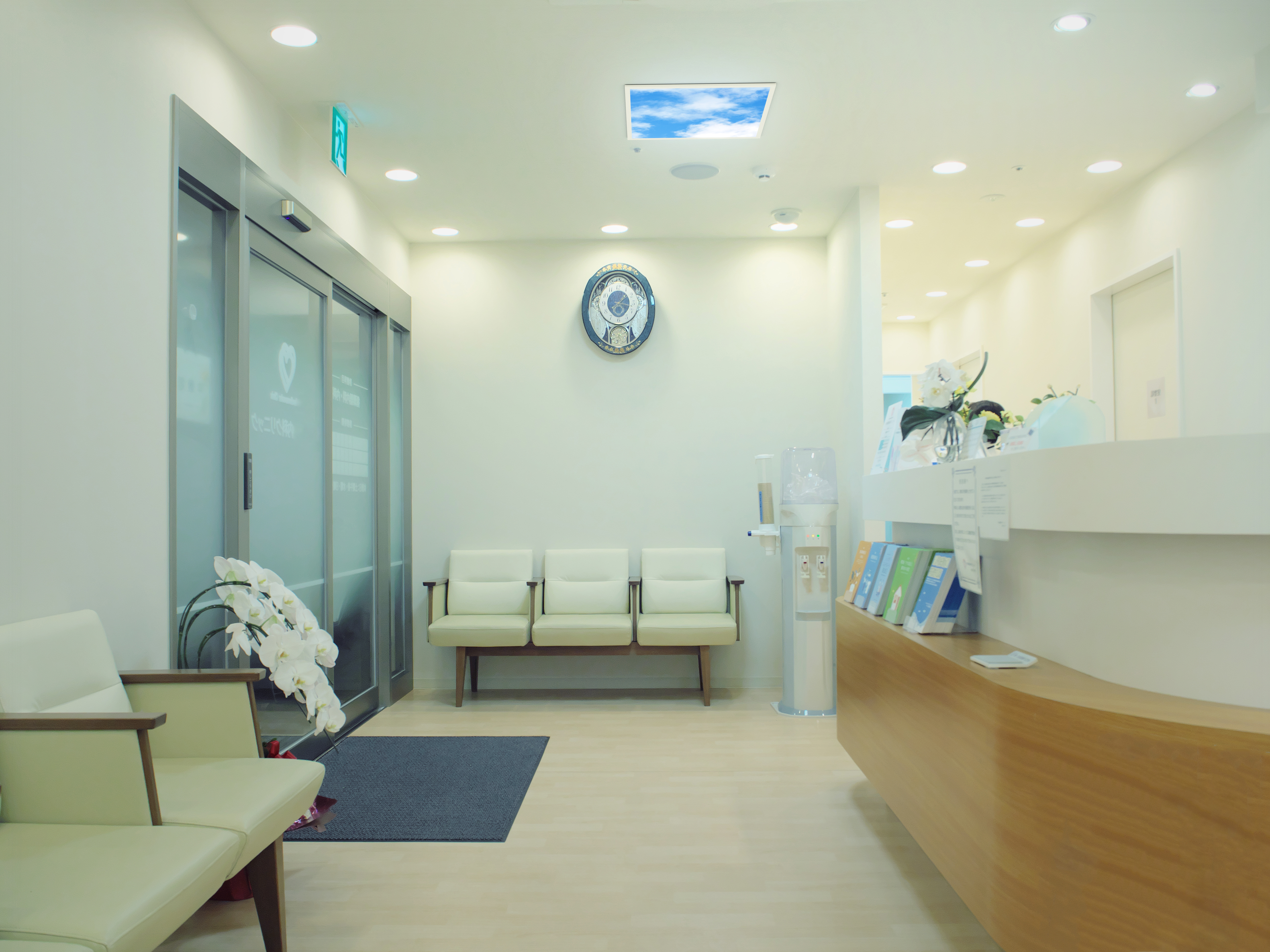

Hospital reception
