DAMP PROOF HE 5X THROUGHWIRING
DP HE 5TH 1500 P 73W ML 840 IP65
GTIN: 4099854480669
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Through-wiring 5x2.5mm² already installed
- Uniform light distribution
- Easy upgradeability of light source and driver (EVERLOOP design)
- Enables participation in funding programs to replace light source and driver
- Easy installation, no tools required for connection
- Low flicker ≤ 5 %
- Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- Very high luminous efficacy: up to 164 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 25 °C)
- Housing and diffuser material: polycarbonate (PC)
- Multi Lumen function: power steps selectable
- Compatible to Zhaga Book 26 LED light sources
- Beam angle: 120°
- Protection rating: IP65
- Impact resistance: IK08
Equipment / Accessories
- Mounting brackets, Antitheft protection, triangle, 2nd cable gland and 2 grommets included
- EVERLOOP luminaire: upgrades and replacements available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 72.2 W / 63.3 W / 55.2 W / 47.6 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 450/400/350/300 mA |
| Inrush current | 10.6 A |
| Inrush current time Th50 | 889 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 14 |
| Max. number of luminaires per miniature circuit breaker C10 | 16 |
| Max. number of luminaires per miniature circuit breaker C16 | 23 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 11680 lm / 10300 lm / 9010 lm / 7780 lm |
| Luminous efficacy | 162 lm/W / 163 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 4 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 28,3 W | 4000 K | 4640 lm | 164 lm/W |
| 24 W | 4000 K | 3900 lm | 163 lm/W |
| 21,4 W | 4000 K | 3460 lm | 162 lm/W |
| 17,3 W | 4000 K | 2810 lm | 162 lm/W |
| 14 W | 4000 K | 2260 lm | 161 lm/W |
Dimensions & Weight
| Length | 1500.00 mm |
| Height | 68.00 mm |
| Width | 82.00 mm |
| Product weight | 1890.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -25…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal, 5-Pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 90000 h 1) |
| Lifespan L90/B10 at 25 °C | 58000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 450 mA |
| ECG - Output ripple current | < 5 % |
Certificates & Standards
| Standards | CE, UKCA, EAC, ENEC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Only by an expert |
Additional product data
| Product remark | Available from March 2025, When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime |
| Added function | EVERLOOP, MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854480669 | Folding box 1 |
72 mm x 87 mm x 1,518 mm | 2077.00 g | 9.51 dm³ |
| 4099854480676 | Shipping box 6 |
1,538 mm x 196 mm x 256 mm | 13195.00 g | 77.17 dm³ |
User instruction / safety instructions
DAMP PROOF HE 5TH IP65
DAMP PROOF HE 5TH IP65
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205497
Safety Insert G11205497
Legal information
LSI DAMP PROOF HE THROUGHWIRING
LSI DAMP PROOF HE THROUGHWIRING
Legal information
Legal Insert DP HE
Legal Insert DP HE
Declarations of conformity
DP HE
DP HE
EPD
ENVIRONMENTAL PRODUCT DECLARATION DAMP PROOF HE
ENVIRONMENTAL PRODUCT DECLARATION DAMP PROOF HE

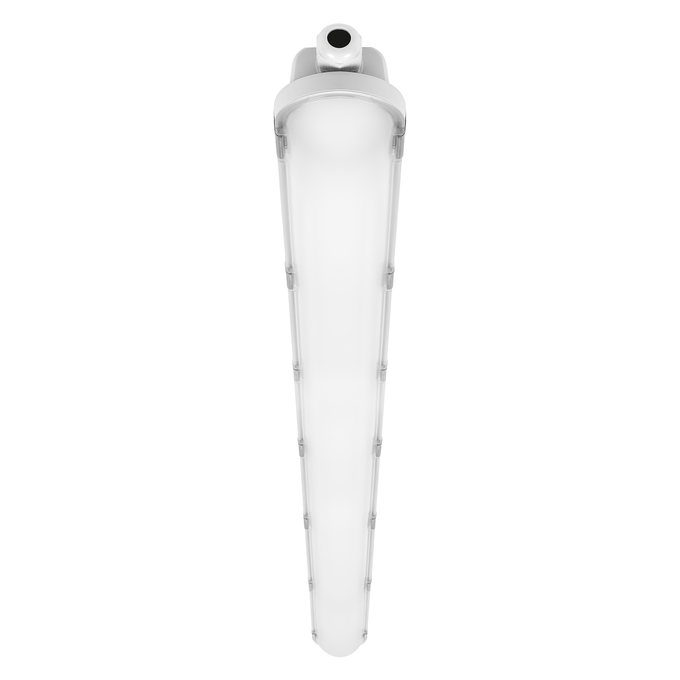

Product image: white background, diagonal
DP HE 1500 P
DP HE 1500 P

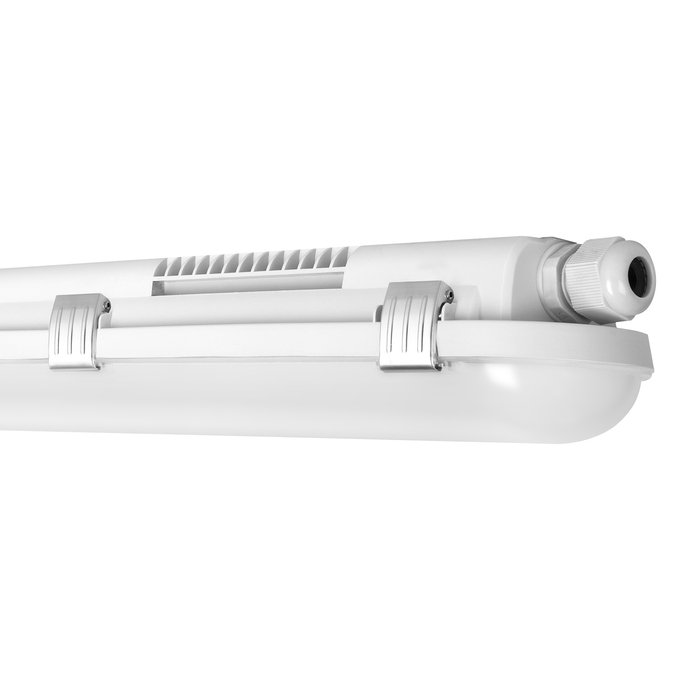

Product image: white background, diagonal, alternative image
DP HE 1500 P
DP HE 1500 P
Product image: white background, diagonal, alternative image
DP HE 1500 P
DP HE 1500 P

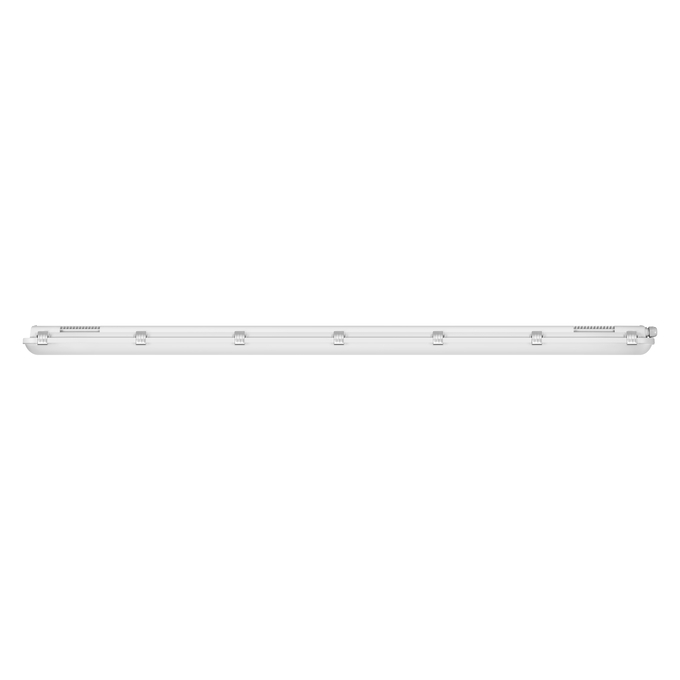

Product image: white background, horizontal
