DP 5TH 1200 32W 840 IP65 GY

DAMP PROOF 5x THROUGHWIRING

GTIN: 4058075541924 Folding box / 1 Show all packages

Download data sheet

Contact sales

5-year warranty

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Low flicker ≤ 10 %
Uniform light distribution
Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
Easy installation, no tools required for connection

Areas of application

Industrial and storage facilities
Car parks and underpasses
Garages
Workshops, assembly lines

Product features

High luminous efficacy: up to 143 lm/W
Type of protection: IP65
Beam angle: 110°
Through-wiring 5x2.5mm² already installed
Polycarbonate housing

Equipment / Accessories

Stainless steel clamps with safety screws included
Mounting accessories included (suspension kit, theft protection kit)

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	32.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	155.000 mA
Inrush current	12.2 A
Inrush current time T_h50	210 µs
Max. number of luminaires per miniature circuit breaker B16	27
Max. number of luminaires per miniature circuit breaker C10	24
Max. number of luminaires per miniature circuit breaker C16	39
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	4400 lm
Luminous efficacy	138 lm/W
Color temperature	4000 K
Light color (designation)	Cool Daylight
Color rendering index Ra	> 80
Standard deviation of color matching	5 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	≤ 1
Stroboscope effect metric (SVM)	≤ 0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	110 °

Dimensions & Weight

Length	1200.00 mm
Height	68.00 mm
Width	82.00 mm
Product weight	1613.00 g

Materials & Colors

Product color	Gray
Housing color	Gray
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-25…+40 °C
Temperature range at storage	-25…+80 °C
Type of connection	Screwless terminal, 5-Pole
Type of protection	IP65
Protection class IK (shock resistance)	IK08
Dimmable	No
Mounting type	Suspended/Surface
Mounting location	Ceiling, Wall
Application environment	Indoor
With light source	Yes

Lifespan

Lifespan L70/B50 at 25 °C	70000 h ¹⁾
Lifespan L80/B10 at 25 °C	50000 h ¹⁾
Lifespan L90/B10 at 25 °C	44000 h
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	370 mA
ECG - Output ripple current	< 5 %

Certificates & Standards

Standards	CE, CB, ENEC, TÜV SÜD, EAC, RoHS, EPD
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No
EPD	LEDV-00002-V01.01-EN
Replaceable light source (EPREL)	Not replaceable

Additional product data

Product remark

When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075541924	Folding box 1	1,210 mm x 87 mm x 74 mm	1648.00 g	7.79 dm³
4058075541931	Shipping box 6	1,232 mm x 191 mm x 245 mm	10908.00 g	57.65 dm³

User instruction / safety instructions
DP 5TH

PDF (2.99 MB)

Legal information
Legal Insert DP 5TH

PDF (4.89 MB)

Legal information
LSI DP 5TH

PDF (2.44 MB)

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Declarations of conformity
CE Declaration DP 1200 and DP1500

PDF (260.73 KB)

Declarations of conformity
DP IP65

PDF (272.3 KB)

Certificates
DP 1500

PDF (418.5 KB)

EPD
ENVIRONMENTAL PRODUCT DECLARATION Damp Proof Gen2

PDF (597.8 KB)

Product image: white background, spacial
DAMP PROOF 1200, DALI, EMERGENCY,SENSOR

JPG (1.01 MB)

Product image: white background, with accessory, alternative image
Damp proof Gen 2 mounting clips

TIF (407.86 MB)

Product line drawing with letters
DP S 1200 32W 840 IP65 GY

SVG (26.11 KB)

Product line drawing with numbers
DP S 1200 32W 840 IP65 GY

SVG (33.25 KB)

Product line drawing, front, no dimensions
DP S 1200 32W 840 IP65 GY

SVG (21.37 KB)

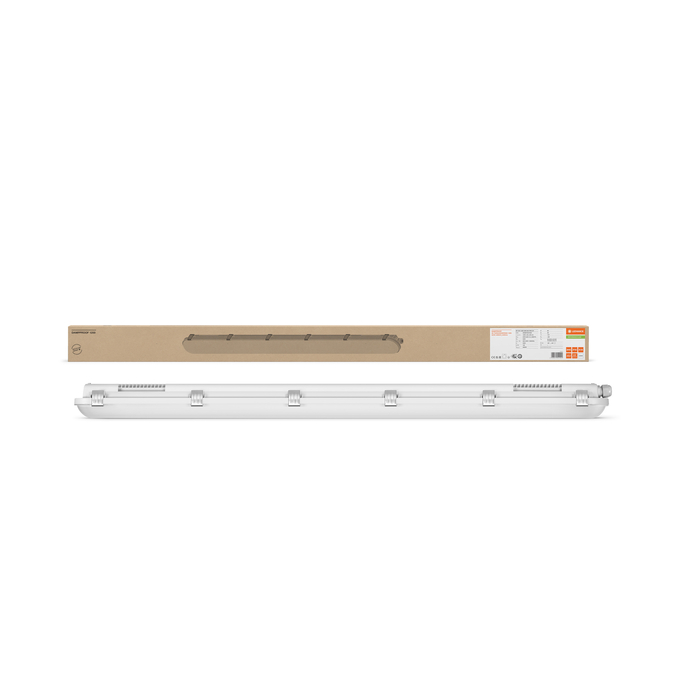

Combo Shot = Product Beauty Shot + Packaging Image
DP 5TH 1200 32W 840 IP65 GY LEDV

JPG (429.25 KB)

Packaging image, frontal
DP 5TH 1200 32W 840 IP65 GY

JPG (387 KB)

Packaging image, spacial
DampProof IP65 Gen2 1200 MiCh

TIF (417.7 KB)

Catalog info 1
Catalog info Damp Proof IP65

PNG (12.45 KB)

IES file (IES)
DP 5TH 1200 32W 840 IP65 GY

IES (14.42 KB)

LDT file (Eulumdat)
DP 5TH 1200 32W 840 IP65 GY

LDT (10.59 KB)

ULD file (DIALux)
DP 5TH 1200 32W 840 IP65

ULD (407.04 KB)

ROLF file (RELUX)
DP 5TH 1200 32W 840

ROLF (327.86 KB)

UGR file (UGR table)
DP 5TH 1200 32W 840 IP65 GY

PNG (60.73 KB)

Light distribution curve type cone
DP 5TH 1200 32W 840 IP65 GY

SVG (16.77 KB)

Light distribution curve type polar
DP 5TH 1200 32W 840 IP65 GY

SVG (17.4 KB)

BIM Revit 3D
Damp Proof G2

ZIP (11.46 MB)

CAD STEP 3D
DP Gen2 1200

STEP (491.58 KB)

Tender documents
DAMP PROOF 5x THROUGHWIRING 1200 32W 840 IP65 GY -EN

TXT (1.89 KB)

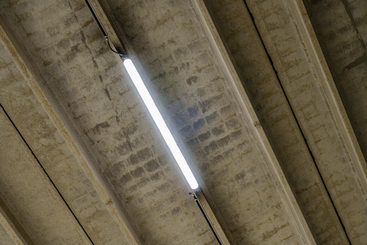

Application pictures
