DAMP PROOF DALI

DP DALI 1500 26W 840 IP65 GY

GTIN: 4058075541740 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • High compatibility thanks to DALI-2 certification
  • Premium driver with up to 100,000 h lifetime
  • Driver suitable for Emergency escape lighting systems acc. to EN 50172
  • Driver configuration and dimming possible via mains
  • Low flicker ≤ 3 %
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • DALI installations
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 139 lm/W
  • Type of protection: IP65
  • Beam angle: 110°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
Electrical data
Nominal wattage 26.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 127 mA
Inrush current 29 A
Inrush current time Th50 180 µs
Max. number of luminaires per miniature circuit breaker B16 13
Max. number of luminaires per miniature circuit breaker C10 21
Max. number of luminaires per miniature circuit breaker C16 36
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 3500 lm
Luminous efficacy 135 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 4 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °
Dimensions & Weight
Length 1500.00 mm
Height 68.00 mm
Width 82.00 mm
Product weight 1740.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -25…+40 °C
Temperature range at storage -25…+80 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 32000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
ECG - Output voltage 124 V
Output current 190 mA
Certificates & Standards
Standards CE, CB, ENEC, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Added function VIVARES
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075541740 Folding box
1		 1,512 mm x 87 mm x 74 mm 1775.00 g 9.73 dm³
4058075541757 Shipping box
6		 1,532 mm x 191 mm x 245 mm 11881.00 g 71.69 dm³
User instruction / safety instructions
DP DALI IP65
PDF (3.91 MB)
Legal information
Legal Insert DP DALI IP65
PDF (6.28 MB)
Legal information
LSI DP DALI IP65
PDF (3.65 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
CE Declaration_DP DALI
PDF (294.14 KB)
Declarations of conformity
CE Declaration DP DALI IP65 GY
PDF (259.85 KB)
Certificates
DP DALI
PDF (423.51 KB)

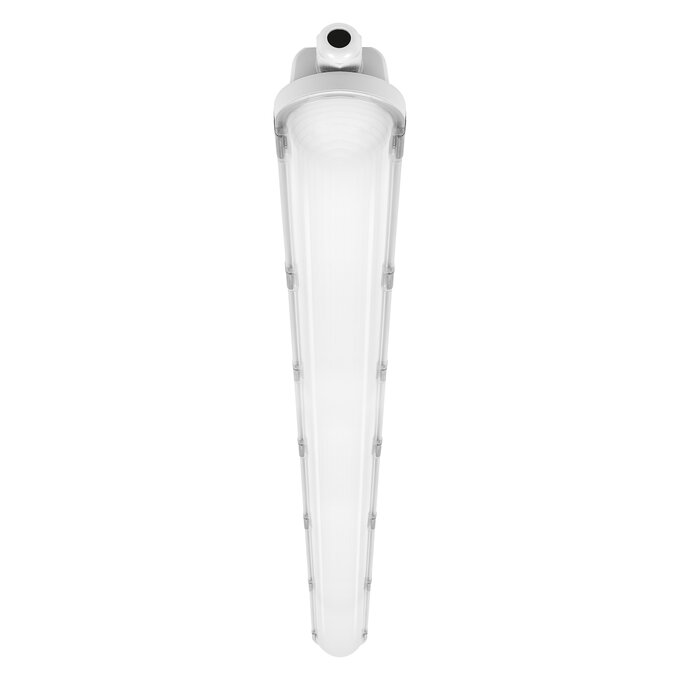

Product image: white background, diagonal
DAMP PROOF 1500, DALI, EMERGENCY
JPG (897.32 KB)
Product image: white background, horizontal
DAMP PROOF 1500, DALI, EMERGENCY
JPG (712.75 KB)
Product image: white background, upright
DAMP PROOF 1500, DALI, EMERGENCY
JPG (1.26 MB)

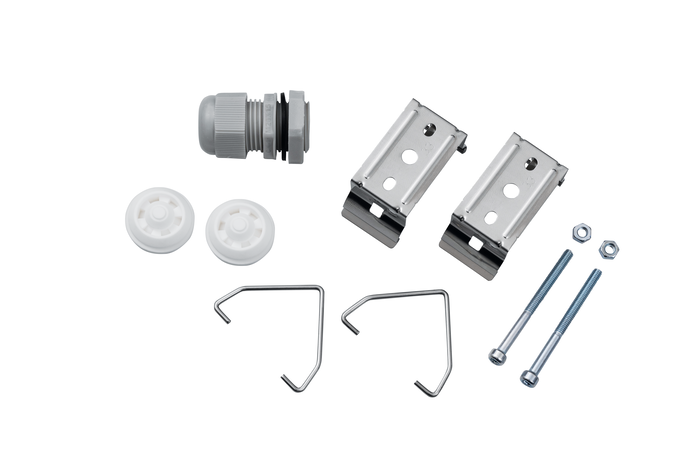

Product image: white background, with accessory, alternative image
Damp proof Gen 2 mounting clips
TIF (407.86 MB)
Product line drawing with letters
DAMP PROOF 1500, DALI, EMERGENCY
EPS (2.32 MB)
Product line drawing with numbers
DAMP PROOF 1500, DALI, EMERGENCY
EPS (2.33 MB)
Product line drawing, front, no dimensions
DAMP PROOF
PNG (179.67 KB)
Combo Shot = Product Beauty Shot + Packaging Image
DP DALI 1500 26W 840 IP65 GY
JPG (706.86 KB)
Packaging image, frontal
DP DALI 1500 26W 840 IP65 GY
JPG (656.14 KB)
Packaging image, spacial
DP DALI 1500 26W 840 IP65 GY
JPG (712.66 KB)
IES file (IES)
DP DALI 1500 26W 840 IP65 GY
IES (14.42 KB)
LDT file (Eulumdat)
DP DALI 1500 26W 840 IP65 GY
LDT (10.61 KB)
ULD file (DIALux)
DP DALI 1500 26W 840 IP65
ULD (441.34 KB)
ROLF file (RELUX)
DP DALI 1500 26W 840
ROLF (306.87 KB)

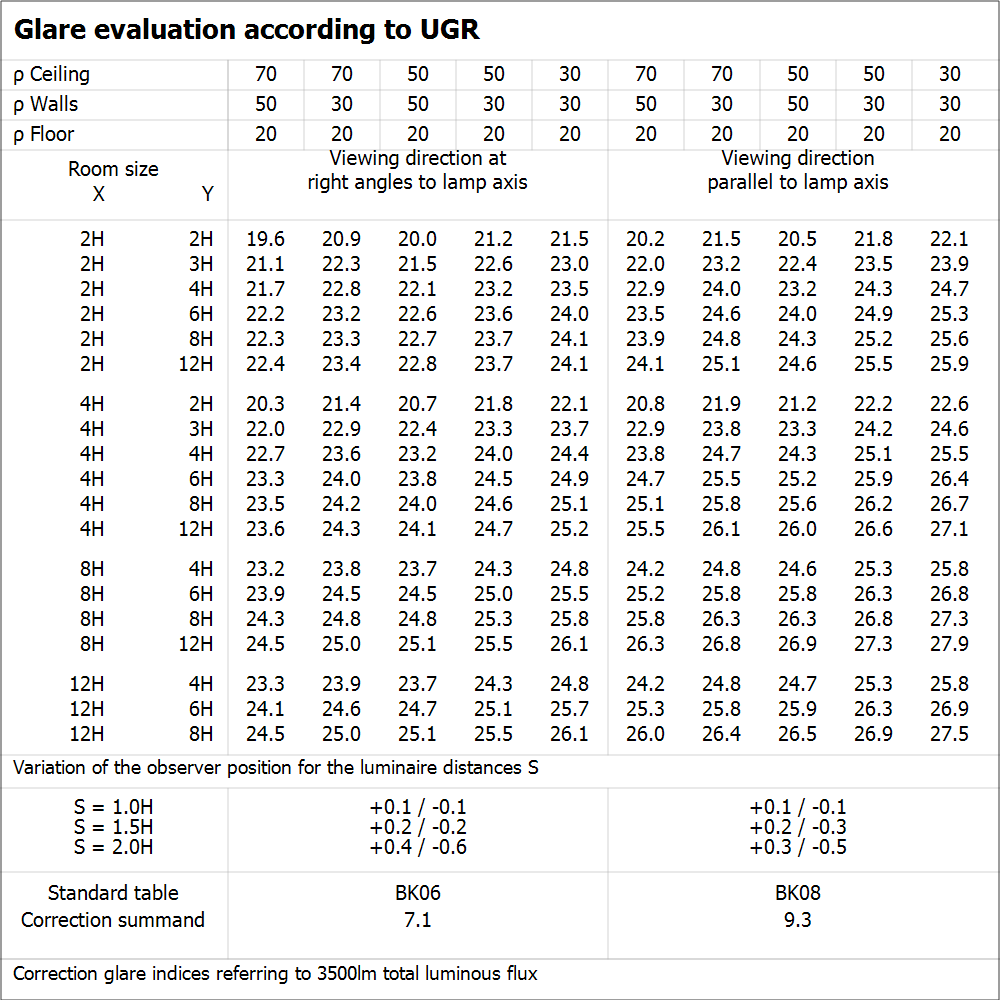

UGR file (UGR table)
