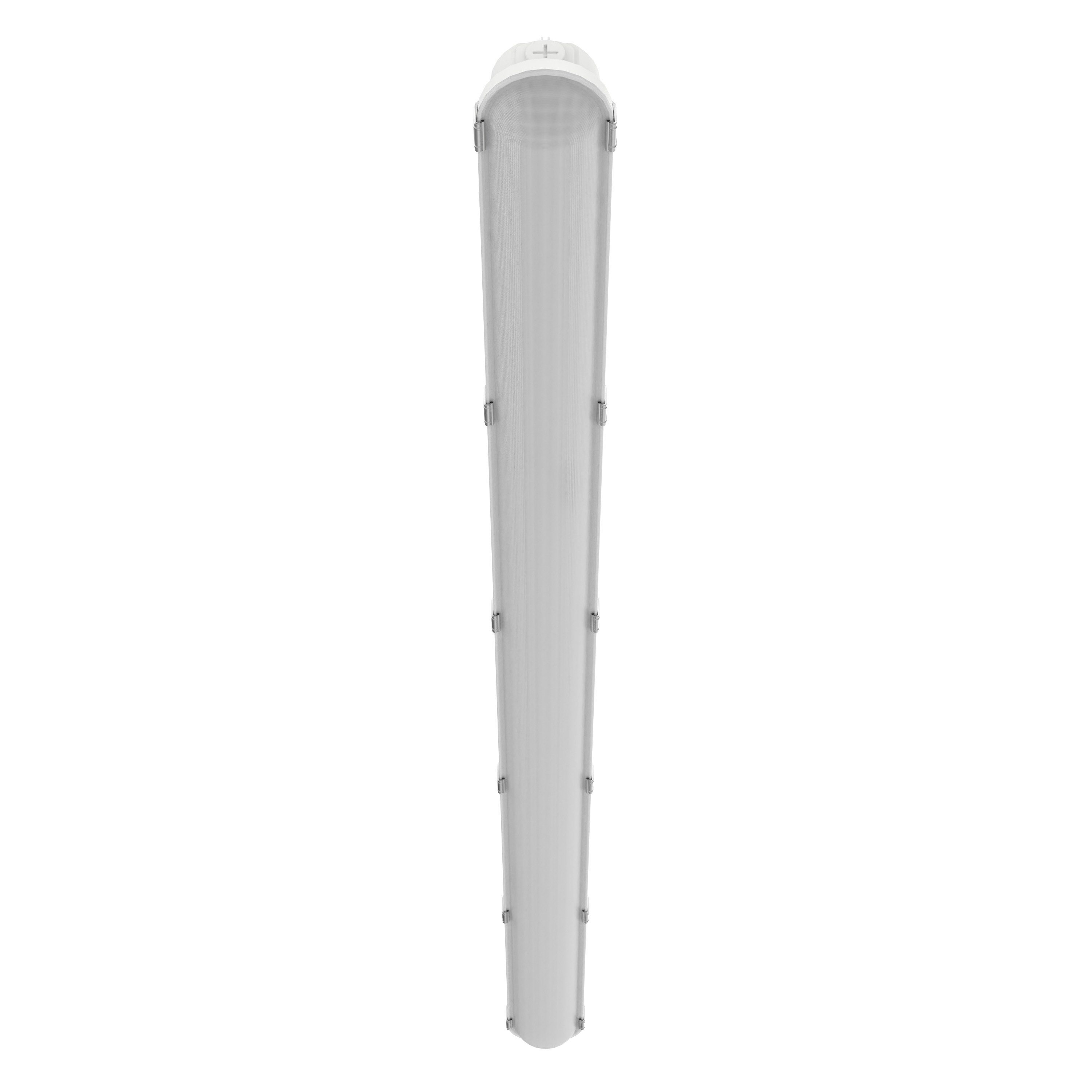

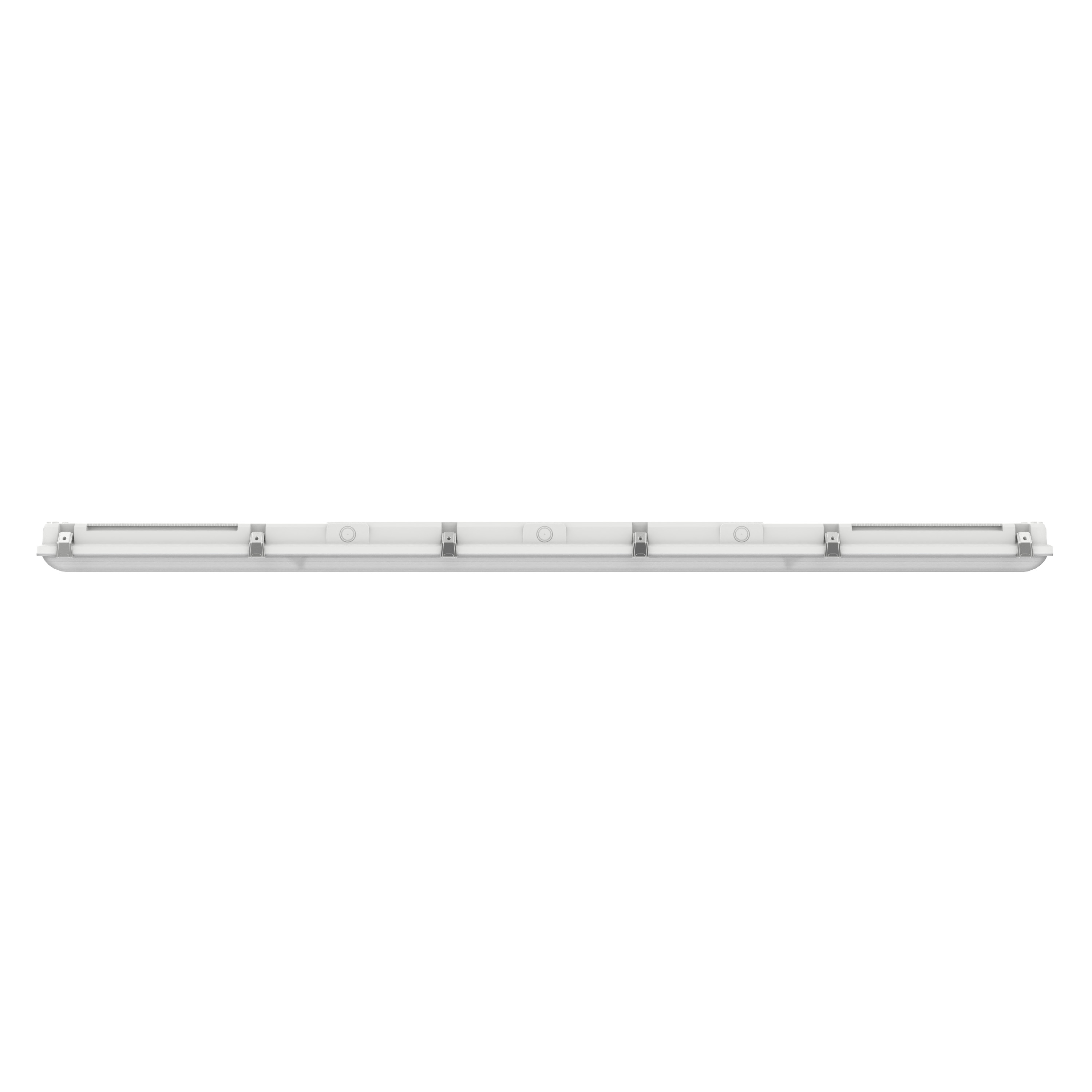

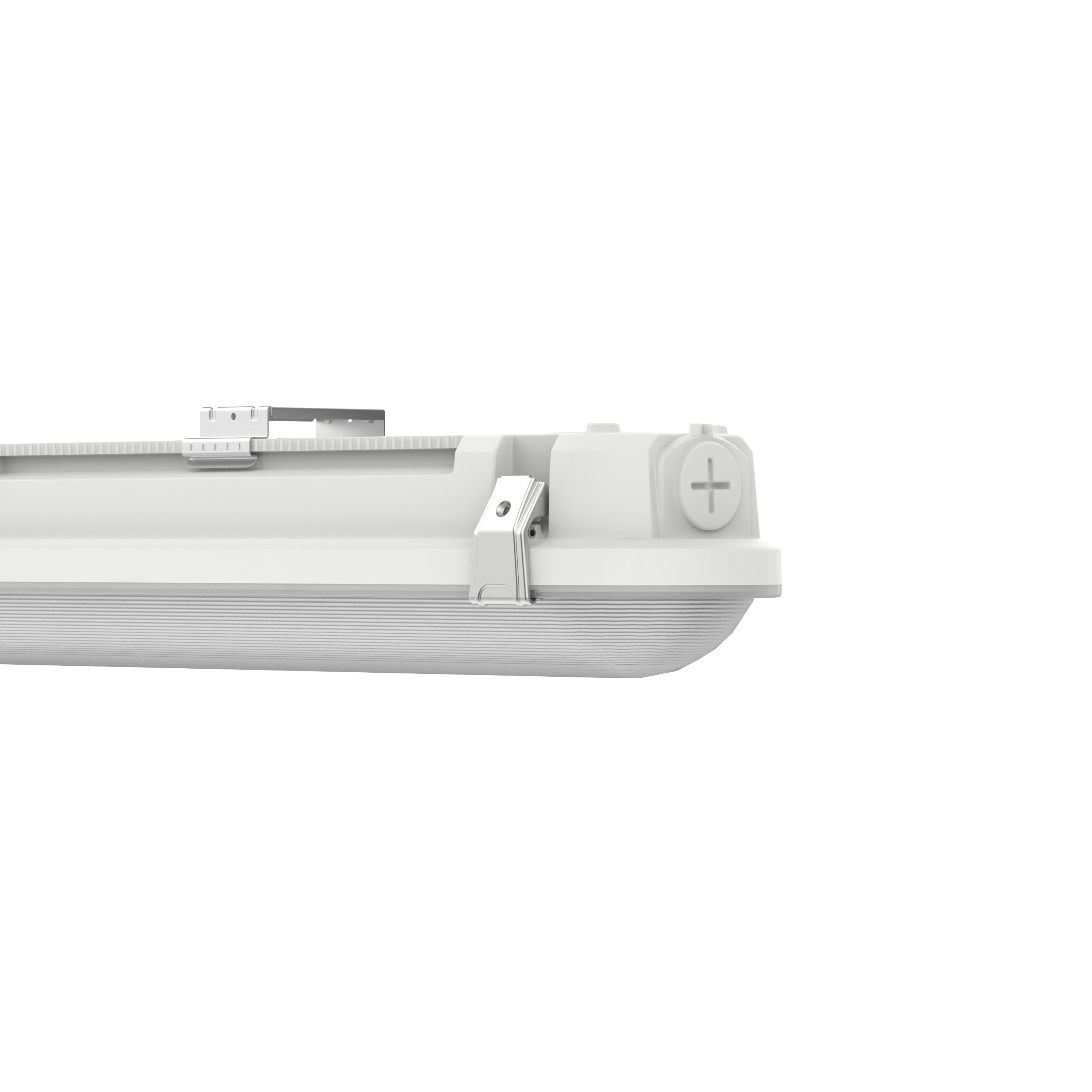

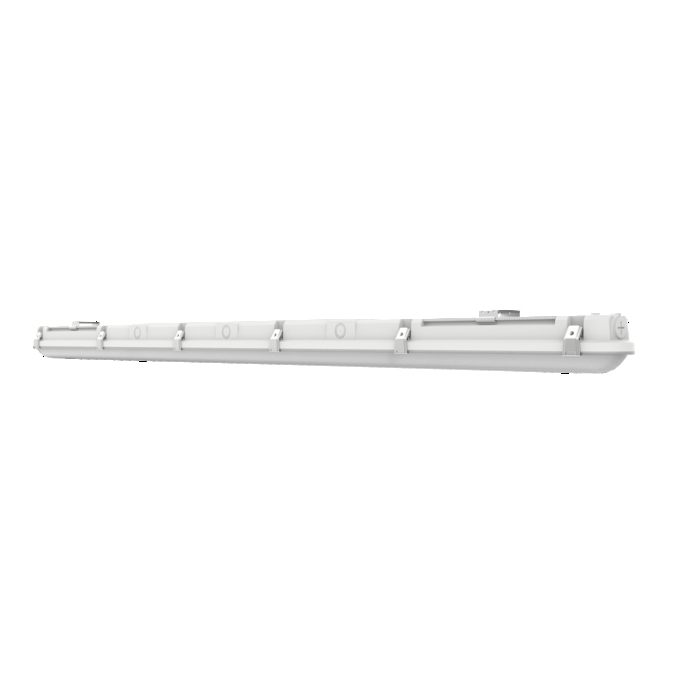

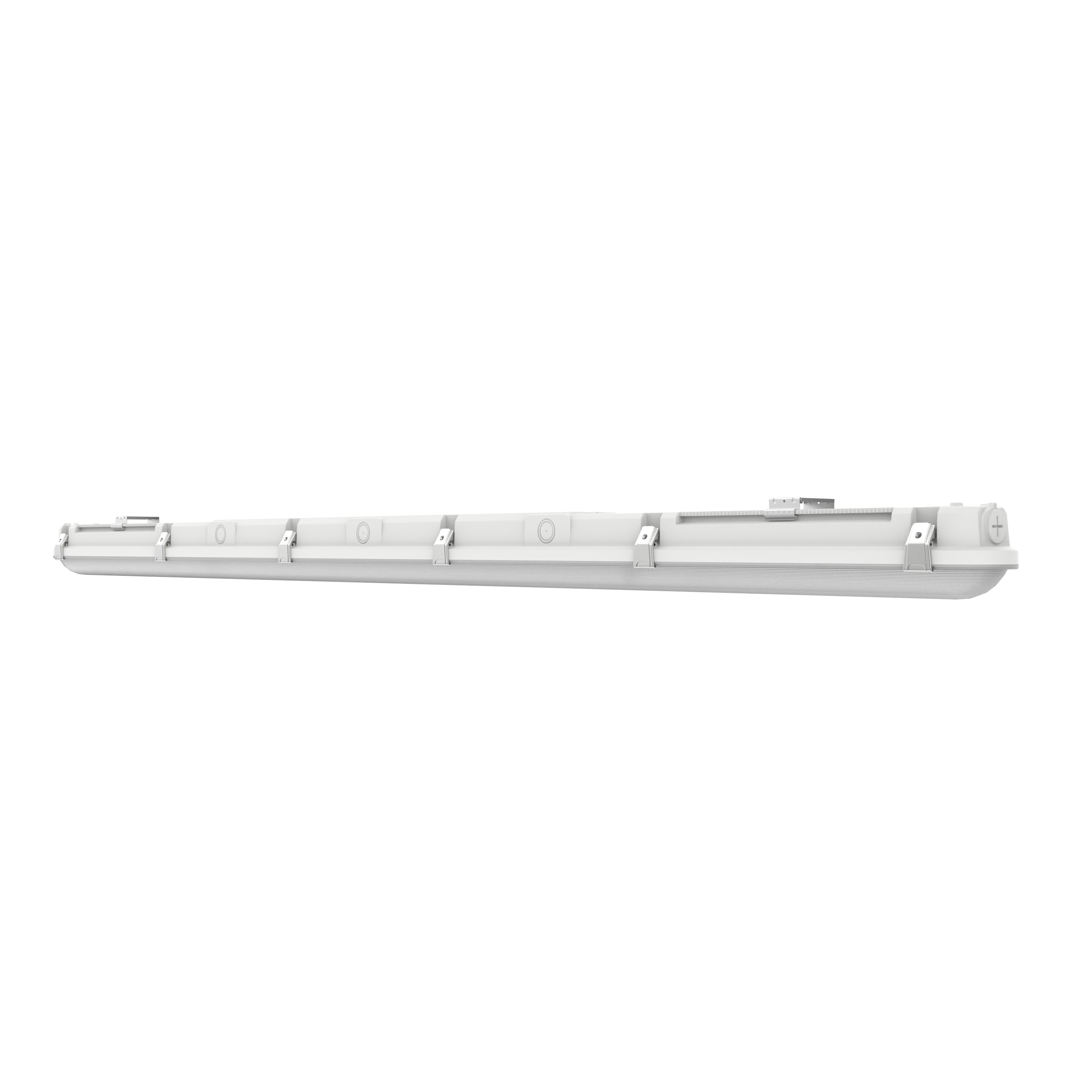

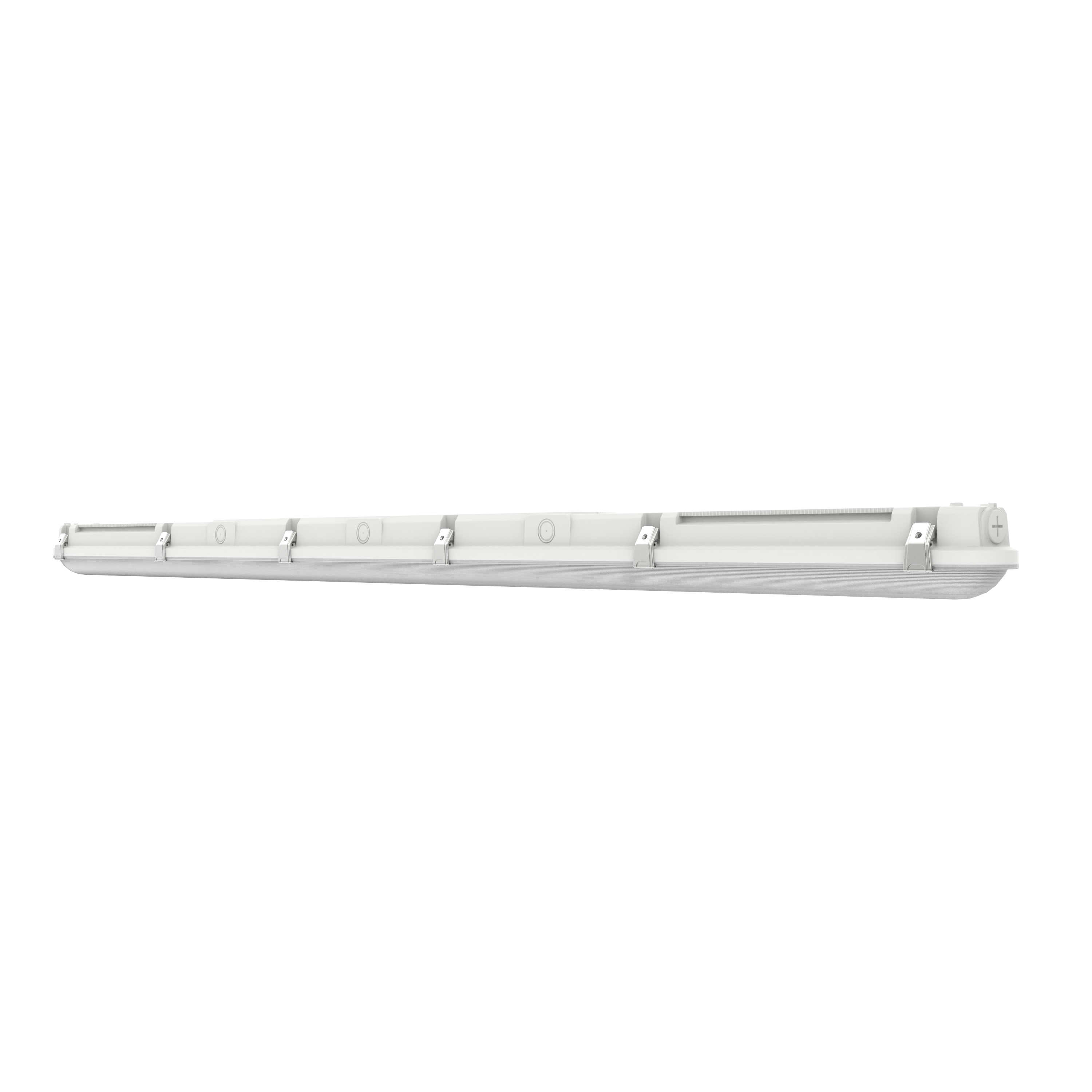

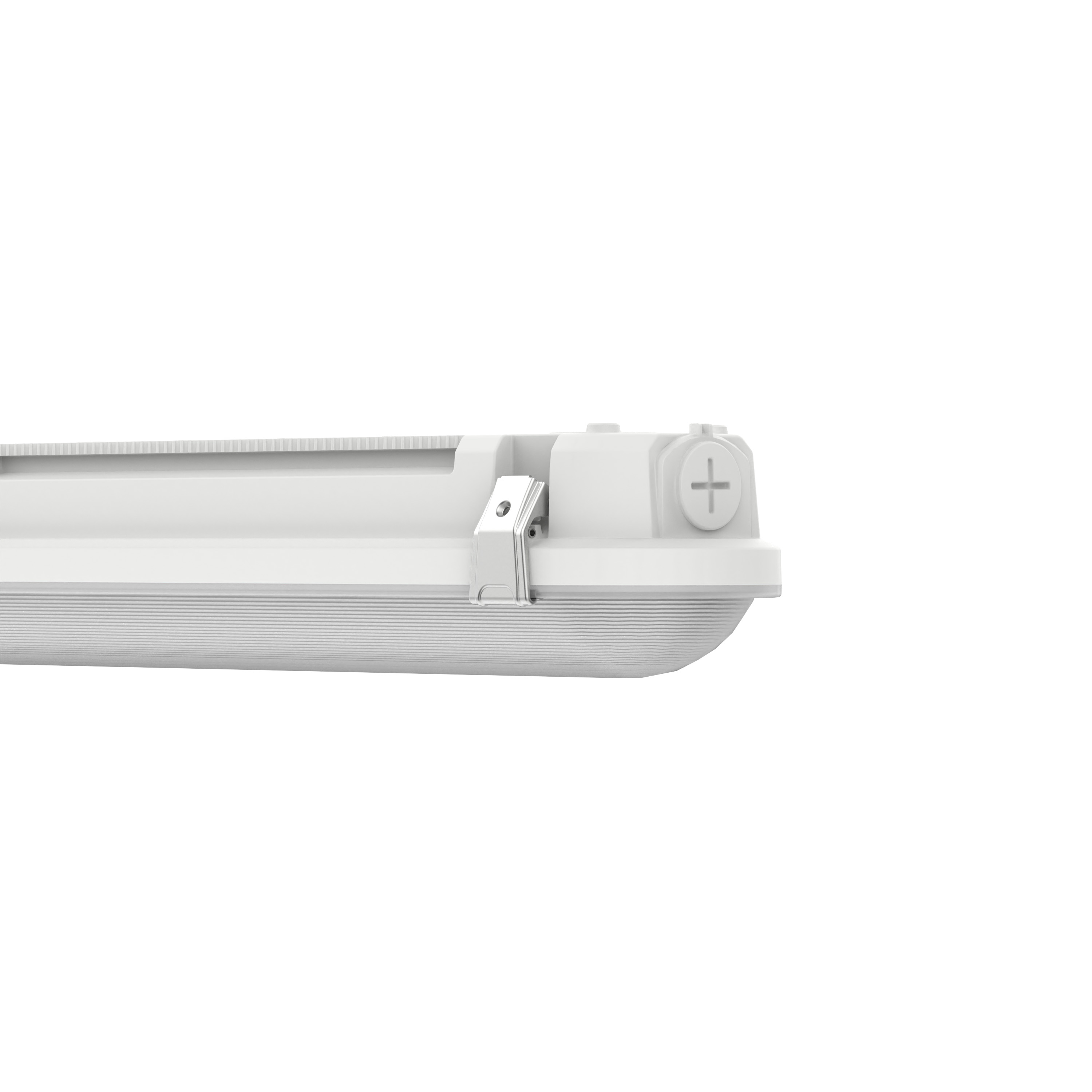

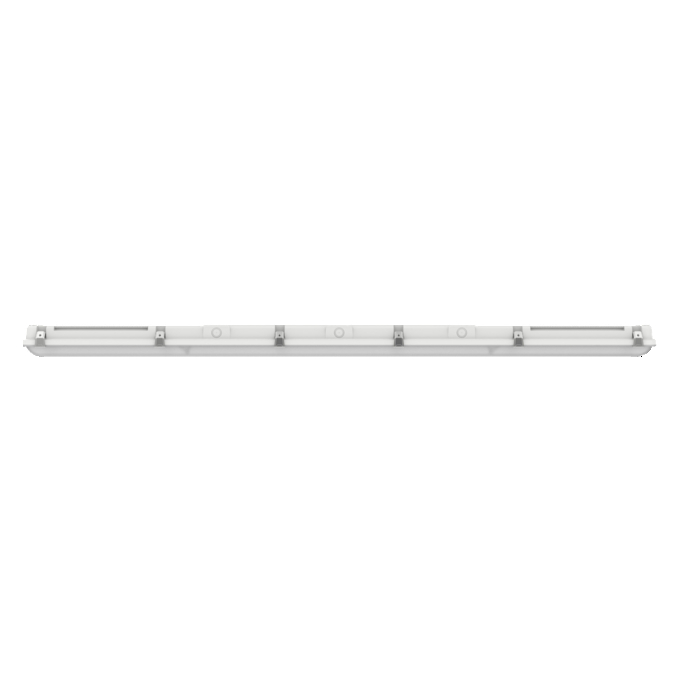

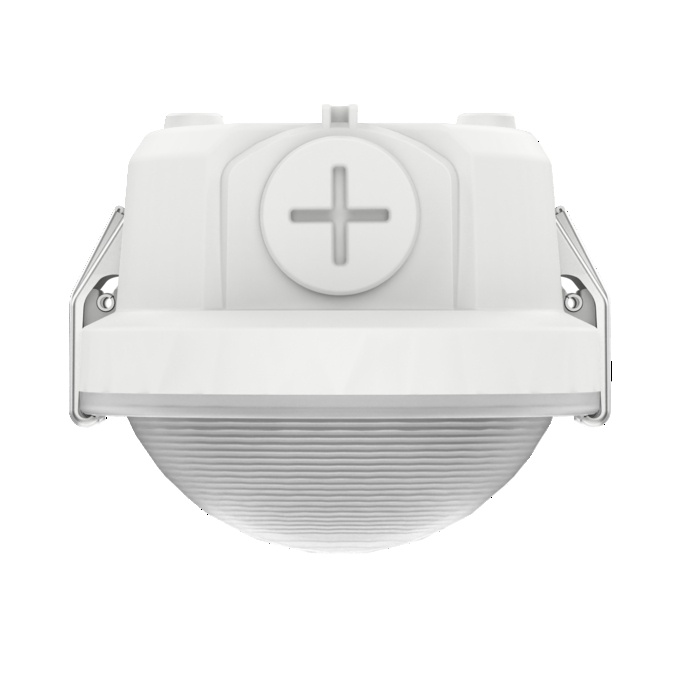

DP CBO 1500 V 50W MS 840 IP66 GY

DAMP PROOF COMBO

GTIN: 4099854521393 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
Suitable for use in dusty and damp locations thanks to high IP rating
Suitable for use in public areas thanks to high IK rating

Areas of application

Industrial and storage facilities
Car parks and underpasses
Garages
Workshops, assembly lines

Product features

High luminous efficacy: up to 153 lm/W
Type of protection: IP66
Impact resistance: IK10
Luminous flux: up to 9,000 lm
Push wire terminal for tool-free connection
Lifetime (L70/B50) up to 50,000 h (at 25 °C)
Ambient temperature in operation: -20…+40 °C
Through wiring possible

Equipment / Accessories

Plug & Upgrade high frequency sensor and emergency kit separately available
Mounting screws and dowels included

Safety advice

Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	50 W / 42 W / 33 W / 25 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	222mA / 188mA / 150mA / 118 mA
Inrush current	16.08 A
Inrush current time T_h50	118 µs
Max. number of luminaires per miniature circuit breaker B16	41
Max. number of luminaires per miniature circuit breaker C10	31
Max. number of luminaires per miniature circuit breaker C16	49
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	7500 lm / 6340 lm / 5010 lm / 3820 lm
Luminous efficacy	150 lm/W / 151 lm/W / 152 lm/W / 153 lm/W
Color temperature	4000 K / 6500 K
Light color (designation)	Cool White, Cool Daylight
Color rendering index Ra	≥80
Standard deviation of color matching	< 5 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG1
Beam angle	110 °

Adjustable attributes

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
50 W	4000 K	7500 lm	150 lm/W
50 W	6500 K	7500 lm	150 lm/W
42 W	4000 K	6340 lm	151 lm/W
42 W	6500 K	6340 lm	151 lm/W
33 W	4000 K	5010 lm	152 lm/W
33 W	6500 K	5010 lm	152 lm/W
25 W	4000 K	3820 lm	153 lm/W
25 W	6500 K	3820 lm	153 lm/W

Dimensions & Weight

Length	1570.00 mm
Height	78.00 mm
Width	97.00 mm
Product weight	1730.00 g

Materials & Colors

Product color	Gray
Housing color	Gray
RAL Color (most similar)	RAL 830-1
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	Push-in
Type of protection	IP66
Protection class IK (shock resistance)	IK10 ¹⁾
Dimmable	No
Mounting type	Suspended/Surface
Mounting location	Ceiling, Wall
Application environment	Indoor
With light source	Yes
Replaceable light source	No

¹⁾ IK10 rating applies only when all clips are fully secured with screws

Lifespan

Lifespan L70/B50 at 25 °C	60000 h ¹⁾
Lifespan L80/B10 at 25 °C	50000 h ¹⁾
Lifespan L90/B10 at 25 °C	25000 h
Number of switching cycles	25000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current

190mA / 250mA / 310mA / 360 mA

Emergency lighting

Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately

Certificates & Standards

Standards	CE, CB, ERP, UKCA, EAC
Ball shot safe	No

Additional product data

Added function

MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
