HIGHBAY SENSOR DALI-2 LIGHT-PRESENCE -21 INFRARED CEILING MOUNTING
HIGHBAY SENSOR DALI-2 LIGHT/PRESENCE -21 INFRARED CEILING MOUNTING
GTIN: 4058075857537
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Integrated DALI bus power supply (no mains connection required)
- Several sensors can be connected to a DALI line
- Includes shutter accessory to optimize the sensor detection area
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Industry
- Building with high ceilings
- High-bay warehouse
- Production halls
Product features
- DALI-2 certified light and presence sensor for ceiling surface mounting
- Presence detection via passive IR element
- Detection range optimized for ceiling heights of up-to 14 m
- Function indicator LED
- Type of protection: IP54
Equipment / Accessories
- Optional accessory SENSOR CM KIT available for suspended ceiling integration
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see www.ledvance.com/light-management-systems
Electrical data
| Nominal wattage | 0.10 W |
| Nominal voltage | 10…22,5 V |
| Type of current | DC |
| Nominal current | 8 mA |
| Mains frequency | 0 Hz |
Dimensions & Weight
| Length | 105.00 mm |
| Width | 105.00 mm |
| Height | 66.50 mm |
| Diameter | 105.00 mm |
| Cable cross-section, input side | 1,0…2,5 mm² |
| Wire preparation length, input side | 6…8 mm |
| Product weight | 130.00 g |
Colors & materials
| Product color | White |
| Body material | Polycarbonate (PC) |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | 75 °C |
Lifespan
| Number of switching cycles | 50000 |
Additional product data
| Product remark | Available from December 2025 |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Maximum installation height | 14 m |
| Detection angle | 360 ° |
| Type of installation | Surface mounting |
Certificates & Standards
| Standards | CE, UKCA |
| Protection class | II |
| Type of protection | IP54 |
LOGISTICAL DATA
| Temperature range at storage | -20…+70 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075857537 | Folding box 1 |
125 mm x 125 mm x 99 mm | 156.00 g | 1.55 dm³ |
| 4058075857544 | Shipping box 24 |
532 mm x 397 mm x 229 mm | 4574.00 g | 48.37 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
SENSOR CEILING MOUNTING KIT | 4058075843905 |

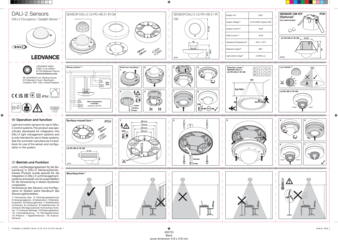

User instruction / safety instructions
SENSOR DALI 2 LS PD HB 21 IR CM
SENSOR DALI 2 LS PD HB 21 IR CM
Legal information
Safety Insert G11201420
Safety Insert G11201420
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal insert G11254740 SENSOR DALI-2
Legal insert G11254740 SENSOR DALI-2
Declarations of conformity
CE declaration SENSOR DALI-2
CE declaration SENSOR DALI-2

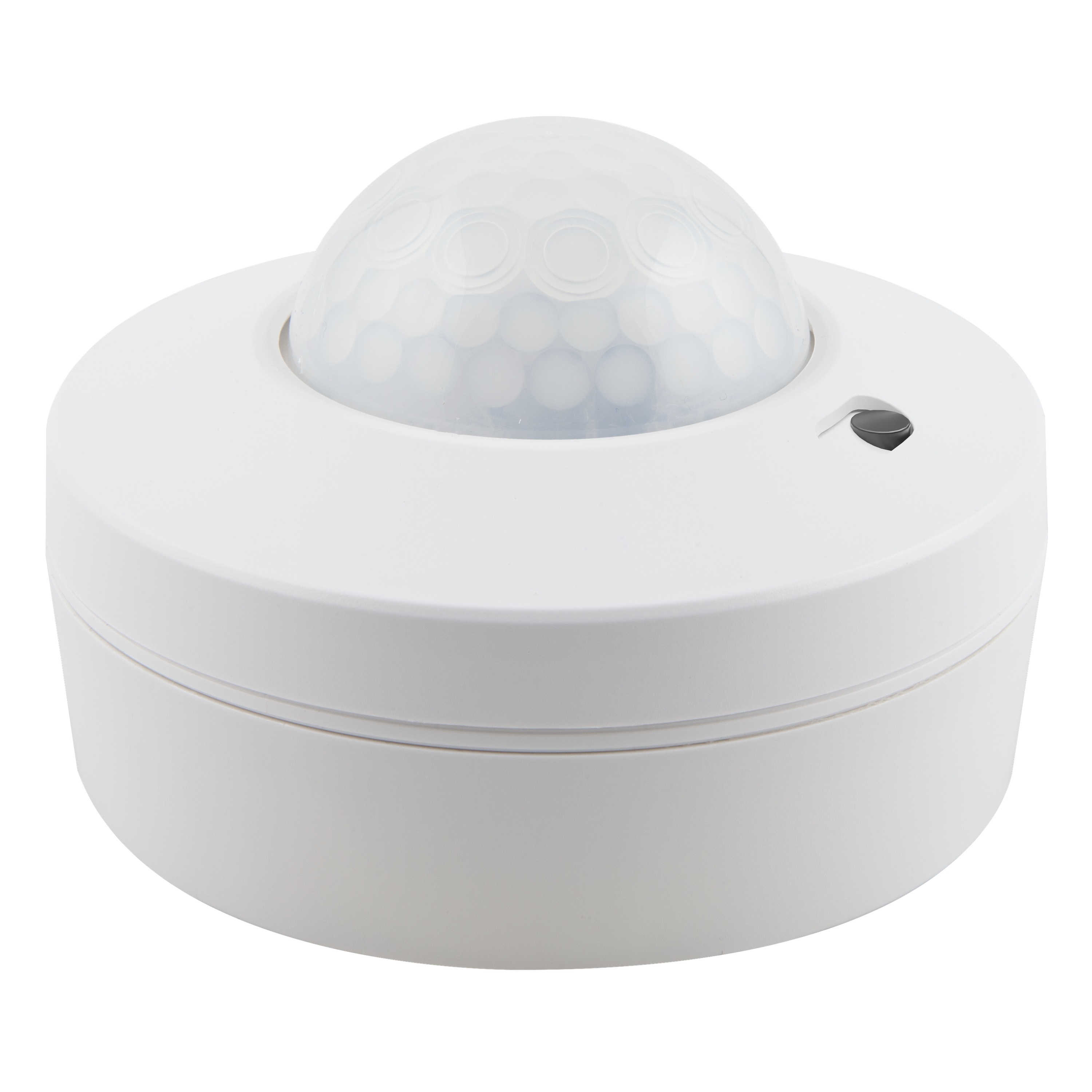

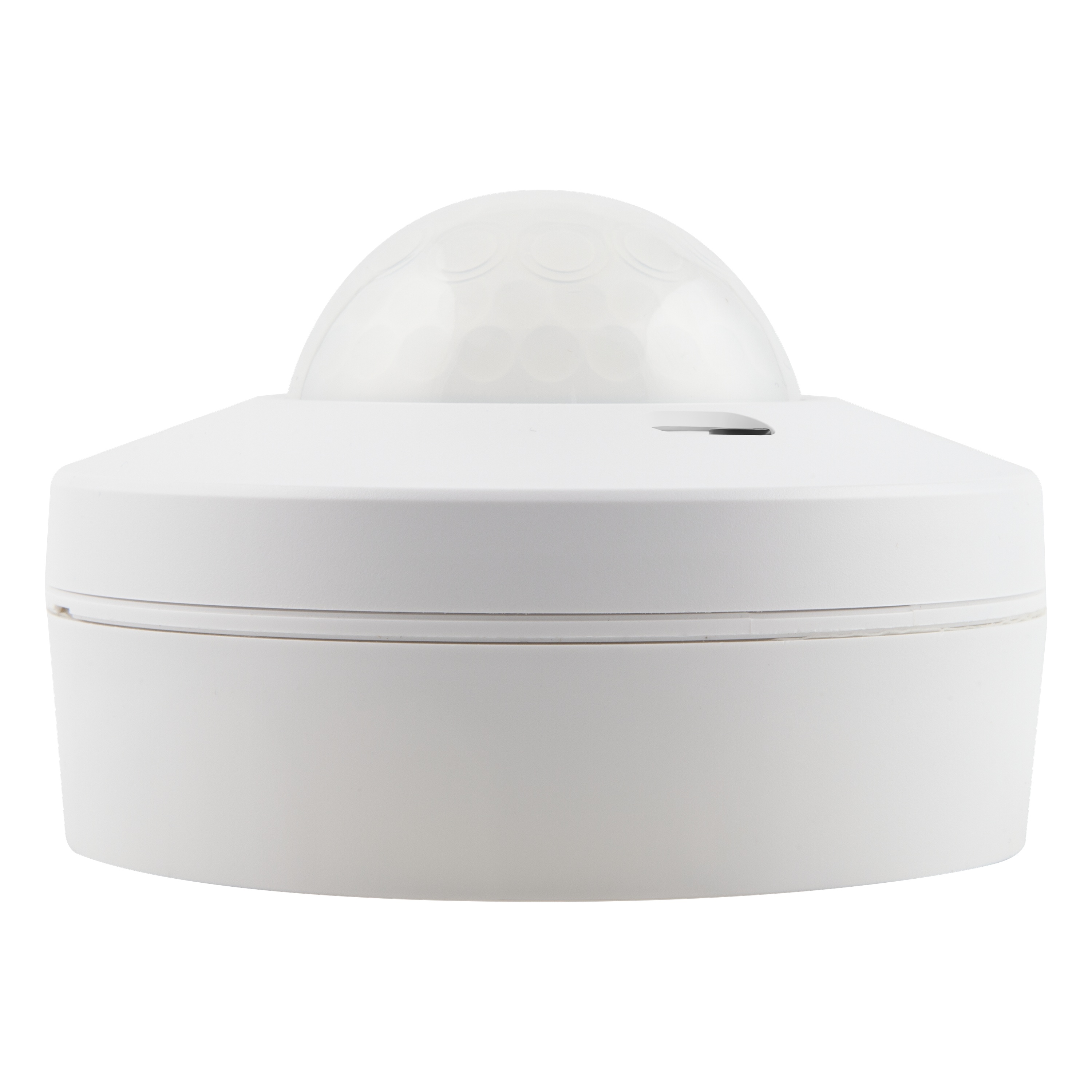

Product image: white background, upright
SENSOR DALI-2 LS-PD-HB-21 IR CM
SENSOR DALI-2 LS-PD-HB-21 IR CM

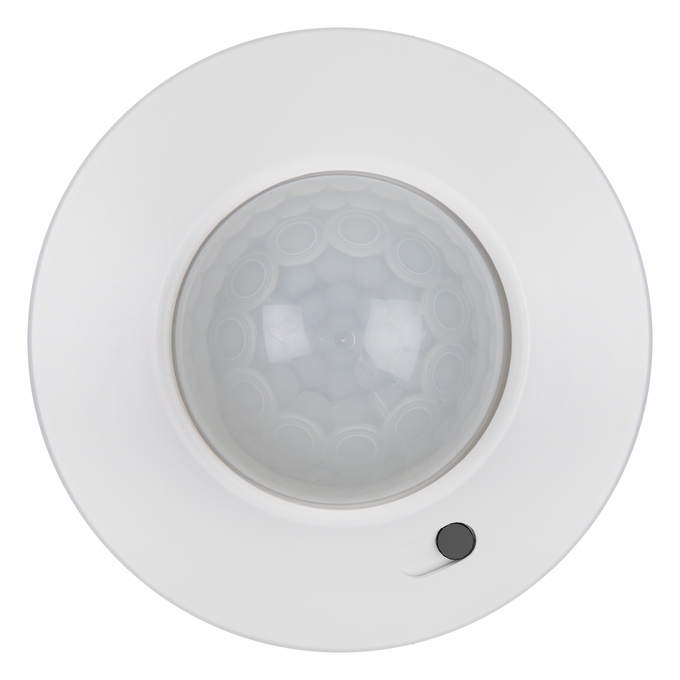

Product image: white background, spacial
SENSOR DALI-2 LS-PD-HB-21 IR CM
SENSOR DALI-2 LS-PD-HB-21 IR CM
Product line drawing with letters
SENSOR DALI-2
SENSOR DALI-2
Product line drawing with numbers
SENSOR DALI-2
SENSOR DALI-2
Product line drawing - technical
SENSOR DALI-2
SENSOR DALI-2
| EAN | STK number |
|---|---|
| 4058075857537 | 2628041 |
