DALIeco LS/PD LI NP
DALIECO LS/PD LI NP
GTIN: 4052899914636
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- VDE/VDE EMC certified system
- V(λ) corrected light sensor element
- Individual activation/deactivation of light and presence sensor via remote control
- Presence detection angle adjustable between 40…90° via integrated shutters
Areas of application
- Corridors
- Office luminaires
- Classrooms
- Ceiling installation via LS/PD CI KIT or LS/PD AP KIT possible
Product features
- Light and presence sensor
- Presence detection via passive IR element
- Function indicator with two-color LED
- Integrated infrared remote control receiver
- Halogen free polycarbonate plastic housing
- Connection via polarity reversal protected 4p4c socket (RJ10)
Electrical data
| Nominal voltage | 5 V |
| Mains frequency | 0 Hz |
Dimensions & Weight
| Length | 48.00 mm |
| Width | 15.00 mm |
| Height | 17.00 mm |
| Product weight | 33.00 g |
Colors & materials
| Product color | Grey |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
Capabilities
| Dimmable | No |
| Maximum installation height | 5 m |
| Detection area | 7 m 1) |
| Detection angle | 80 ° 2) |
| Type of installation | Luminaire integration |
| Operating range, light sensor | 20…800 lx |
1) Maximum diameter
2) Approximately
2) Approximately
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899914636 | Folding box 1 |
160 mm x 35 mm x 40 mm | 59.00 g | 0.22 dm³ |
| 4052899914643 | Shipping box 25 |
223 mm x 197 mm x 179 mm | 1706.00 g | 7.86 dm³ |
User instruction / safety instructions

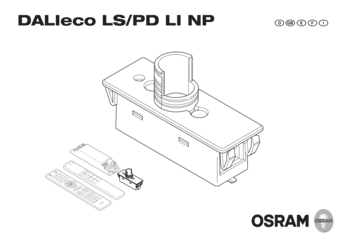

506814_DALIeco LS/PD NP manual
506814_DALIeco LS/PD NP manual
Declarations of conformity
505227_CE Declaration DALIeco system
505227_CE Declaration DALIeco system
Declarations of conformity
EU Declaration of Conformity 2019_9C1_2874588_EN_09
EU Declaration of Conformity 2019_9C1_2874588_EN_09
Product image: white background, diagonal
338474_DALIeco LS/PD LI (EN)
338474_DALIeco LS/PD LI (EN)
Product line drawing with letters
332605_DALIeco Sensor LI
332605_DALIeco Sensor LI
Product line drawing, front, no dimensions
332604_DALIeco Sensor LI
332604_DALIeco Sensor LI
| EAN | STK number | ELDAS number |
|---|---|---|
| 4052899914636 | 2612542 | 941902430 |
