LUXeye Sense DALI BT
LUXeye Sense DALI BT
GTIN: 4052899957411
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Automatic start of light regulation after power-on (out of the box function)
- Basic functionality without configuration thanks to applied pre-settings
- Easy and fast customization of important parameter via screwdriver
- V(λ) corrected light sensor element
- Predefined and customizable configurations for all applications
- Password protection for user and configuration APP access
- Easy report generation of all commissioned sensors
- Easy report sharing via email
- DEMO Mode usable without device
Areas of application
- Offices
- Conference rooms
- Training rooms
- Corridors
- Surface mounting via LUXeye SENSE CM KIT
Product features
- One DALI broadcast output channel
- Daylight-dependent regulation and presence-dependent control of light
- Operation via standard pushbutton
- Outputs with electronical reversible short-circuit and overload protection
- Change of delay time with screwdriver direct at the sensor
- Change of lighting intensity with screwdriver direct at the sensor
- Halogen free polycarbonate plastic housing
- Controller with integrated light and presence sensor, DALI output channel
- Presence detection via passive IR element
- Light control with app connection via Bluetooth
- Light control via smart phone
- Adjustment of all settings via smartphone
- Individual activation and deactivation of light and presence sensor
- Function indicator with three color LED
- Various shutters included for different detection areas
Equipment / Accessories
- Suitable for up to 20 electronic control gears
- Free App for iOS and Android
Electrical data
| Nominal wattage | 0.40 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
Dimensions & Weight
| Length | 90.00 mm |
| Width | 90.00 mm |
| Height | 81.00 mm |
| Diameter | 95,0 mm |
| Product weight | 144.00 g |
Colors & materials
| Product color | White |
Temperatures & operating conditions
| Ambient temperature range | 0…+55 °C |
Additional product data
| Number of control outputs | 20 |
| Number of connectable sensors | 3 |
| Max. connectable push button couplers / sensors | 3 |
| Commissioning App | App (Android/ iOS) |
| Groups | 1 |
Capabilities
| Dimmable | No |
| Dimming interface | DALI |
| Overheating protection | Yes |
| Number of control outputs | 20 |
| Maximum installation height | 5 m |
| Detection area | 10 m 1) |
| Detection angle | 110 ° |
| Type of installation | Ceiling integration |
| Transmitter range | 15 m |
| Operating range, light sensor | 20…5000 lx 2) |
1) Diameter for movement detection at 5 m installation high
2) Approximately, measured at the sensor
2) Approximately, measured at the sensor
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899957411 | Folding box 1 |
160 mm x 125 mm x 90 mm | 240.00 g | 1.80 dm³ |
| 4052899957459 | Shipping box 12 |
495 mm x 265 mm x 192 mm | 3153.00 g | 25.19 dm³ |
User instruction / safety instructions
728511_LUXeye Sense DALI BT User Instruction
728511_LUXeye Sense DALI BT User Instruction
Declarations of conformity
9C1-3433399-EN-01 LUXEYE SENSE (EN)
9C1-3433399-EN-01 LUXEYE SENSE (EN)
Declarations of conformity
727945_Declaration of conformity LUXeye Sense
727945_Declaration of conformity LUXeye Sense

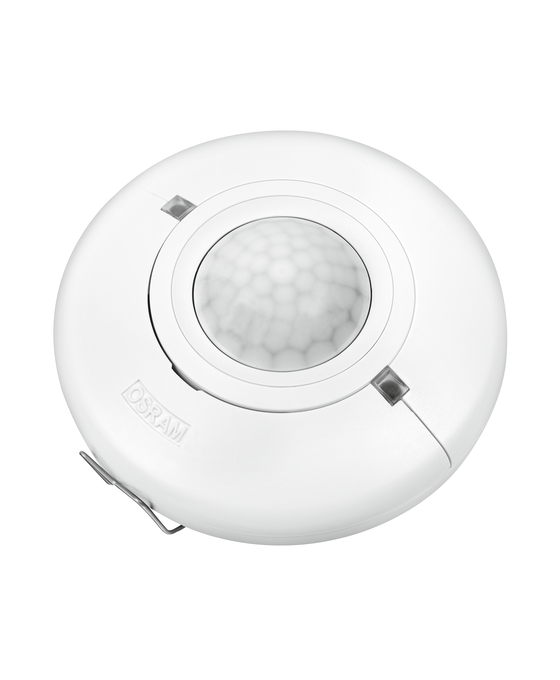

Product image: white background, horizontal
724949_LUXeye Sense DALI BT
724949_LUXeye Sense DALI BT
Product image: white background, upright, OSRAM logo
662665_Luxeye Sense DALI BT
662665_Luxeye Sense DALI BT

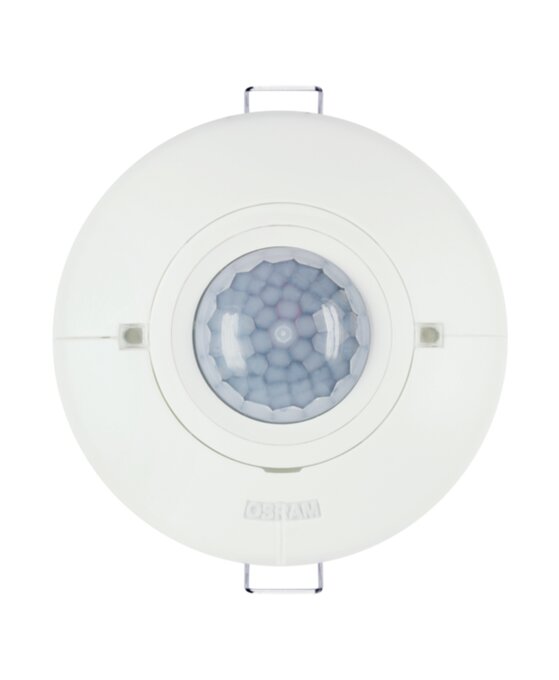

Product image: white background, upright
LUXeye Sense DALI BT
LUXeye Sense DALI BT
Product line drawing with letters
725099_LUXeye Sense DALI BT
725099_LUXeye Sense DALI BT
Product line drawing with numbers
725097_LUXeye Sense DALI BT
725097_LUXeye Sense DALI BT
Product line drawing, front, no dimensions
725102_LUXeye Sense DALI BT
725102_LUXeye Sense DALI BT
Product line drawing - technical
Luxeye Sense CAD2PDF 111119
Luxeye Sense CAD2PDF 111119
CAD STEP 3D
Luxeye Sense STEP 111119
Luxeye Sense STEP 111119
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4052899957411 | 7985230 | 2612557 | 1400036 | 919007400 |
