DALI ACU BT

DALI ACU BT

GTIN: 4052899544819 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Control the light via Smartphone
  • Adjustment of all settings via smartphone
  • Plug and Play: Basic features usable without App
  • Simplified startup thanks to predefined operation modes
  • Intuitive manual dimming, switching and changing of colour temperature
  • Up to 4 groups separatly controllable
  • Adjustable Offset for different groups
  • Easy Scene creation via App
  • Scene-recall via OSRAM DALI PRO PB coupler possible
  • Firmware update over-the-air via Bluetooth possible
  • Integrated DALI supply
  • Control of standard white or Tunable White light acc. DALI device type 8 (DT8)*
  • Selected DALI parameters changeable via APP
Areas of application
  • Offices
  • Conference rooms
  • Training rooms
  • Classrooms
  • Corridors
  • Shop lighting
Product features
  • Compact light control with DALI interface
  • Smart phone connection via Bluetooth to control and configure
  • One DALI output channel (Broadcast or Groupcast)
  • Up to 32 DALI luminaires connectable
  • Supports up to 4 OSRAM DALI sensors and pushbutton couplers
  • Daylight-dependent regulation and presence-dependent control of light
  • Separate pushbutton input to operate via standard pushbutton
  • Supports DALI DT8 Tunable White driver
  • Outputs with electronical reversible overtemperature, short-circuit, overload protection
  • Length of the DALI control cable: up to 300 m
  • Length of the pushbutton cable: up to 50 m
  • Suitable for flush box mounting
Equipment / Accessories
  • Free App for iOS and Android available at the app store
Electrical data
Nominal wattage 3.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Operating frequency 50/60 Hz
Dimensions & Weight
Length 49 mm
Width 48.00 mm
Height 22.00 mm
Product weight 40.00 g
Colors & materials
Product color Light grey
Temperatures & operating conditions
Ambient temperature range -20…+60 °C
Additional product data
Number of control outputs 1
Number of connectable sensors 4
Max. connectable push button couplers / sensors 4
Commissioning App App (Android/ iOS)
Groups 4
Capabilities
Dimmable No
Dimming interface DALI
Number of control outputs 1
Type of installation Luminaire integration/Integrated in flush device box
Transmitter range 15 m
Certificates & Standards
Approval marks – approval CE
Protection class II
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899544819 Folding box
1		 81 mm x 81 mm x 46 mm 57.00 g 0.30 dm³
4052899544826 Shipping box
60		 344 mm x 254 mm x 278 mm 3847.00 g 24.29 dm³
User instruction / safety instructions
DALI ACU BT Control
PDF (1.6 MB)
Extended installation guide
DALI ACU BT Control
PDF (2.09 MB)
Declarations of conformity
DALI ACU BT
PDF (1.14 MB)
Certificates
VDE
PDF (287.97 KB)

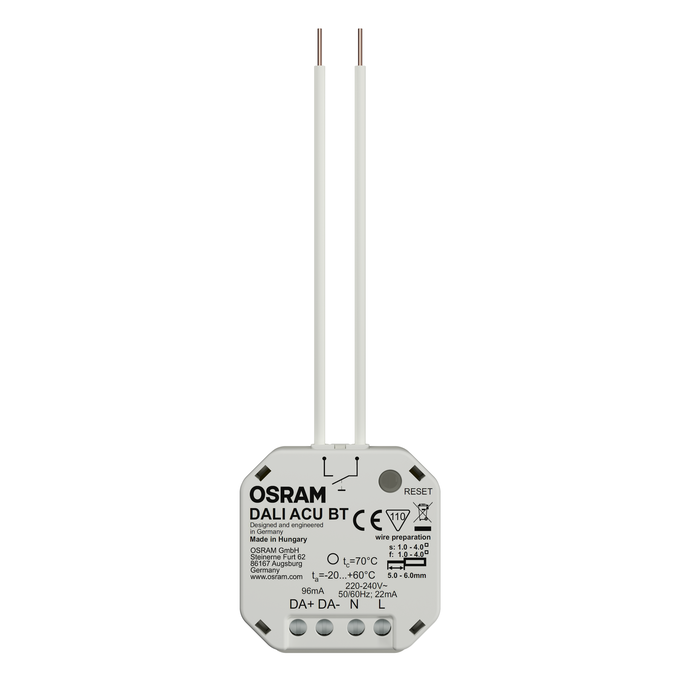

Product image: white background, diagonal
DALI ACU BT CONTROL
TIF (26.17 MB)
Product image: white background, upright
DALI ACU BT CONTROL
TIF (26.17 MB)
Product line drawing with letters
DALI ACU BT CONTROL
SVG (15.61 KB)
Product line drawing with numbers
DALI ACU BT CONTROL
SVG (15.53 KB)
EAN SEG number ELDAS number
4052899544819 7985266 919000080
