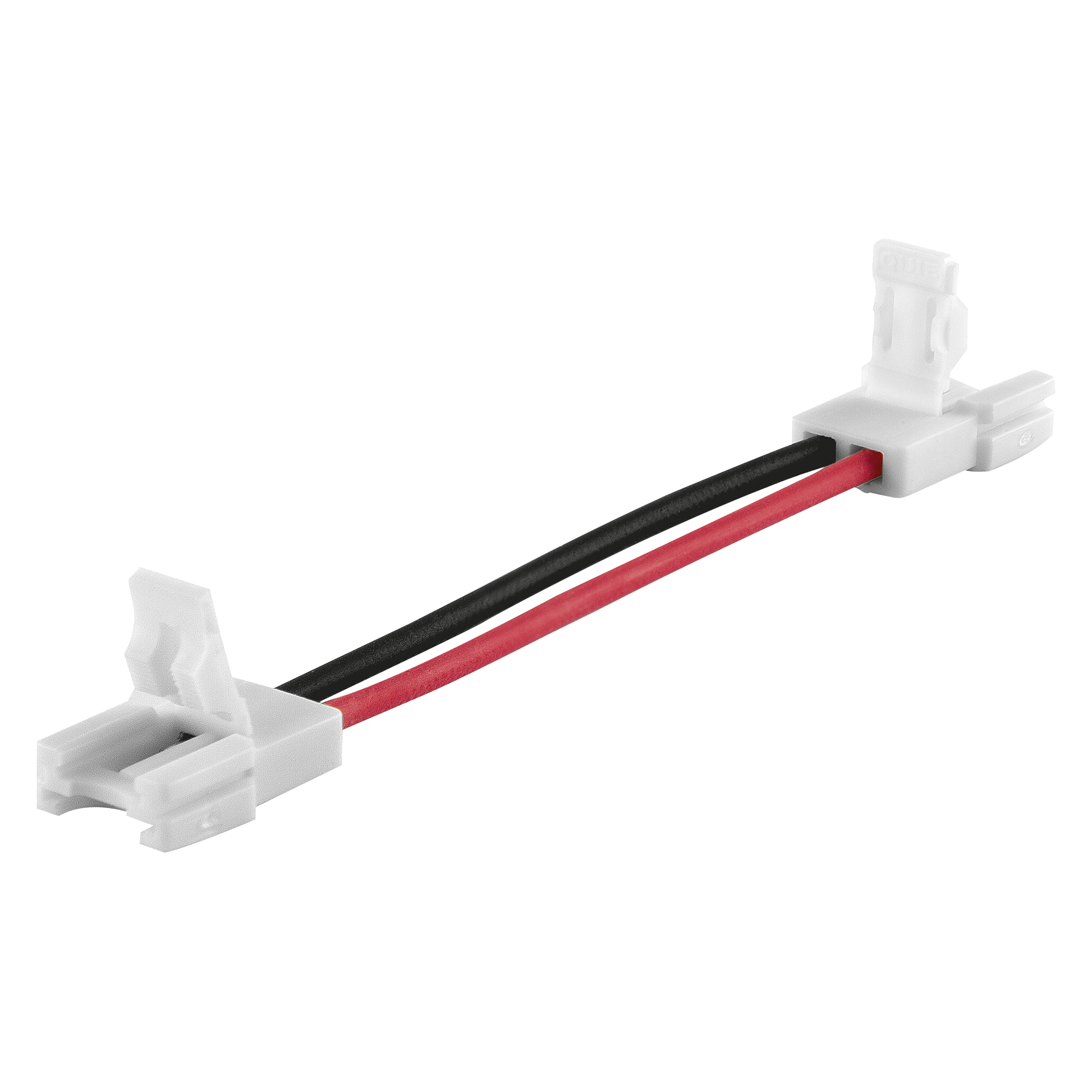

LS AY -CSW/P2/50

GTIN: 4058075727434 BAG / 2 Show all packages

Nominal voltage	24 V
Nominal current	5000 mA

Length	82 mm
Cable length	50 mm
Width	10.5 mm
Height	4.5 mm
Cable cross-section, input side	0.5 mm²
Product weight	4.00 g

Product color

White

Ambient temperature range

-20…+55 °C

Type of protection

IP00

Temperature range at storage

-20…+80 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075727434	BAG 2	80 mm x 120 mm x 5 mm	9.00 g	0.05 dm³
4058075727441	Shipping box 100	180 mm x 100 mm x 180 mm	529.00 g	3.24 dm³
4058075727458	Shipping box 1,000	520 mm x 380 mm x 210 mm	6058.00 g	41.50 dm³
