Connectors for LED Strips Performance Class

LS AY PFM -10/SE/P SIL-SEAL

GTIN: 4058075275744 BAG / 4 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy installation of connector, no manual wiring required
  • Tool-free installation
Areas of application
  • General indoor illumination
Dimensions & Weight
Length 12 mm
Width 6.5 mm
Height 10.0 mm
Product weight 3.00 g
Colors & materials
Product color Transparent
Temperatures & operating conditions
Ambient temperature range -15…+45 °C
Temperature range in operation -15…+45 °C
Certificates & Standards
Type of protection IP00
LOGISTICAL DATA
Temperature range at storage -35…+85 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075275744 BAG
4		 80 mm x 120 mm x 5 mm 13.00 g 0.05 dm³
4058075275751 Shipping box
200		 180 mm x 100 mm x 180 mm 729.00 g 3.24 dm³
4058075275768 Shipping box
2,000		 520 mm x 380 mm x 210 mm 8057.00 g 41.50 dm³

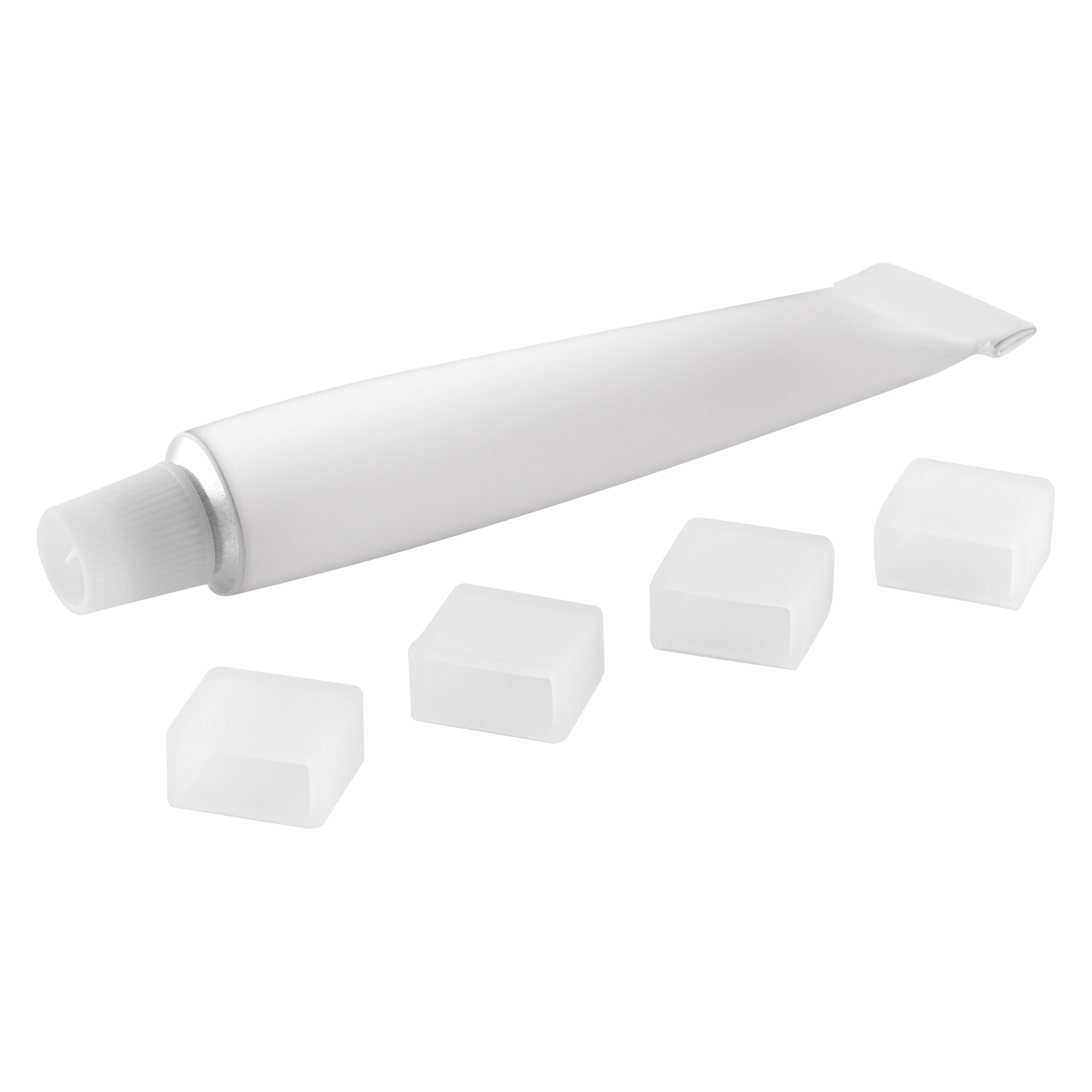

Product image: white background, diagonal
LS AYPFM-10/12/SE/IP66
JPG (1.05 MB)
Product line drawing with letters
LS AYPFM-10/12/SE/IP66
SVG (18.25 KB)
Product line drawing, front, no dimensions
LS AYPFM-10/12/SE/IP66
SVG (12.66 KB)
EAN SEG number STK number EFO number ELDAS number
4058075275744 7507140 4266636 3254340 941901870
