CV Dimmers with DALI
OTi DALI DIM 1-4CH D
GTIN: 4062172166010
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very precise dimming thanks to digital light control
Areas of application
- Suitable for indoor installations
- Separate installation (ceiling mounting)
Product features
- Intelligent digital dimmer (DALI) with constant output voltage
- Dimming range: 0…100 %
- Device fits also for special applications where dimming below 1 % is required
Electrical data
| Nominal wattage | 120.00 W |
| Nominal output power | 240 W |
| Nominal voltage | 12…48 V |
| Nominal output voltage | 12…48 V |
| Mains frequency | 0 Hz |
| Galvanic isolation | SELV |
Dimensions & Weight
| Length | 181.00 mm |
| Mounting hole spacing, length | 175.5 mm |
| Width | 42.00 mm |
| Height | 20.00 mm |
| Cable cross-section, input side | 0,5…2,5 mm² |
| Cable cross-section, output side | 0,5…2,5 mm² |
| Product weight | 86.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 60 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 50000 h |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Dimming range | 0.1…100 % |
| Overheating protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| No-load proof | Yes |
| Suitable for fixtures with prot. class | I, II |
| Type of connection, output side | Screw terminal |
Certificates & Standards
| Approval marks – approval | CE, EAC, RCM, ENEC 05 |
| Standards | Acc. to EC 61347-2-13, Acc. to EN 62384, Acc. to EN 55015, Acc. to EN 61547 |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172166010 | Unpacked 1 |
86.00 g | ||
| 4062172166027 | Shipping box 20 |
229 mm x 197 mm x 133 mm | 2088.00 g | 6.00 dm³ |
User instruction / safety instructions
21136688 OTi DALI DIM 1 4CH D UI
21136688 OTi DALI DIM 1 4CH D UI
Declarations of conformity
OTI DALI DIM 1-4CH D
OTI DALI DIM 1-4CH D

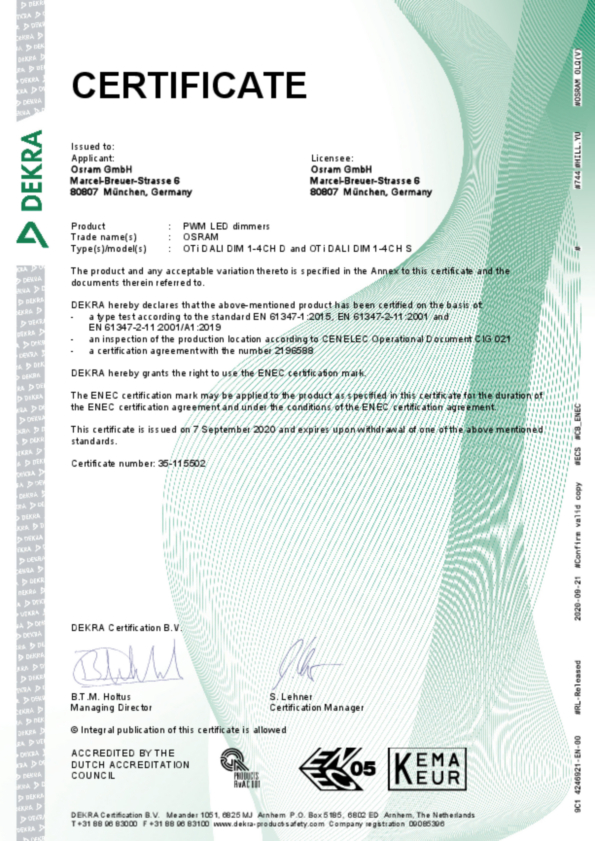

Certificates
OTi DALI DIM 1-4CH D
OTi DALI DIM 1-4CH D
EU Data Act
Connected Products and Related Software and Services
Connected Products and Related Software and Services

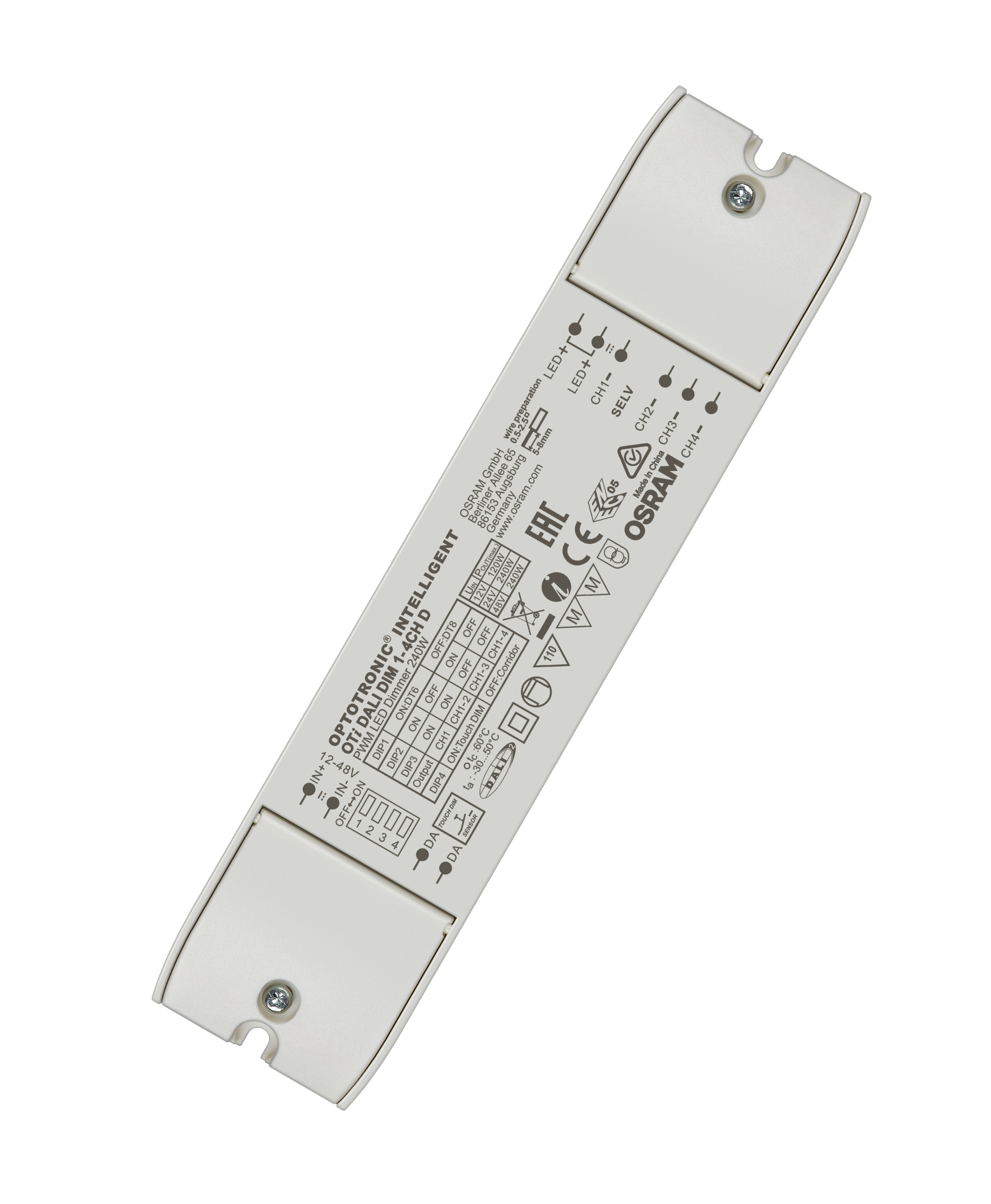

Product image: white background, diagonal
16605908 OTI DALI DIM 1-4CH D
16605908 OTI DALI DIM 1-4CH D

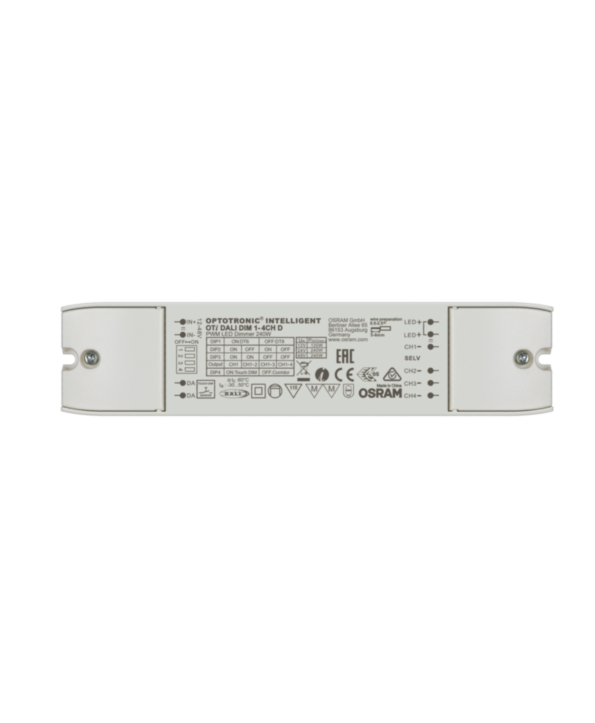

Product image: white background, horizontal
OTi DALI DIM 1-4CH D
OTi DALI DIM 1-4CH D

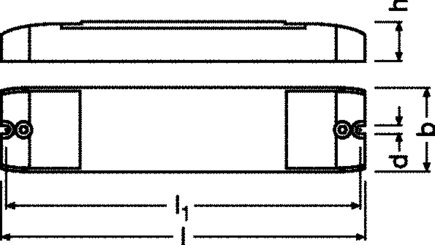

Product line drawing with letters
OTi DALI DIM 1-4CH D
OTi DALI DIM 1-4CH D
Product line drawing with numbers
20768774 Line drawing of OTI DALI DIM 1-4CH D
20768774 Line drawing of OTI DALI DIM 1-4CH D
Product line drawing with numbers
20768775 Line drawing of OTI DALI DIM 1-4CH D
20768775 Line drawing of OTI DALI DIM 1-4CH D
| EAN | SEG number | EFO number | ELDAS number |
|---|---|---|---|
| 4062172166010 | 7985389 | 6603412 | 919492350 |
