POWERTRONIC INTELLIGENT PTi I
PTi 150/220…240 I
GTIN: 4008321915535
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Extended terminal section enables mains looping
- Screw-down cable clamps for reliable strain relief
- Long reliable life at maximum permitted temperatures
- Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Areas of application
- Shop lighting
- Health and fitness areas (in luminaires with protection class IP66 or higher)
- Effect and accent lighting
Product features
- Energy Efficiency Index EEI: A2
- Supply voltage: 220…240 V
- Line frequency: 50…60 Hz
- RI suppression: to EN 55015/CISPR 15
- Safety: to EN 61347-2-12
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
Safety advice
Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.Attention! For safety reasons disconnect the device before replacing the lamp!
Electrical data
| Nominal wattage | 160.00 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 250 V |
| Input voltage AC | 198…254 V |
| U-OUT (working voltage) | 250 V |
| Type of current | AC |
| Inrush current | 70 A 1) |
| Mains frequency | 50/60 Hz |
| Power factor λ | 0.95 2) |
| ECG efficiency | 92 % |
| Max. ECG no. on circuit breaker 10 A (B) | 4 3) |
| Max. ECG no. on circuit breaker 16 A (B) | 7 3) |
| Operating frequency | 0.165 kHz |
1) twidth = 250 µs (measured at 50 % Ipeak)
2) Minimum
3) Type B
2) Minimum
3) Type B
Dimensions & Weight
| Length | 212.00 mm |
| Mounting hole spacing, length | 203,0 mm |
| Width | 93.00 mm |
| Height | 33.00 mm |
| Cable cross-section, input side | 0,75…2,5 mm² |
| Cable cross-section, output side | 0,75…2,5 mm² |
| Wire preparation length, input side | 10…11 mm |
| Wire preparation length, output side | 10…11 mm |
| Product weight | 420.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -25…+50 °C |
| Maximum temperature at tc test point | 75 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 40000 h 1) |
1) At maximum Tc / 10% failure rate
Capabilities
| Dimmable | No |
| Overheating protection | Power reduction and switch off at T > 75 °C at the tc point |
| Max. cable length to lamp/LED module | 1,5 m |
| Suitable for fixtures with prot. class | I |
| Suitable for emergency lighting | No |
Certificates & Standards
| Approval marks – approval | ENEC 10, VDE, VDE-EMC, EAC, C-Tick |
| Standards | Acc. to EN 61347-2-12, Acc. to EN 55015, Acc. to EN 61000-3-2, Acc. to EN 61547, Acc. to EN 62493 |
| Protection class | I |
| Type of protection | IP20 |
| Energy efficiency class | A2 |
| EEI – Energy Label | A2 |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321915535 | Unpacked 1 |
205 mm x 91 mm x 33 mm | 420.00 g | 0.62 dm³ |
| 4008321915542 | Shipping box 20 |
488 mm x 100 mm x 453 mm | 9440.00 g | 22.11 dm³ |
User instruction / safety instructions
334206_Technical guide - POWERTRONIC for HID-lamps (GB)
334206_Technical guide - POWERTRONIC for HID-lamps (GB)
User instruction / safety instructions
590731_EAC - PTI I / PT-FIT I
590731_EAC - PTI I / PT-FIT I
Declarations of conformity
339884_Tender Document for POWERTRONIC EVG.eng
339884_Tender Document for POWERTRONIC EVG.eng
Declarations of conformity
VD EMC Certificate 40025469
VD EMC Certificate 40025469
Declarations of conformity
EU Declaration of Conformity 3363432
EU Declaration of Conformity 3363432
Certificates
554891_EAC PT family
554891_EAC PT family
Certificates
VDE ENEC Certificate 40035813
VDE ENEC Certificate 40035813
Product image: white background, diagonal
721407_PTI 150/220-240 I
721407_PTI 150/220-240 I

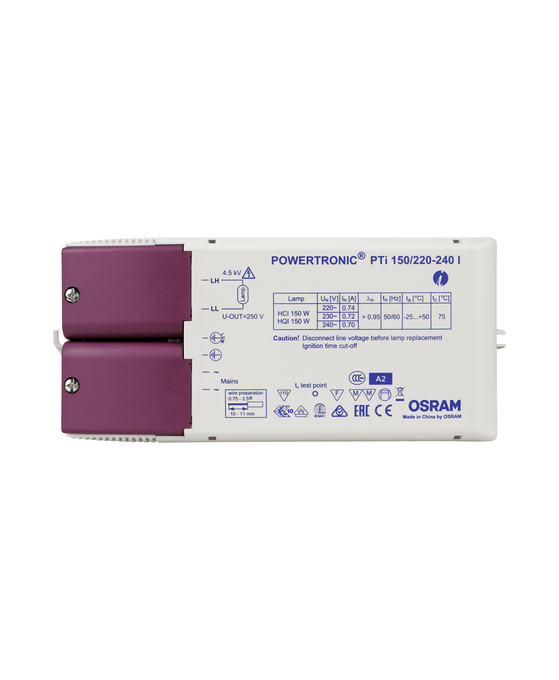

Product image: white background, horizontal
