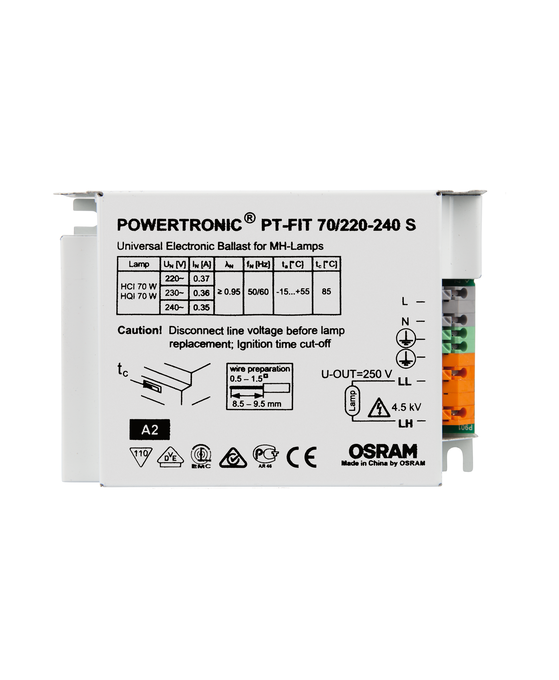

PT-FIT 70/220…240 S

GTIN: 4008321386649 Unpacked / 1 Show all packages

Optimized cost/benefit factor
Compact dimensions and low weight for small luminaire designs
Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)

Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t_c of the ECG does not exceed the maximum value.
Attention! For safety reasons disconnect the device before replacing the lamp!

Nominal wattage	80.00 W
Nominal voltage	220…240 V
Nominal output voltage	250 V
Input voltage AC	198…264 V
U-OUT (working voltage)	250 V
Type of current	AC
Inrush current	45 A ¹⁾
Mains frequency	50/60 Hz
Power factor λ	0.95 ²⁾
ECG efficiency	92 %
Max. ECG no. on circuit breaker 10 A (B)	7 ³⁾
Max. ECG no. on circuit breaker 16 A (B)	13 ³⁾
Operating frequency	0.200…0.240 kHz

¹⁾ t_width = 250 µs (measured at 50 % I_peak)
²⁾ Minimum
³⁾ Type B

Length	110.00 mm
Mounting hole spacing, length	99,0 mm
Width	75.00 mm
Height	30.00 mm
Cable cross-section, input side	0,5…1,0 mm², 0.5…1.5 mm² ¹⁾
Cable cross-section, output side	0,5…1,0 mm², 0.5…1.5 mm² ¹⁾
Wire preparation length, input side	8.5…9.5 mm
Wire preparation length, output side	8.5…9.5 mm
Product weight	250.00 g

¹⁾ With ferrule / Without ferrule

Casing material	Metal
Body material	Metal

Ambient temperature range	-15…+55 °C
Maximum temperature at tc test point	85 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

30000 h ¹⁾

¹⁾ At maximum T_c / 10% failure rate

Dimmable	No
Overheating protection	Power reduction and switch off at T > 85 °C at the tc point
Max. cable length to lamp/LED module	1,5 m
Suitable for fixtures with prot. class	I
Suitable for emergency lighting	No

Approval marks – approval	VDE, VDE-EMC, EAC, C-Tick
Standards	Acc. to EN 61347-2-12, Acc. to EN 55015, Acc. to EN 61000-3-2, Acc. to EN 61547
Protection class	I
Type of protection	IP20
Energy efficiency class	A2
EEI – Energy Label	A2

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
