Low-voltage halogen lamps, road traffic
SIG 64016
GTIN: 4099854217746
BAG / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low-voltage halogen lamps, therefore particularly high luminous flux
- Almost point-like light source for optimum focusing
- Virtually constant luminous flux throughout the life of the lamp
- Extremely long life compared to conventional lamps
Areas of application
- Road traffic signalling systems
Safety advice
Operating instructions All halogen signal lamps operate at high temperature and pressure. They may therefore only be operated in signal equipment/luminaires specially designed for the purpose. Make sure that the lamps are protected against moisture during operation and in particular during relamping. When installing a new lamp, handle it by its protective cardboard sleeve.
Electrical data
| Nominal wattage | 50 W |
| Construction wattage | 50.00 W |
| Nominal voltage | 12 V |
Photometrical data
| Luminous flux | 900 lm |
| Luminous efficacy | 18 lm/W |
| Color rendering index Ra | 100 |
| Light color | 10 |
Light technical data
| Starting time | 0 s |
Dimensions & Weight
| Overall length | 44.00 mm |
| Diameter | 12.00 mm |
| Product weight | 2.21 g |
Lifespan
| Lifespan L70/B50 at 25 °C | 4000 h |
Additional product data
| Base (standard designation) | GY6.35 |
| Mercury content | 0.0 mg |
Country-specific categorizations
| Order reference | SIG 64016 CL 50 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | GY6.35 |
| Length | 44.00 mm |
| Height | 12.00 mm |
| Width | 12.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854217746 | BAG 1 |
27 mm x 27 mm x 61 mm | 4.21 g | 0.04 dm³ |
| 4099854217753 | Folding box 150 |
331 mm x 156 mm x 62 mm | 704.50 g | 3.20 dm³ |
| 4099854217760 | Shipping box 900 |
486 mm x 349 mm x 138 mm | 4406.00 g | 23.41 dm³ |
Product datasheet -> old version of product
SIG64016en
SIG64016en

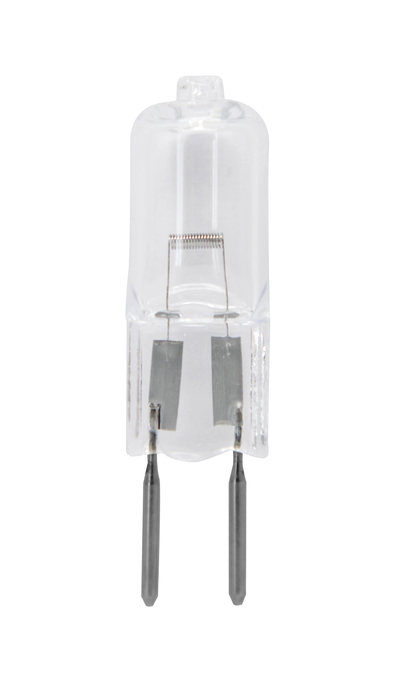

Product image: white background, diagonal
Halogen Quartz GY6.35
Halogen Quartz GY6.35
Product image: white background, upright
Halogen Quartz GY6.35
Halogen Quartz GY6.35
Product line drawing with letters
820_LOW-VOLTAGE HALOGEN LAMPS FOR ROAD TRAFFIC EQUIPMENT
820_LOW-VOLTAGE HALOGEN LAMPS FOR ROAD TRAFFIC EQUIPMENT
Product line drawing, front, no dimensions
15291_LOW-VOLTAGE HALOGEN LAMPS FOR ROAD TRAFFIC EQUIPMENT
15291_LOW-VOLTAGE HALOGEN LAMPS FOR ROAD TRAFFIC EQUIPMENT
| EAN | UK Org |
|---|---|
| 4099854217746 | 436487297 |
